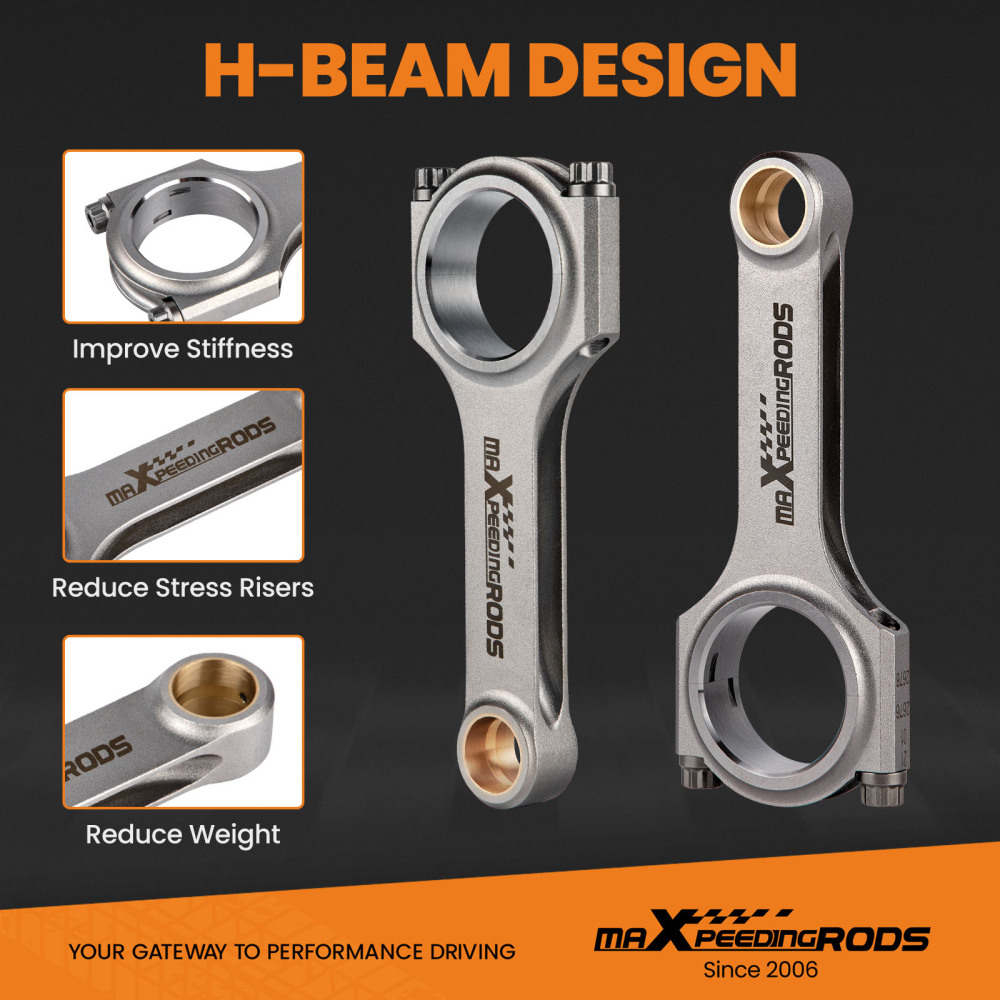

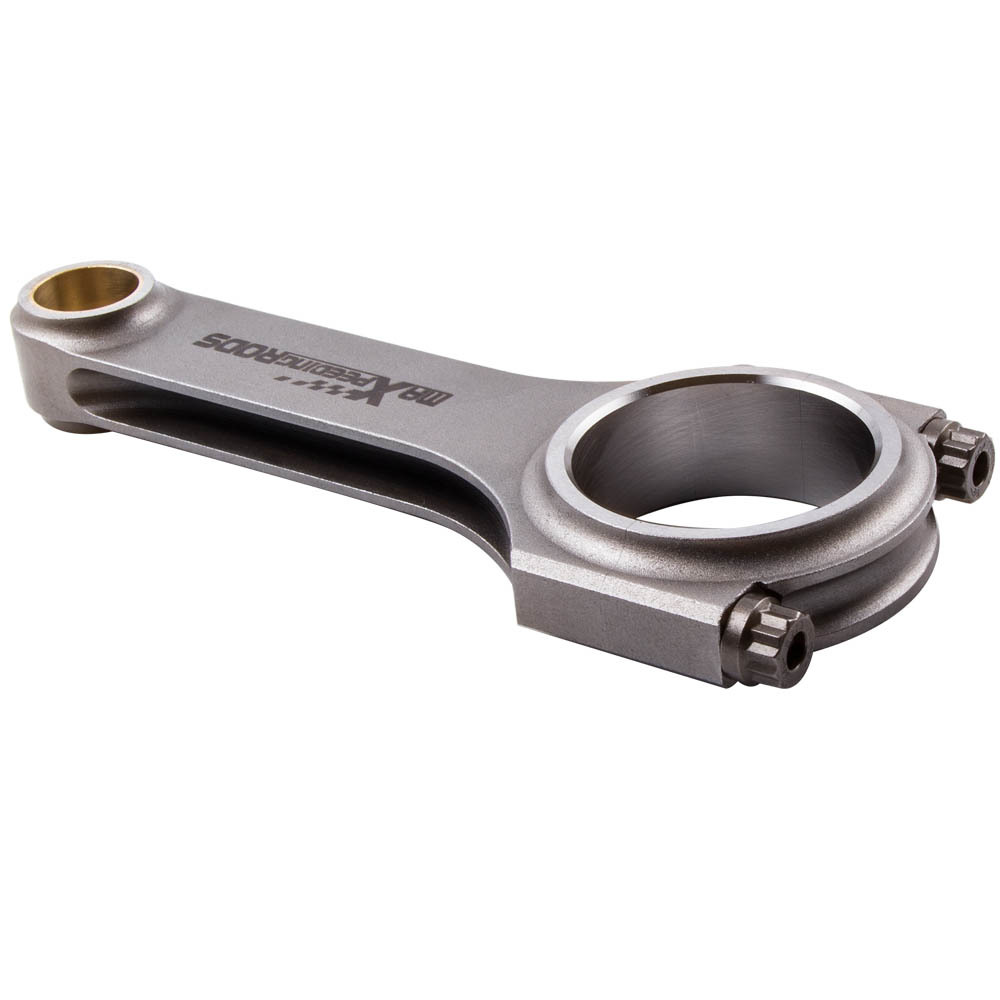

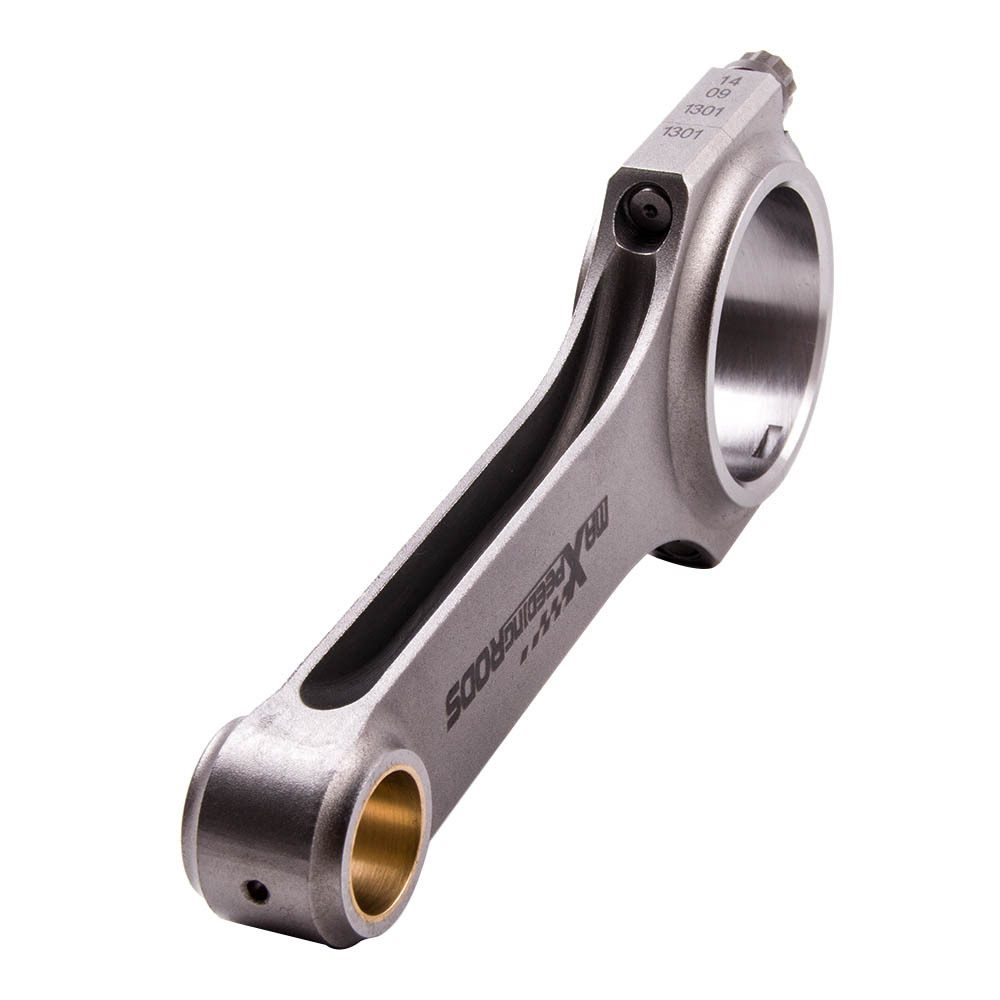

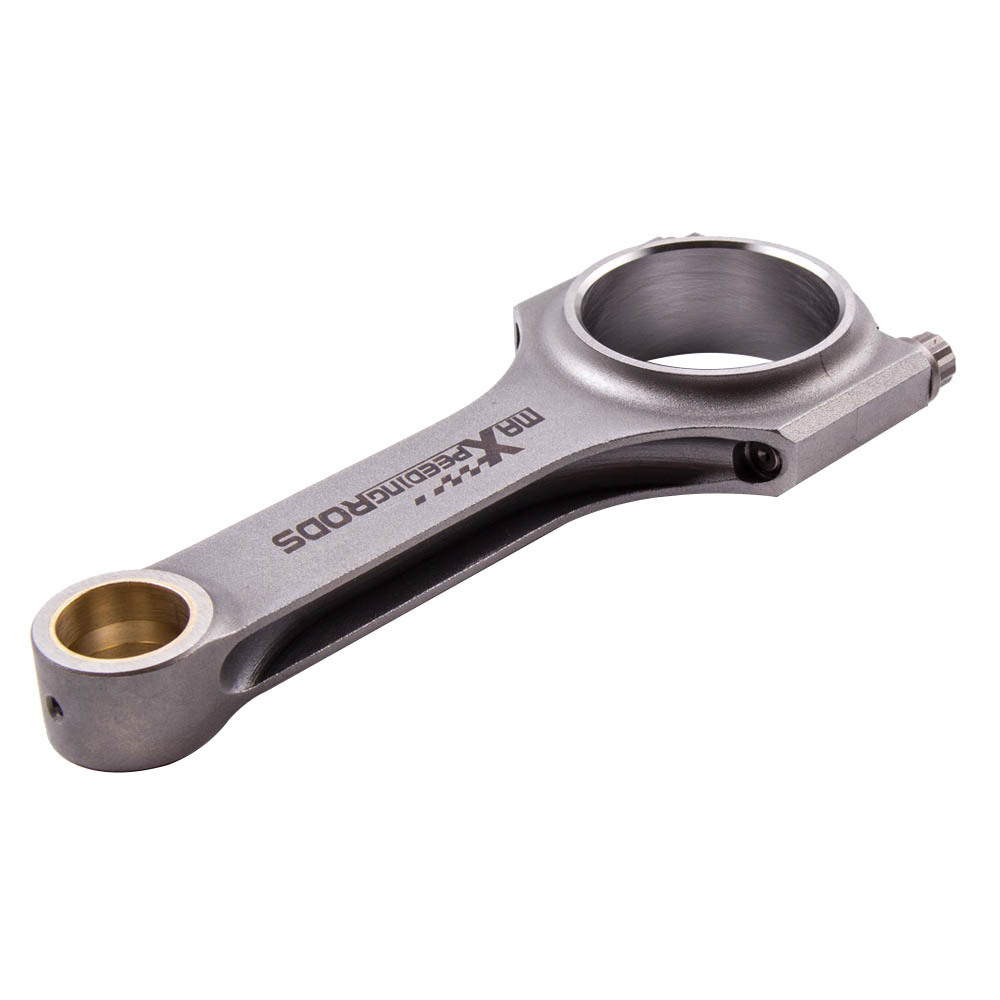

- * 1.H-Beam con rods compatible for Ford Sierra Cosworth YB Pinto 2.0

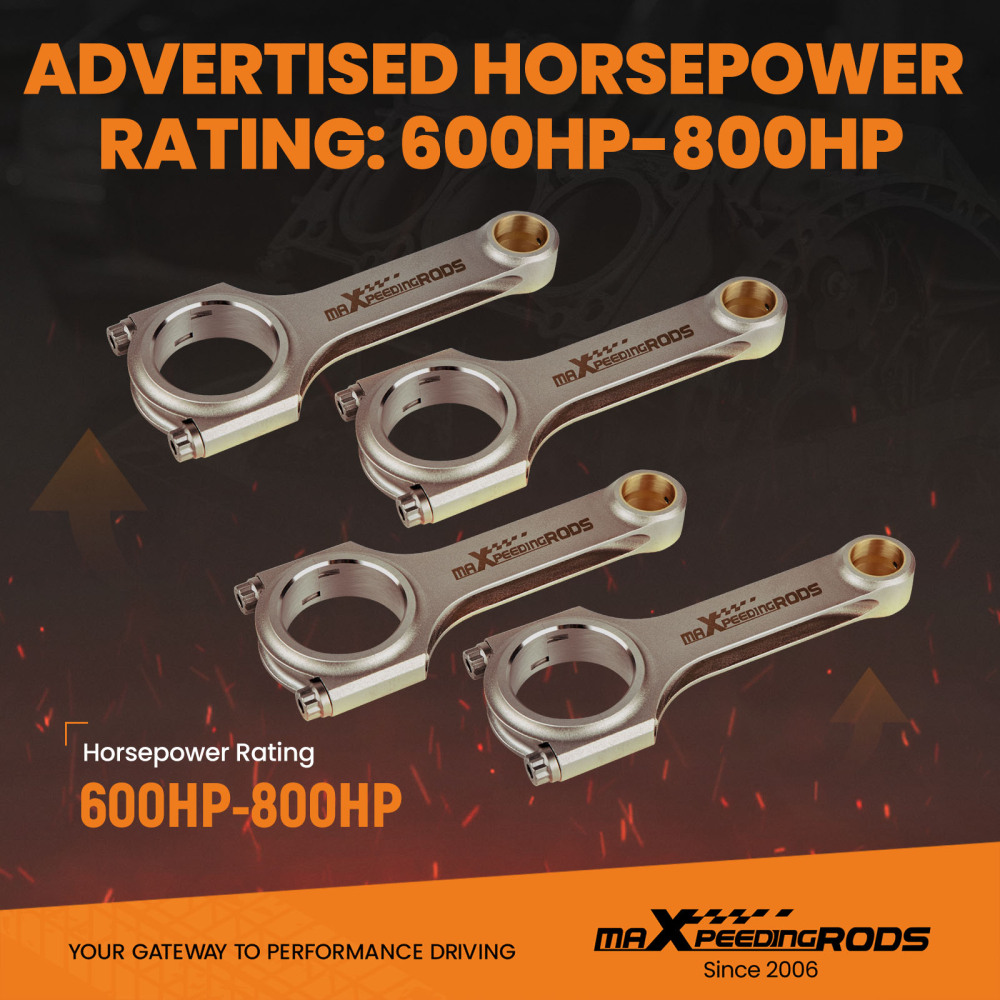

- * 2.Advertised Horsepower Rating: 600~800HP

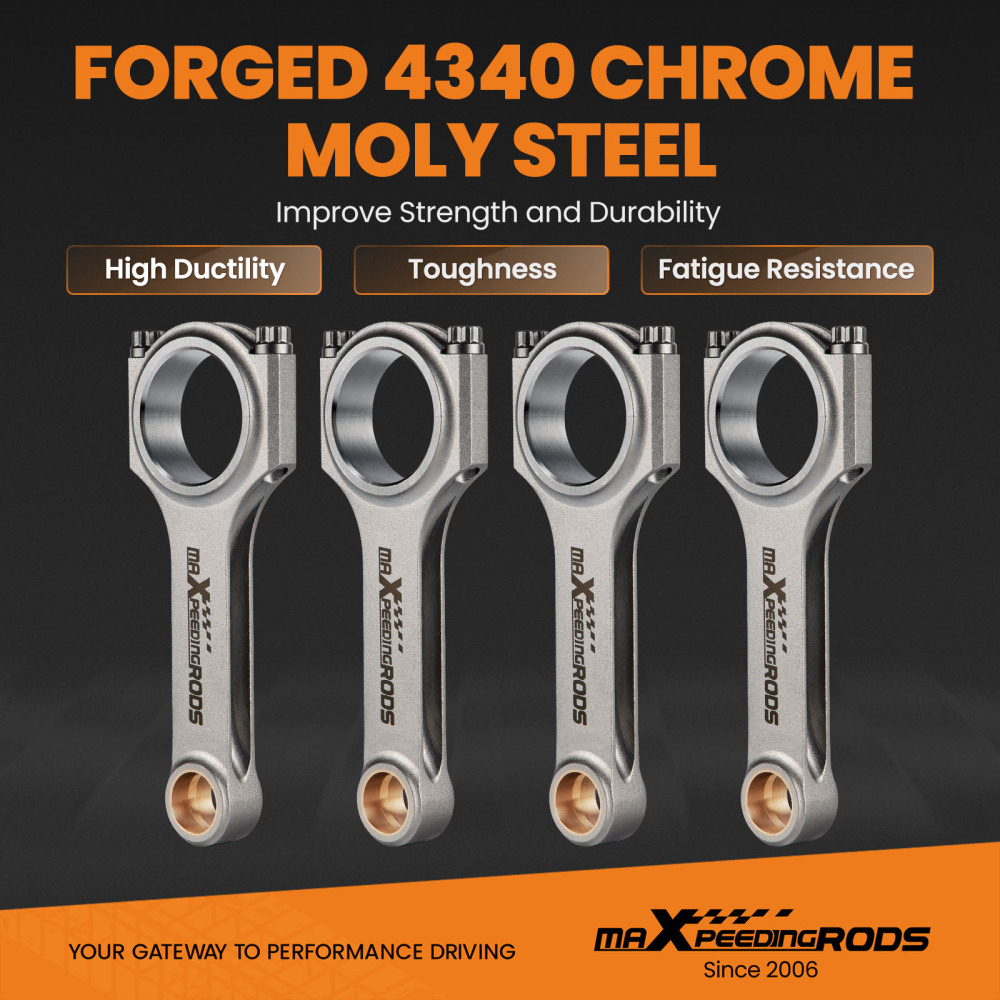

- * 3. Forged 4340 EN24 aircraft chrome moly quality steel
- * 4.Dimensions: Center to center length: 128.3mm;Big end diameter: 55mm;Small end diameter: 24mm;Big end width: 25.8mm;Small end width: 25.8mm
- * 5.Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
- * 6.Performance Con Rods
- * 7.Advertised RPM Rating: 7000-9000 rpm
- * 8. Fastener Tensile Strength (psi):200,000 - 230,000 psi

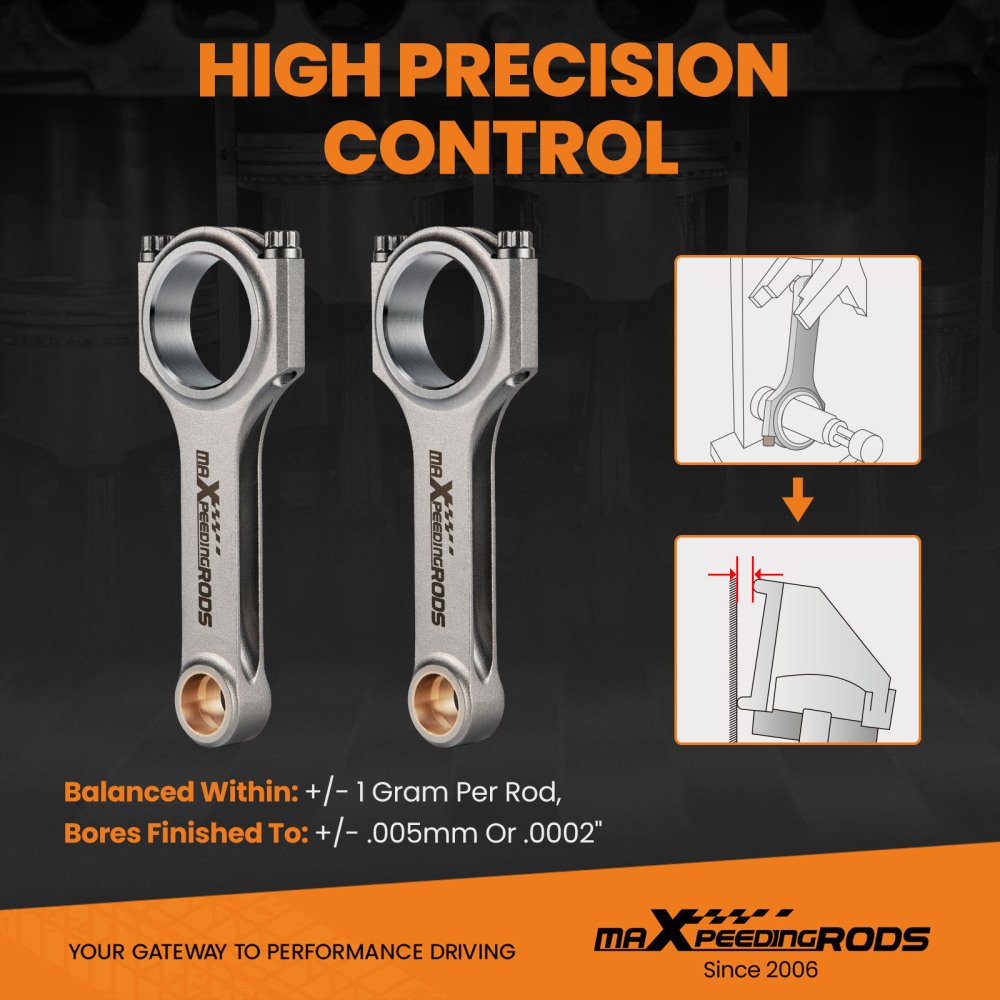

- * 9.Balanced to within +/- 1 gram per end
- * 10.The big end bores are honed to a +/-.01mm tolerance
- * 11.Heat-treating & Shot-peened for remained consistent and strong
Compatible for Ford Sierra Cosworth YB Pinto 2.0
Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

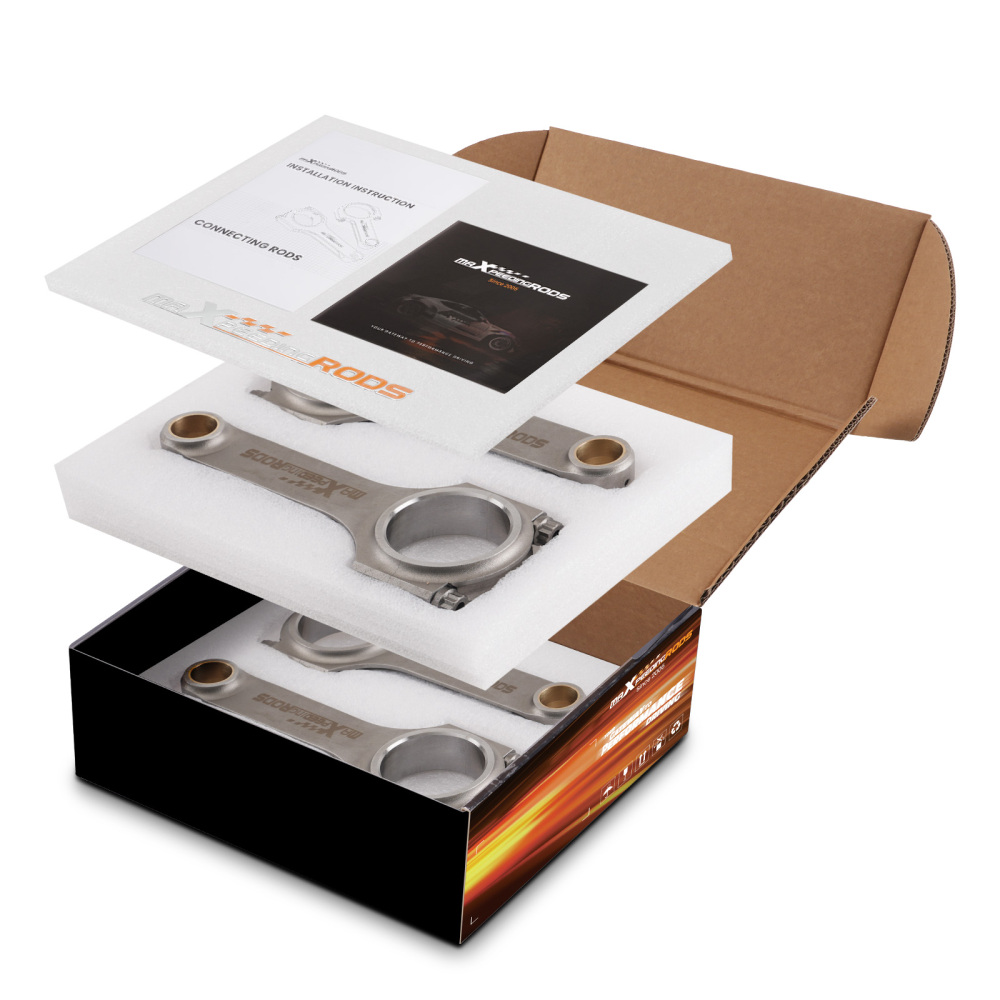

H-beam Conrods Quantity: 4 Pieces as showing in picture

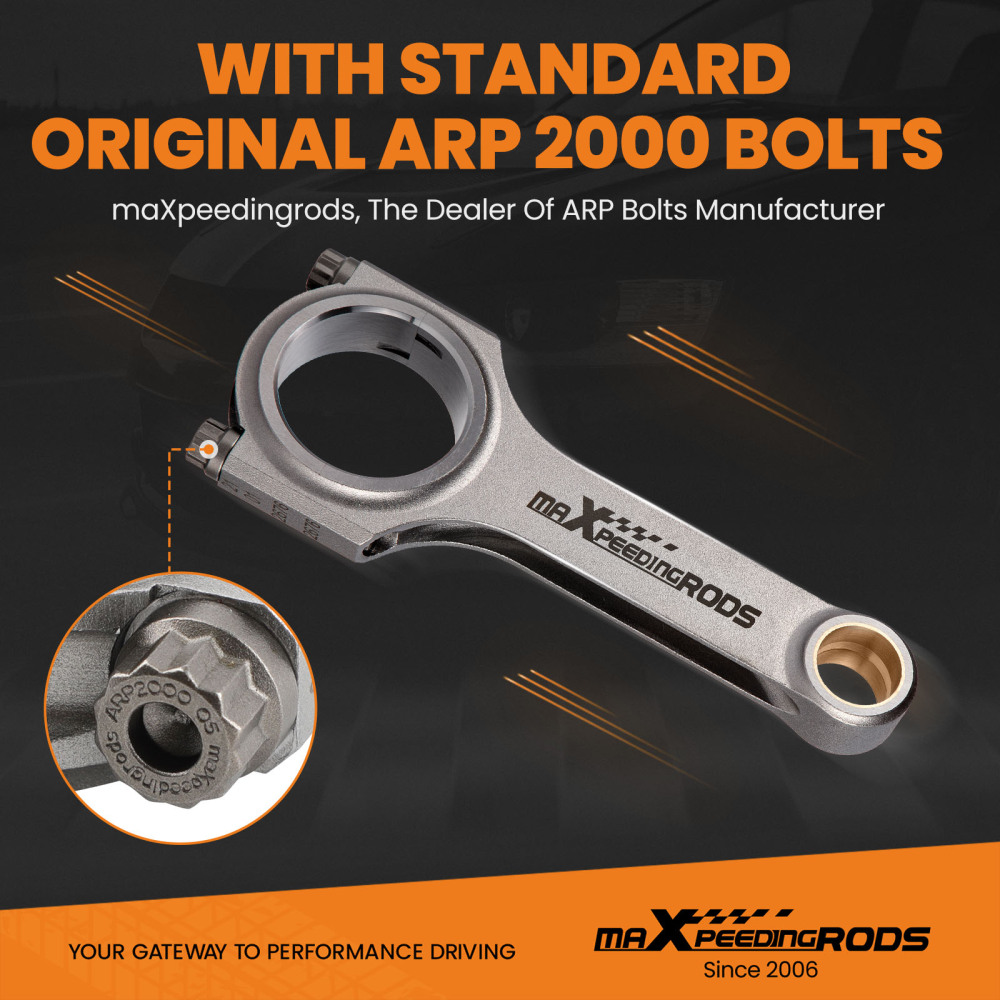

Bolts: Including Genuine ARP 2000 bolts

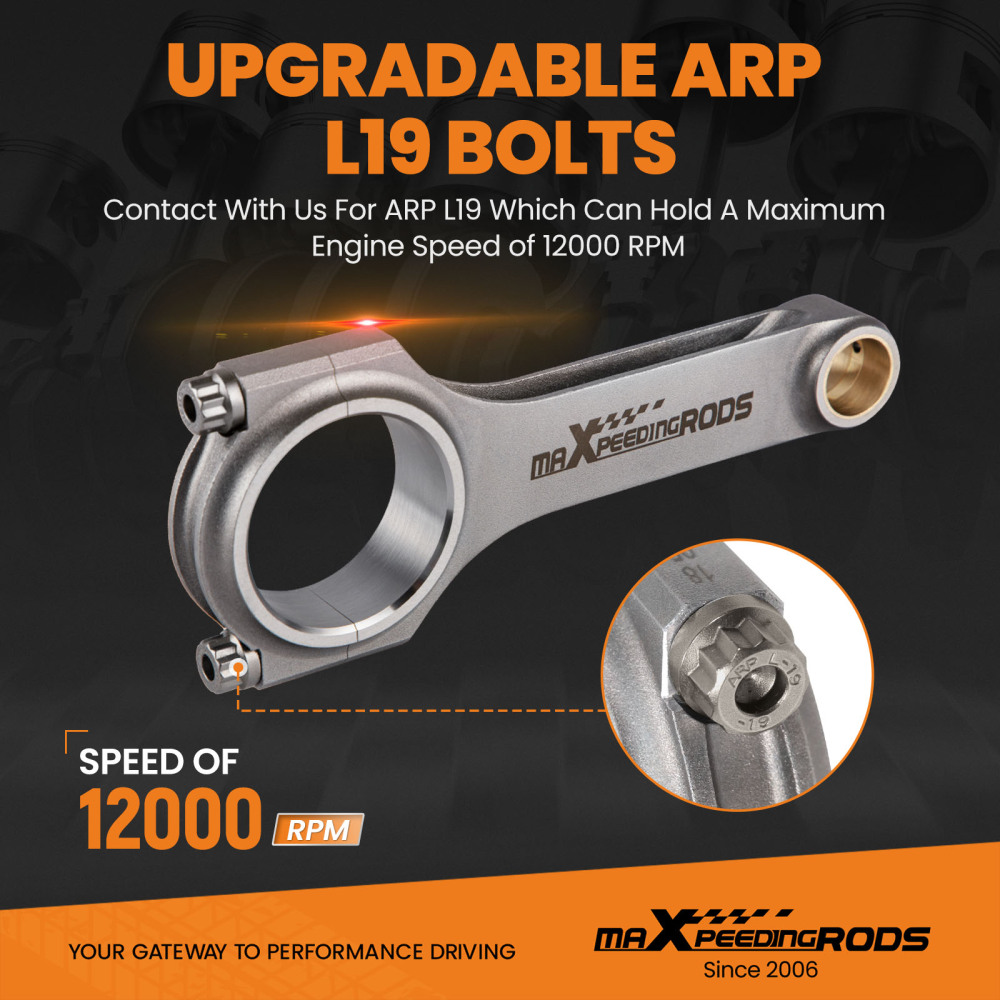

Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect
Center to center length: 128.3mm
Big end diameter: 55mm
Small end diameter: 24mm
Big end width: 25.8mm
Small end width: 25.8mm
-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin
Professional installation is highly recommended (No Instruction Included)
