Compatible for Kawasaki KLF300 1986 - 1995 1996 - 2005 BAYOU Carby Carb ATV 1989 Carburetor

Item Number 3002031284
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G


This carburetor is guaranteed to fit your compatible for Kawasaki Models.A carburetor relies on the vacuum created by the engine to draw air and fuel into the cylinders. Carbohydrates consist of an open pipe through which air enters the engine's intake manifold. It allows air and fuel to enter the engine through a valve, mixing them in different amounts to suit a variety of driving conditions.The throttle can open and close, allowing either more or less air to enter the engine. This air moves through a narrow opening called a venturi. This creates the vacuum required to keep the engine running. Maxpeedingrods provides carburetor at the most competitive price!

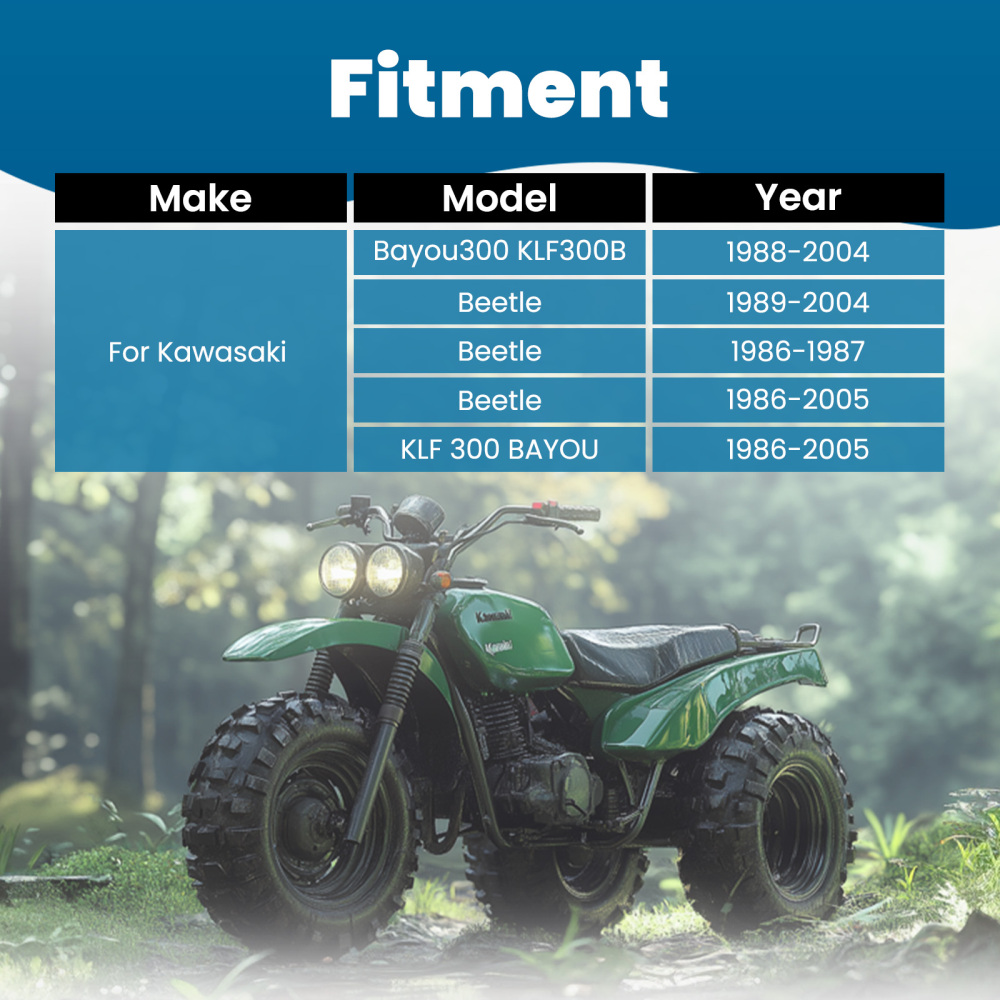

Compatible for Kawasaki Bayou300 KLF300B 1988-2004

Compatible for Kawasaki Bayou300 KLF300C 4x4 1989-2004

Compatible for Kawasaki Bayou300 KLF300A 1986-1987

Compatible for Kawasaki Bayou KLF 300 1986 - 2005

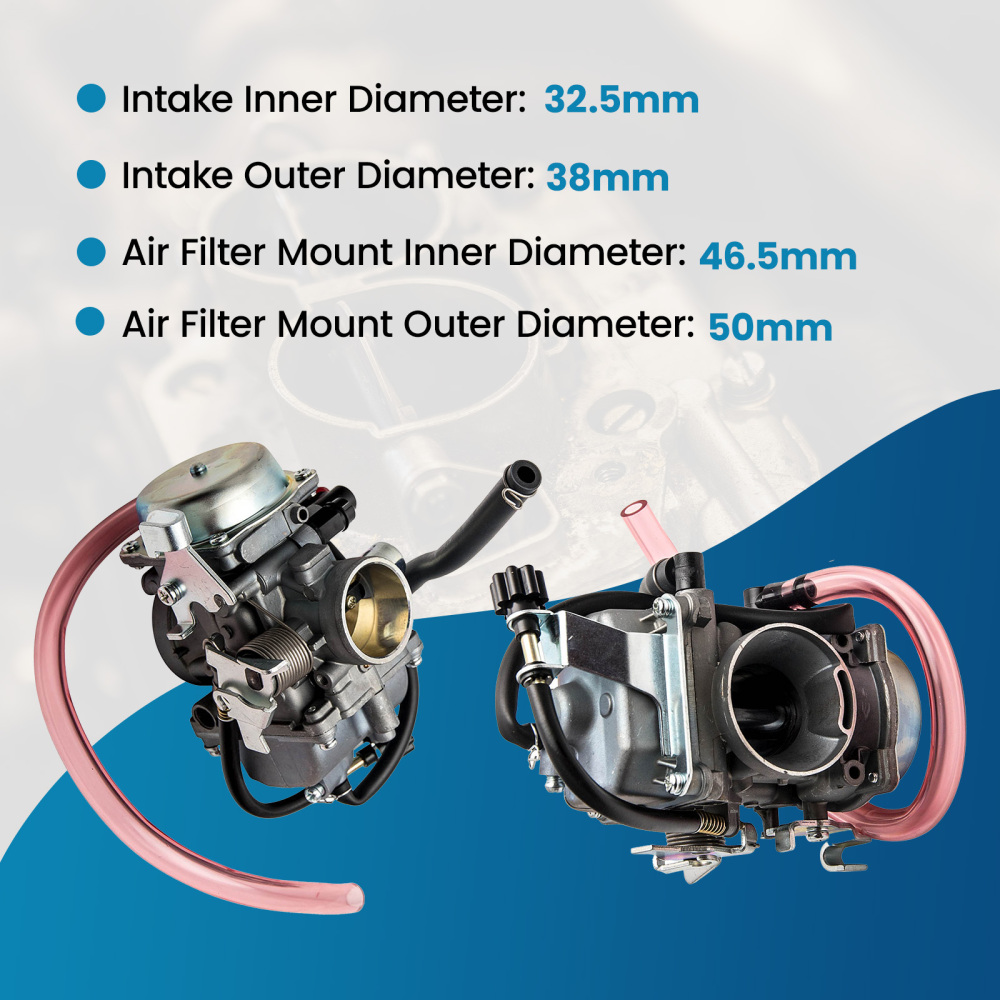

Intake Inner Diameter: 1.28”(32.5mm)

Intake Outer Diameter: 1.5”(38mm)

Air Filter Mount Inner Diameter: 1.8”(46.5mm)

Air Filter Mount Outer Diameter: 1.97”(50mm)

Weight: 0.75kg

Package Size: 17*13*13cm

*Please allow 1-2mm error due to manual measurement.

Package Content:

1x Carburetor

1x Free Fuel Filter


1.Condition: New.

2.Warranty: one year warranty for any manufacture defect.

3.Sturdy Aluminum Construction: Made of high-quality aluminum alloy, the carburetor can stand high heat, pressure, corrosion, acid, and alkali, durable and sturdy in its structure, polished surface ensures long time use.

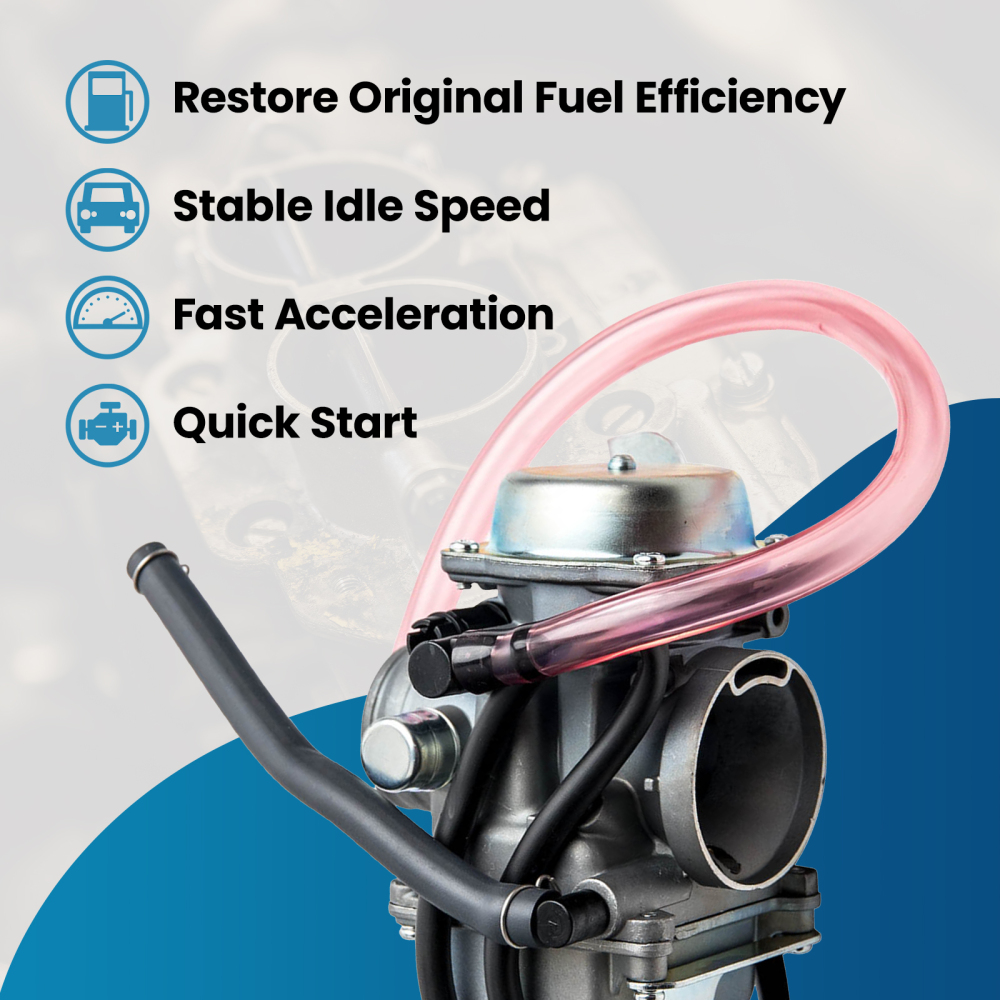

4.Fuel-Efficient & Strong Power: The integrated carburetor kit works excellent in fuel consumption, greatly improving fuel utilization, reducing fuel costs, and saving more energy, thus effectively enhancing the power of the engine.

5.Fast Start & Steady Speed: With strong and stable power, the carburetor also benefits the start of the engine, it helps to steady the speeds and offer sufficient power in speeding up, dramatically improving the engine performance.

6.Fully Tested & Assembled: From the overall structure to every small part, the carburetor has been constructed with high precision, every component is fully tested and adjusted, organically assembled into one powerful carburetor.

7.MAXPEEDINGRODS offers high quality carburetor is the perfect solution for the appropriate ratio of air and fuel mixture and finally provides a good engine performance.

How to Replace a Carburetor on a compatible for Kawasaki Bayou

The compatible for Kawasaki Bayou is an All Terrain Vehicle (ATV) and is available in many sizes. The carburetor on all of the compatible for Kawasaki Bayou models is connected the same way unless the Bayou is heavily modified. You will need to remove the compatible for seat to excess the top of the engine. The carburetor will be connected between the engine and the gas tank. One line goes from the gas tank to the carburetor; one line goes from the carburetor to the engine. You will need a flat head screwdriver to remove the lines from the carburetor.

Step 1

Locate the lock that is holding the compatible for seat in place between the compatible for seat and the gas tank. Pull up on the lock's handle to release the compatible for seat from the frame. Turn the fuel switch to the "OFF" position.

Step 2

Place a cup under the carburetor to catch the gas that you are going to drain from the carburetor. Remove the drain screw from the bottom of the carburetor with the flat head screwdriver and let the carburetor drain into the cup.

Step 3

Disconnect the fuel line from the carburetor using the flat head screwdriver to unscrew the screw on the clamp. Pull the fuel line off of the carburetor and let the fuel line drain into the cup.

Step 4

Disconnect the output line from the carburetor using the flat head screwdriver to unscrew the screw on the clamp. Pull the output line off of the carburetor. Pull the carburetor out of the engine compartment.

Place the new carburetor into the engine compartment. Reconnect the fuel line to the carburetor and reconnect the output line to the carburetor. Replace the compatible for seat to the frame. Turn the gas valve to the "ON" position and start the engine.


* Please compare your carburetor with the pictures and make sure this part fit your motorcycle before you purchase.

* The oil channel of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.

* Our carburetors are adjusted to original specifications.Due to the age and wear of old motorcycle,you may need to adjust mixture,idle,and float adjustments.

* Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work.  Warranty does not cover any failure that is a result of improper installation, improper break in, improper tuning, or misuse. (No Instruction Included)

* For any needs please contact us.
