Compatible for Honda CR-V CRV 1996-2001 RD1–RD3 Suspension ShockS Coilover Coilovers Lowering Kit

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Honda CR-V 1996-2001 1st Gen. RD1-RD3 compatible for FWD & AWD

Specification

Front and Rear top mount: rubber
Spring rate:
front 10kg/mm(560 lbs/in)
rear 7 kg/mm (392 lbs/in)
Adjustable height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold body with black spring

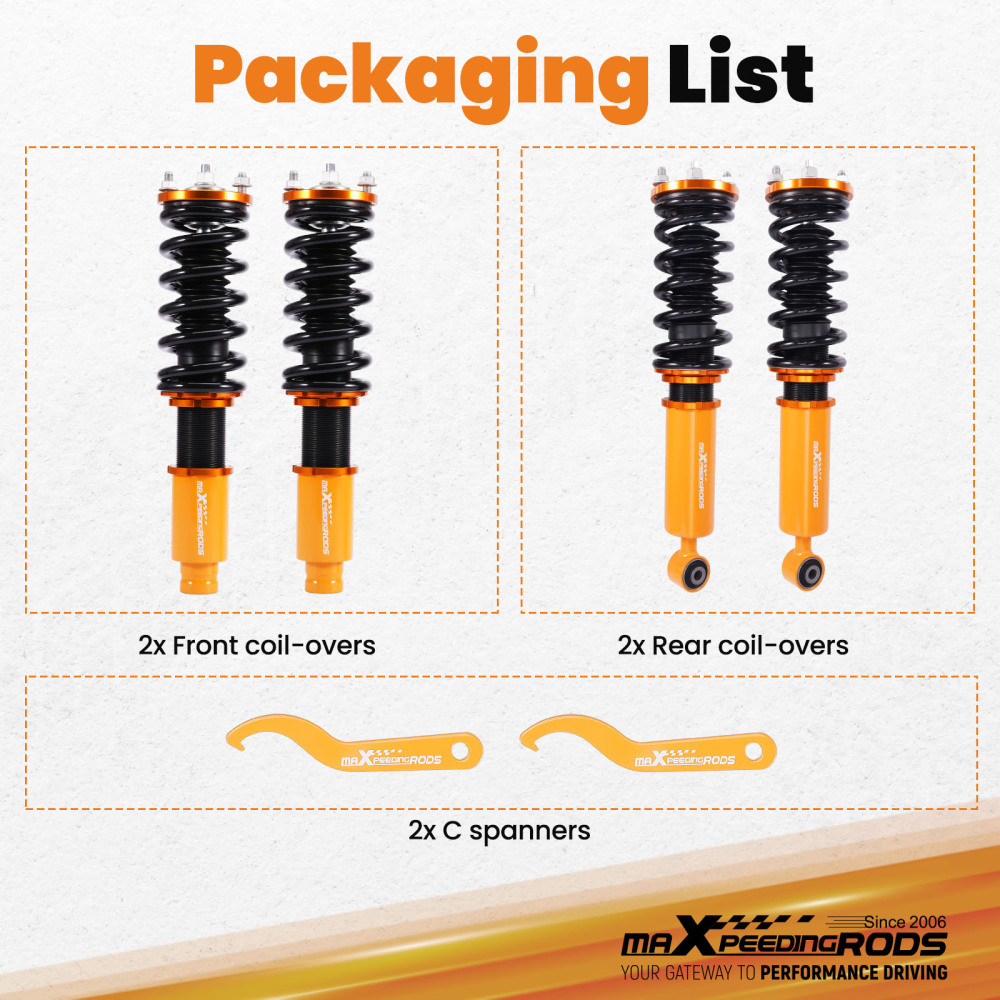

Package included

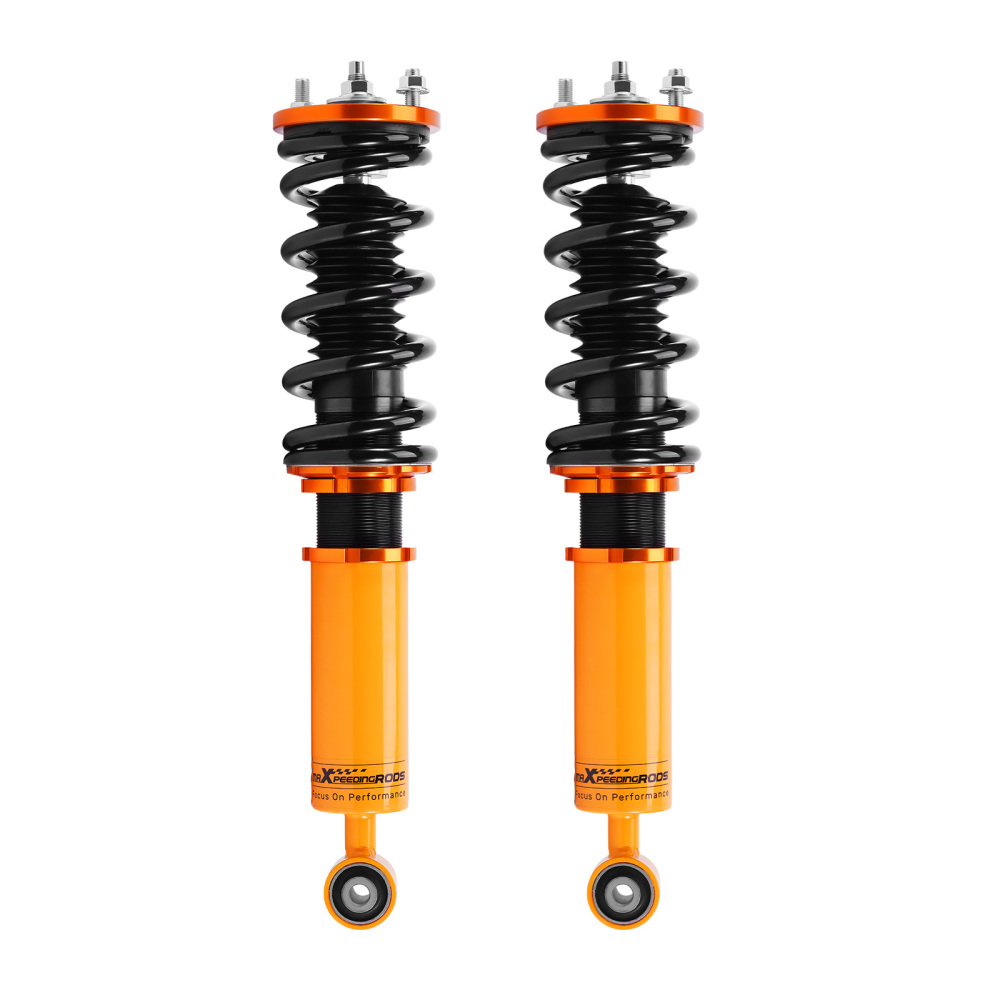

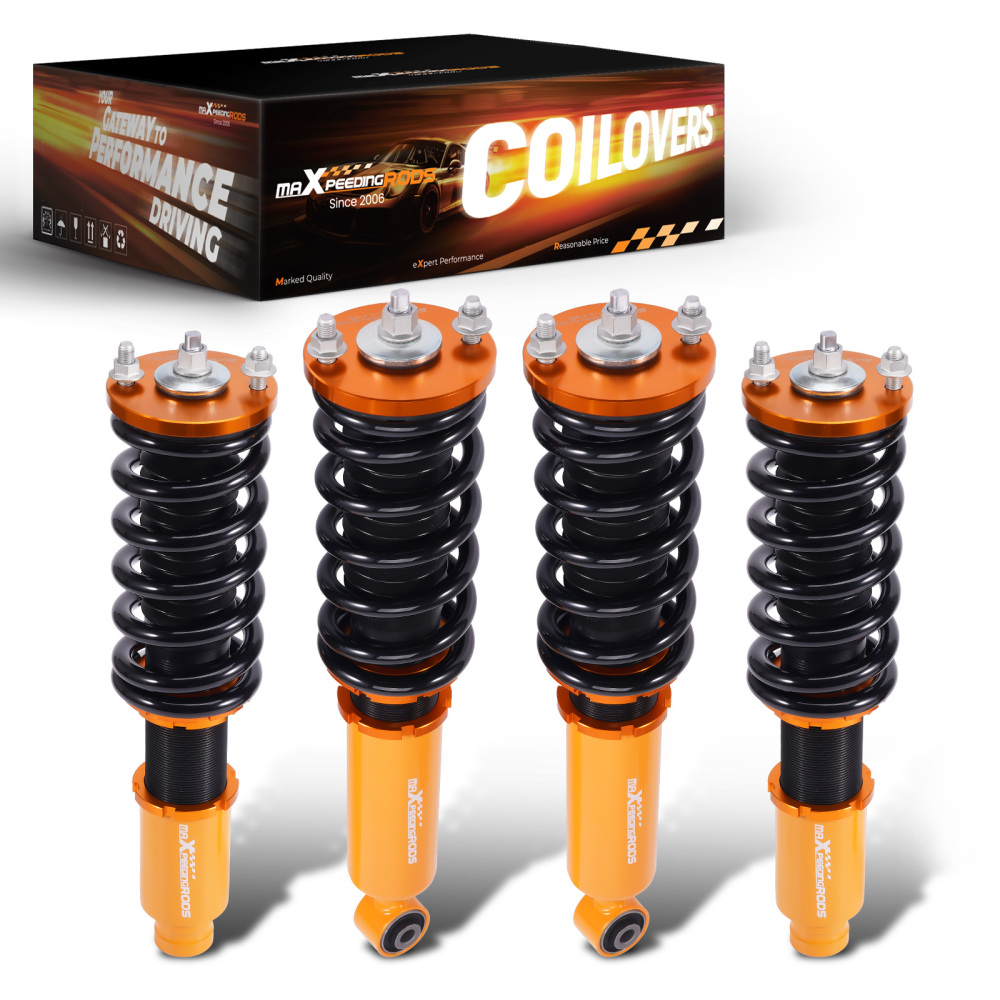

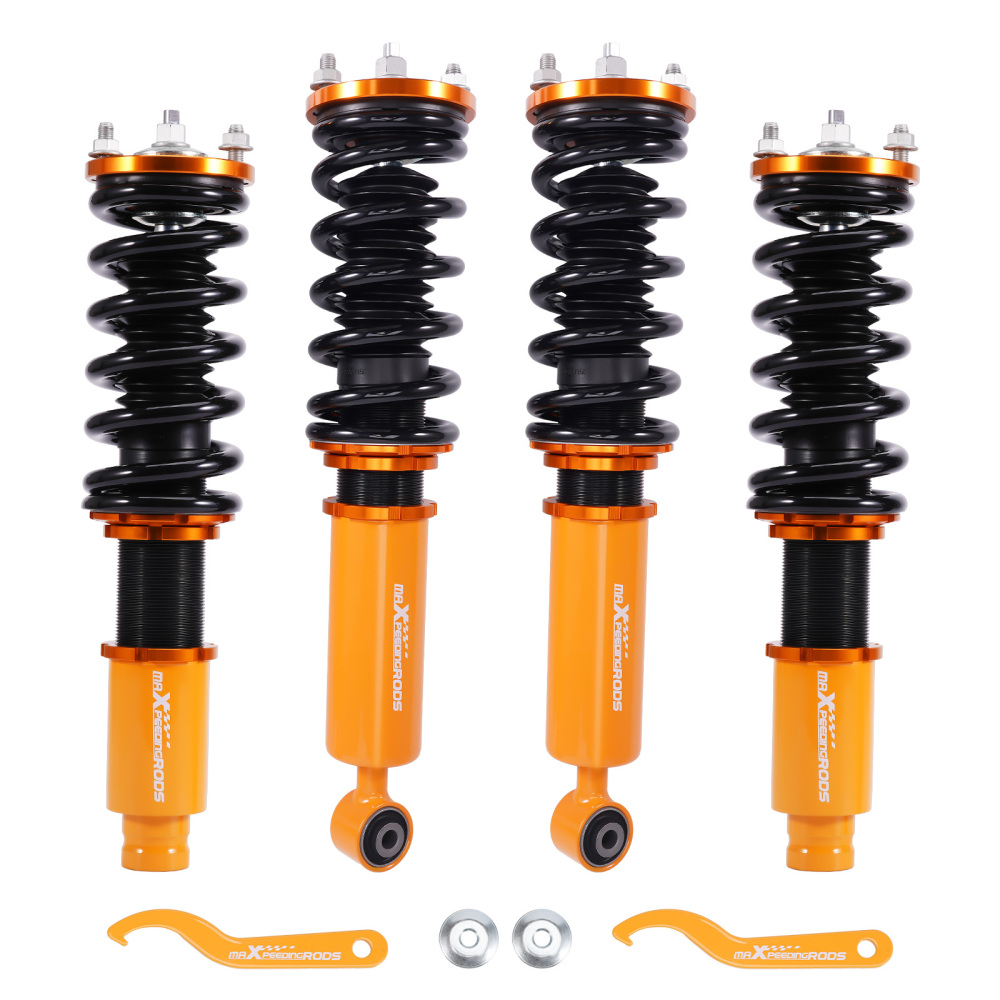

Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment

Dimension

Package dimension : 62*50*19
Weight: 23000g

Feature

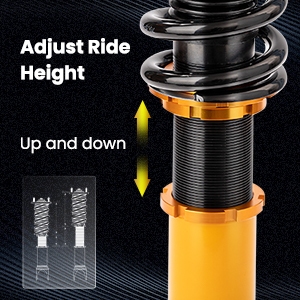

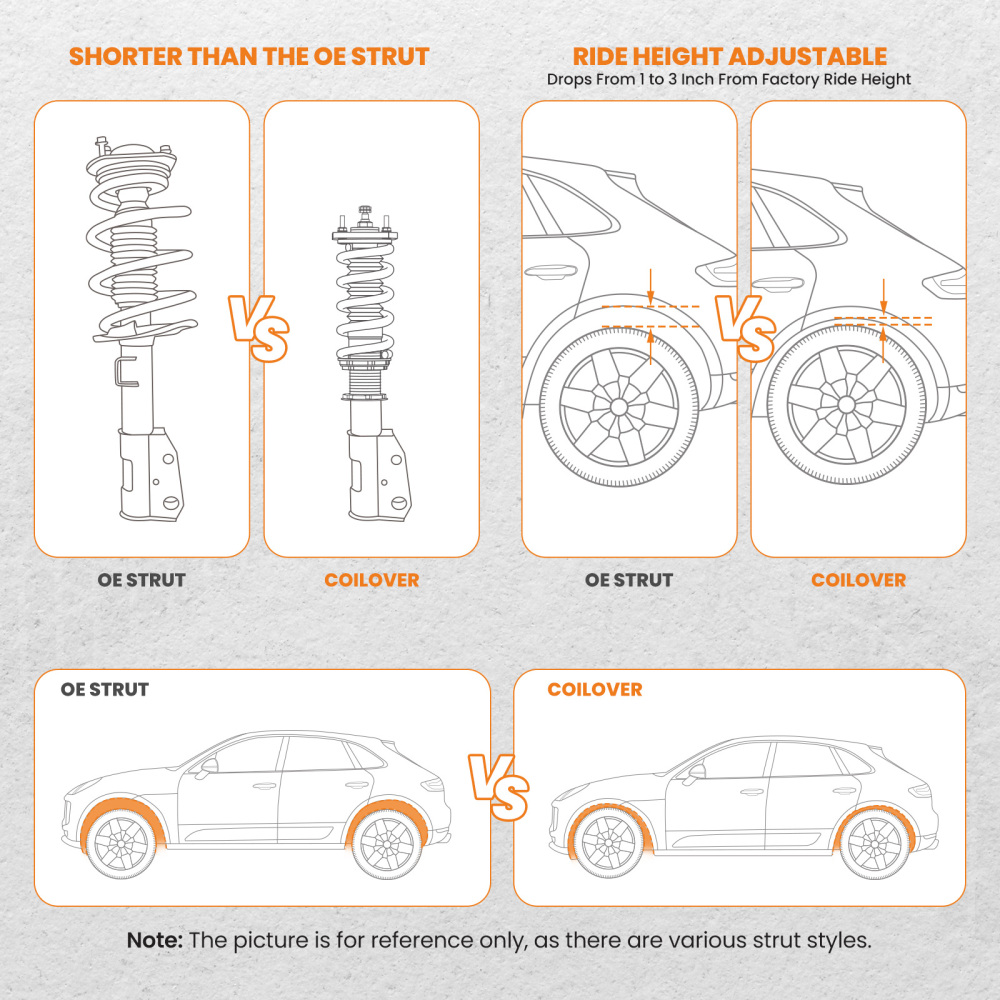

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

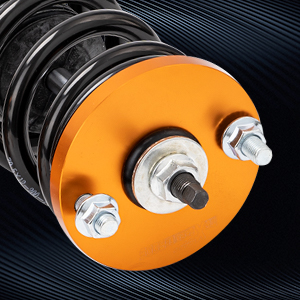

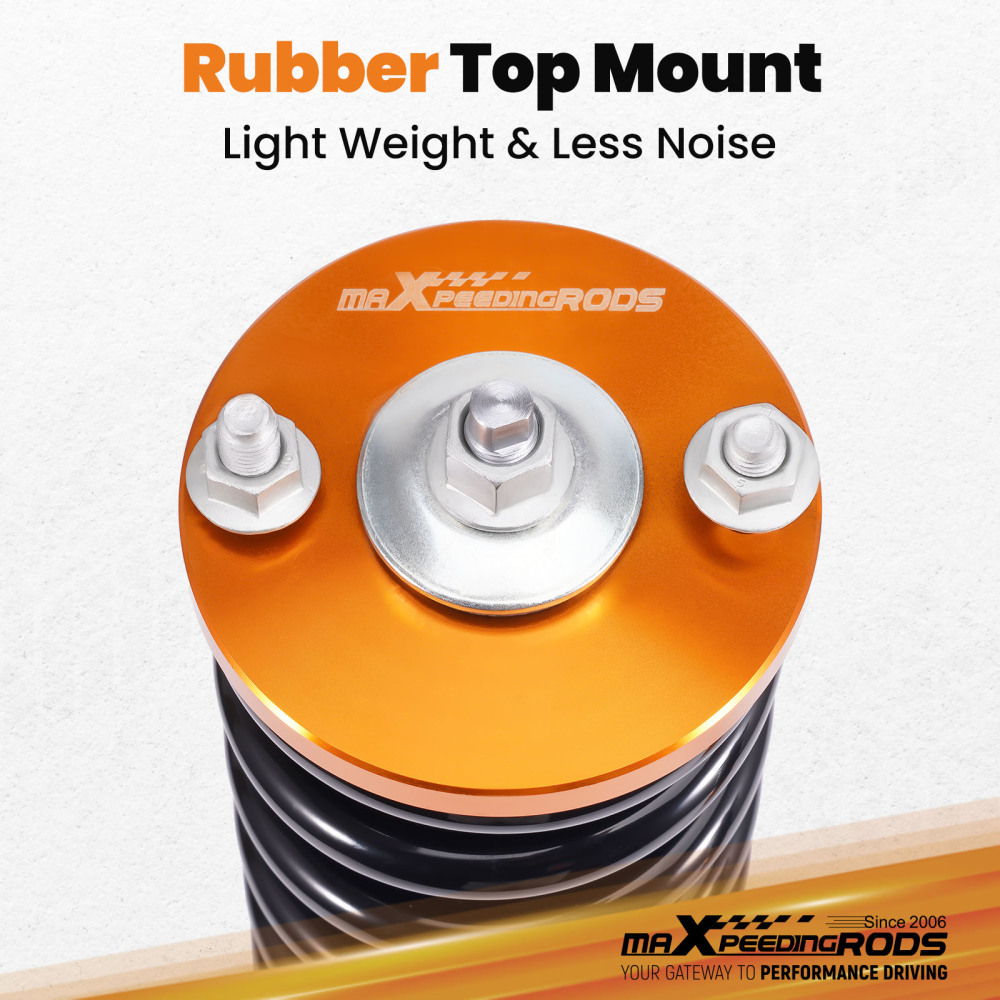

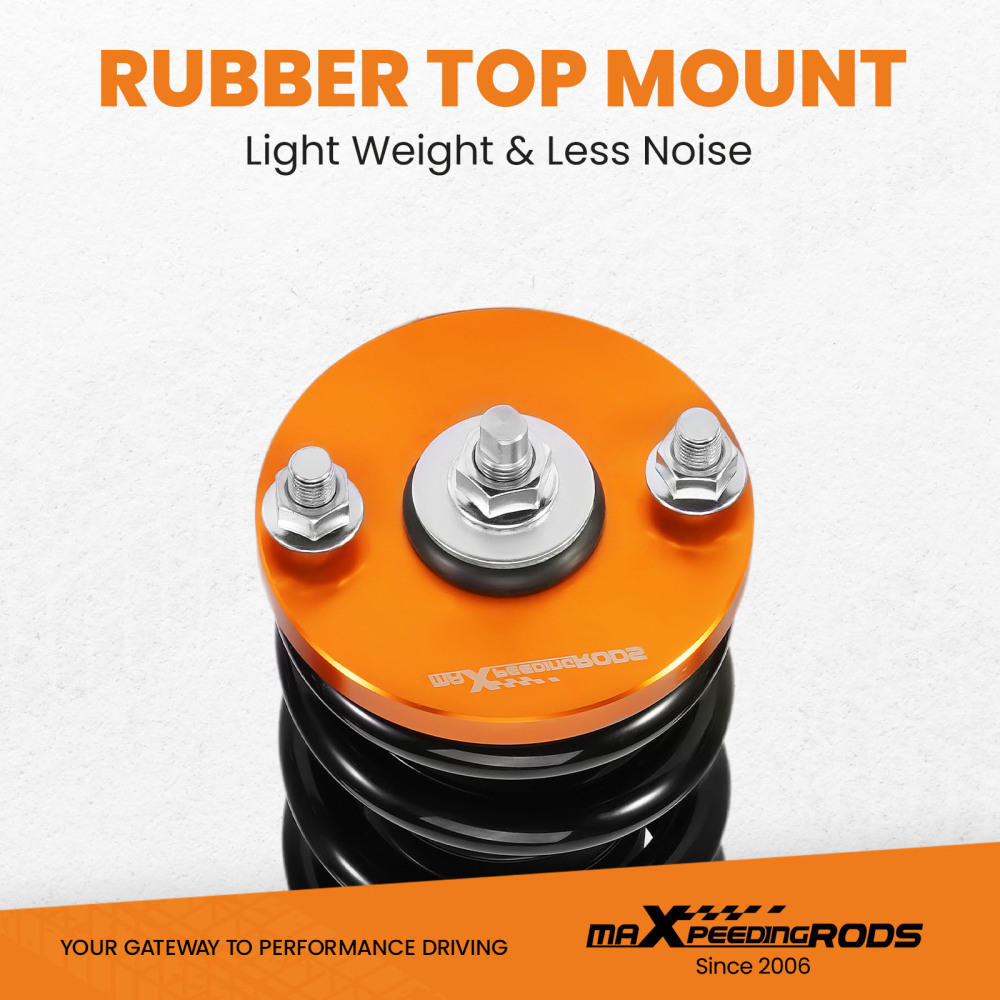

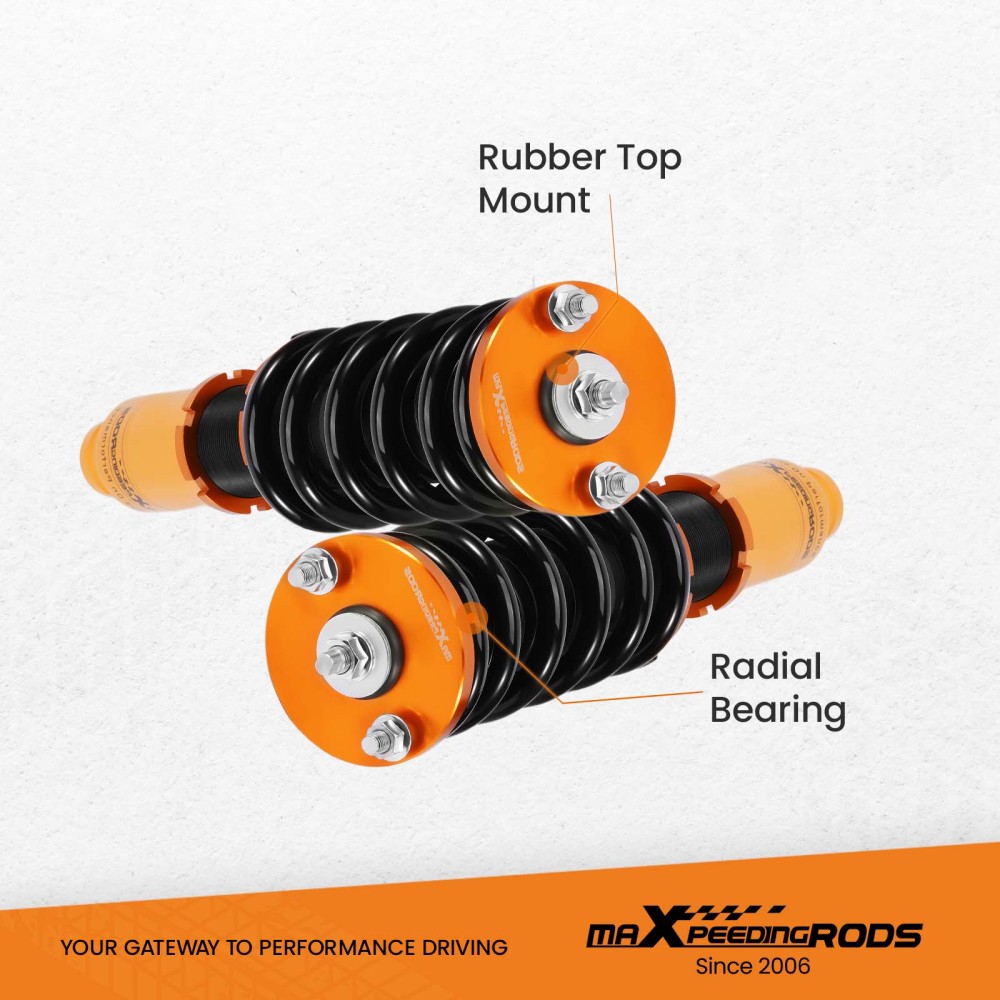

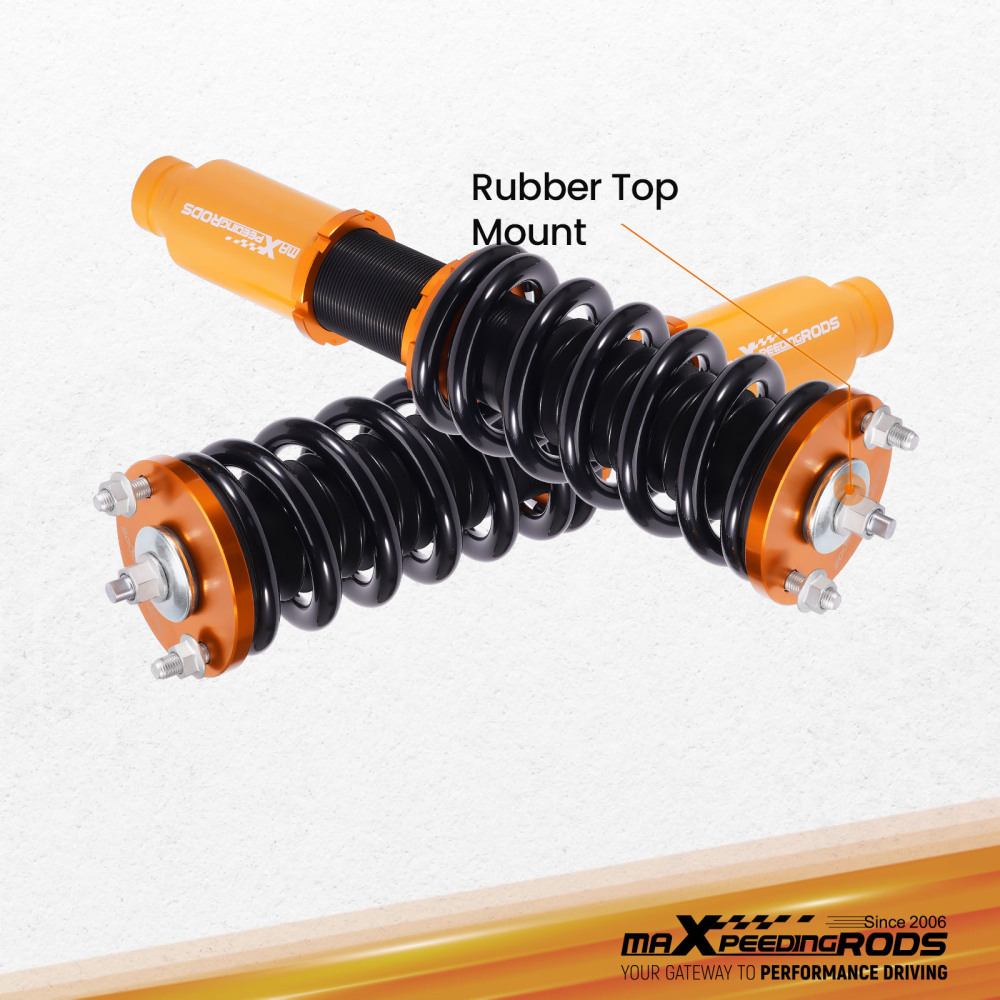

2. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

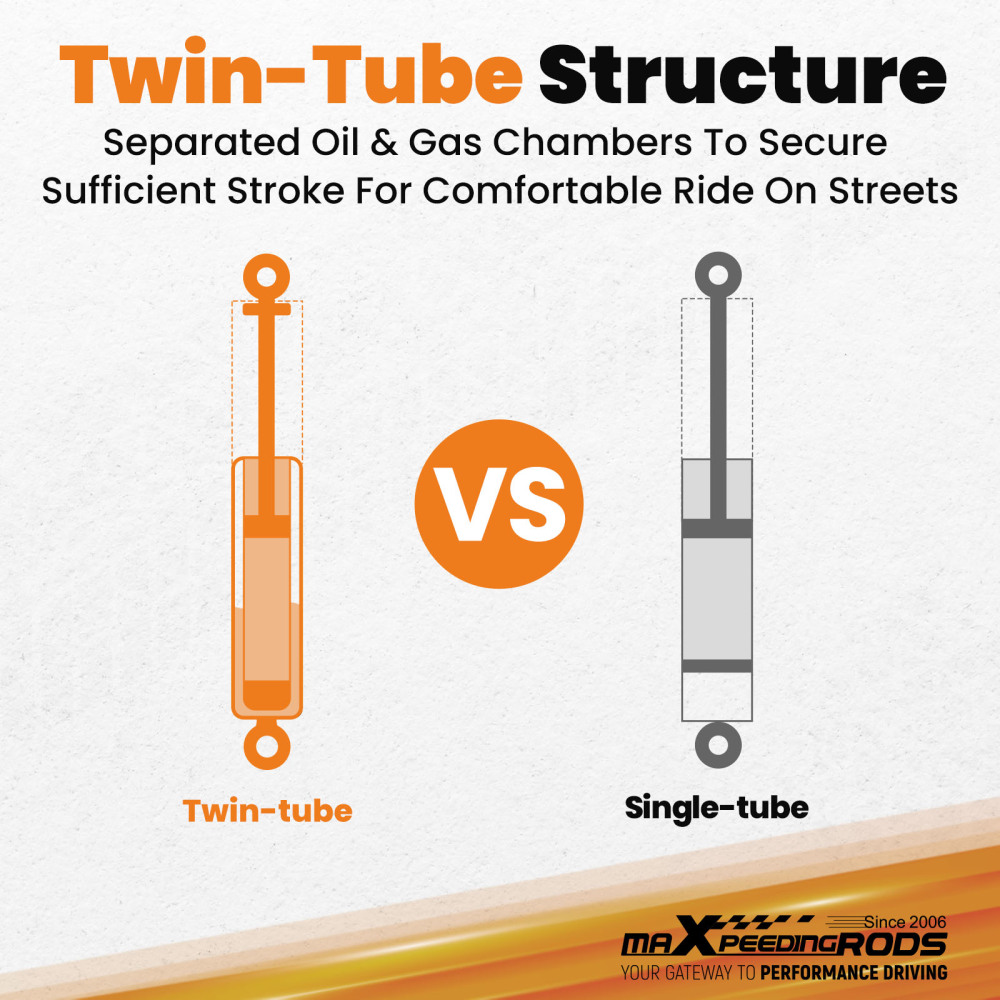

3. Twin-Tube structure allows sufficient stroke within the shock absorber.

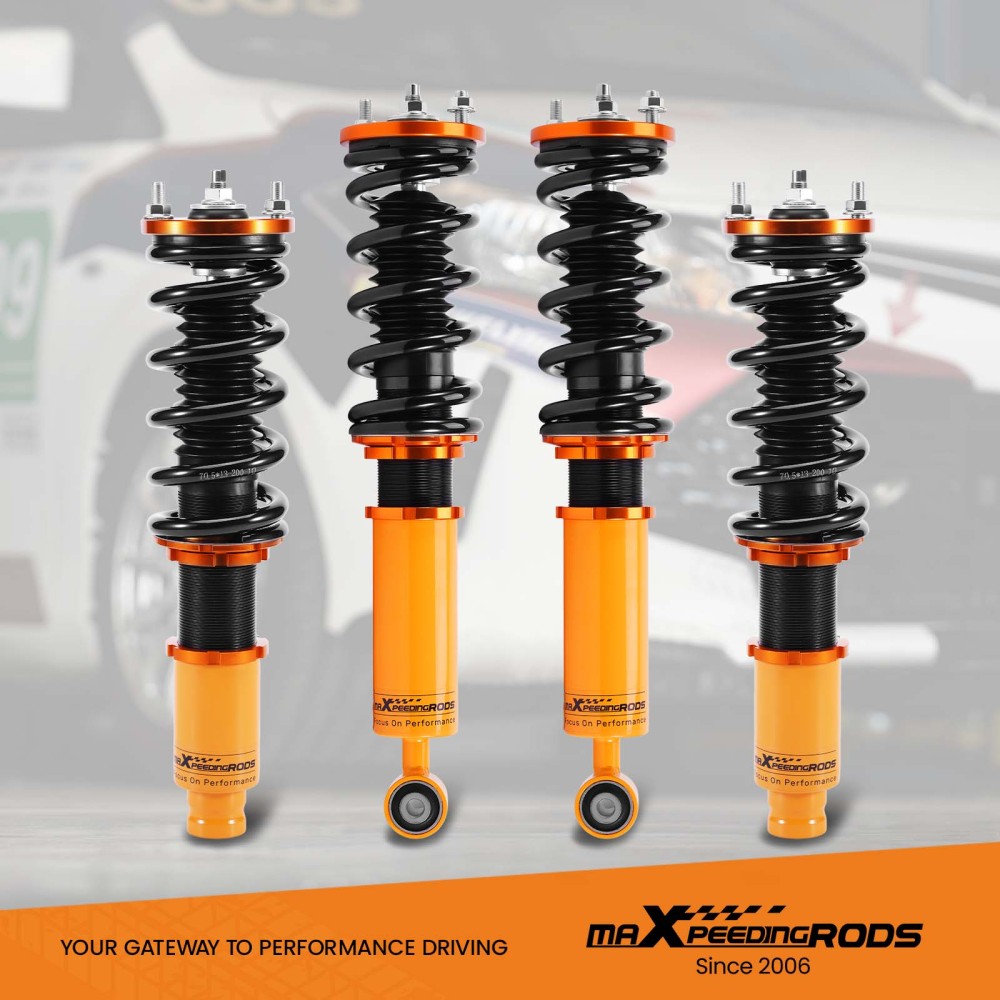

4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

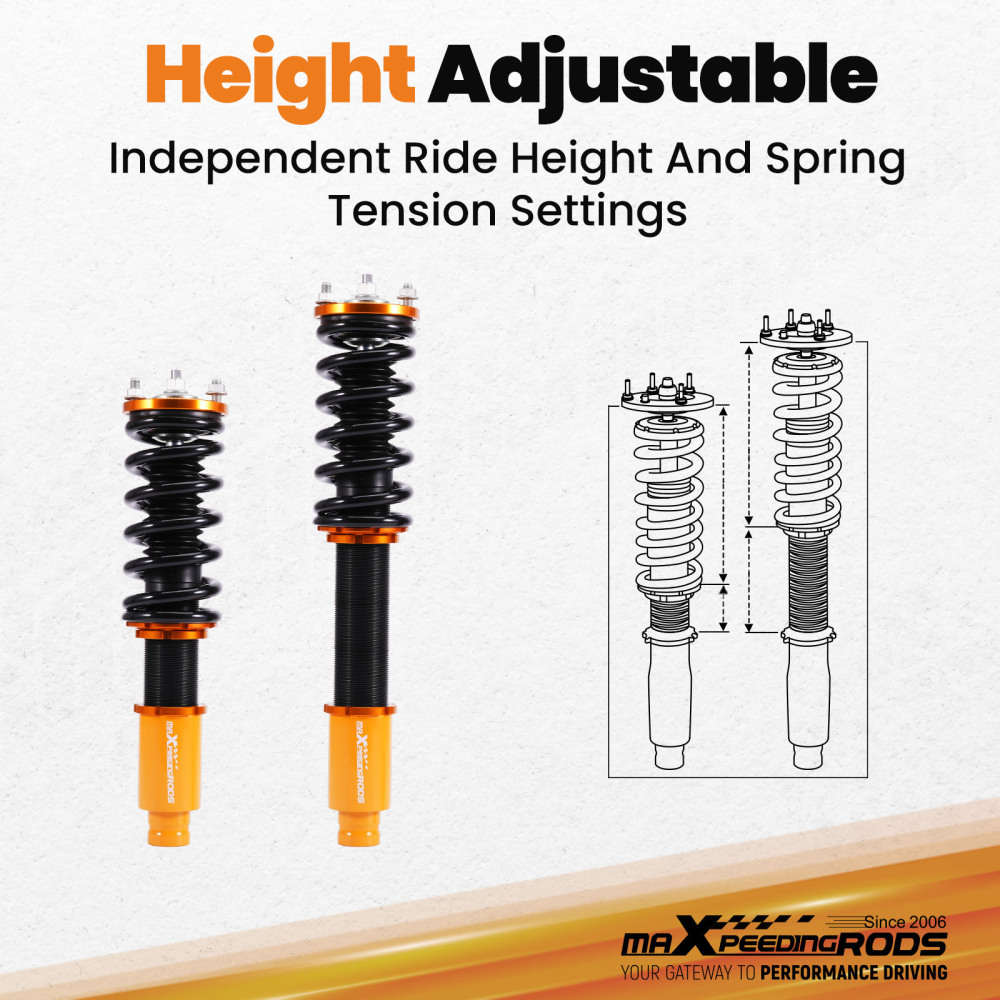

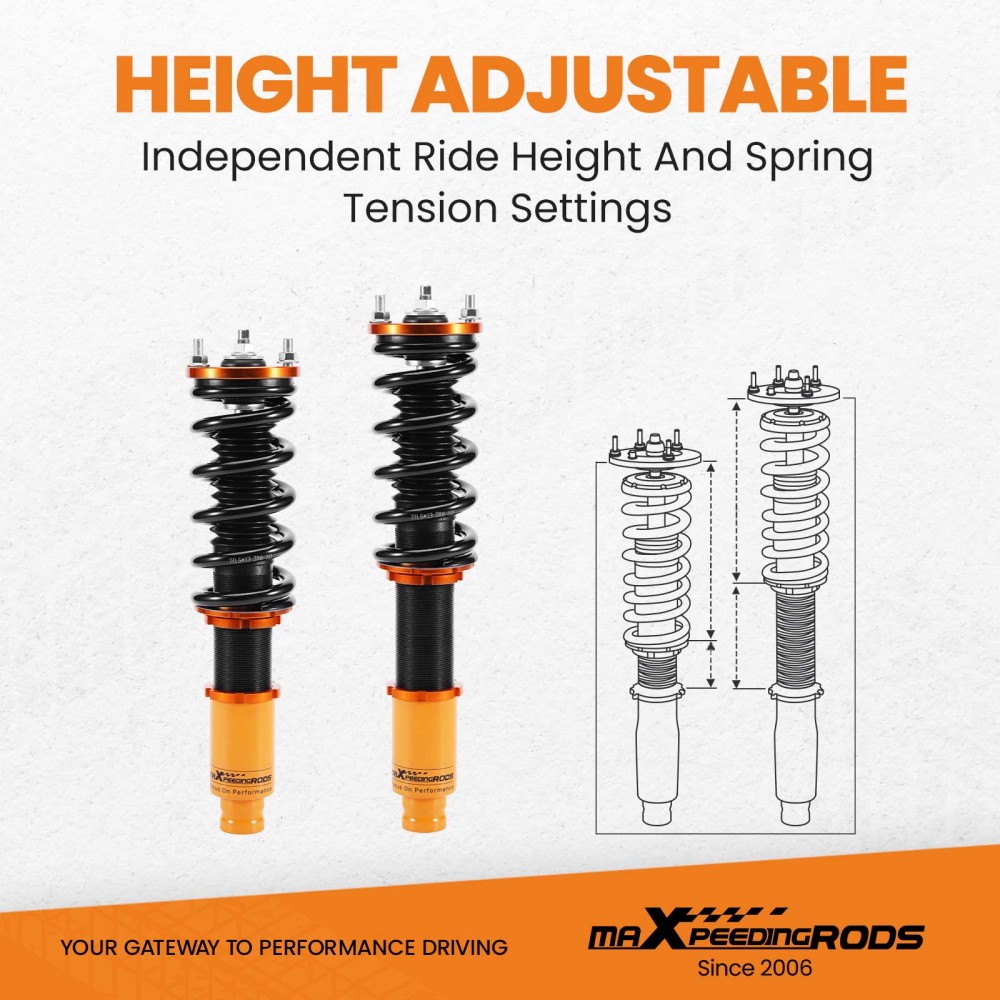

5. Separate height adjustment does not affect damper stroke.
6. Height can be adjusted with coilovers installed on the vehicle.

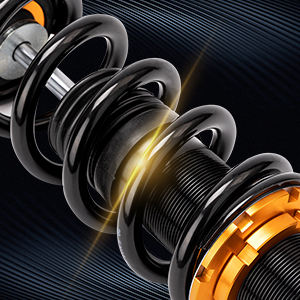

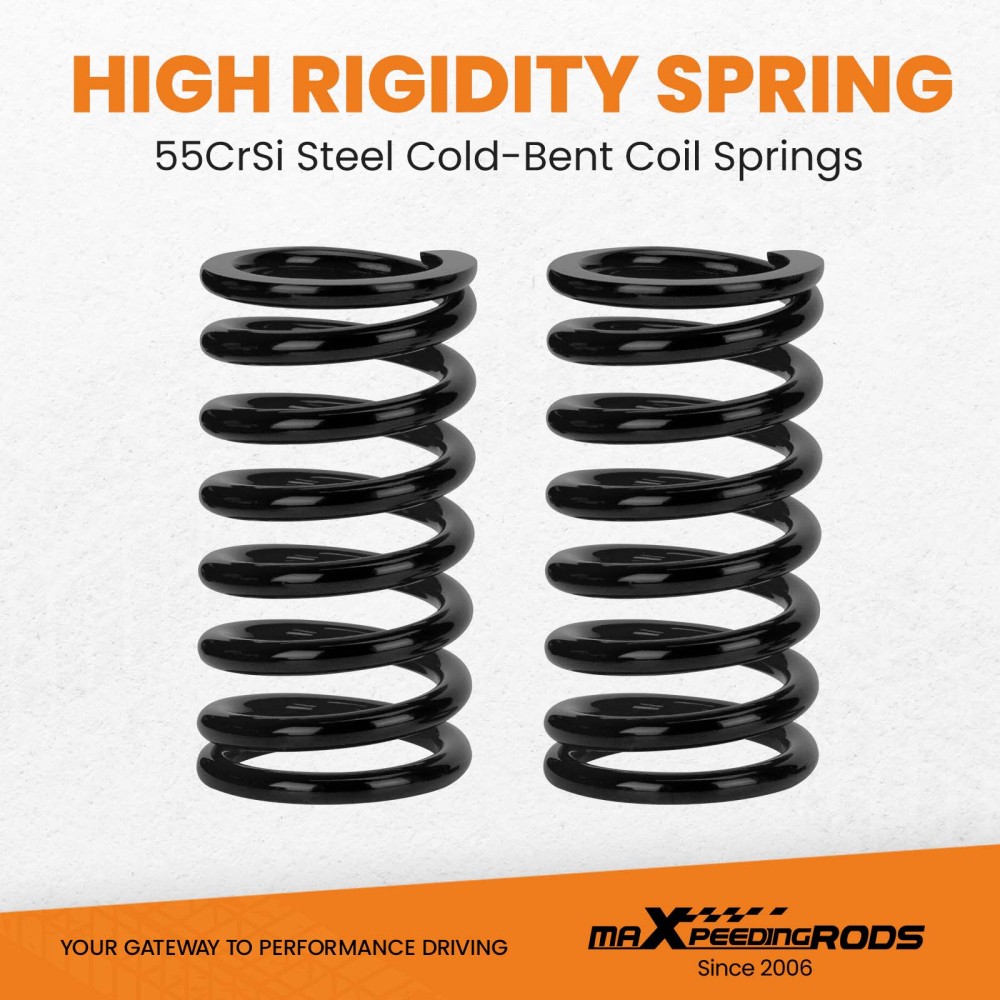

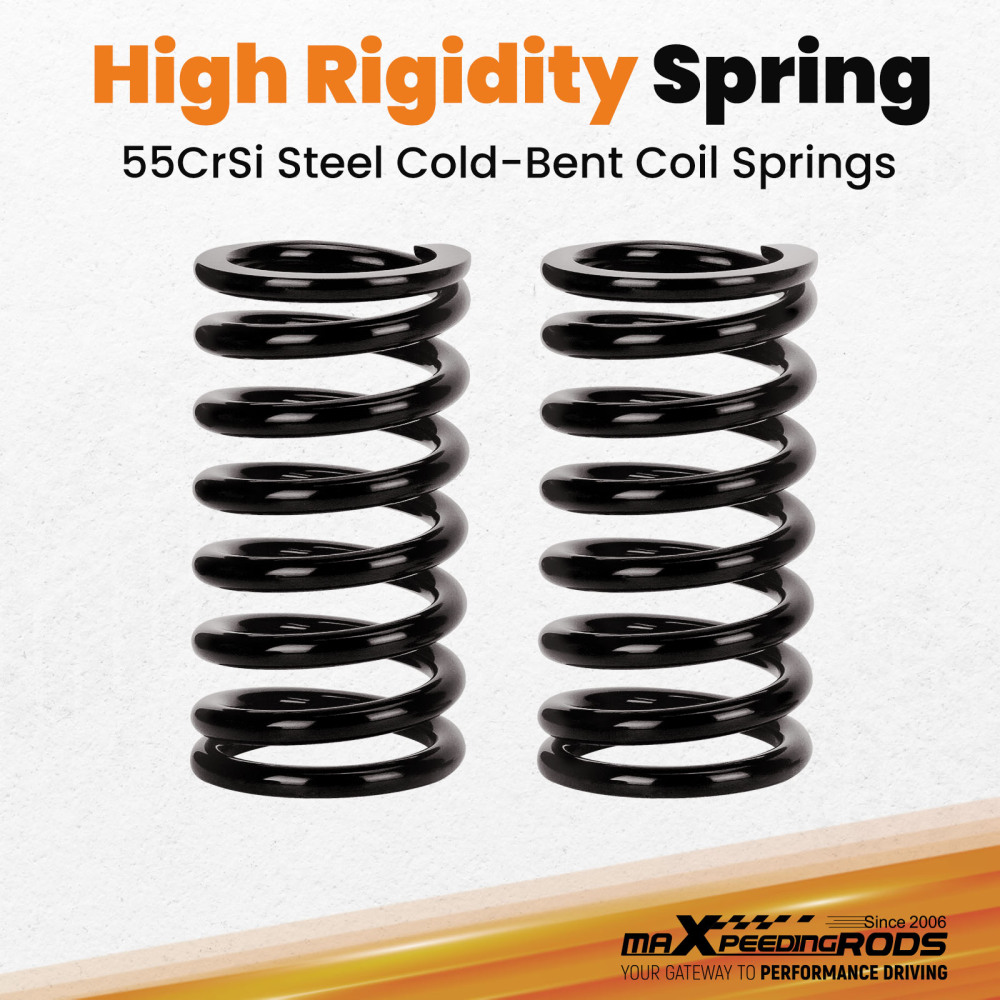

7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.

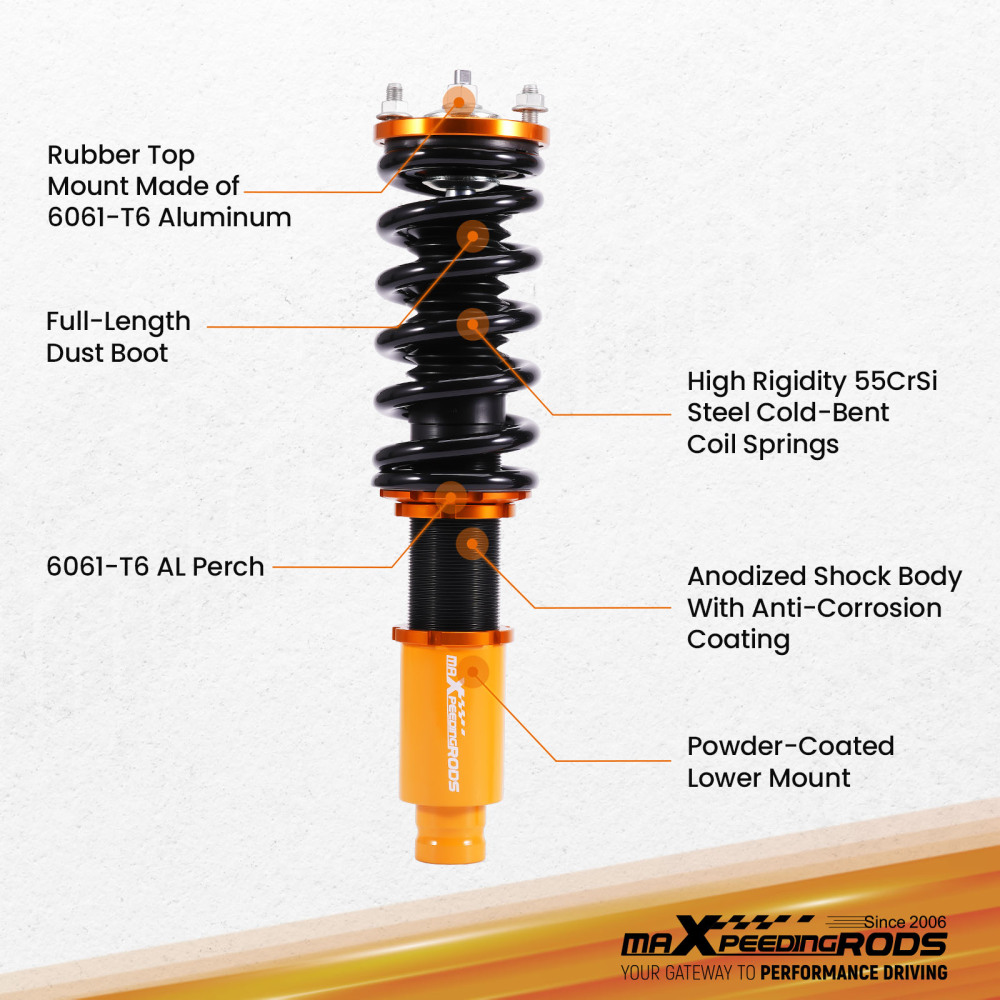

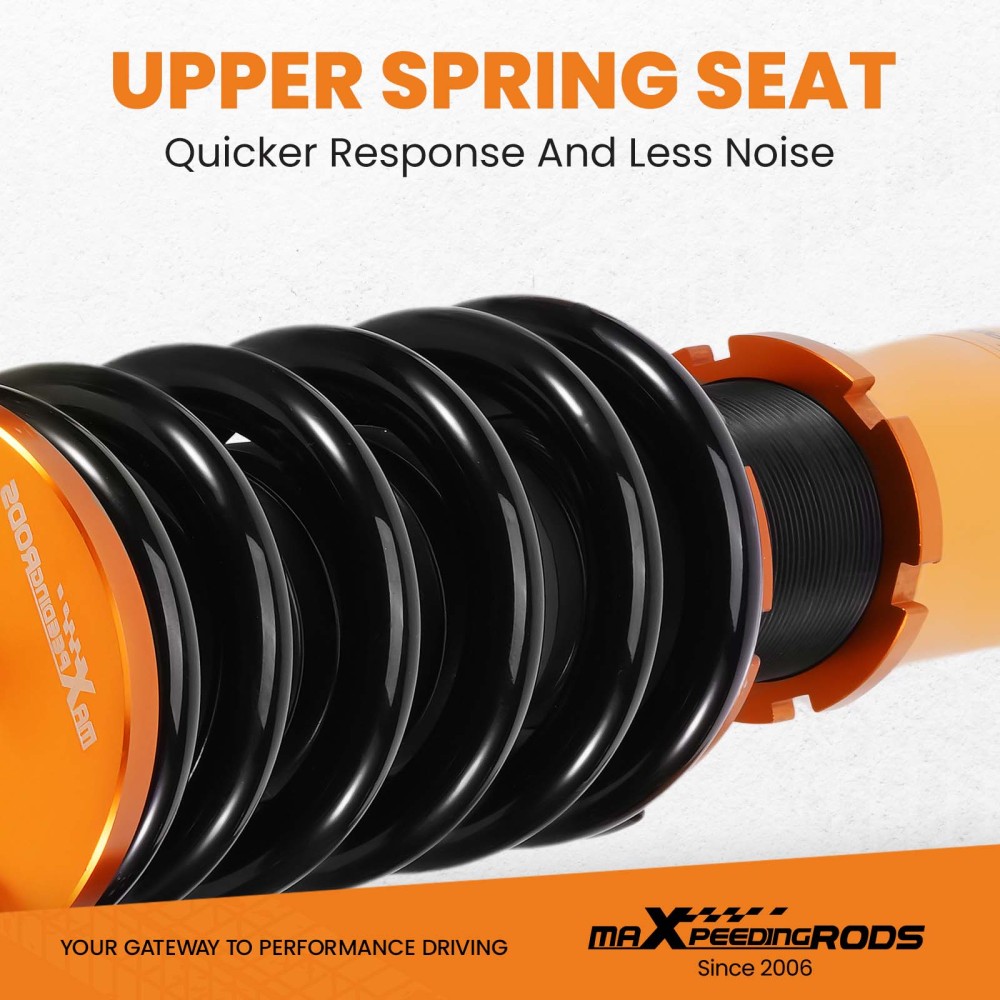

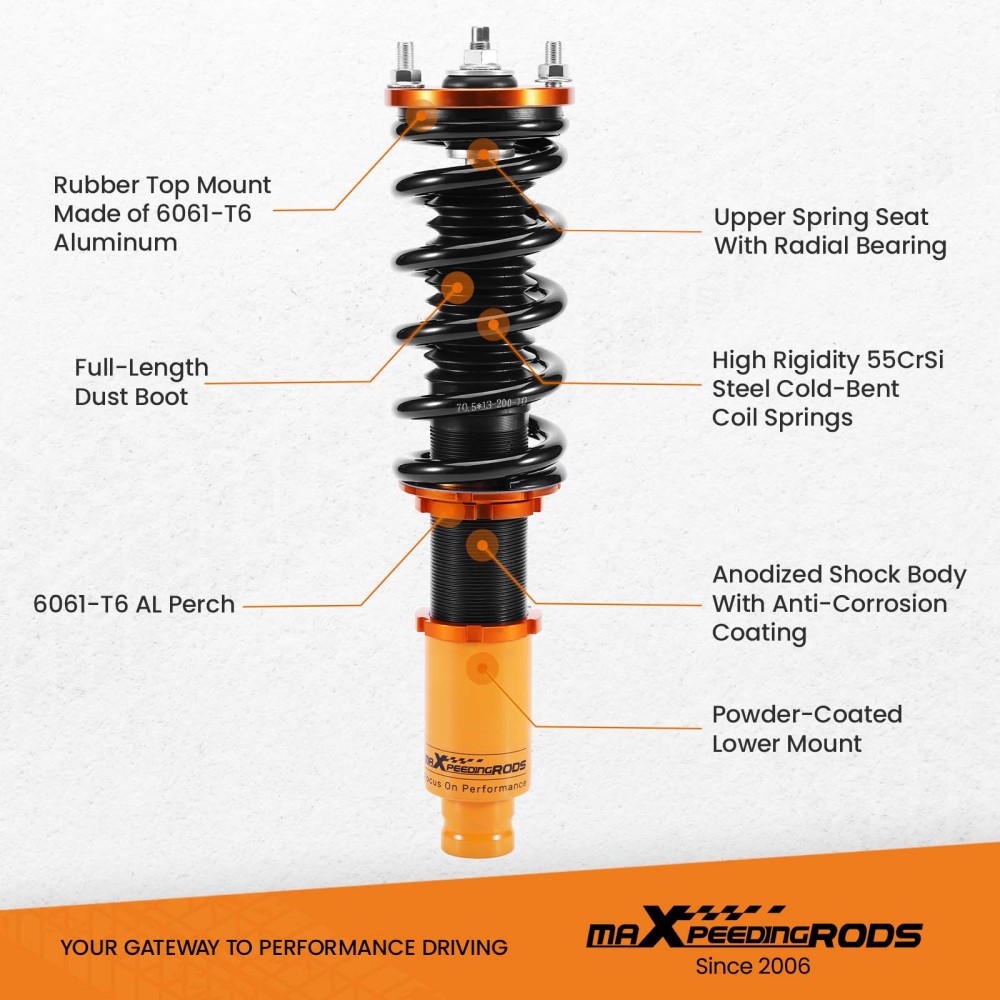

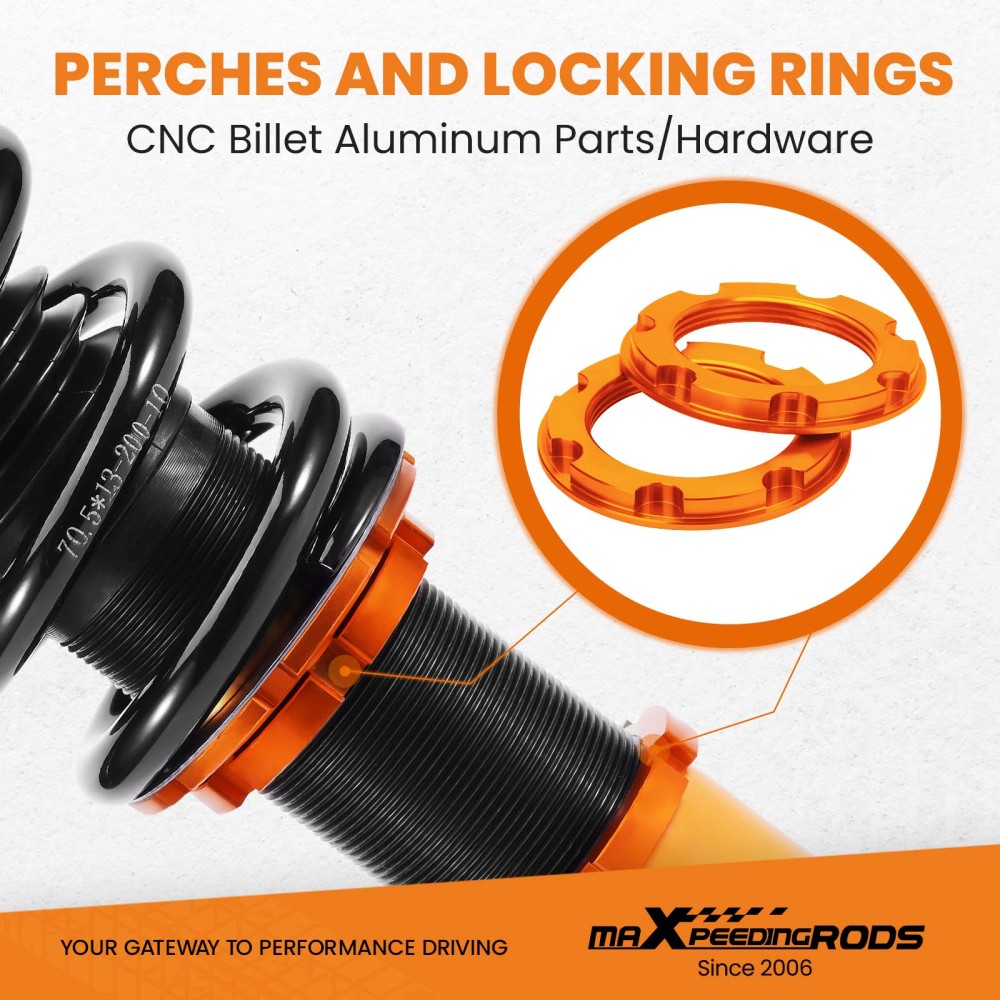

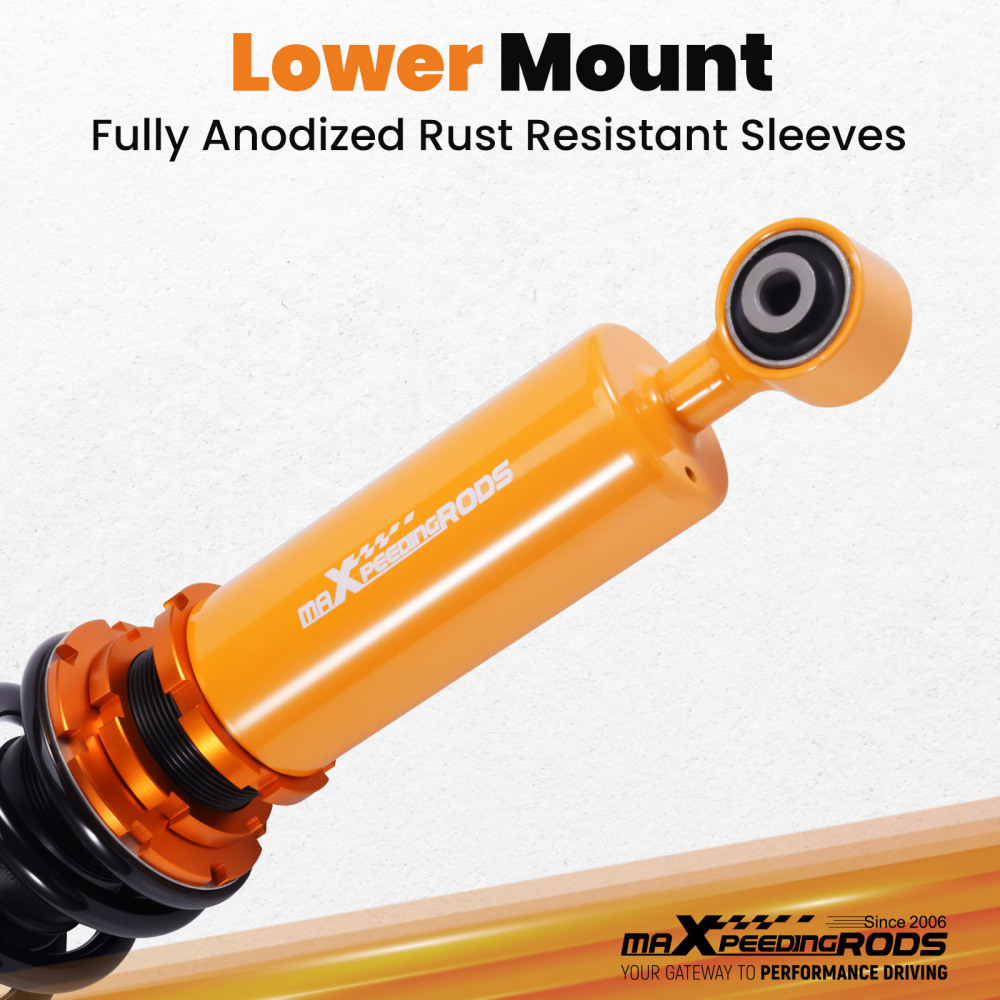

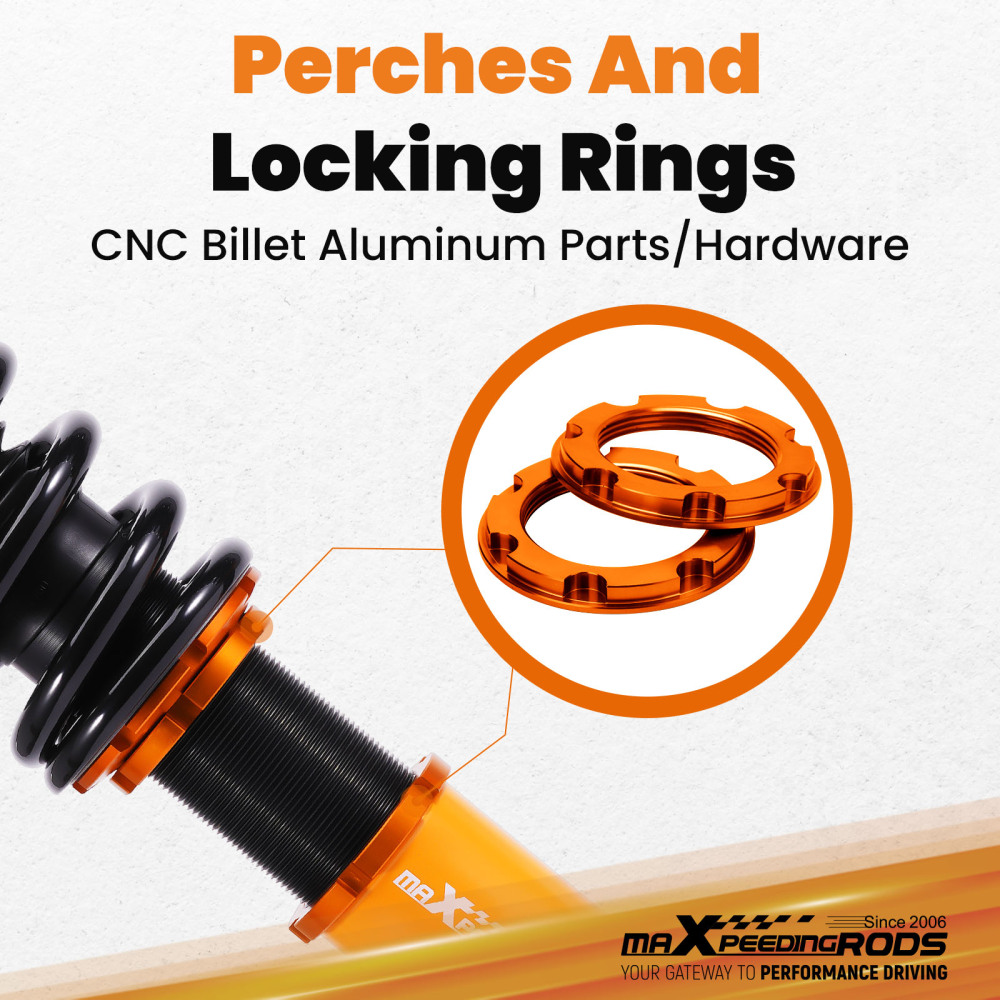

9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Steel shock bodies with special surface treatment to improve the durability.
11. Full rebuildable.

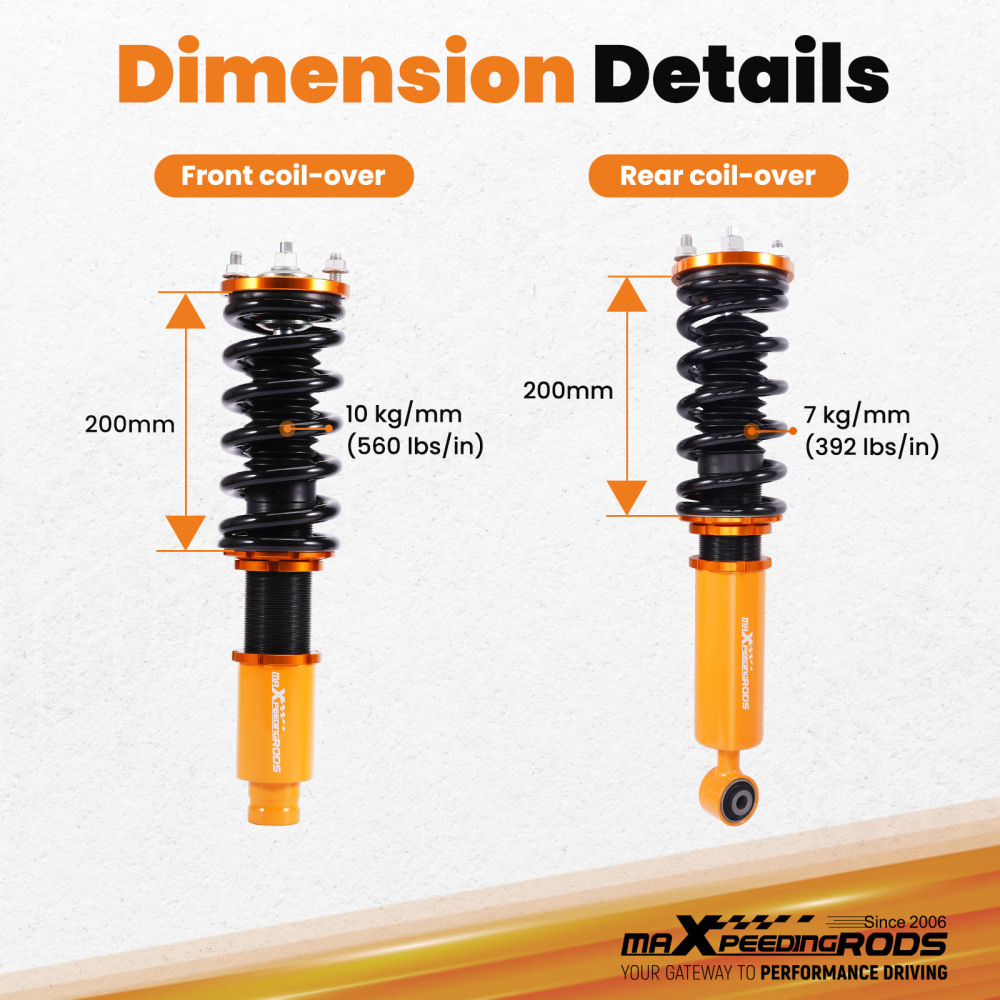

Specifications 2

Spring Rate Front: 10kg/mm(560lbs/in)
Spring Rate Rear: 7kg/mm(392lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 70.5mm
Spring length Front: 200mm
Spring length Rear: 200mm
Front length range: 450-490mm
Rear length range: 500-605mm

Notice

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
