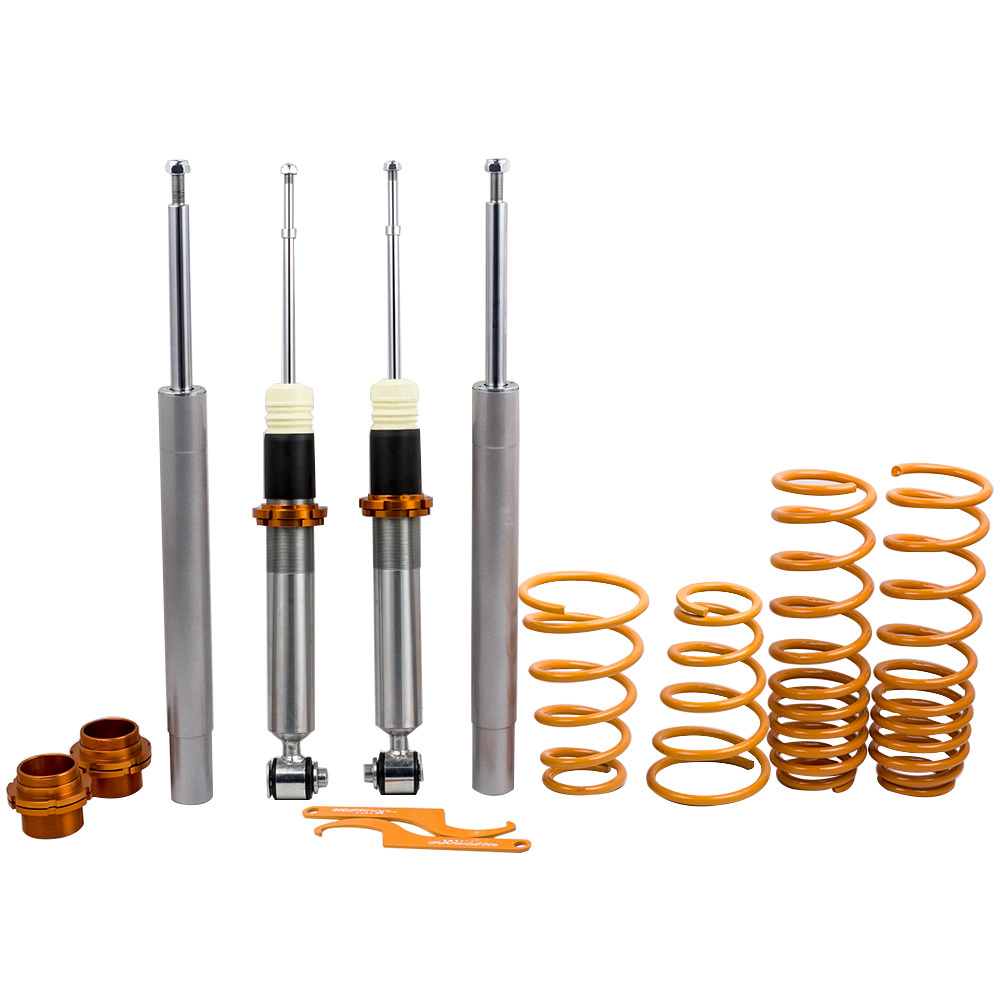

Coilovers compatible for BMW 5 Series E34 525i 530i 540i Saloon 88-95 Adjustable Coilovers Coilover Lowing kit

Item Number 3002104876
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Application

Compatible For BMW 5 Series E34 Sedan 518i / 520i / 525i / 530i / 535i / 540i / 524td / 525tds strut diameter at the front axle of 55 mm 01/88 - 12/95

Note: shock is 51mm

M10 thread and D10 piston rod

Specification

Damper: Non adjustable Damper.

Spring rate Front: 2.5 kg/mm (140 lbs/in)

Spring rate Rear: 3kg/mm (168 lbs/in)

Spring length Front: 225mm

Spring length Rear: 350mm

Adjustable height: lowering 35mm-75mm

Coilover overall length Front: 400mm-530mm

Coilover overall length Rear: 455mm-655mm

Shock type: Twin tube.

Color:gold.

Notice: No Top Mount Included

Warranty: one year warranty for any manufacturing defect

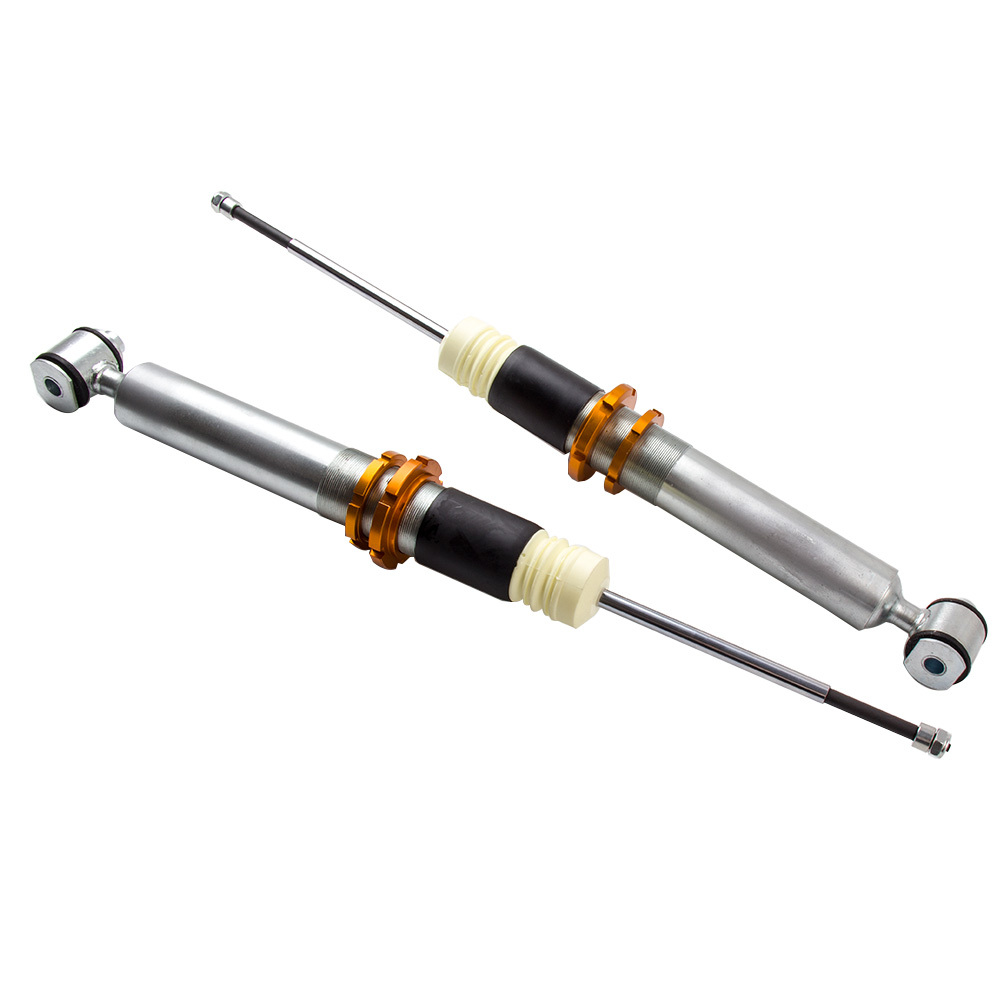

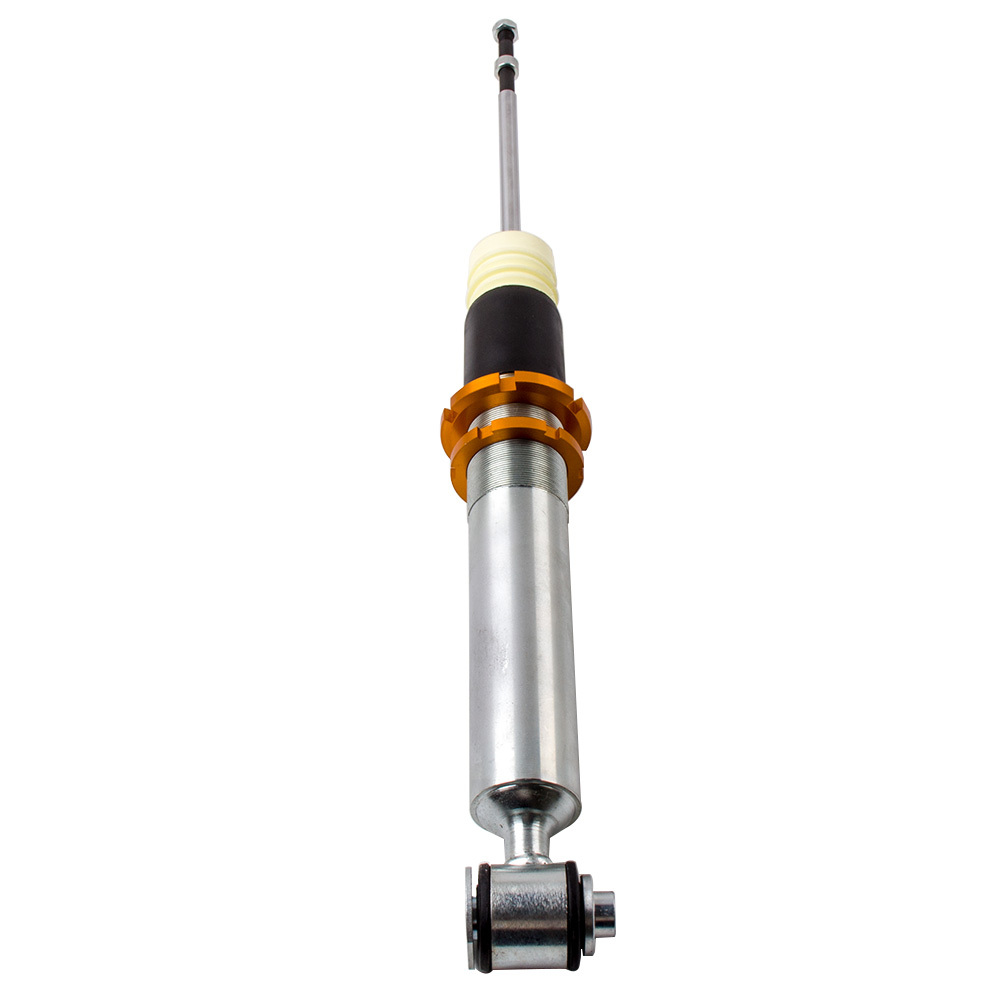

product included: springs and shocks for front and rear, no top mounts included, a pair wrench for height adjustment and two spring compatible for seat.

Dimension:

Gross weight: 24kg

Package size: 71*51*21cm

Feature

1.Lowering height 1inch allow you have more aggressive stance.

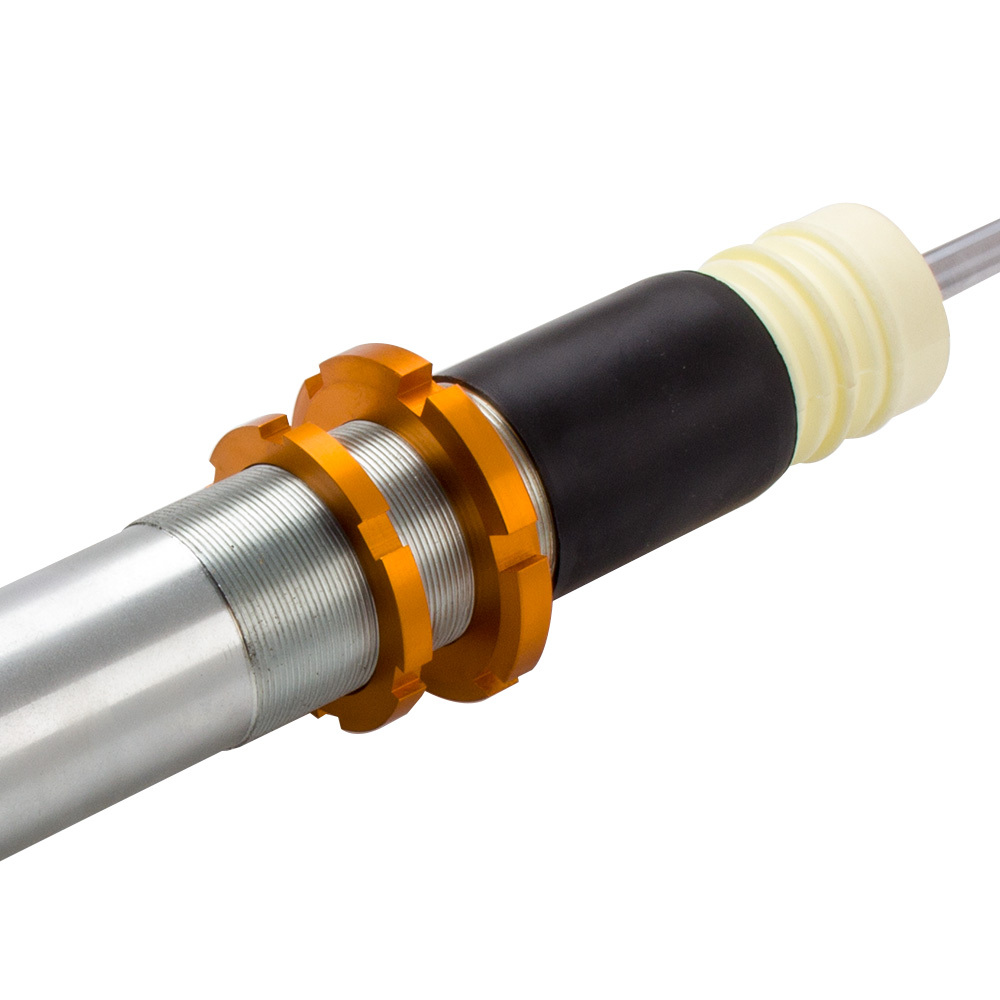

2.Height Adjustment tools included.

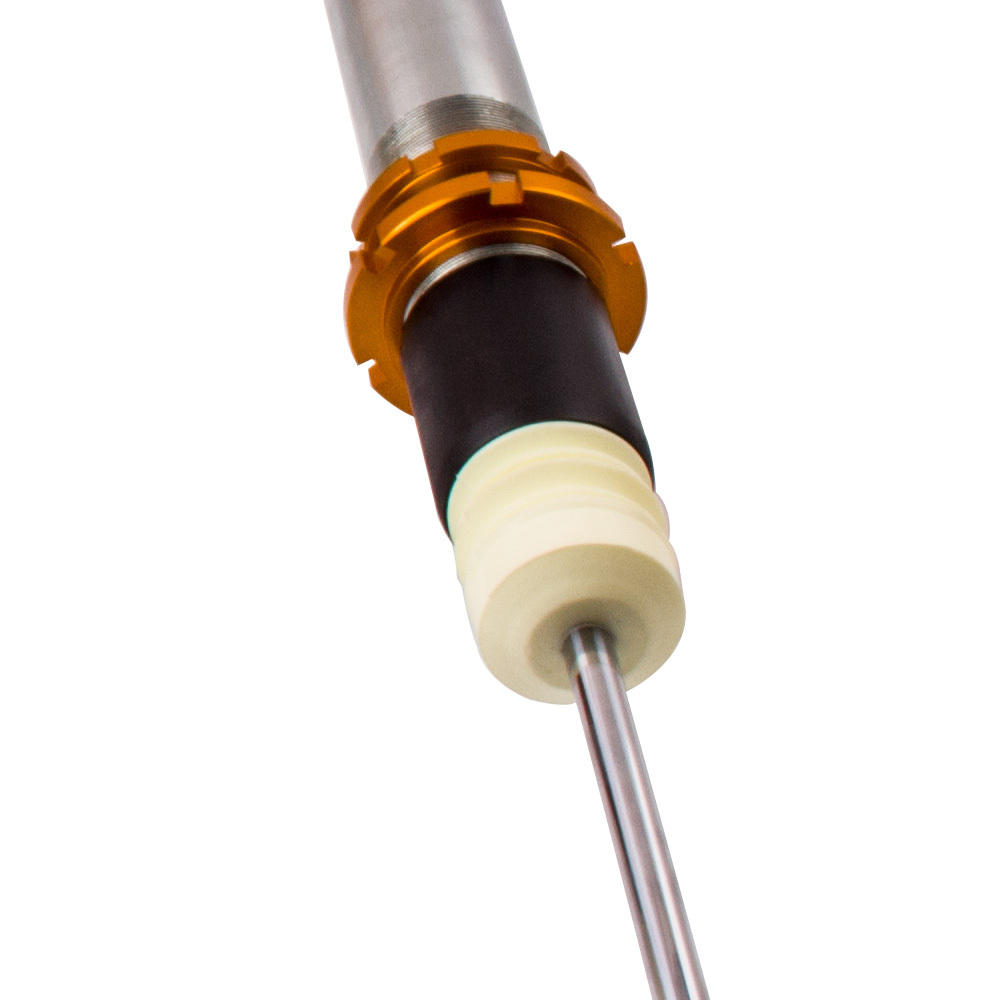

3.Dust boot included to protect damper seal.

4.Twin-Tube structure allows sufficient stroke within the shock absorber.

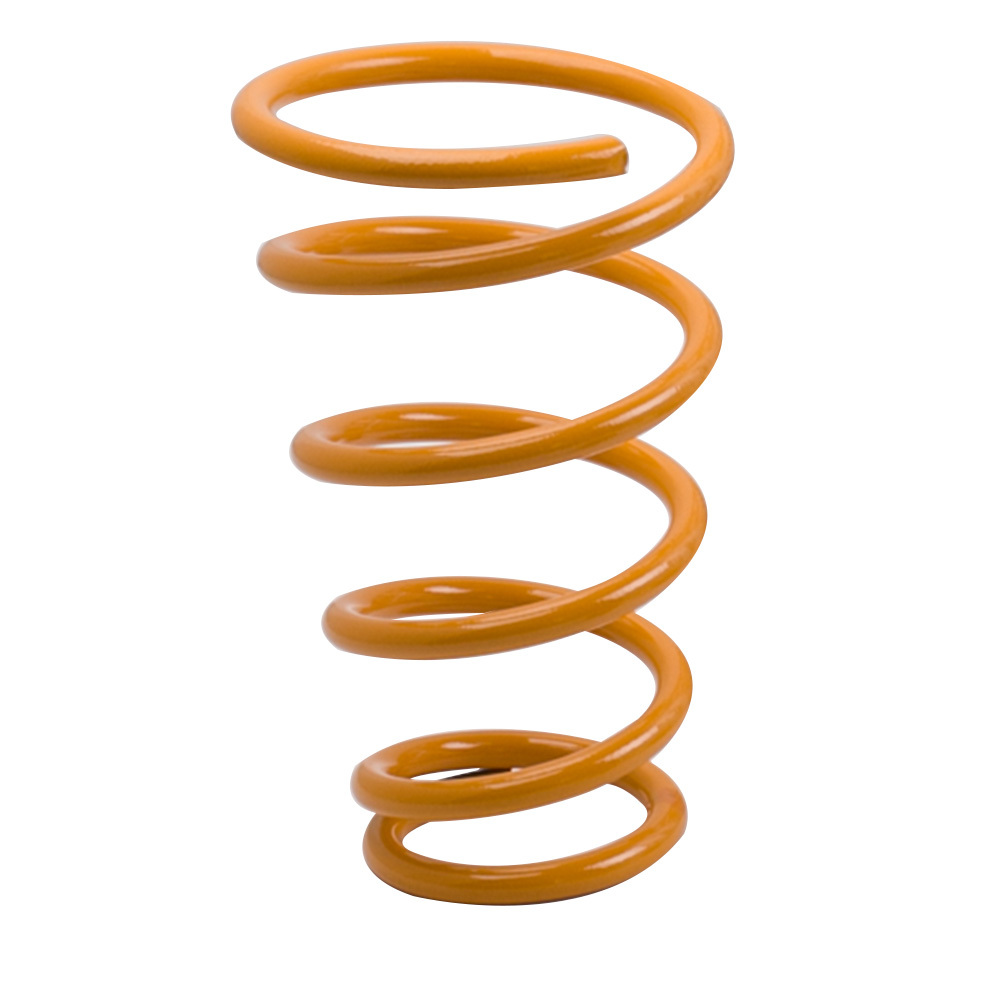

5.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

Note

No instruction included; Professional installation & alignment suggested.
