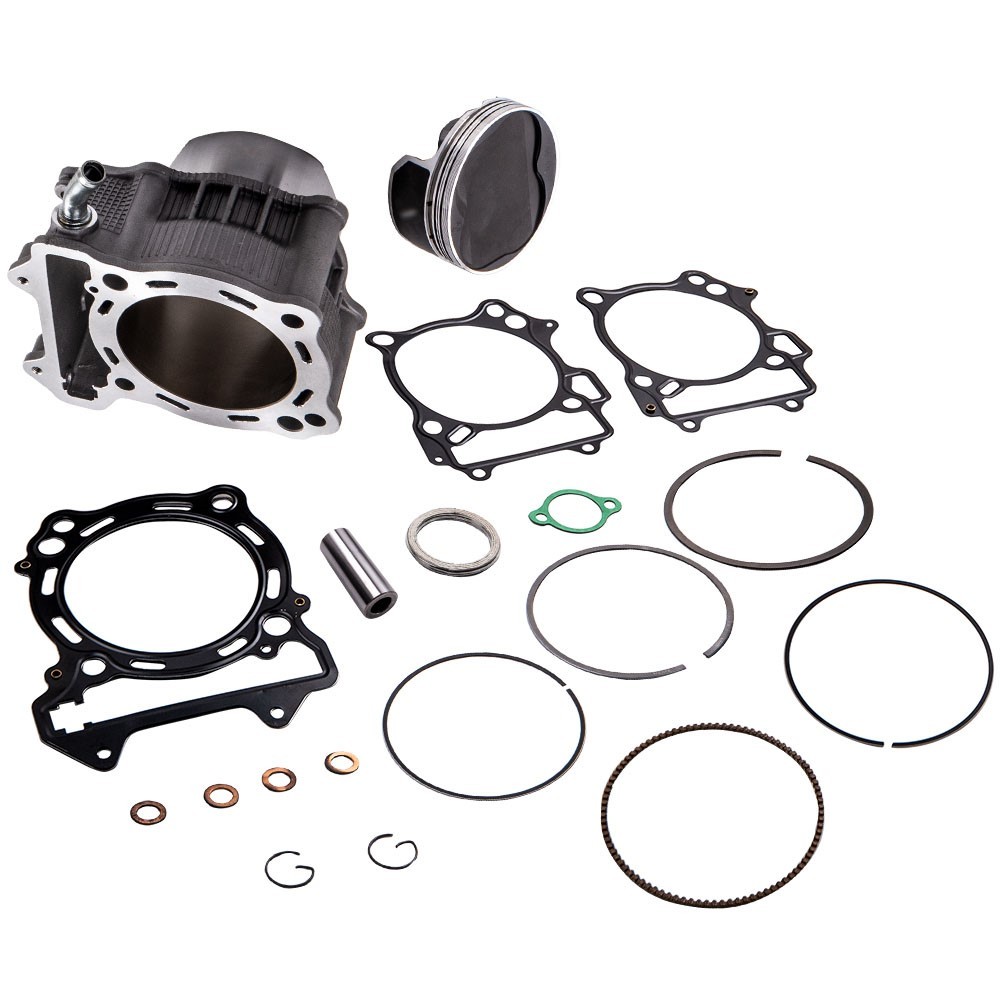

Cylinder Piston Gasket Top End Kit compatible for Suzuki LTZ 400 434cc Big Bore 94mm 03-14

Item Number 3002064726
Stock In Stock
Pay withto get 10% off

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G


Compatible for SUZUKI LTZ 400  2003-2013

Compatible for Suzuki DR-Z400 2000-2015

Compatible for Kawasaki KFX400 2003-2006

Compatible for Suzuki LTZ 400 LTZ400 LT-Z400 Z400 models 2003-2014

Interchange Part Number:

Compatible for Suzuki:  11210-29F20-0F0, 11241-29F00, 12111-29F00-0F0, 12140-29F00

12151-24F10, 09381-20004, 11141-29F01, 09160-10082, 11191-13E00

Compatible for Kawasaki:  11005-S007, 11061-S070, 13001-S006, 13002-S006, 13008-S008

92033-S040, 11061-S001, 92200-S009, 92200-S015, 11061-S073

Compatible for Arctic Cat:  3402-844, 3402-845, 3402-846, 3502-011, 3402-847, 3003-439, 3402-841, 3402-137


Piston Rings:85.5mm/84.5mm/86.8mm


Cylinder Block


Piston Pin

Piston Rings


Head Gasket

Base Gasket



Spark Plug


Package Size: 32.5*23.5*20CM


1. 100% Brand New.

2. Size: Cylinder Bore and Stroke 94.00mm x 62.60mm.

3. Cylinder Displacement 434cc / Piston Compression 12.3:1.

4. Improved Casting Design with Larger Water Jackets and Greater Cooling Capability.

5. Complete 434cc Big Bore Cylinder Piston and Gasket Kit.

6.MAXPEEDINGRODS offers quality parts that are proven to last. With top-of-the-line materials, cutting-edge production technologies and a highly qualified team, we guarantee complete satisfaction.

7. High quality with 1 year warranty.


First, make sure that the piston ring is installed correctly, and then align the piston belt ring with the cylinder block.

Gently hold the piston and ring by hand, and gently shake the cylinder block to make the piston and piston ring into the cylinder block.

Less oil can be applied outside the piston and piston ring or the lower part of the inner wall of the cylinder block to make the installation easier.


1.Pay attention to the size of the piston ring when installing.

2.Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work.  Warranty does not cover any failure that is a result of improper installation, improper break in, improper tuning, or misuse. (No Instruction Included).
