Coilovers Spring Struts compatible for Mazda Savanna RX7 FC3S 1.3L R2 GAS Coupe 86-91

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Mazda RX-7/Compatible for Mazda Savanna RX-7 second generation FC3S 1985–1992
2 door coupe/2 door convertible

Specification

Top mount: Front camber plate；rear pillow ball
Damping: not available
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)​
Adjustable height: lowering 1-3 inch
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold body with black spring

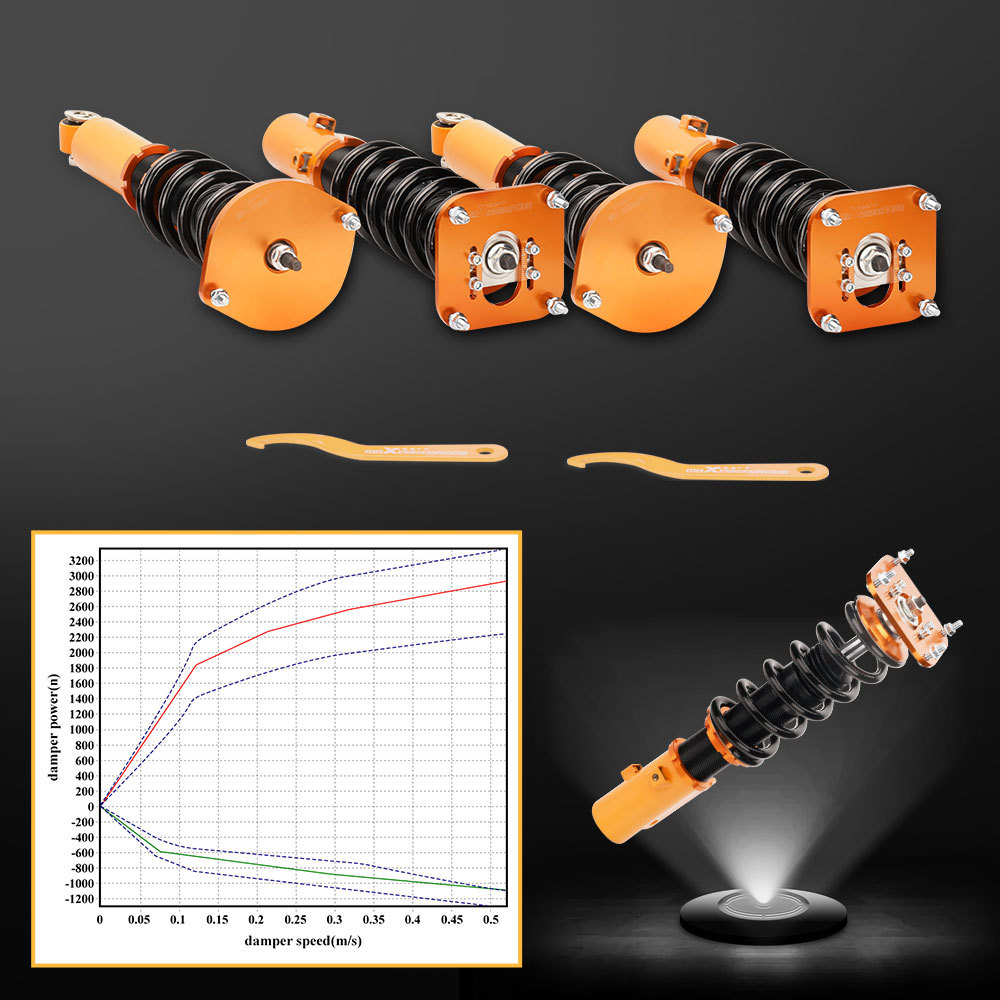

Package included

Complete coilover assembly kit for front and rear
A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21
Weight: 25560g

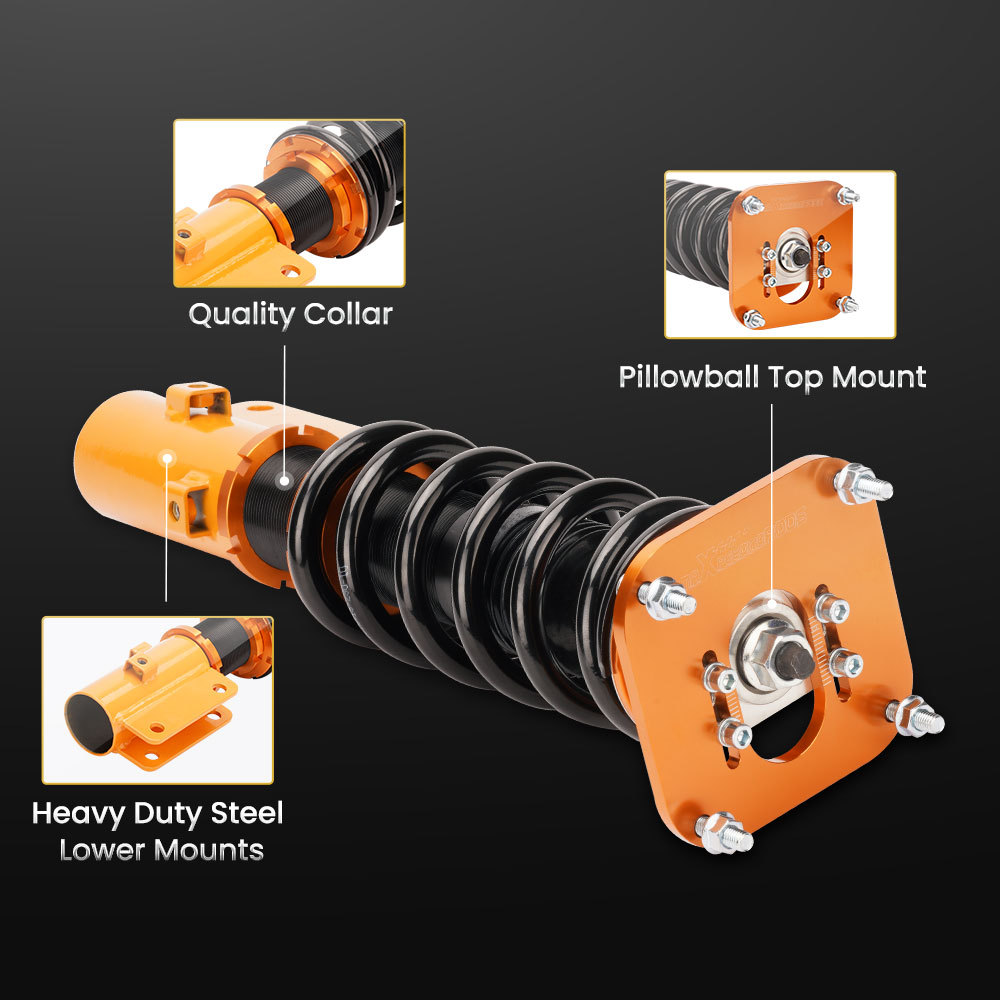

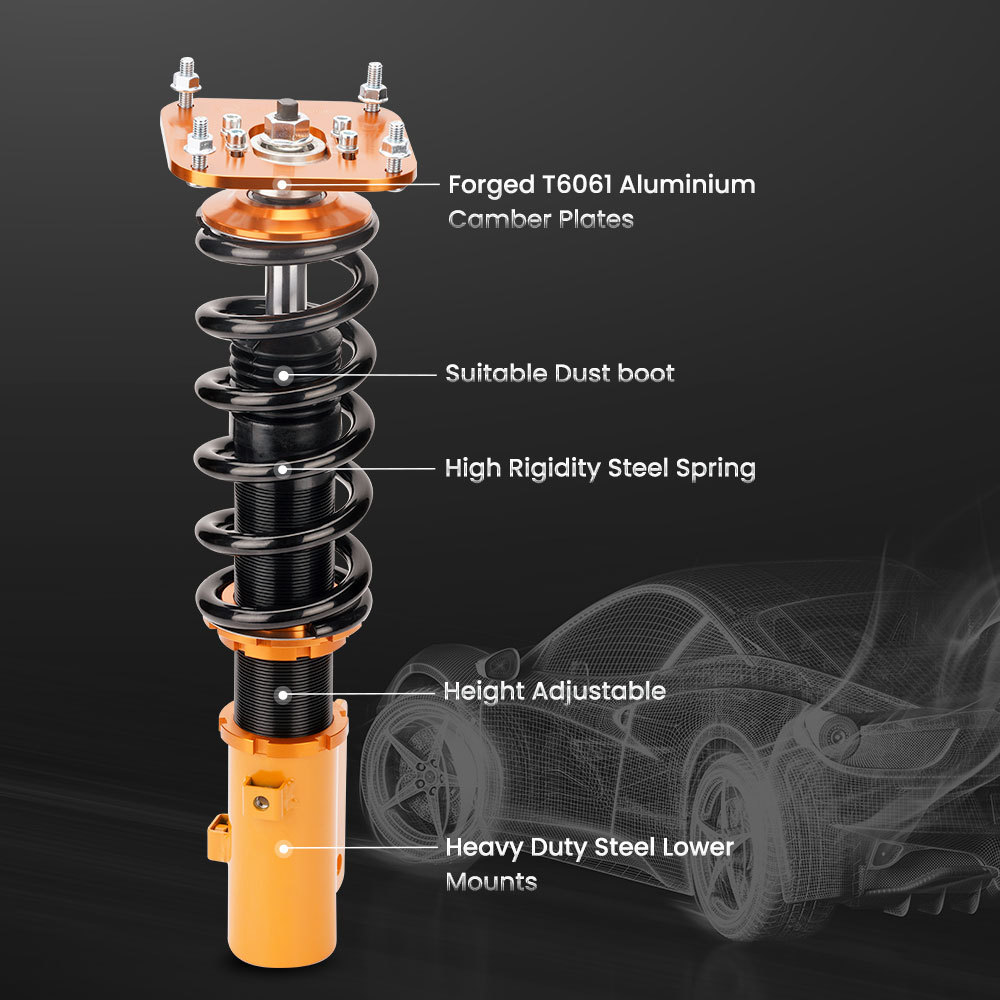

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.
3.Twin-Tube structure allows sufficient stroke within the shock absorber.
4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

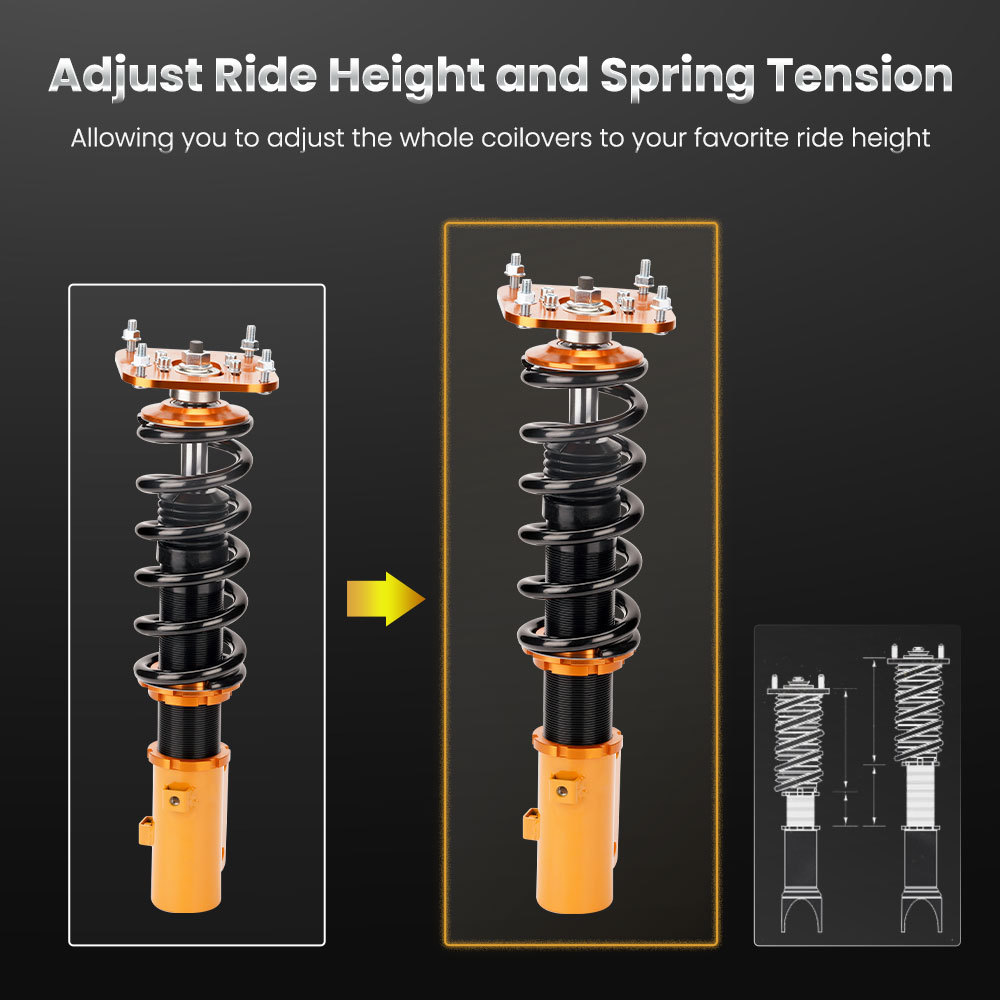

5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

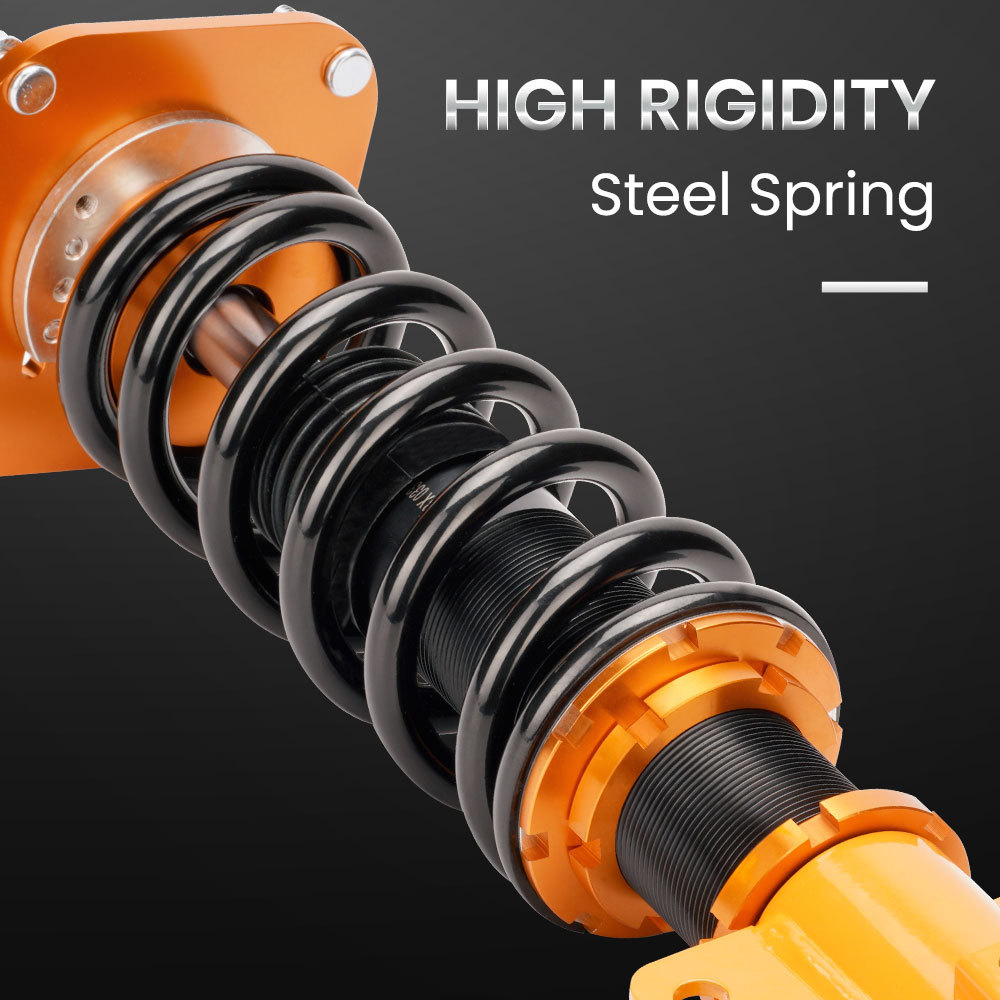

6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8.Steel shock bodies with special surface treatment to improve the durability.
9. Full rebuildable
