Coilovers Spring Kit compatible for BMW E60 Coilover 5 Series 530i 545i 550i M5 2004-2010

( 0 reviews )

* Fitment: The shock absorbers are compatible for BMW 5 Series (E60) 2004-2010 Please note that these coilovers do not fit xi models
* High-quality Spring: Front:10kg/mm (560 lbs/in); Rear: 7kg/mm (392 lbs/in)；The spring distortion is less than 0.04% under 600,000 times continuously tests
* Adjustable Performance: Adjustable ride height (lowering 1''-3''); Adjustable pre-load spring tension;
* Increased Hardness: Most components of the suspension parts are made from 6061 aluminum with T6 for increased strength and rigidity
* Pillow ball top mount: Pillow ball bearing top mounts for camber are designed to combat noise while tuning and offer greater feed back

Color

Damper Non-Adjustable Adjustable

Quantity:

Add to wishlist
Add to compare

Item Number 3002103934

Stock

Combination offer

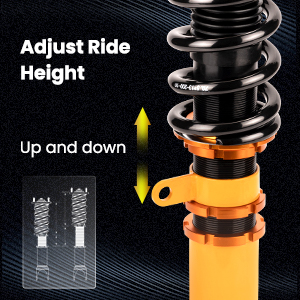

1. Adjustable Height

Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel

2. High Quality Components

Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
Pillow ball top mount is designed for improving Steering feel and response

3.Hi-Tensile Performance Spring

Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved .

4. Twin-tube Construction Dust boot protects damper seal

Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for BMW 5 series E60 2004-2010 Sedan RWD
model: 525i,528i,530i,535i,545i,550i
will not fit M models

Specification

Top mounts: front - pillow ball top mounts
rear - rubber top mounts
Damping: not available
Spring rate: front 10kg/mm
rear 7 kg/mm
Adjustable height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

Package included

complete coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 25400g
size: 71*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber
3. Separate height adjustment does not affect damper stroke
4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
5. Height Adjustment tools included
6. Pillow ball top mount - It improves the steering feel and response
7. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8. Full rebuildable

Note

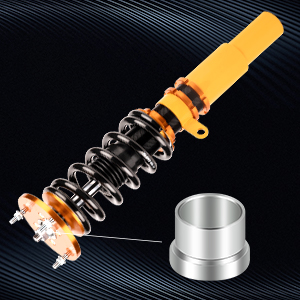

The front damper knuckle insert diameter is 49mm or with bushing 55mm.
