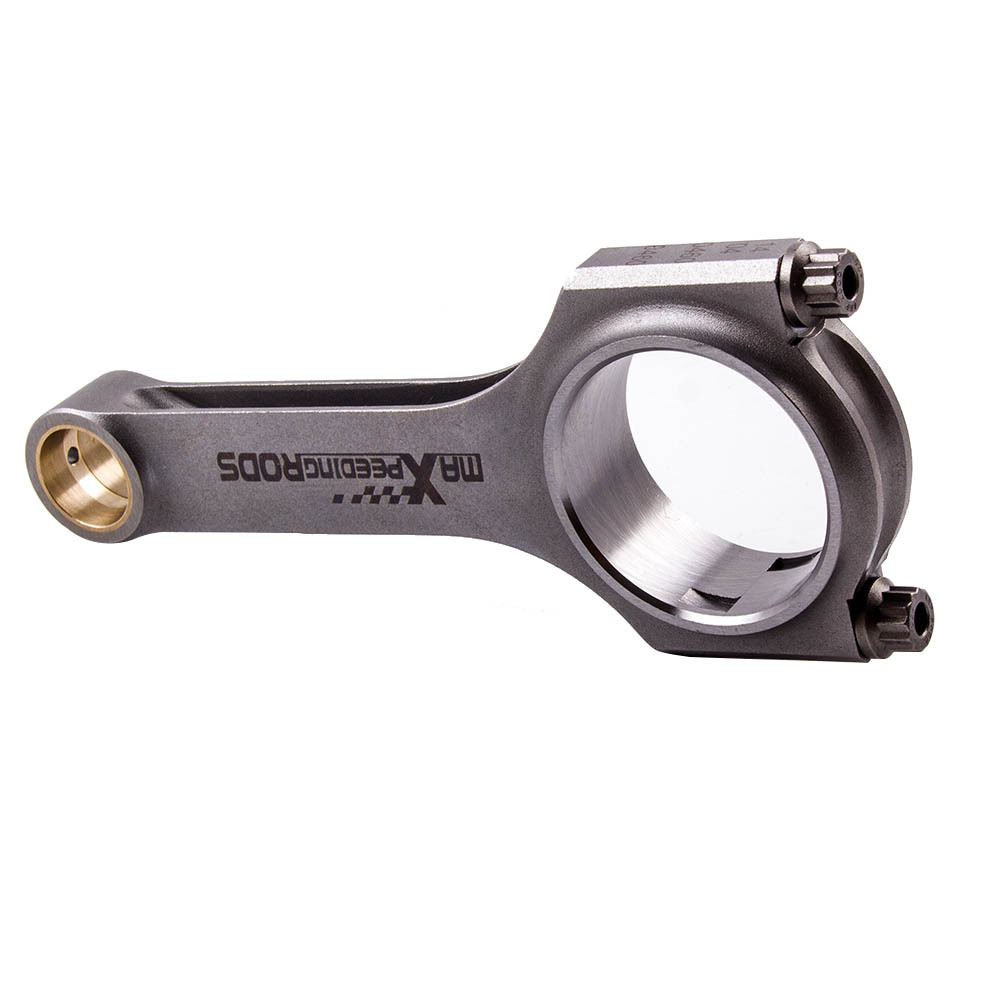

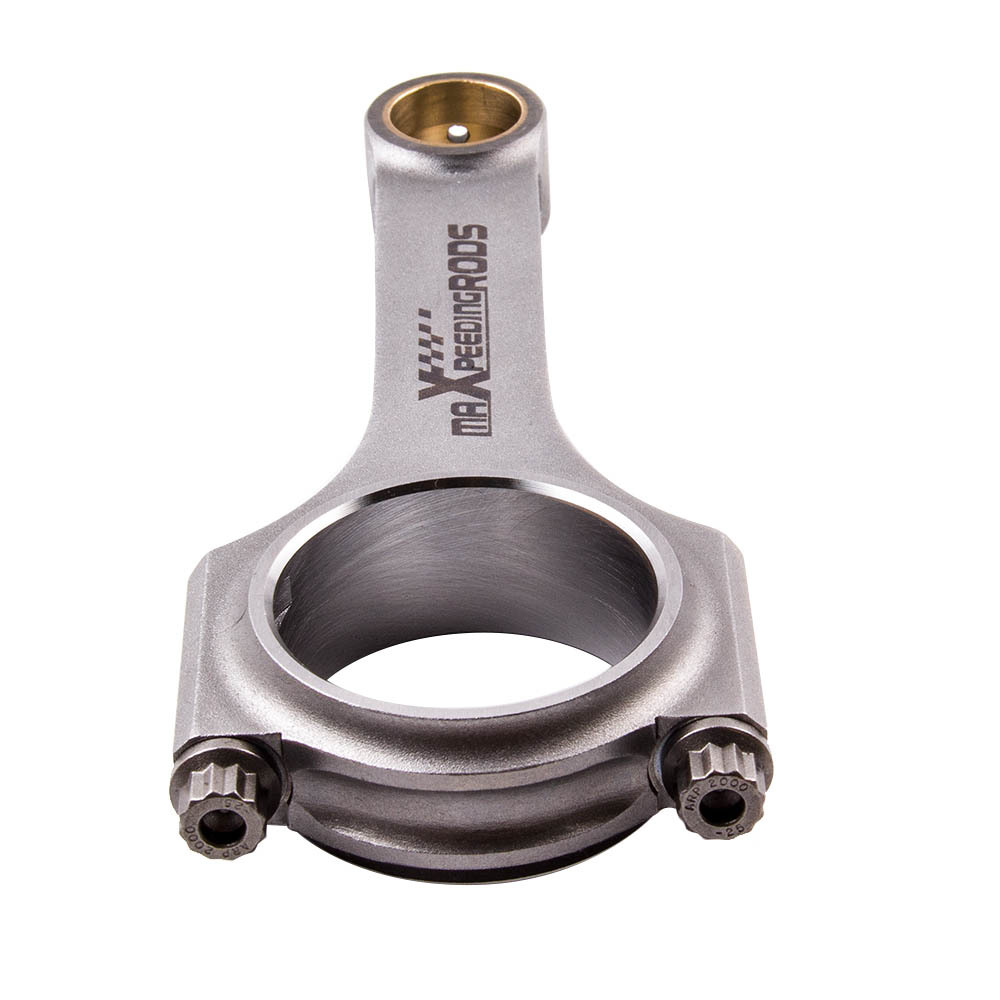

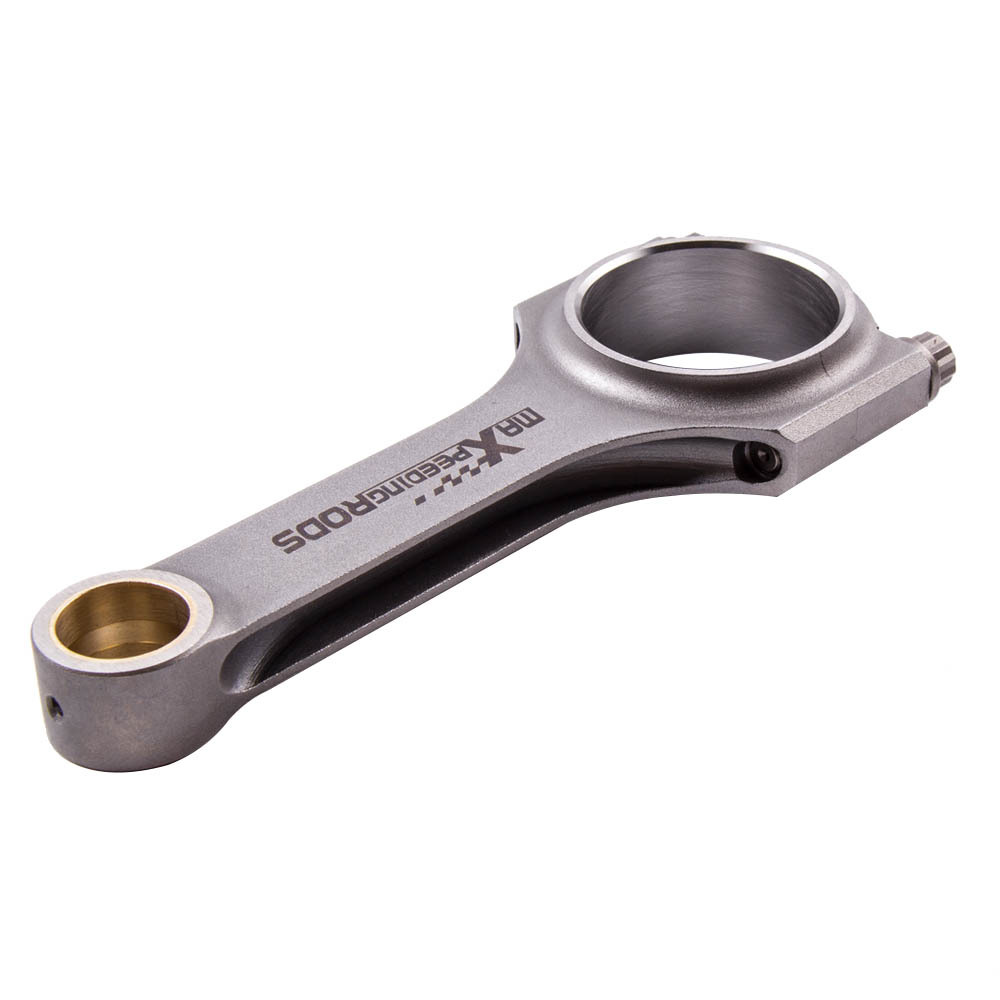

Compatible for BMW E36 318is M42B18 ARP 2000 Pleuel Bielle Connecting Rod - High Performance 4340 EN24 H-Beam Conrod

  • * 1.H-Beam con rods compatible for BMW E30 318i M42B18, compatible for BMW E30 318iS M42B18, compatible for BMW E36 318i/318ti M42B18, compatible for BMW E36 318iS M42B18, compatible for BMW E36 318iS/318ti M44B19
  • * 2.Advertised Horsepower Rating: 600~800HP
  • * 3. Forged 4340 EN24 aircraft chrome moly quality steel
  • * 4.Dimensions: Center to center length: 140mm;Big end diameter: 48mm;Small end diameter: 22mm;Big end width: 21.9mm;Small end width: 21.9mm
  • * 5.Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8 " bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * 6.Performance Con Rods
  • * 7.Advertised RPM Rating: 7000-9000 rpm
  • * 8. Fastener Tensile Strength (psi):200,000 - 230,000 psi
  • * 9.Balanced to within +/- 1 gram per end
  • * 10.The big end bores are honed to a +/-.01mm tolerance
  • * 11.Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock
Item Number 3002069354

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-BW-140-4
CR-BW-140-4
1. High Performance Material
1. High Performance Material
Forged 4340 EN24 aircraft chrome moly quality steel for racing
2. High Quality Components
2. High Quality Components
With Standard ARP 2000 Bolts (Upgradable ARP L19)
3. Professional H-Beam Design
3. Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
4. Precision Machining Manufacturing
4. Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels

Application

Compatible for BMW E30 318i M42B18
Compatible for BMW E30 318iS M42B18
Compatible for BMW E36 318i/318ti M42B18
Compatible for BMW E36 318iS M42B18
Compatible for BMW E36 318iS and 318ti M44B19

Specification

Performance Con Rods
Type: 4340 EN24 H-Beam Connecting Rod
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

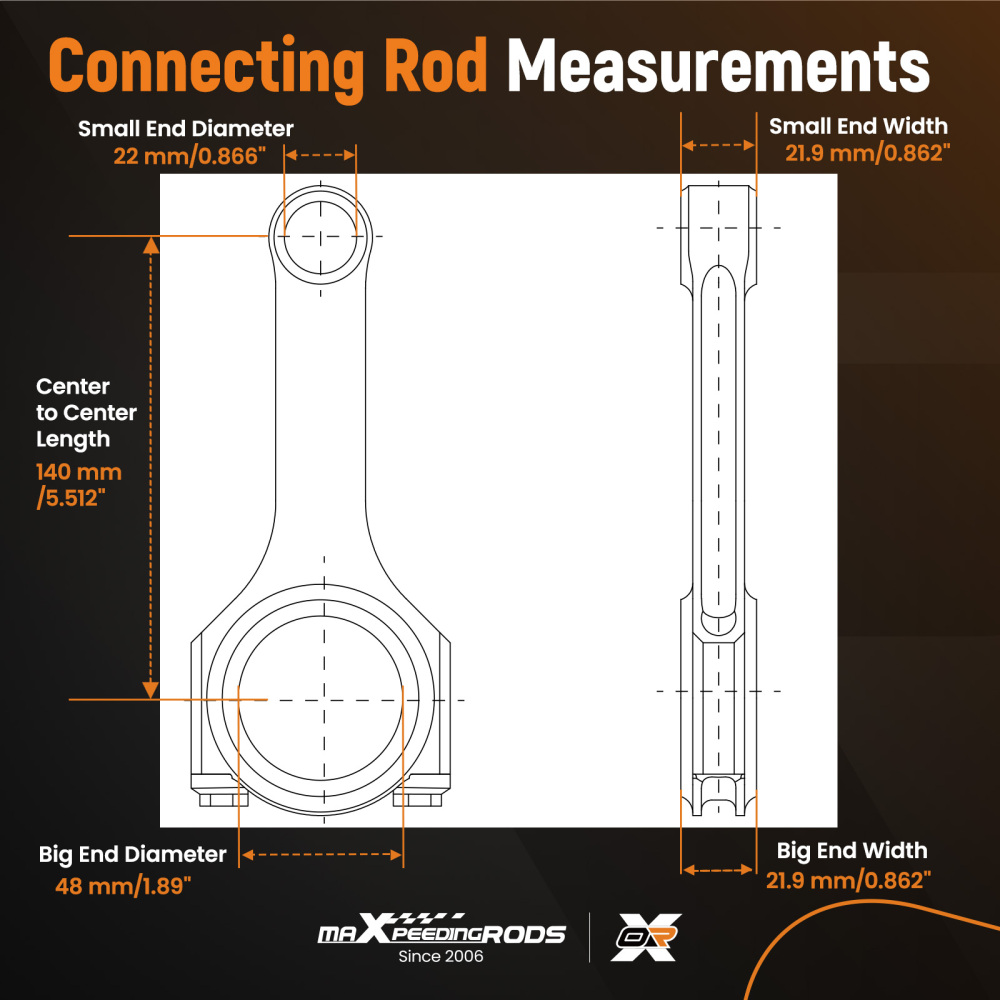

Dimensions

Center to center length: 140mm
Big end diameter: 48mm
Small end diameter: 22mm
Big end width: 21.9mm
Small end width: 21.9mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
