Connecting Rods compatible for BMW E36 E46 328i 325i M52B28 Conrods Con Rods 135mm

  • * H-Beam con rods fit compatible for BMW 328i 528i E36 E46 M52B28 Fitment Details: Compatible for BMW 3 Series E36 1990-2000 325i 328i compatible for BMW 3 Series E46 1998-2007 325i 328i 330i 325 Ci 328 Ci 330 Ci 325 xi 328 xi 330 xi compatible for BMW 5 Series E12 1972-1981 Saloon 528i compatible for BMW 7 Series E38 1994-2001 Saloon 728i X 728i, iL compatible for BMW Z3 E36 1997-2003 Coupe 2.8i compatible for BMW Z3 Roadster E36 1995-2003 Convertible 2.8i
  • * Advertised Horsepower Rating: 800HP
  • * Material: Forged 4340 aircraft chrome moly quality steel
  • * Dimensions: Center to center length: 135mm; Big end diameter: 48mm; Small end diameter: 22mm; Big end width: 22mm; Small end width: 22mm
  • * Package Contents: 6 Pieces of H-Beam Connecting Rods; 12 Pieces of ARP 2000 3/8" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * TüV Certification Con Rods
  • * Advertised RPM Rating: 7000-9000 rpm
  • * Fastener Tensile Strength (psi):200,000 - 220,000 psi
  • * Balanced to within +/- 1 gram per end
  • * The big end bores are honed to a +/-.01mm tolerance
  • * Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-BW-135
CR-BW-135
CR-BW-135
CR-BW-135
CR-BW-135
CR-BW-135
CR-BW-135
CR-BW-135
CR-BW-135
High Quality Components
High Quality Components
With Standard ARP 2000 Bolts (Upgradable ARP L19)
Precision Machining Manufacturing
Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels
Professional H-Beam Design
Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
High Performance Material
High Performance Material
Forged 4340 aircraft chrome moly quality steel for racing.Advertised Horsepower Rating:800HP

Application

Compatible for BMW E36 E46 328i 528i M52B28
Compatible for BMW M52 3.2 LTR
Compatible for BMW M20 325i/s / E36 M3 M52 TU M52B28
Compatible for BMW M20B25 / M50B25/M54B30 / M52B32/S52B30/S52B32

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: 2 years warrantu for any manufacturing defect

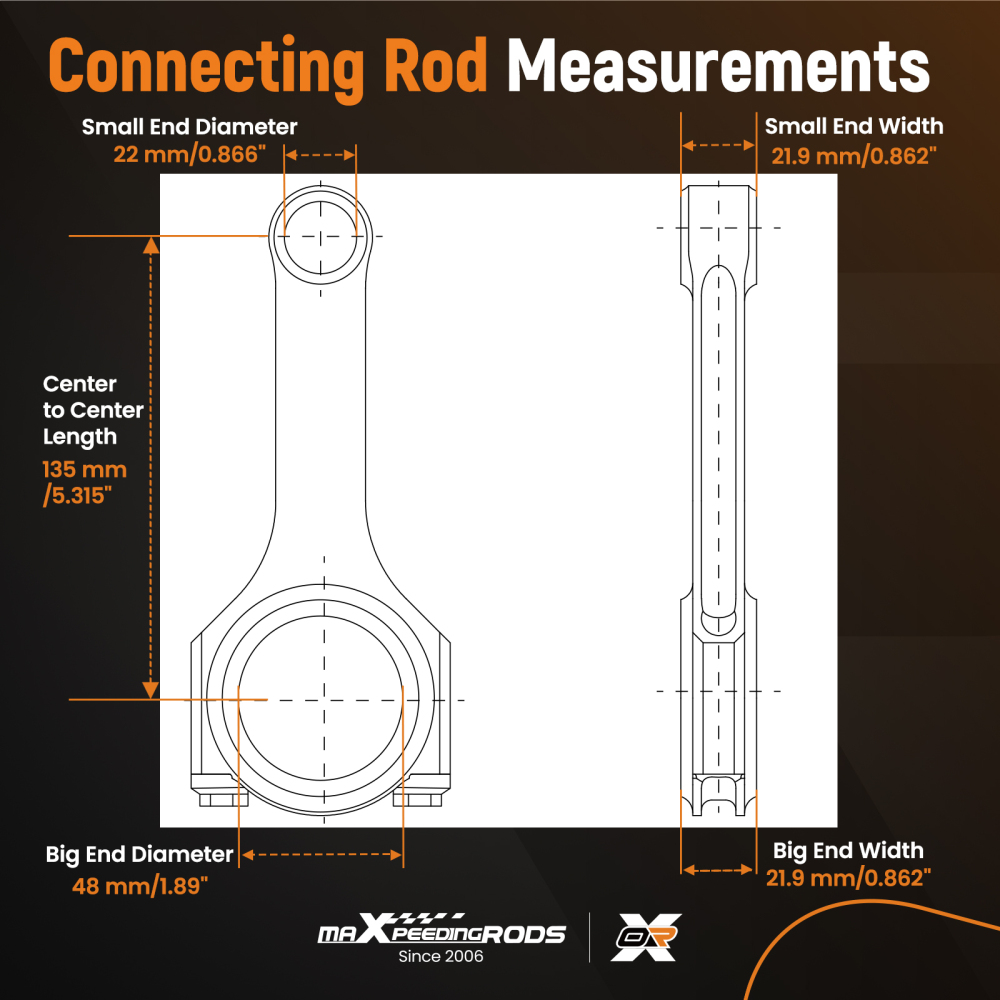

Dimensions

Center to center length: 135mm/5.315"
Big end diameter: 48mm/1.89"
Small end diameter: 22mm/0.866"
Big end width: 21.9mm/0.862"
Small end width: 21.9mm/0.862"

Feature

- TüV Certification Con Rods
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade
- 100% CNC machined,Precision rod cap alignment dowels
- All big and small ends are finished with SUNNEN honing machine
- 100% X-rayed, sonic tested
- Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers
- Each rod is magnetic particle tested to ensure free of flaws
- H-Beam design reduces weight without compromising strength
- Come with the bronzed bushing suitable for the floating piston pin
- Bores finished to +/- .01 mm
- Balanced to within +/- 1 g per rod
- custom available

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
