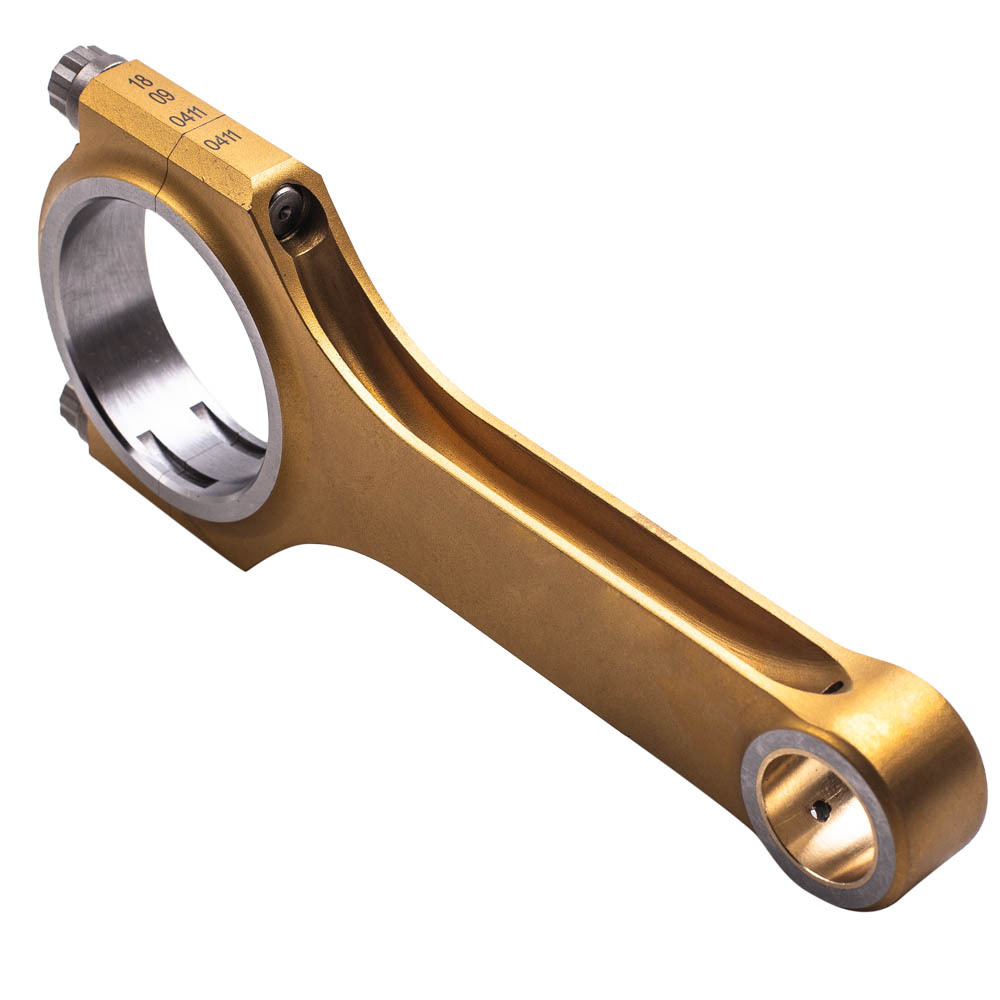

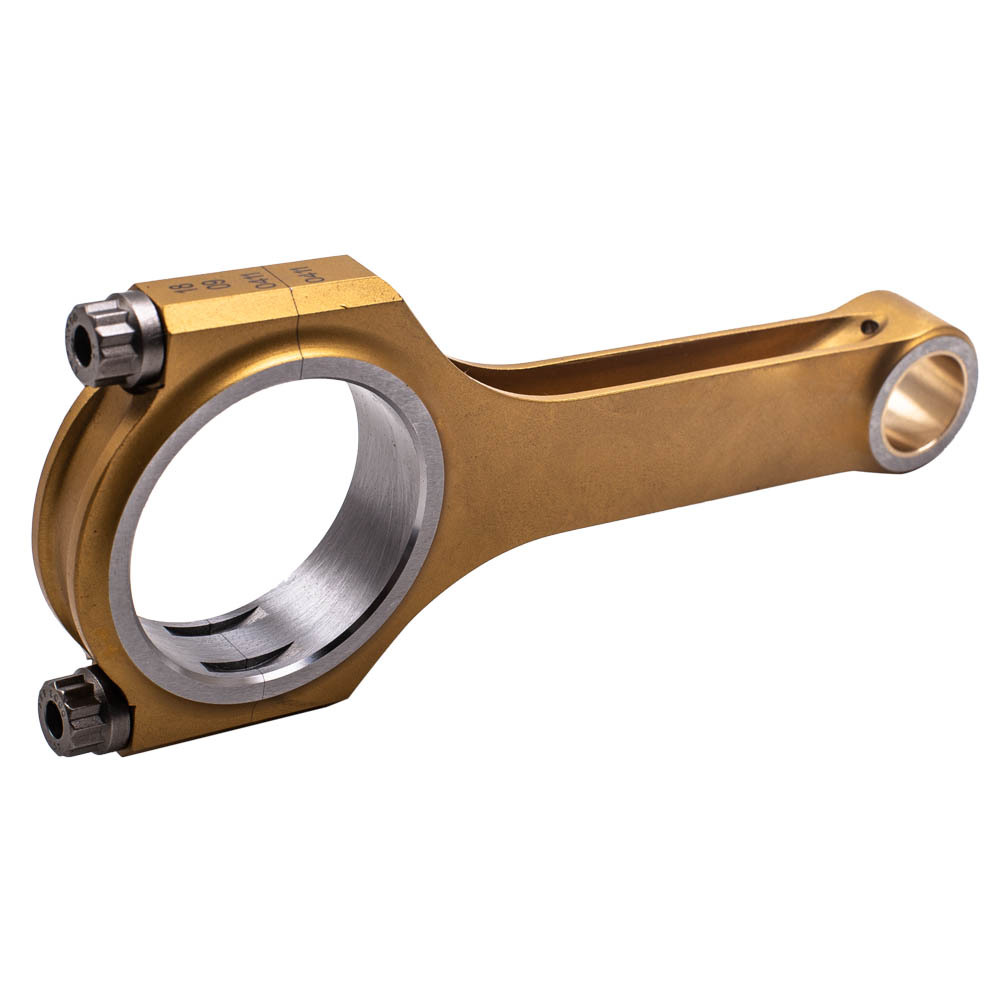

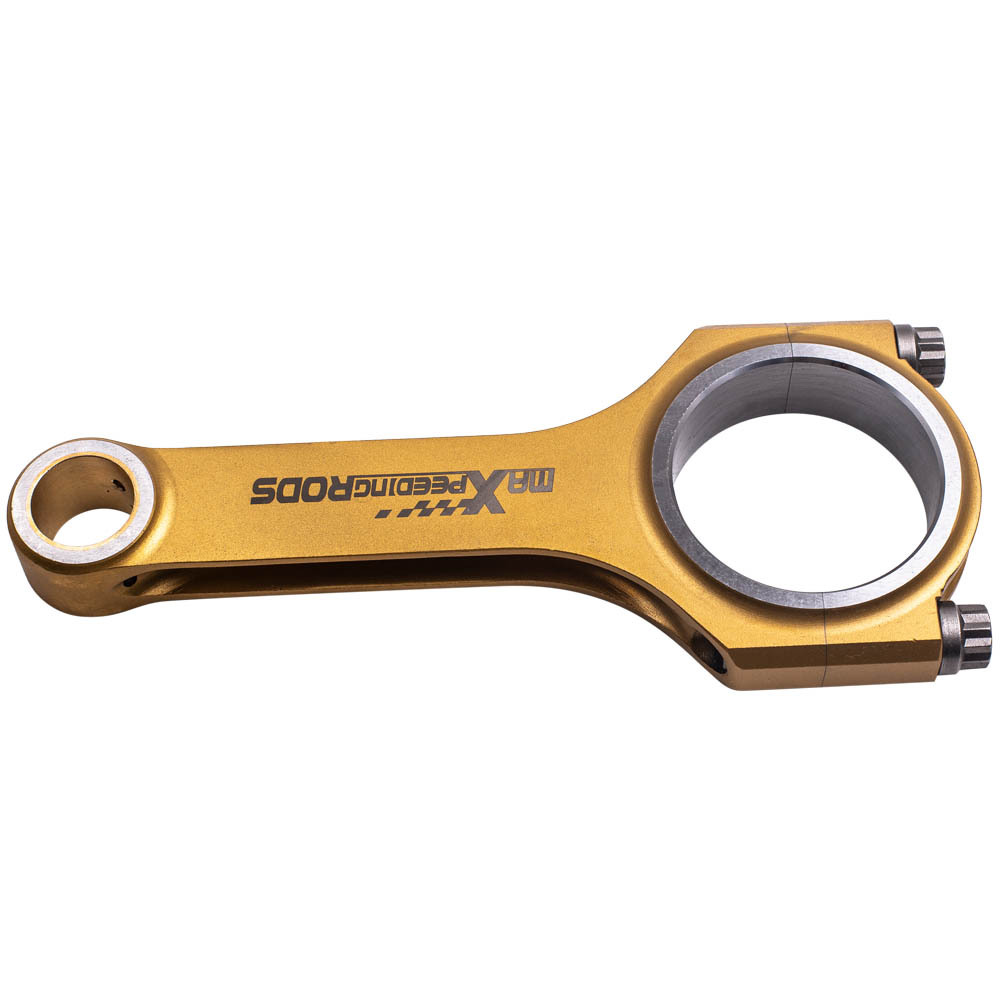

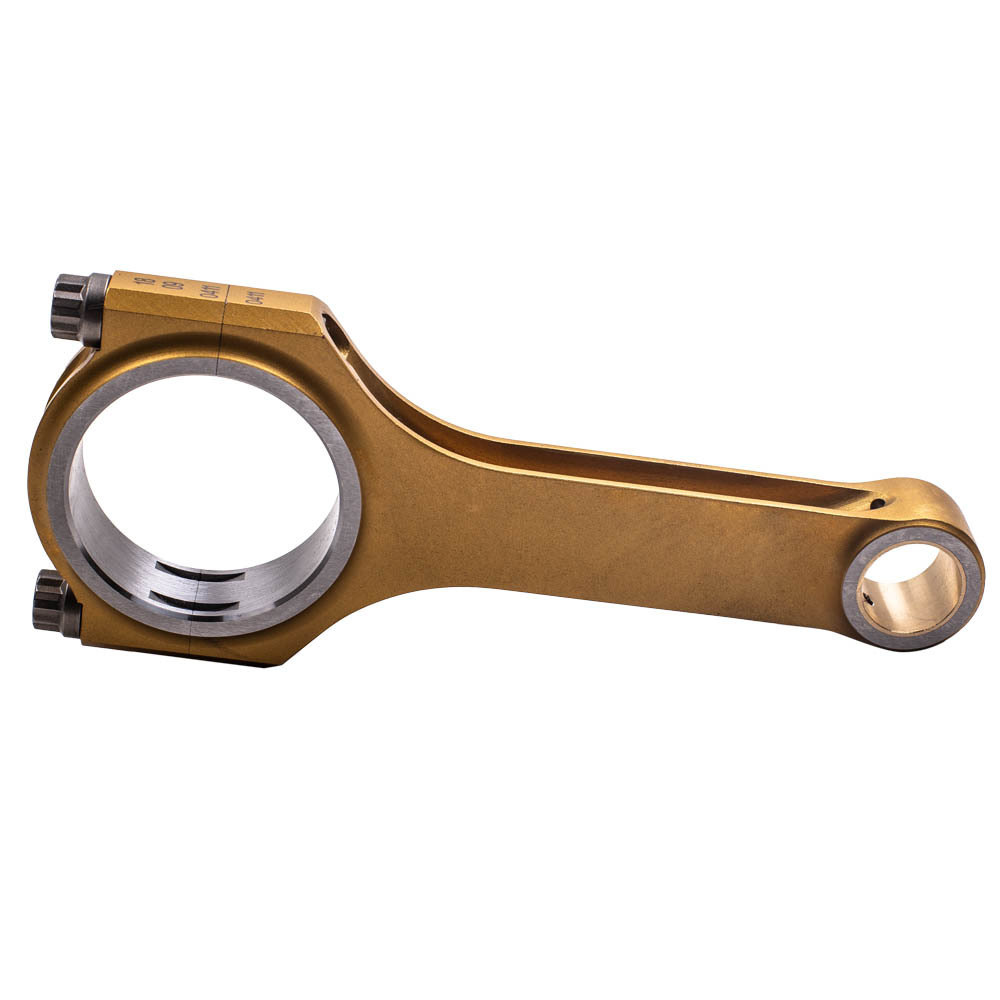

6x Connecting Rod Rods compatible for BMW E36 E46 328i 528i M52B28 w/ARP 2000 3/8 inch bolts

Application

Compatible for BMW E36 E46 328i 528i M52B28

Compatible for BMW M52 3.2 LTR

Compatible for BMW M20 325i/s / E36 M3 M52 TU M52B28

Compatible for BMW M20B25 / M50B25/M54B30 / M52B32/S52B30/S52B32

Specification

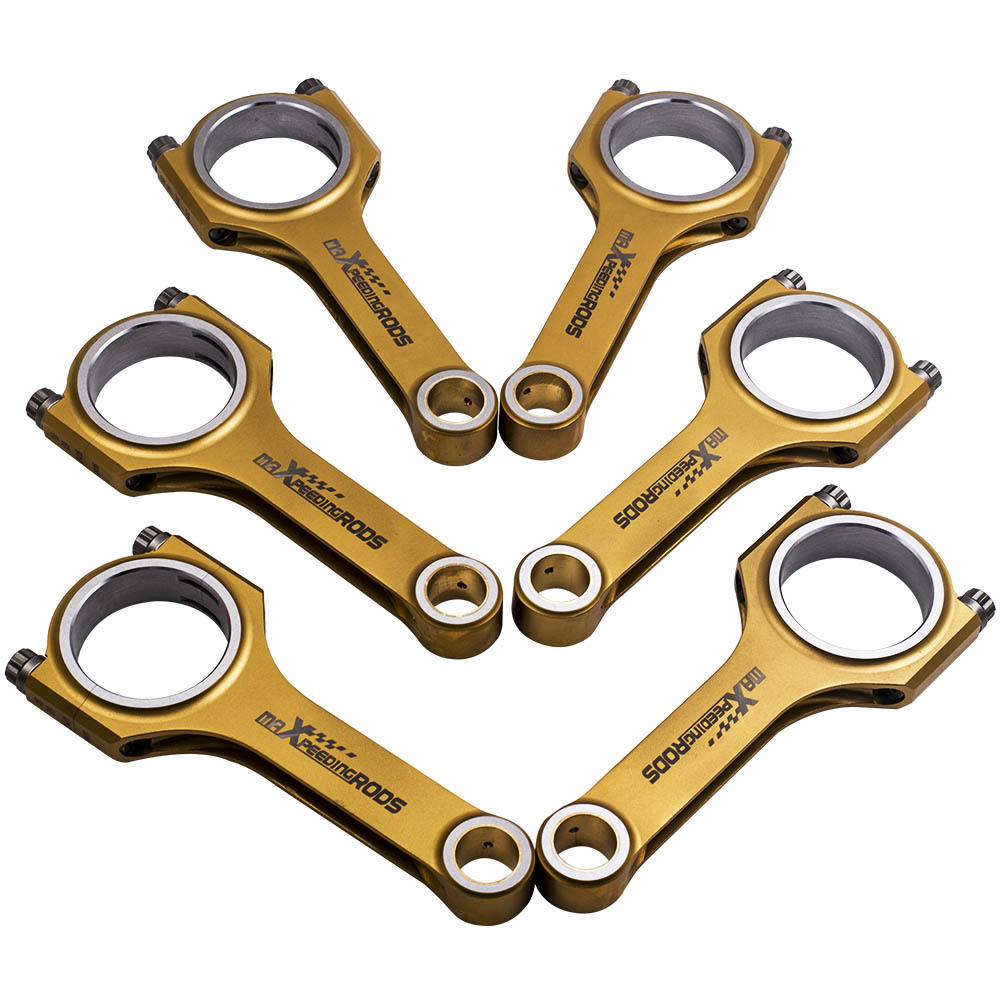

H-beam Conrods Quantity: 6 Pieces as showing in picture

The big end bores are honed to a +/-.01mm tolerance

Advertised Horsepower Rating: 250HP/piece

Advertised RPM Rating: 9000 rpm

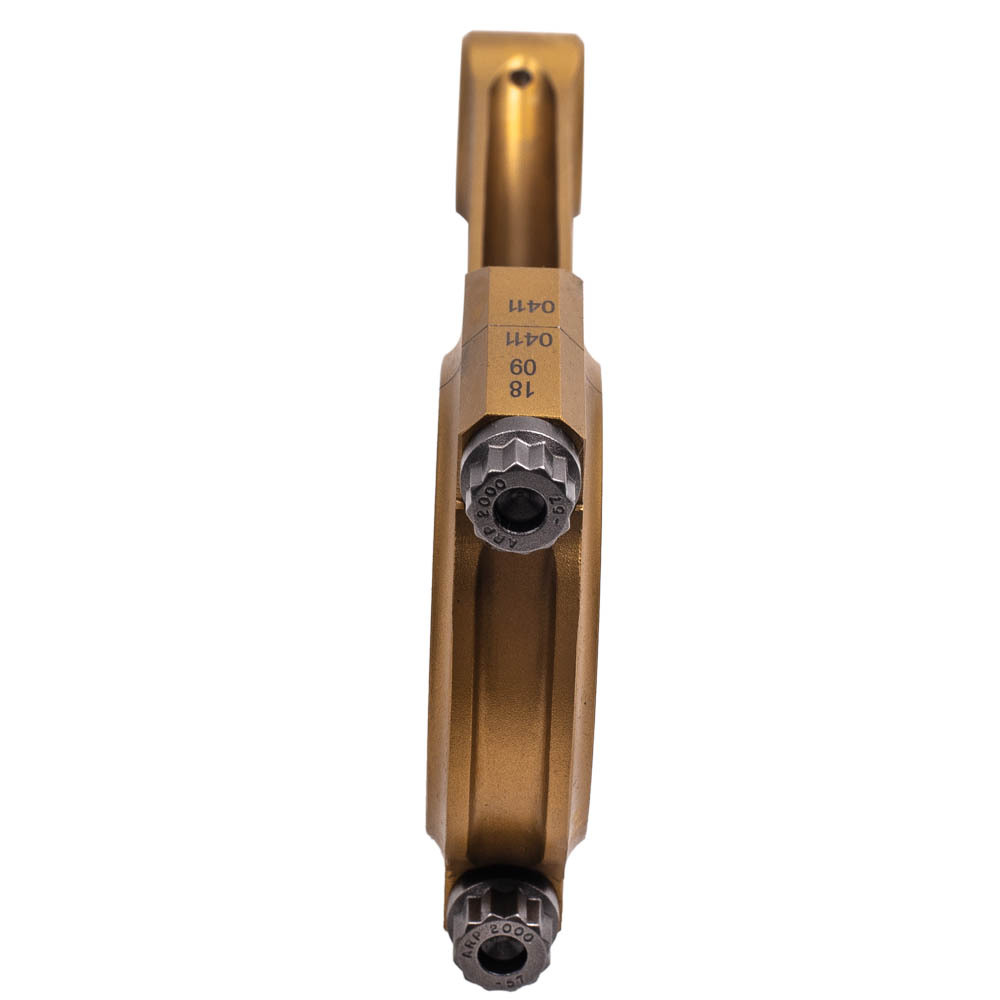

Bolts Size: ARP 2000 3/8" bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 135mm/5.315"

Big end diameter: 48mm/1.89"

Small end diameter: 22mm/0.866"

Big end width: 21.9mm/0.862"

Small end width: 21.9mm/0.862"

Features

The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.

1. Titanizing can further improve the bending strength of the product;

2. Titanizing will not affect the weight of the connecting rod;

3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;

4. Beautiful.

Notice

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
