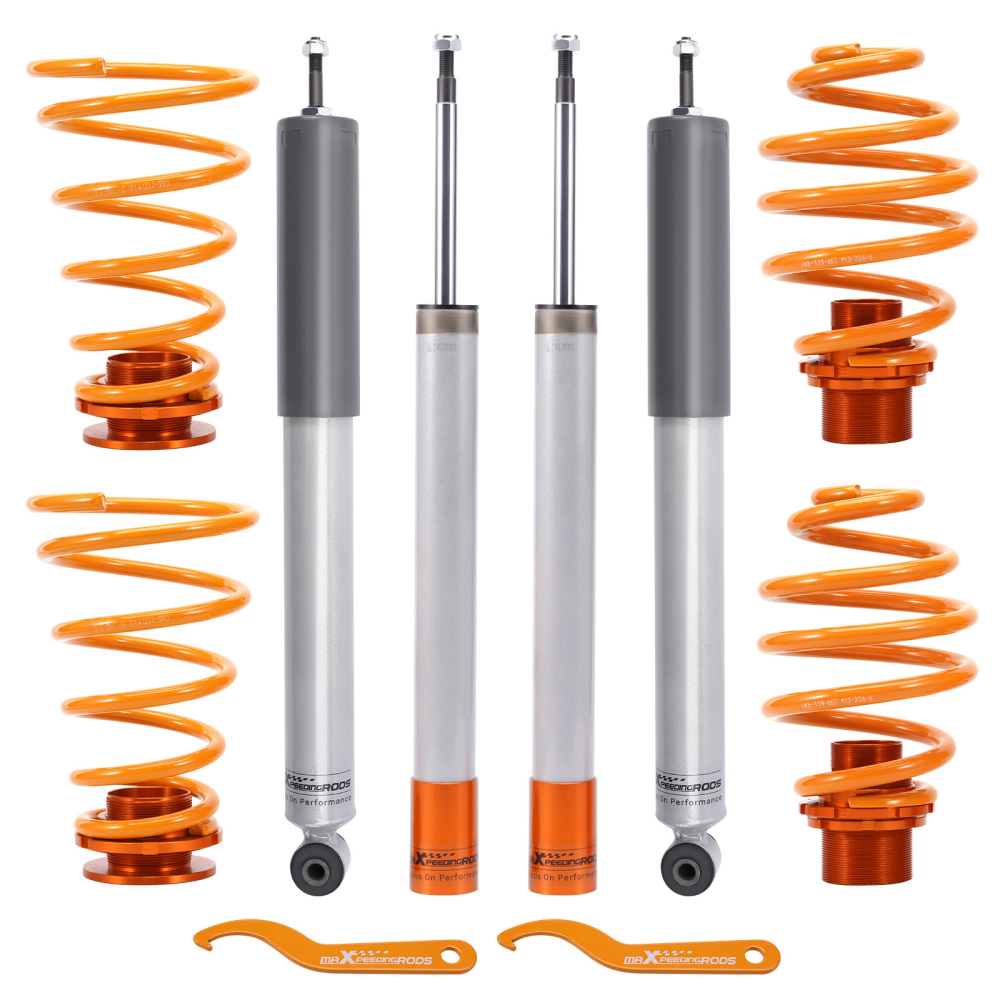

Coilover compatible for Bmw E30 Series 3 Adjustable Suspension Coilovers Lowering Kit 51mm

Item Number 3002104872
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G


Notice:No Top Mount Included,Modification Required If You Use OE Top Mount

Struts come in two sizes: 45mm and 51mm.

The bigger size on Tourings and Cabriolets.

If you are unsure of what size strut your car has, and you can't remember your maths lessons, then use a bit of string.

Wrap the string around the strut, and then measure its length;

141mm means a 45mm strut, and 160mm means a 51mm strut.

Does NOT fit the M3, iX (All-Wheel-Drive) models

Compatible for Bmw E30  saloon
E30 320i / 323i / 325i / 324D / TD Saloon 1988.11-1991.1   for 50~51mm front inserts
E30 320i / 323i / 325i / 324D / TD Saloon 1982.11-1988.1  for 50~51mm front inserts

Fits E30 Salloon with 51mm Inner diameter strut inserts. Be aware that there were some pattern front strut assemblies made with the smaller diameter inserts that found they're way on to models not fitted with them as original equipment.
This coilover will fit 320i / 323i / 325i / 324D / TD Saloon 1982 -1988 models, but it may not lower the car as much as the late model, because the rear chassis is different .
for E 30 316 / 316i / 318i / 1988.11-1991.1; this coilover kit can fit earlier models except 1.Pre 1988 1.6L & 1.8 L

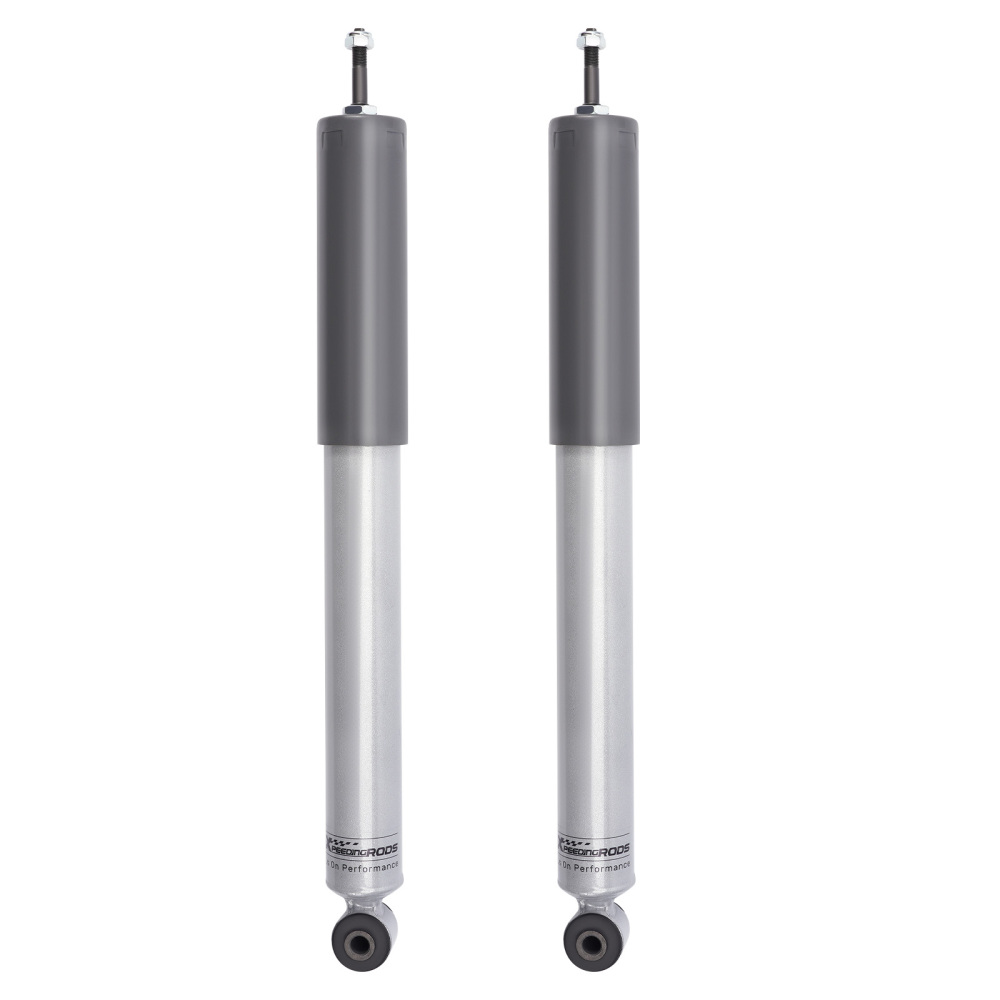

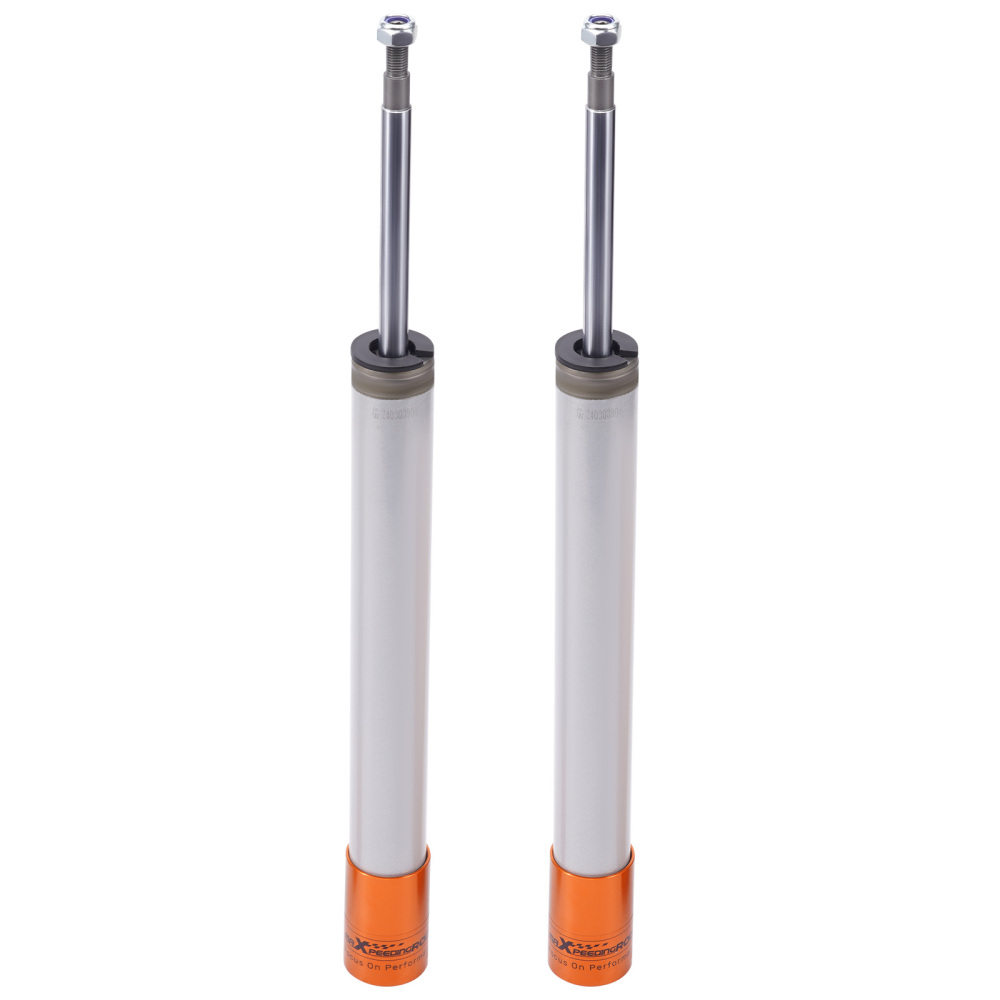

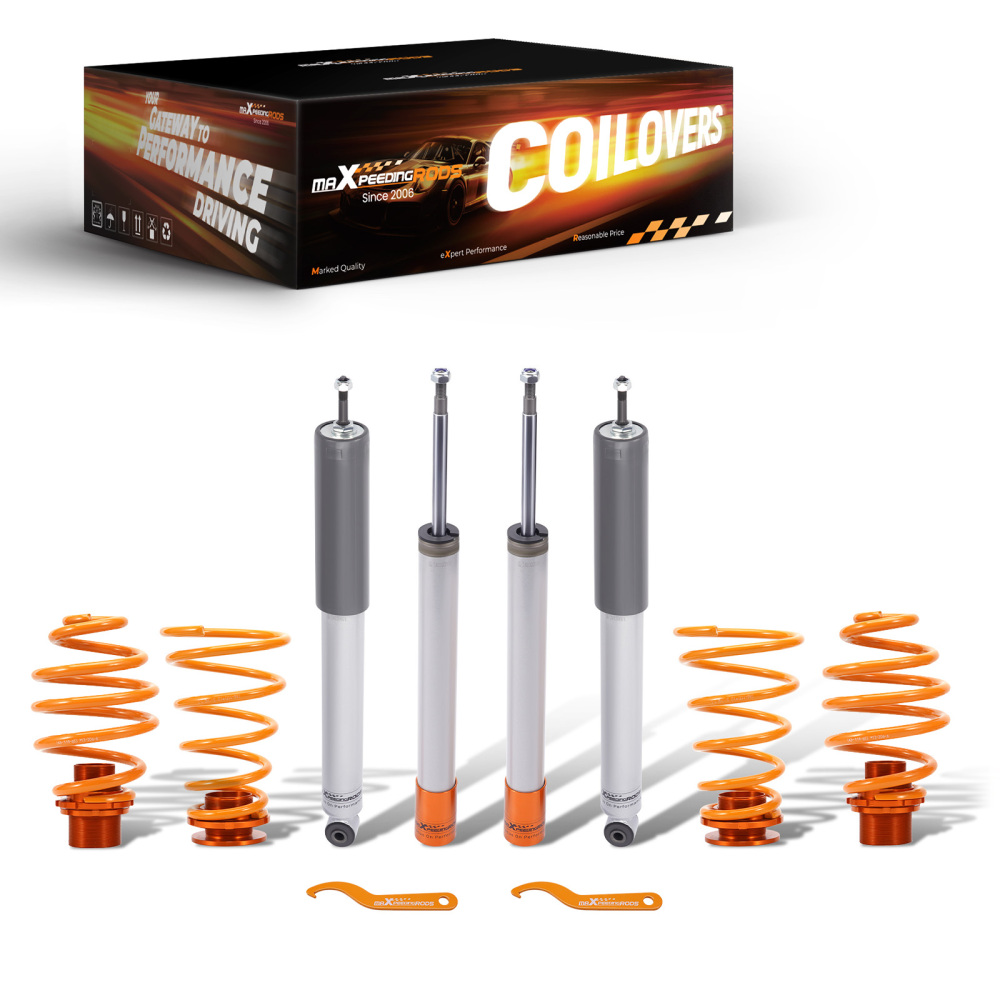

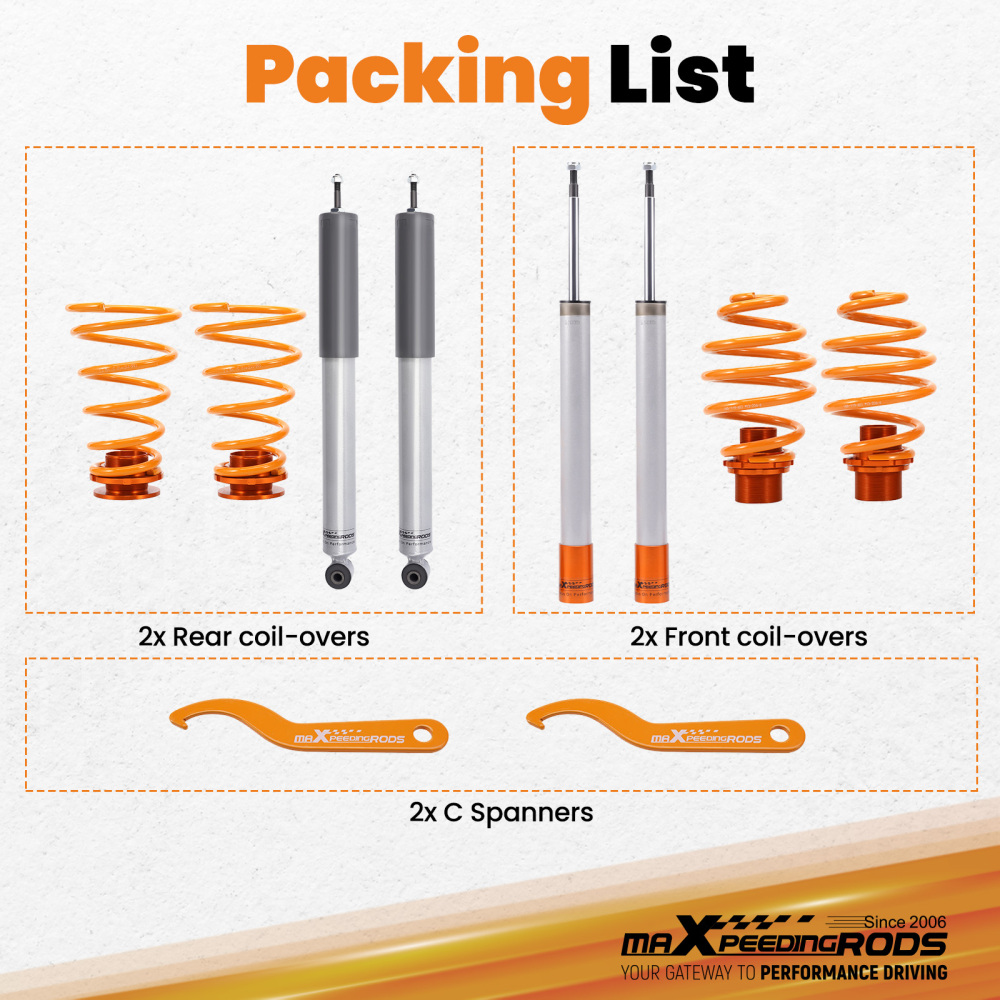

-2 front+2 rear shocks
-2 C- Spanners for adjustment

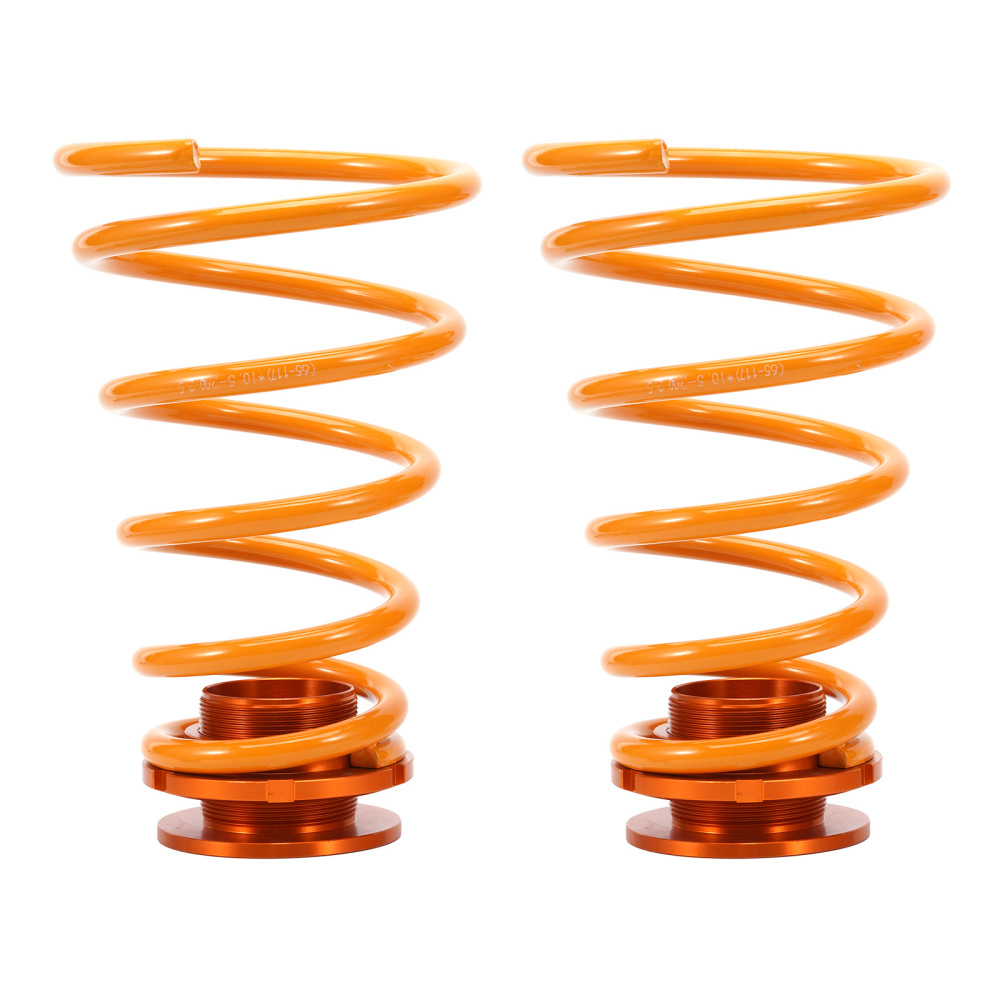

-2 rear Springs+2 front Springs
-Front Bump stops and dust covers

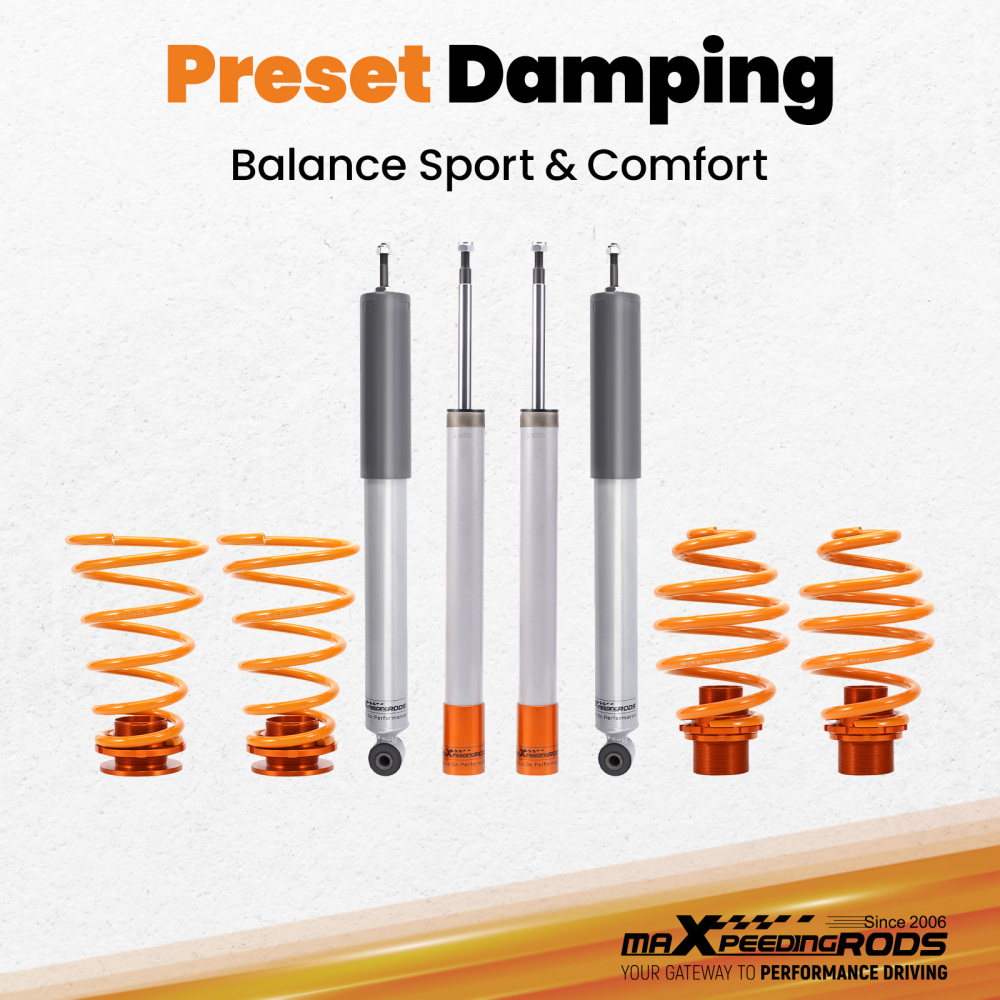

Damper: Non Adjustable Damper
Adjustable Height: YES
Warranty: one year warranty for any manufacturing defect

Spring Rate: 7 kg/mm (392 lbs/in) ; 6 kg/mm (336 lbs/in)


- Adjustable ride height

- Adjustable pre-load spring tension

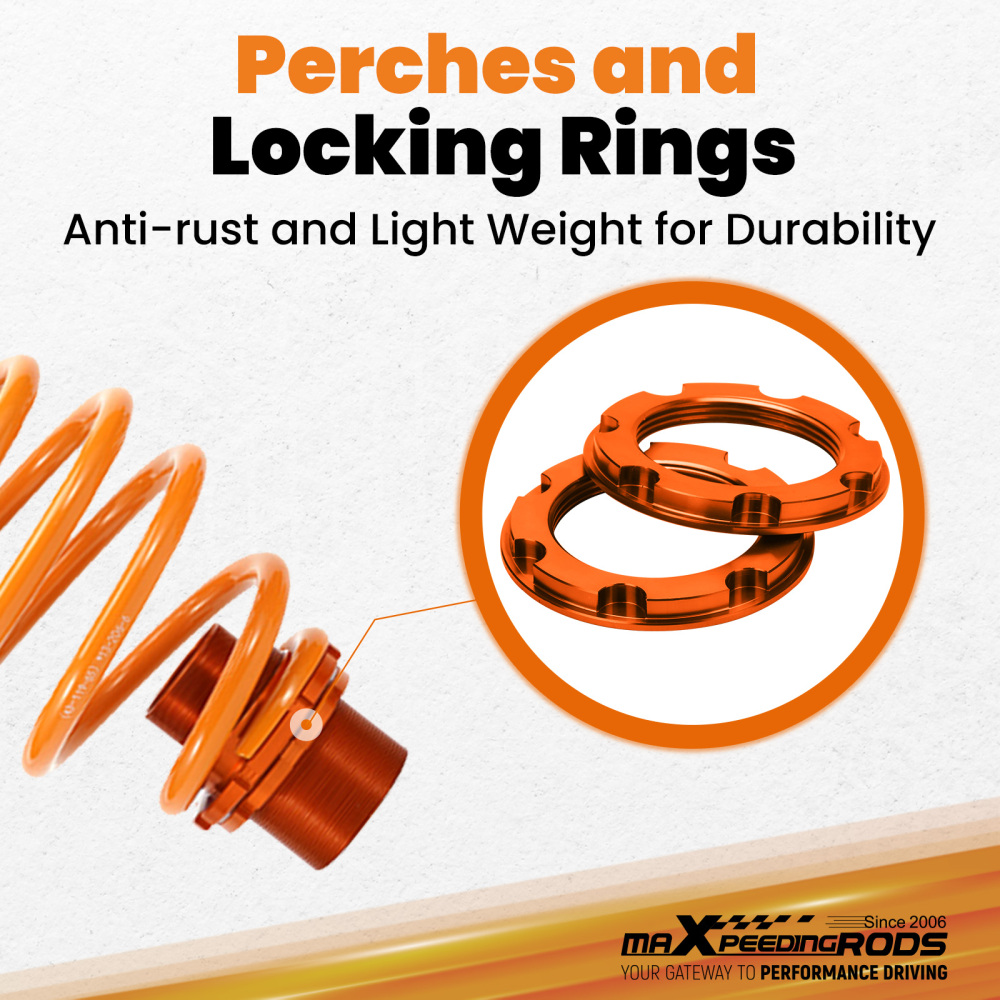

- Most components are made from 6061 aluminum with T6 for increased hardness -- the advantages include excellent strength, and aluminum helps keep the weight down.

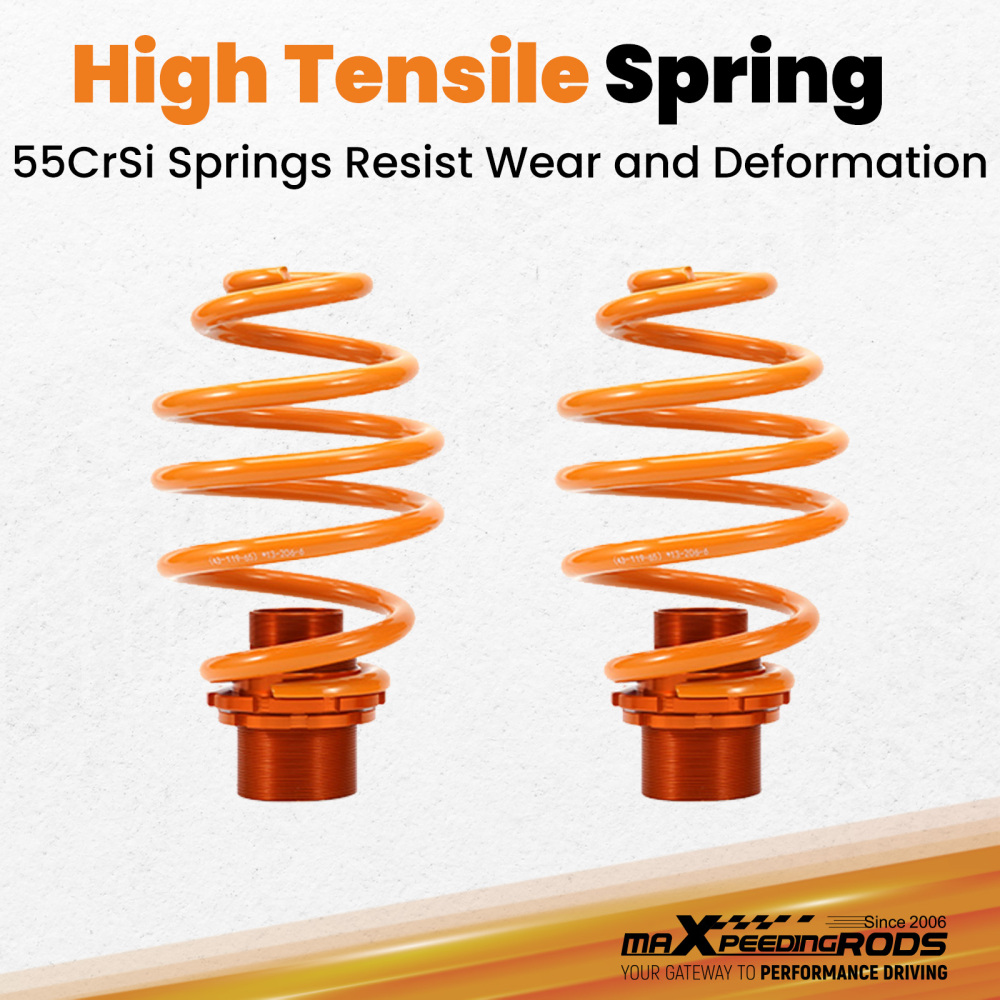

- Hi Tensile performance spring - Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance.

- All inserts come with fitted rubber boots to protect the damper and keep clean.

- Improve your handling performance without sacrifice comfortable ride.

- A fast and affordable way to easily upgrade your car's appearance.

- Easy installation with right tools.

- Ideal for any track, drift and fast road and can also be used for daily driving.


No instruction included; Professional installation & alignment suggested.
