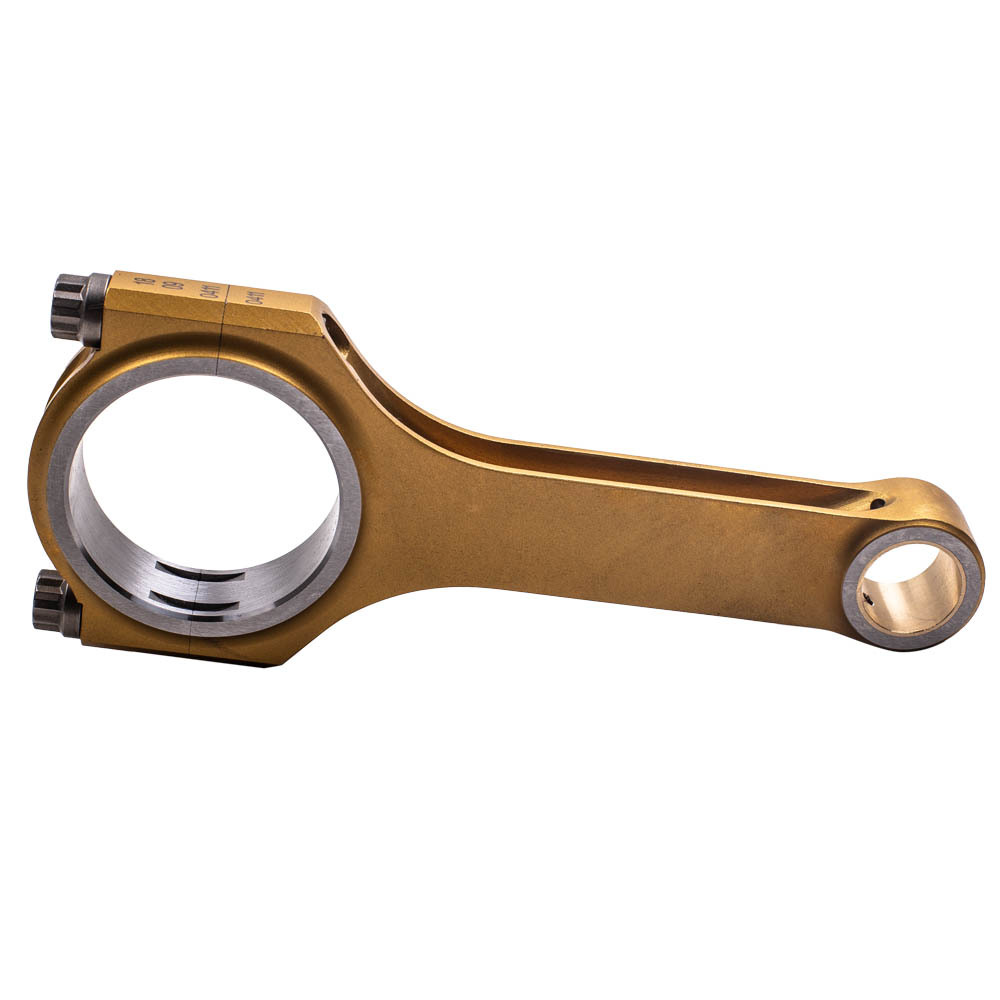

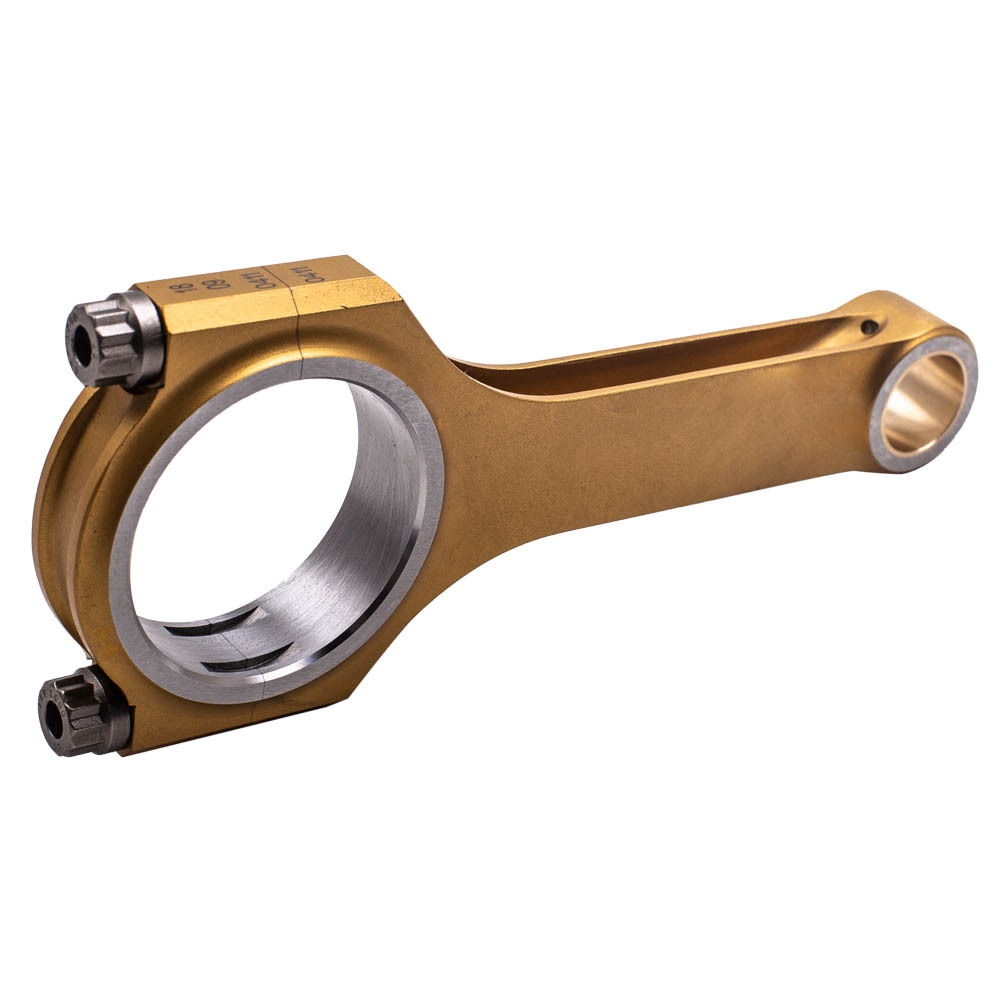

Titanized Connecting Rods compatible for VW Golf MK4 Gti 1.8T compatible for Audi S3 A3 A4 A6 TT 144mm

Application

VAG EA113 1.8T 20V (Compatible for Volkswagen / Audi / Seat)：
Compatible for Audi A3 8L 1996-2003 Hatchback (1.8 20vT AGU/ARZ/ARX/AUM/AQA)
Compatible for Audi S3 8L 1999-2001 Hatchback (1.8 20vT APY/AMK)
Compatible for Audi S3 8L 2001-2003 Hatchback (1.8 20vT BAM/AEB)
Compatible for Seat Ibiza Mk3 6K2/6L 2000-2008 Hatchback (1.8T AYP/AQX)
Compatible for Audi A4 B5/B6 1995-2005 Saloon/Avant (1.8 20vT AEB/ANB/APU/ARK)
Compatible for Audi A6 C5 1997-2005 Saloon/Avant (1.8 20vT AEB/ANB/APU/ARK)
Compatible for Audi TT Quattro 8N 1998-2006 Coupe/Roadster (1.8T BAM/AEB)
Compatible for VW Golf Mk4 GTi 1997-2004 Hatchback (1.8T AGU/ARZ)
Compatible for VW Jetta A4 2000-2005 Saloon/Estate (1.8T)
Compatible for VW New Beetle 1C/9C 2001-2010 Hatchback (1.8T)
Compatible for VW Passat B5/B5.5 1996-2005 Saloon/Variant (1.8T AEB/ANB/ATW)
Compatible for VW Beetle 1C/9C 1999-2005 Hatchback (1.8T AVC)
Compatible for VW Bora 1J 1999-2005 Saloon/Estate (1.8T AGU)

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes

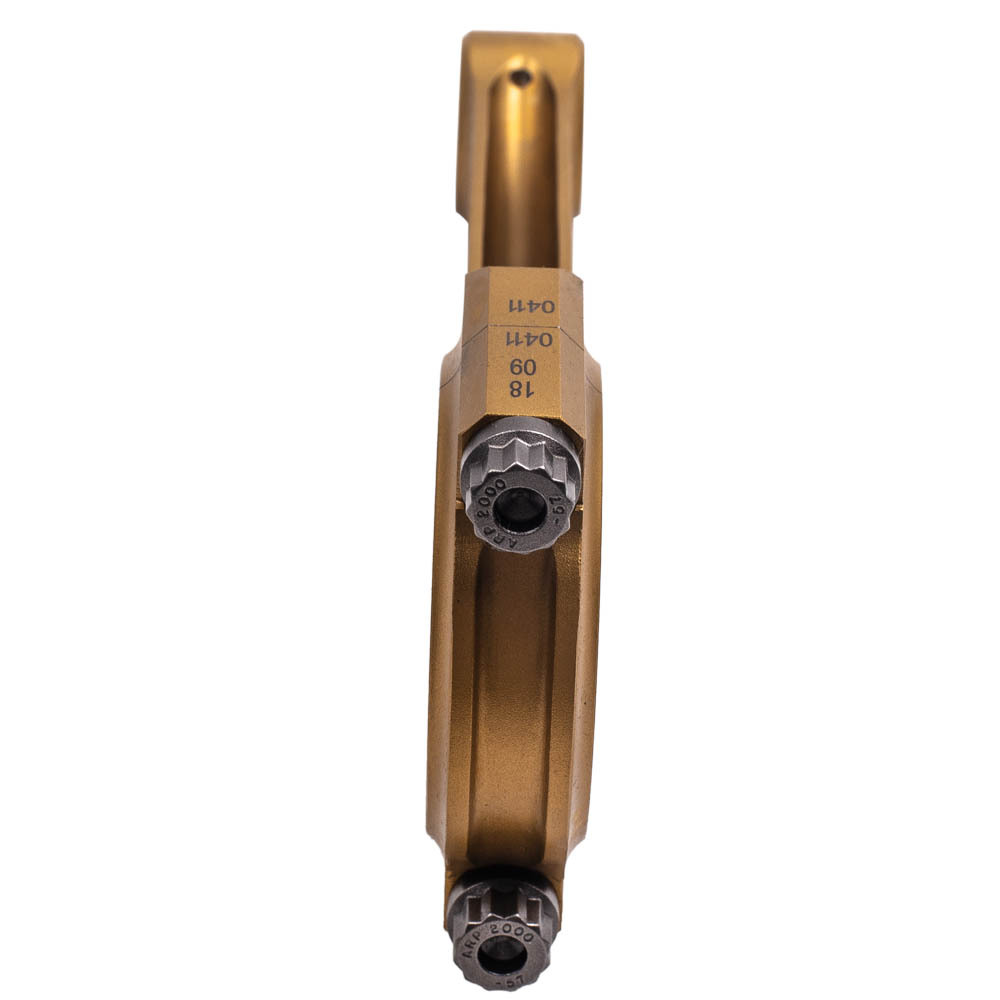

Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Titanium-plated: Yes

Dimension

Connecting Rod Length Center to Center: 144.00mm/5.669in
Approximate Connecting Rod Weight: 623g
Big End Bore Diameter: 50.60mm/1.992in
Pin End Bore Diameter: 20.00mm/0.787in
Big End Width: 24.90mm/0.980in
Small End Width: 24.90mm/0.980in

Feature

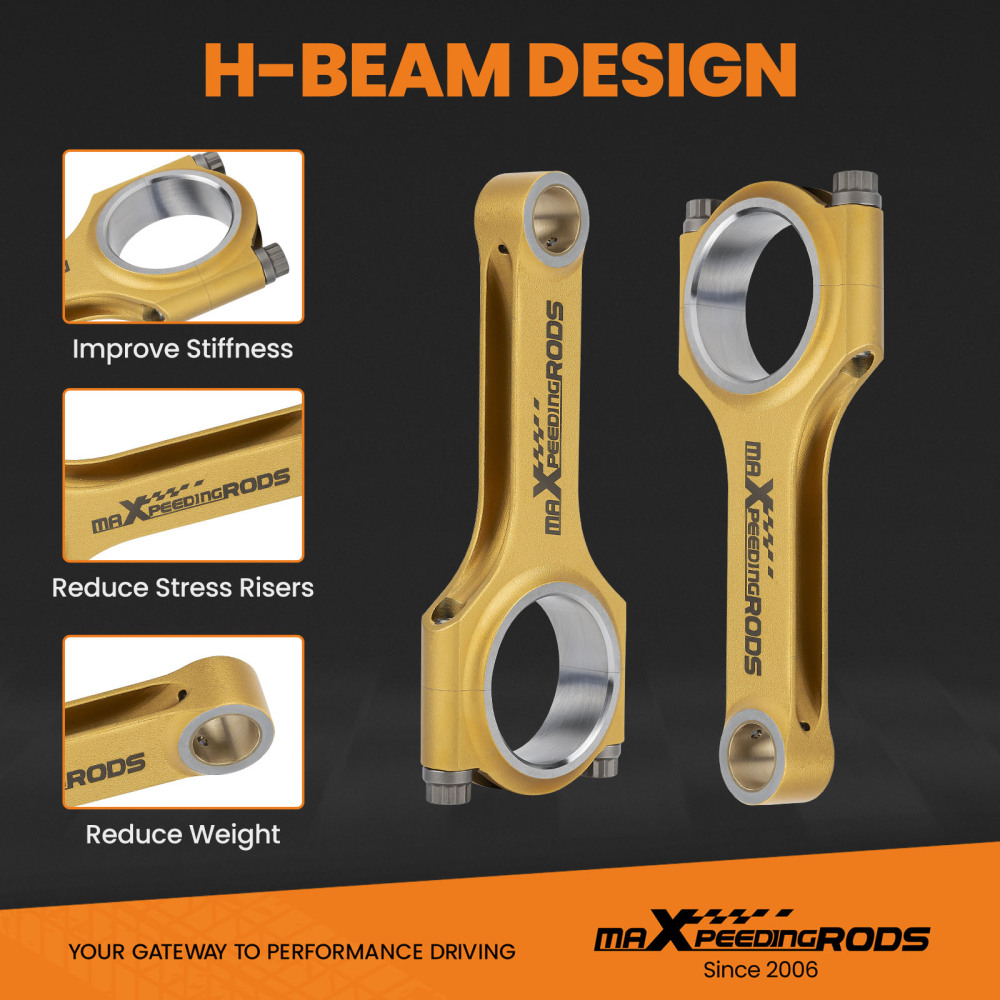

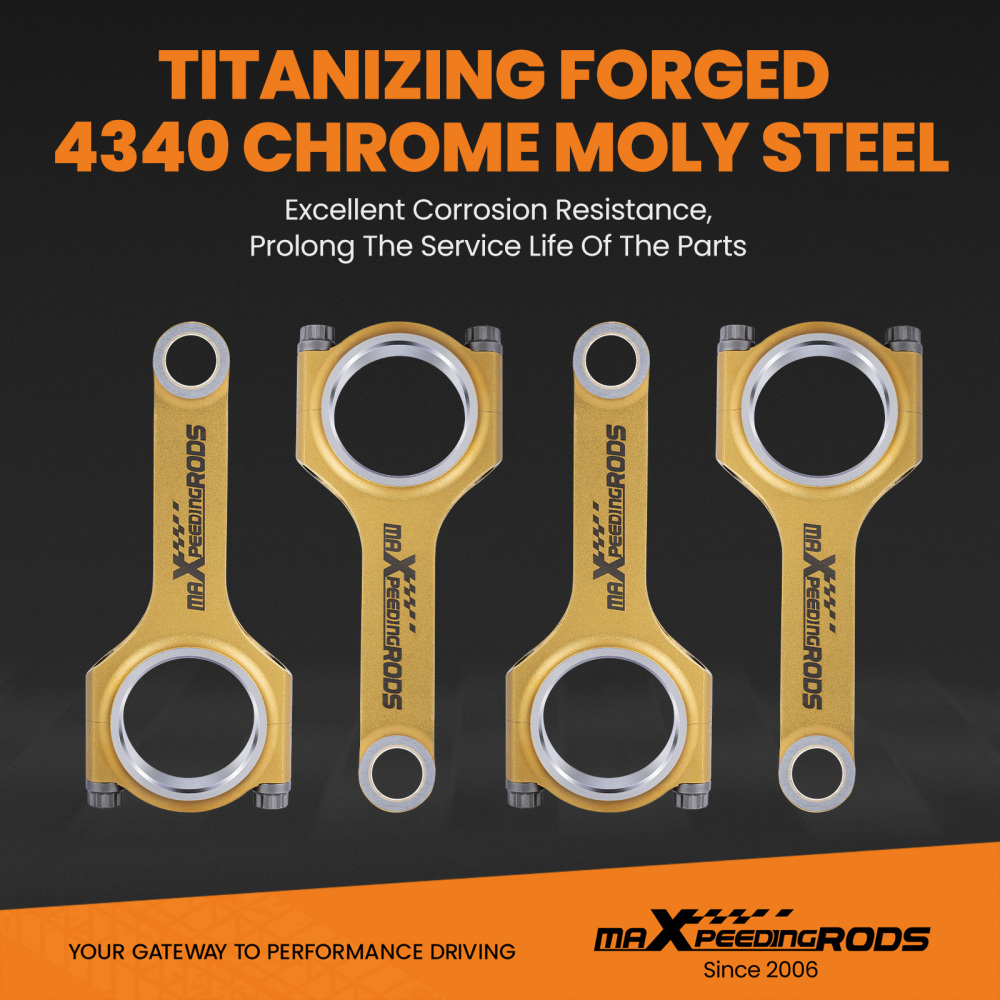

1.Premium 4340 Forged Steel & H-Beam Design (Built for High-Horsepower)
Engineered from aircraft-quality 4340 chromoly steel with a classic H-beam profile. Fully shot-peened and heat-treated to ensure maximum tensile and compressive strength. Perfect for high-load street and strip (1/4-mile drag) racing applications.

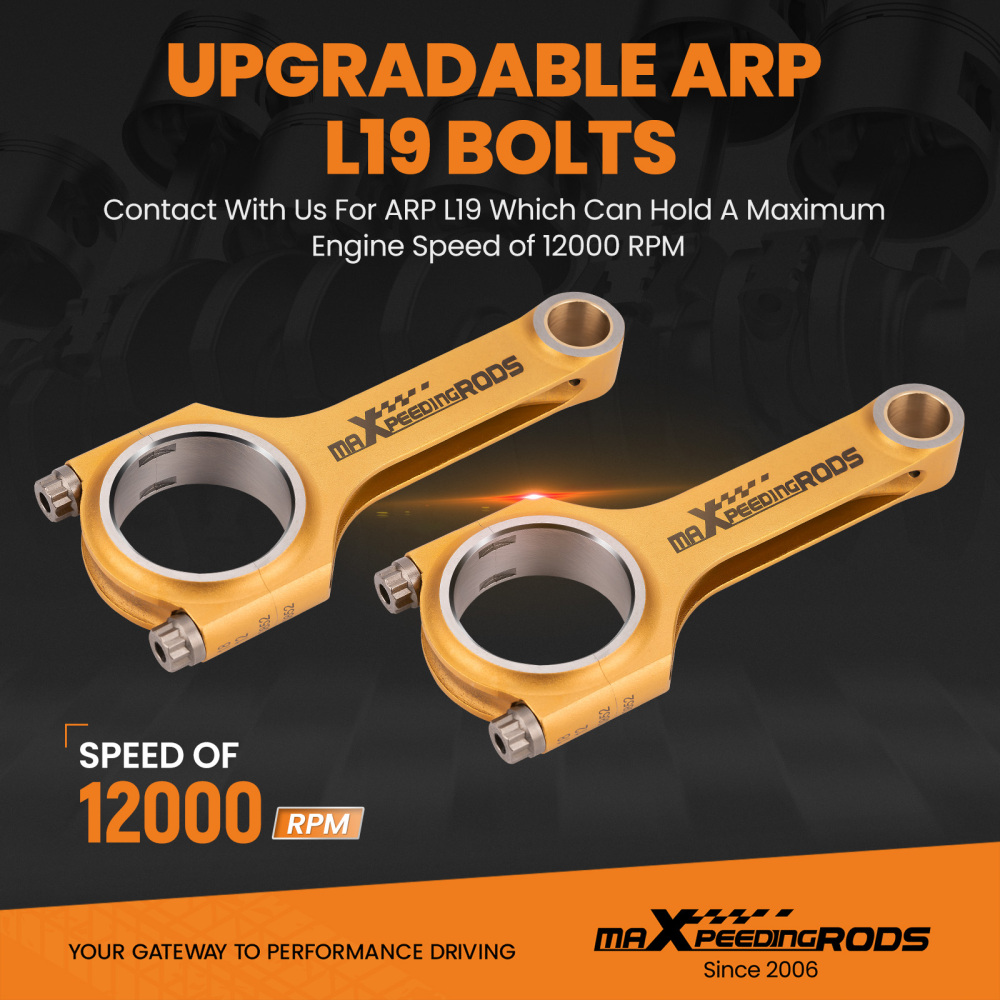

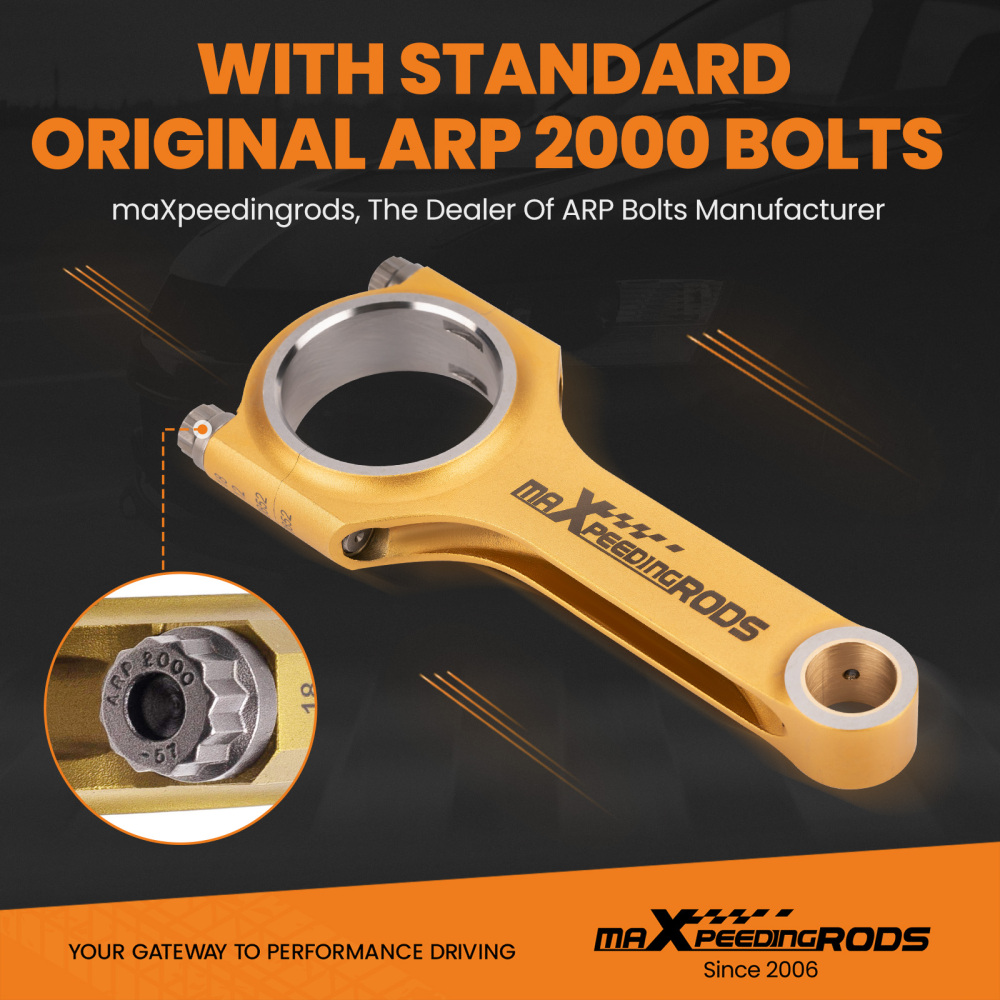

2.Genuine ARP 2000 Bolts Included (Optional ARP L19 Upgrade Available)
100% packed with authentic ARP 2000 12-point bolts boasting a 220,000 psi yield strength. Also offers an optional upgrade to 260,000 psi ARP L19 fasteners, completely eliminating rod-cap separation at extreme high-RPM loads.

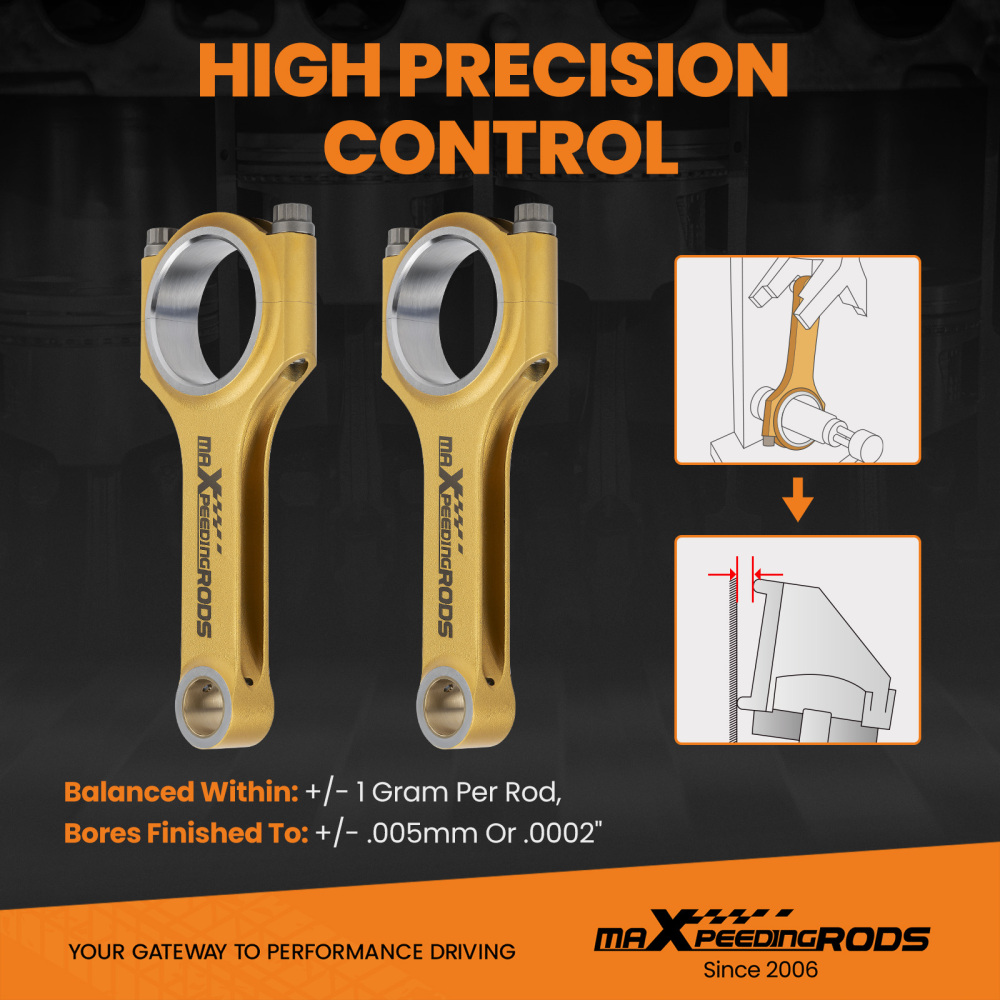

3.Factory-Balanced within ±1.0 Grams (Engineered for High-RPM Stability)
Every single set undergoes dynamic balancing at the factory to maintain a strict weight variance of less than 1.0 grams per set. This precise QC standard ensures smooth power delivery and minimizes harmful harmonic vibrations at high RPMs.
4.Triple Non-Destructive Testing & Floating Pin Style (Race Ready)
100% magnafluxed, X-rayed, and ultrasonically tested to guarantee compatible for zero internal flaws or cracks. Features a high-lubrication bronze bushing for floating-style wrist pins, making it fully compatible with premium aftermarket forged pistons.
5.TS16949 / IATF 16949 Certified Facility (Standardized Production Control)
Manufactured in a facility that has achieved the TS16949 (IATF 16949) automotive quality management system认证. This compliance ensures that our components follow standardized production, testing, and engineering workflows required for automotive manufacturing.

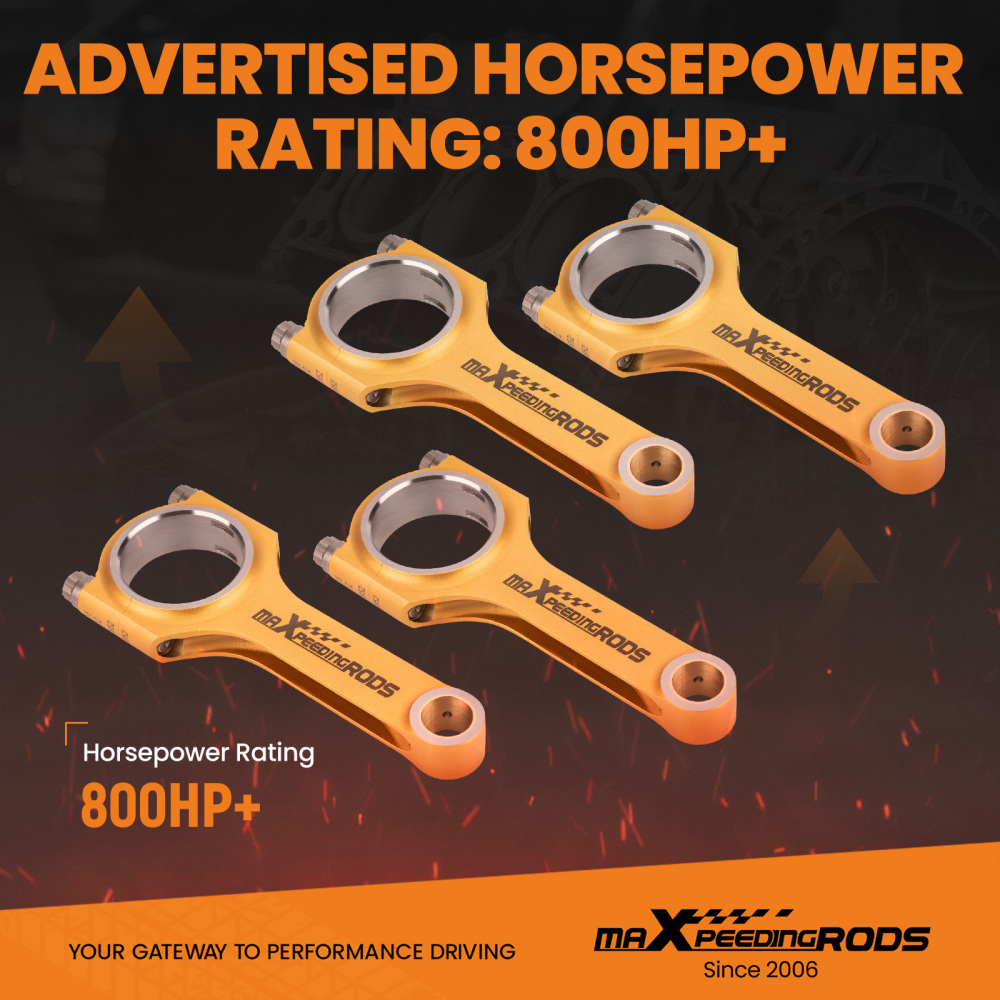

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm

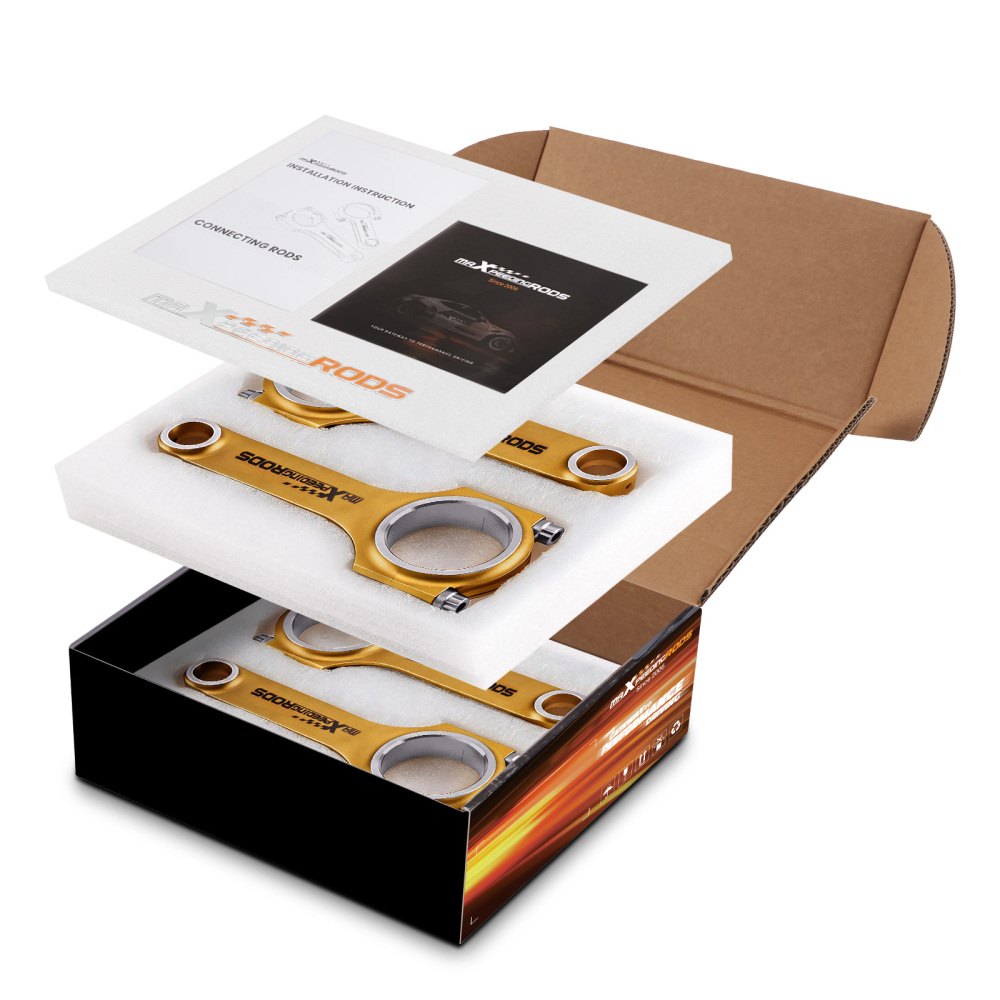

Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM

Notice：

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
