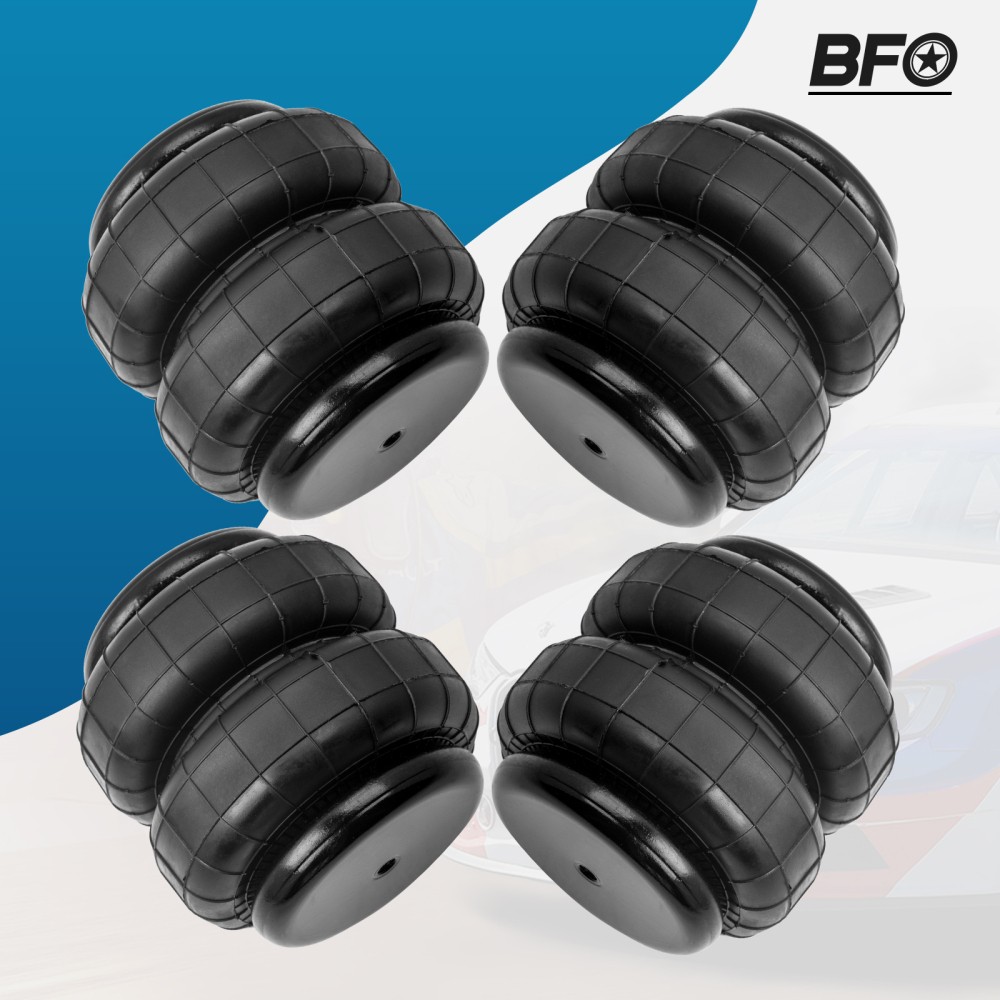

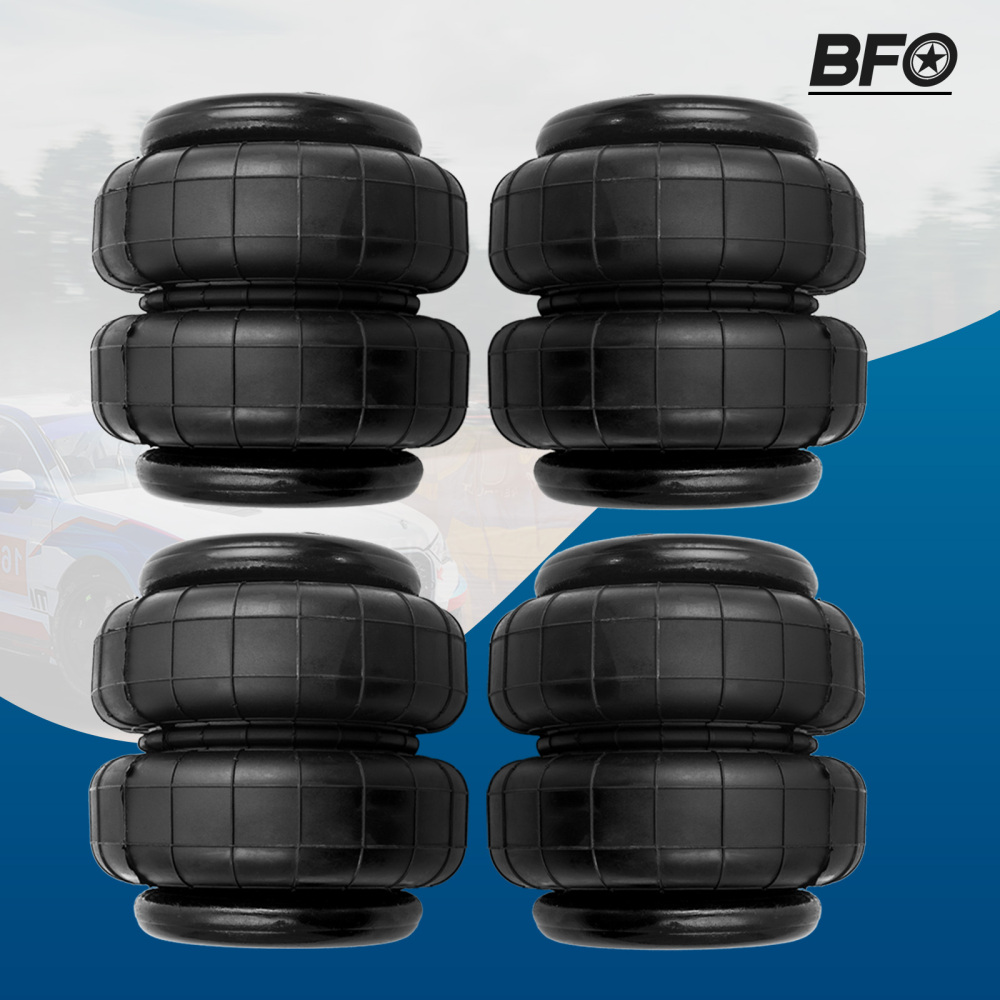

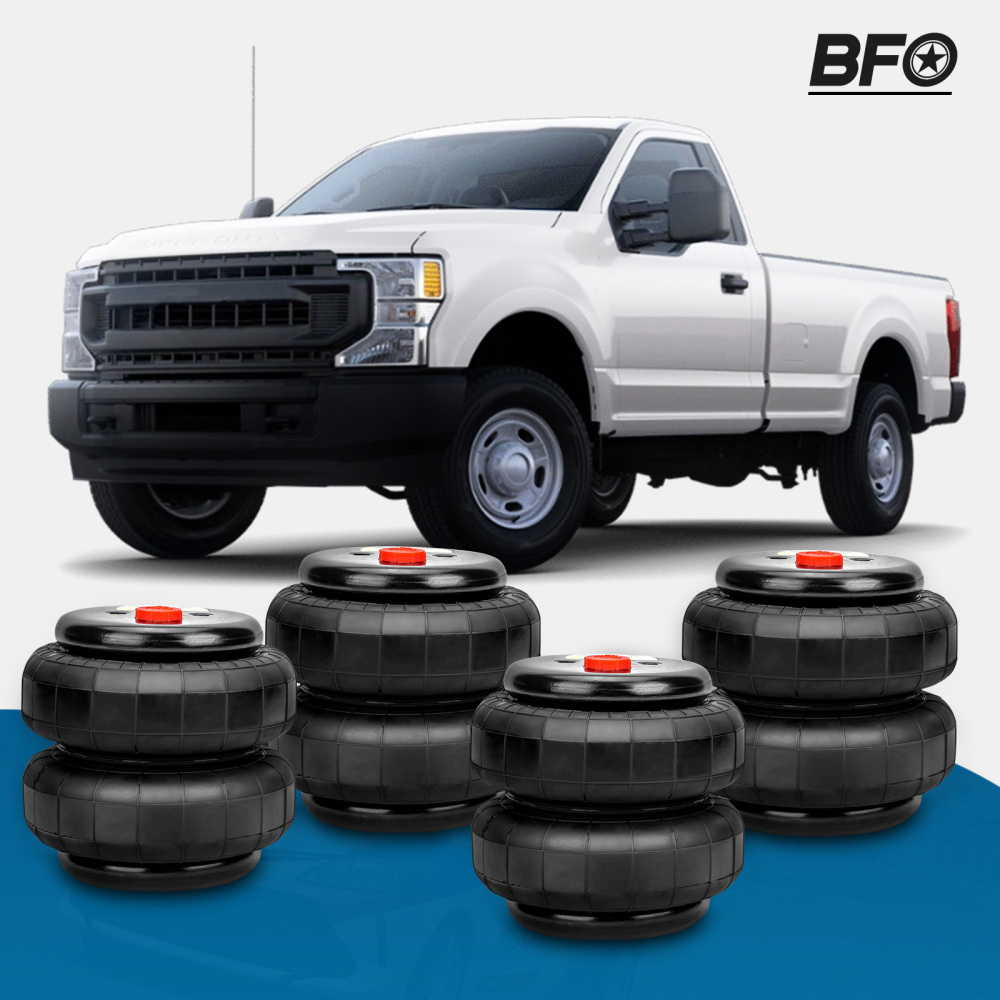

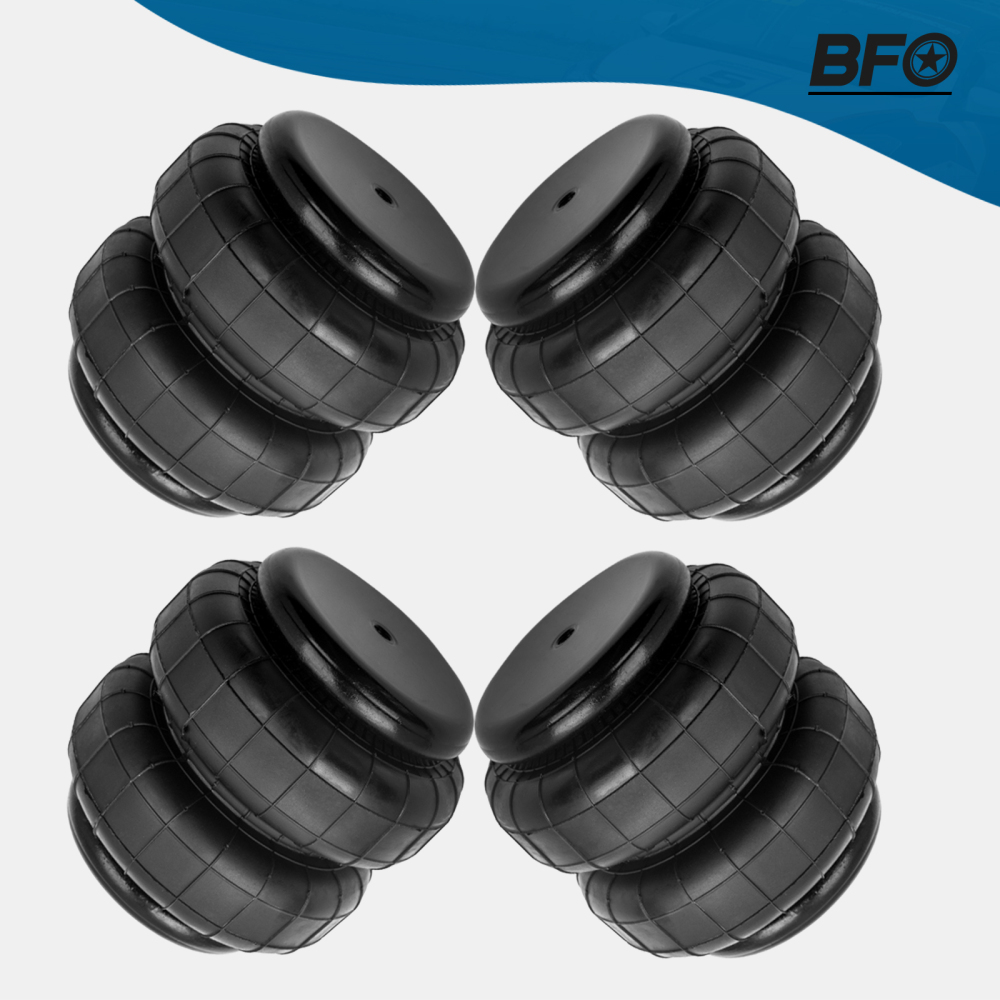

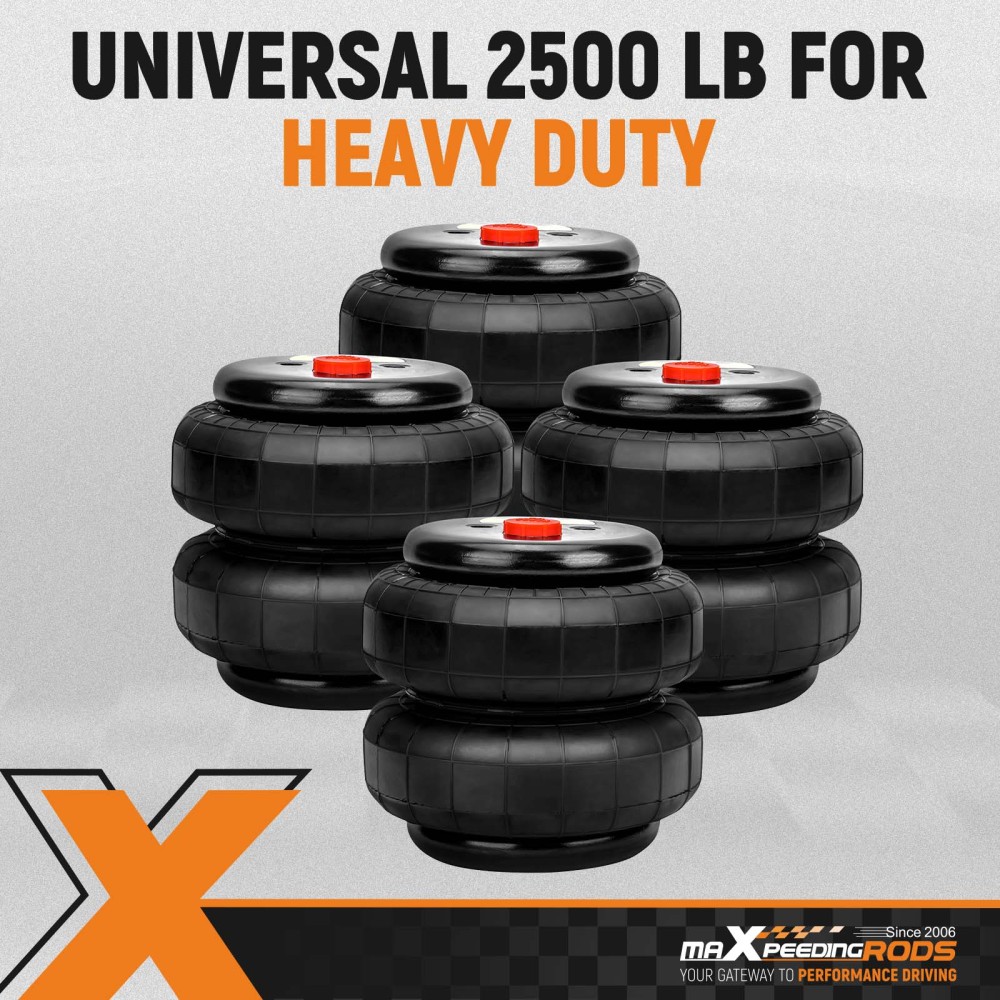

4x Universal Air Suspension Bags Air Sleeve Bag 1/2npt Single Port 2500lbs

Application

Universal Air Suspension Bags,Fits for most brand trucks.

Compatible for GMC Sierra,

Compatible for Ford F150/F250,

Compatible for Chevrolet Silverado,

Compatible for Dodge Ram 1500 2500 3500, etc.

Please double check dimension before purchasing.



Specifications:

Min height: 65mm
Max height: 175mm
Working stroke: 110mm
Loading Cap. at 3.0bar: 2.88KN
Loading Cap. at 7.0bar: 7.25KN
Single air port size: 1/2NPT
Install hole size:3/8-16UNC
Top plate diameter:113mm
Air spring bag body diameter:145mm
Air spring bag capacity:  2500LBS



Features:

100% Brand New

one year Warranty for any manufacturing defect.

Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.

- Hold up to 350 PSI

- Test more than 5,000,000 times.
- 100% Air Tightiness testing.
- Gives the driver more control of ride.
- Built to strict quality control standards.
- Designed for Comfort Suspension.

Packing Including:

2 Pair Air Ride Suspension Bag.

Notice

- These air suspension bags are aftermarket ones. They will replace the original air spring bags.

- Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help
