4 Pieces Connecting Rods Conrod compatible for Mitsubishi Lancer 4B11 / 4B11T 2.0L 149.2mm

  • * H-Beam con rods compatible for Mitsubishi 4B11 / 4B11T 2.0 L engine, 4-cylinder DOHC

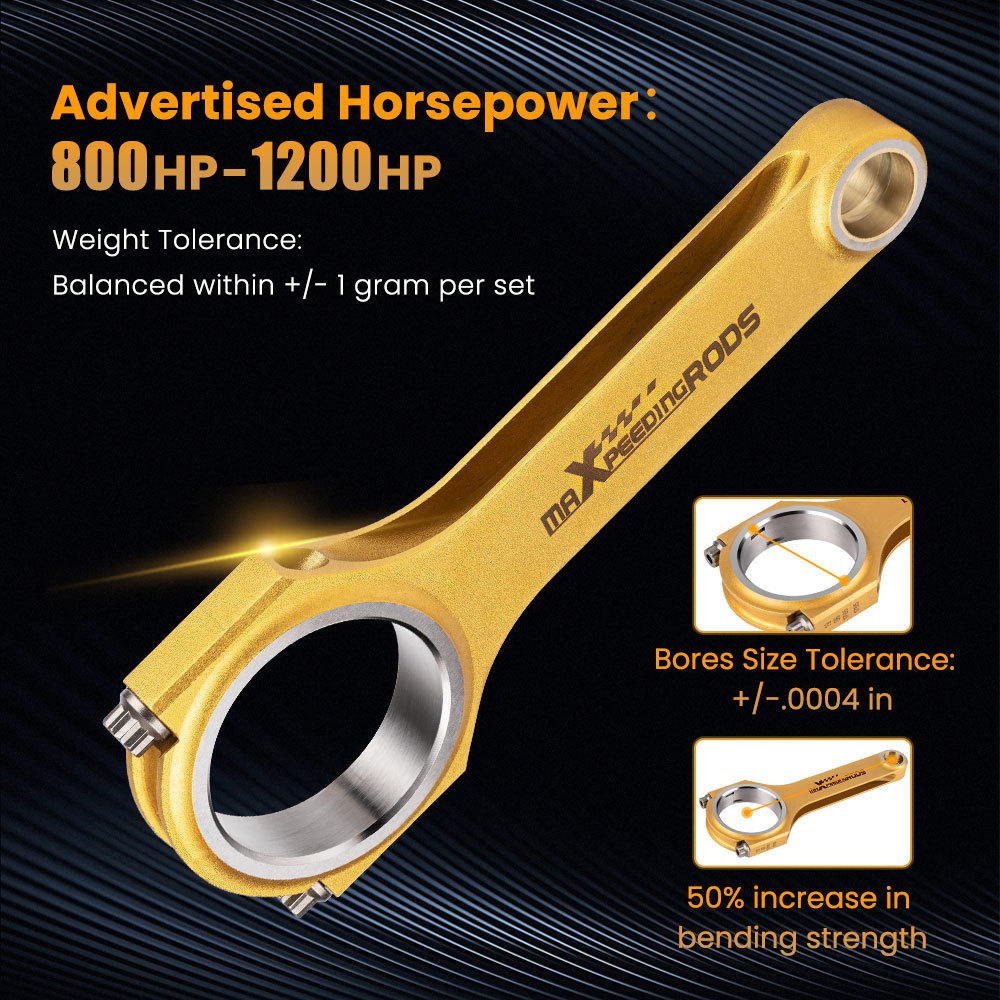

  • * Advertised Horsepower Rating: 800+HP
  • * Material: Titanizing Forged 4340 aircraft chrome moly quality steel
  • * Dimensions: Center to center length: 149.2mm; Big end diameter: 51mm; Small end diameter: 21mm ( tapered small end); Big end width: 21.8mm; Small end width: 21.8mm
  • * Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * Performance Con Rods
  • * Advertised RPM Rating: 7000-9000 rpm
  • * Fastener Tensile Strength (psi):200,000 - 230,000 psi
  • * Balanced to within +/- 1 gram per end
  • * The big end bores are honed to a +/-.01mm tolerance
  • * Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock
Item Number 3002050549

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-MIT4B11-T
CR-MIT4B11-T
High Quality Components
High Quality Components
With Standard ARP 2000 Bolts(Upgradable ARP L19)
Precision Machining Manufacturing
Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances, Precision rod cap alignment dowels

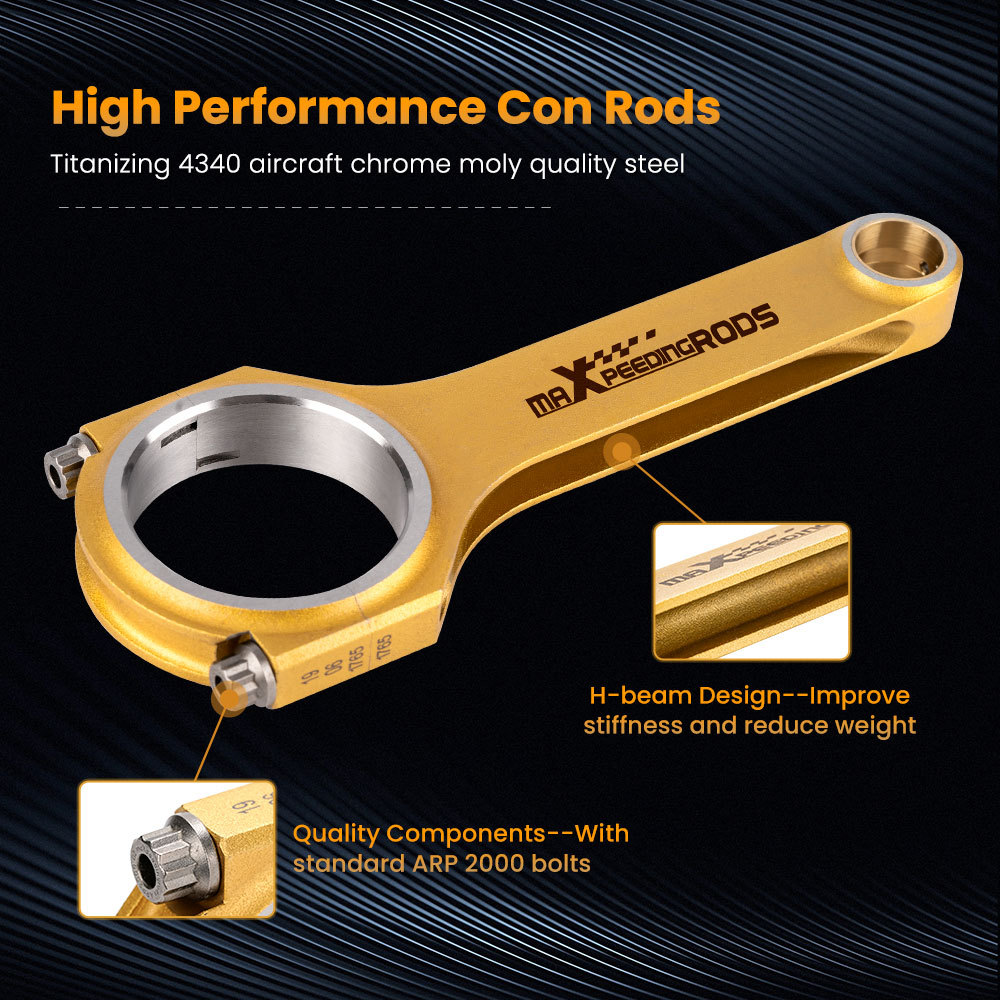

Professional H-Beam Design
Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight

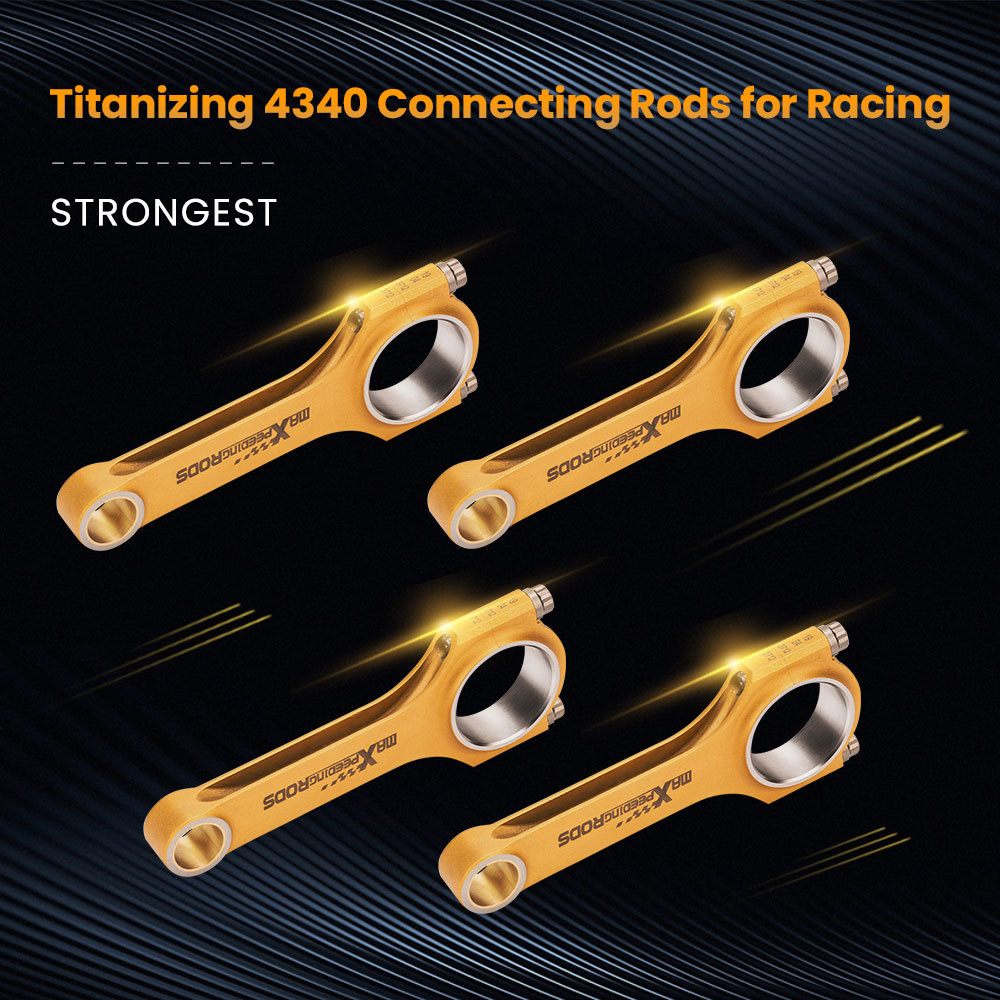

High Performance Material
High Performance Material
Titanizing Forged 4340 aircraft chrome moly quality steel for racing

Overview

The connecting rod, also known as the con rod, is the part of the piston engine that connects the piston to the crankshaft. The connecting rod and the crank convert the reciprocating motion of the piston to the rotation of the crankshaft. The connecting rod needs to transfer compression force and tension from the piston and rotate at both ends.
This connecting rod is guaranteed to compatible for Mitsubishi 07-17 Lancer 4B11/4B11T. This is a New connecting rod replacement and is the perfect OEM & aftermarket connecting rod.
The high strain of the connecting rod due to tension, pressure, and torsion requires the connecting rod to be designed with high strength and low weight. With the high-quality product range from Maxpeedingrods, you are always on the safe side.

Application

Compatible for Mitsubishi 4B11 / 4B11T 2.0 L engine, Inline 4-cylinder DOHC 16v
Compatible for Mitsubishi Lancer 4B11 / 4B11T 2.0 2007-2017
Compatible for Mitsubishi Outlander CW/ZG/ZH 2006–2012
Compatible for Mitsubishi Outlander GF/GG/ZJ/ZK 2013–present
Compatible for Mitsubishi Outlander Sport RVR GA/XA/XB/XC 2010–present
Compatible for Mitsubishi Outlander PHEV CW/ZG/ZH 2006–2012
Compatible for Mitsubishi Outlander PHEV GF/GG/ZJ/ZK 2013–present
Compatible for Mitsubishi ASX, compatible compatible for Mitsubishi RVR (Canada) 2010
Compatible for Proton Inspira 2010-2015

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

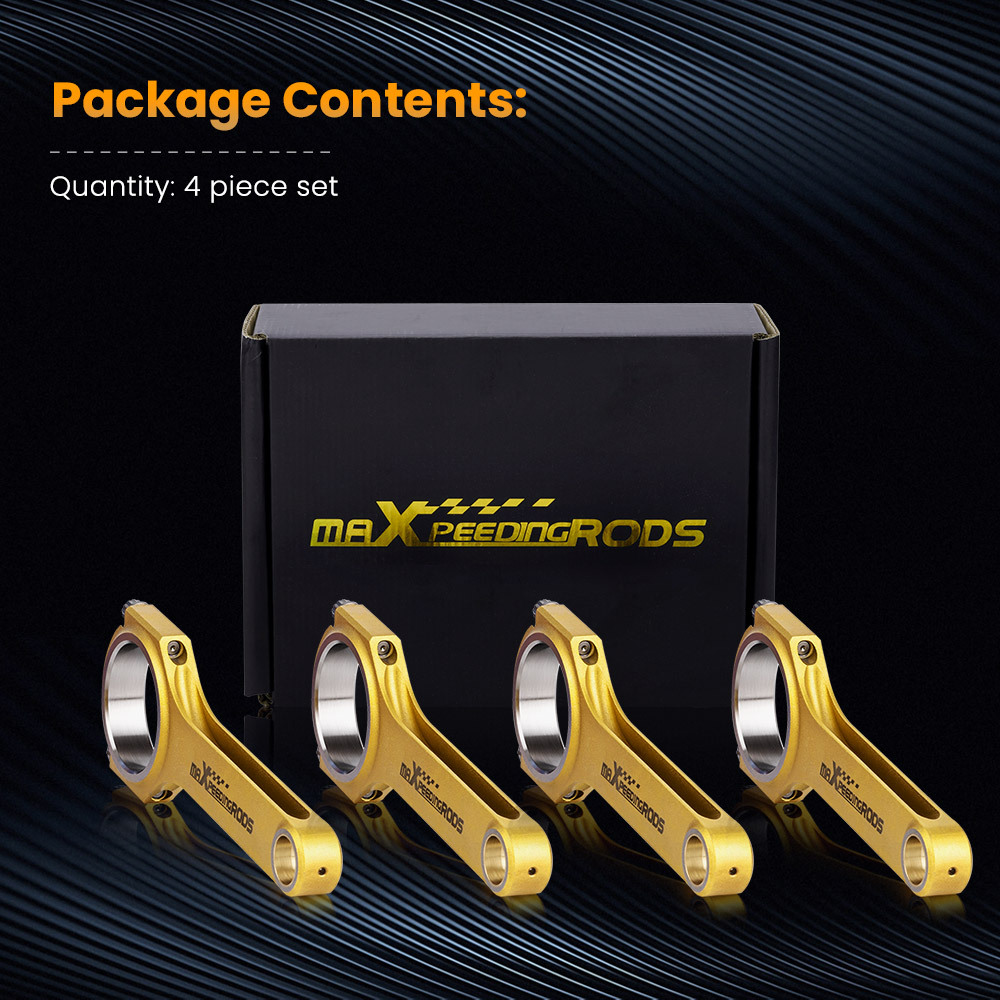

H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 0.5 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 800+hp per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty:one year warranty for any manufacturing defect

Dimensions

Center to center length: 149.2mm
Big end diameter: 51mm
Small end diameter: 21mm
Big end width: 21.8mm
Small end width: 21.8mm

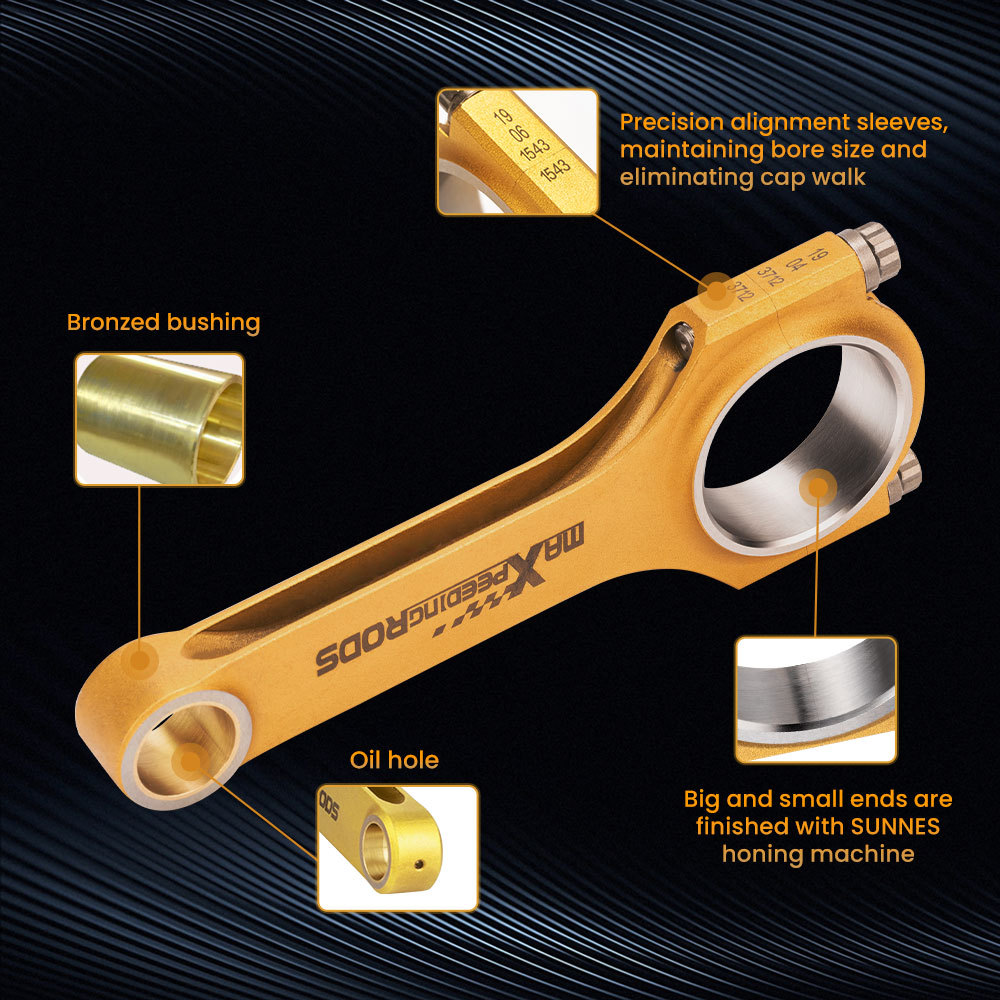

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

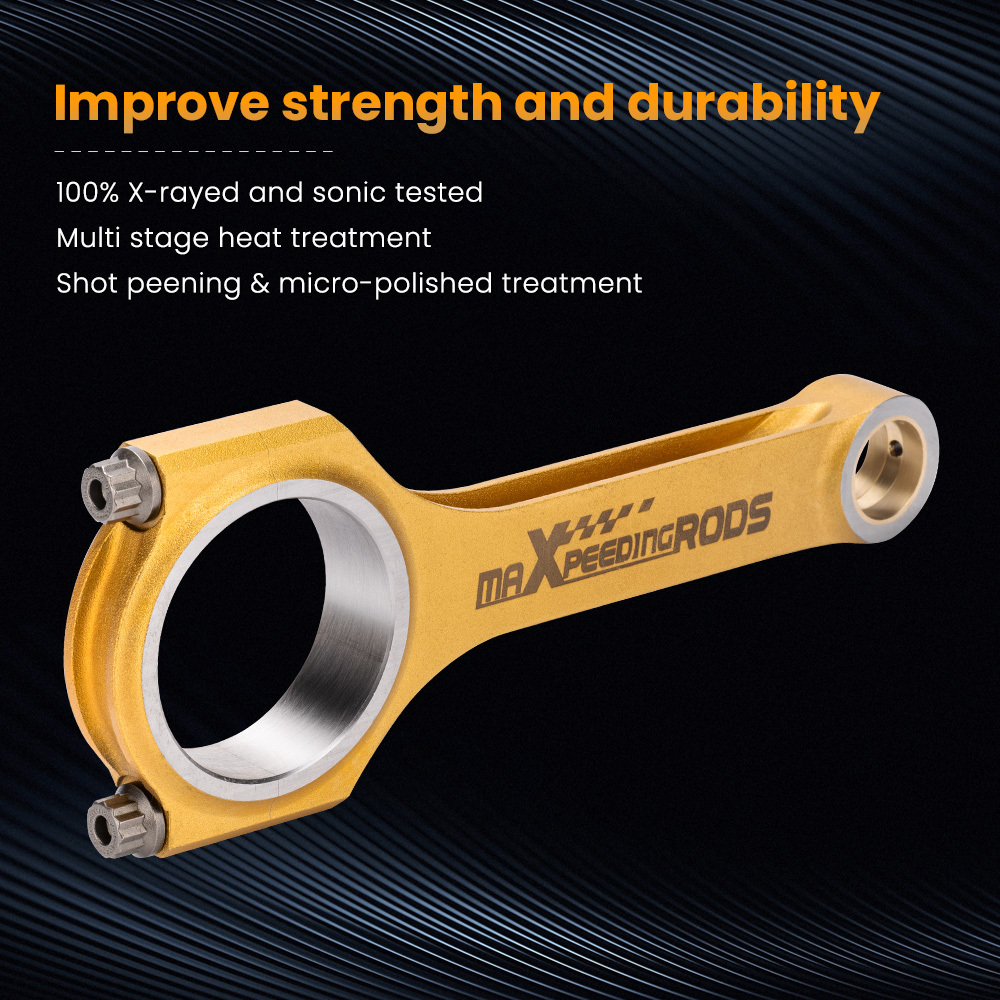

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
