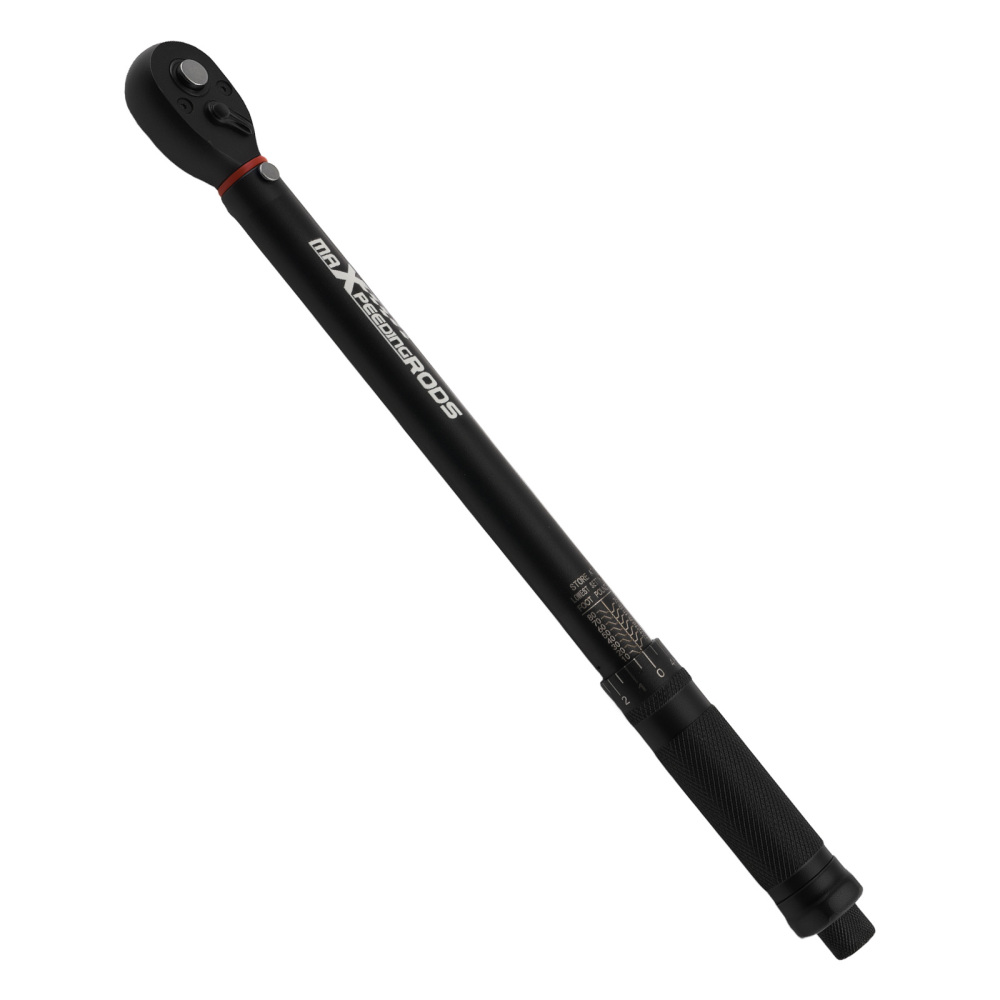

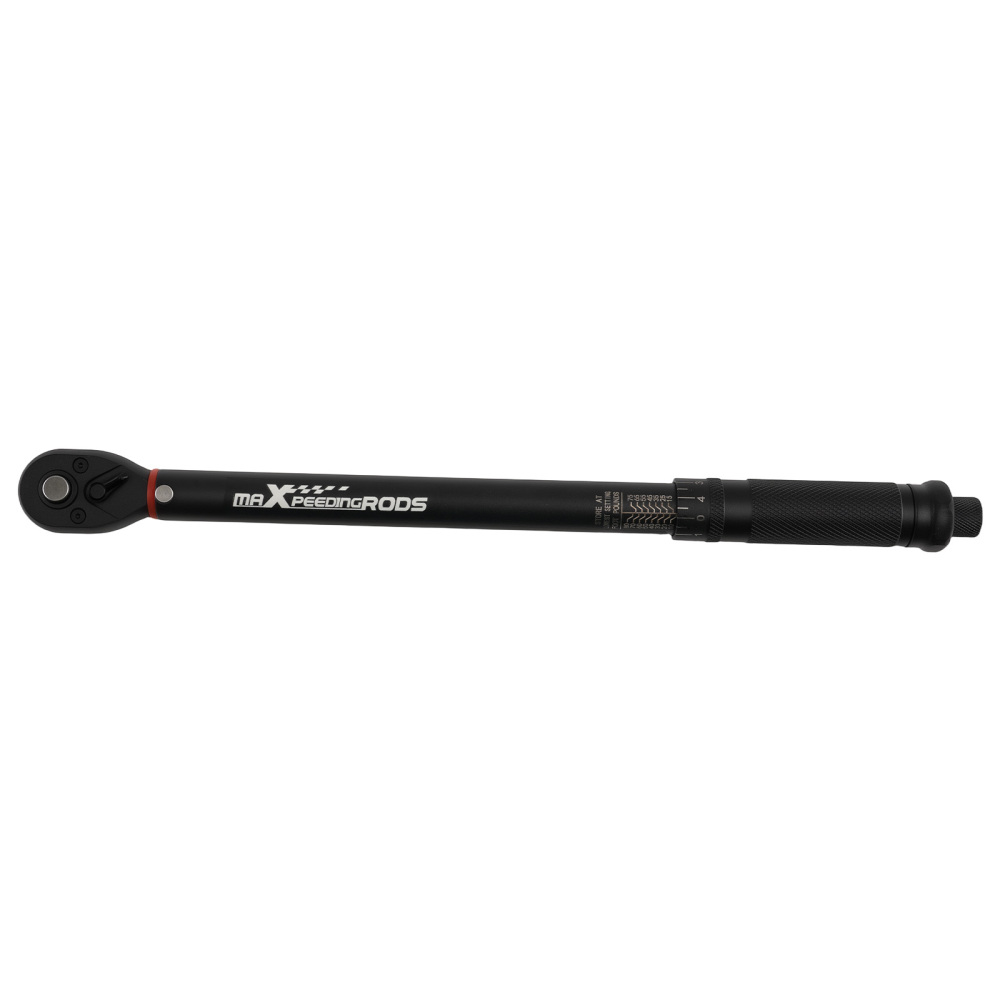

4-Pieces 3/8 Drive Click Torque Wrench Ratchet Socket 13.6-108.5Nm Black

Specification

Material: 40CR
Handle Length: approx. 370mm
3/8" Square Drive Socket Fitting: Fully hardened and tempered heat treated steel
Torque Range Setting: 13.6-108.5Nm (Newton Meters)/10-80Ft-Lb
Heat treated CR-MO drive, 72T gear

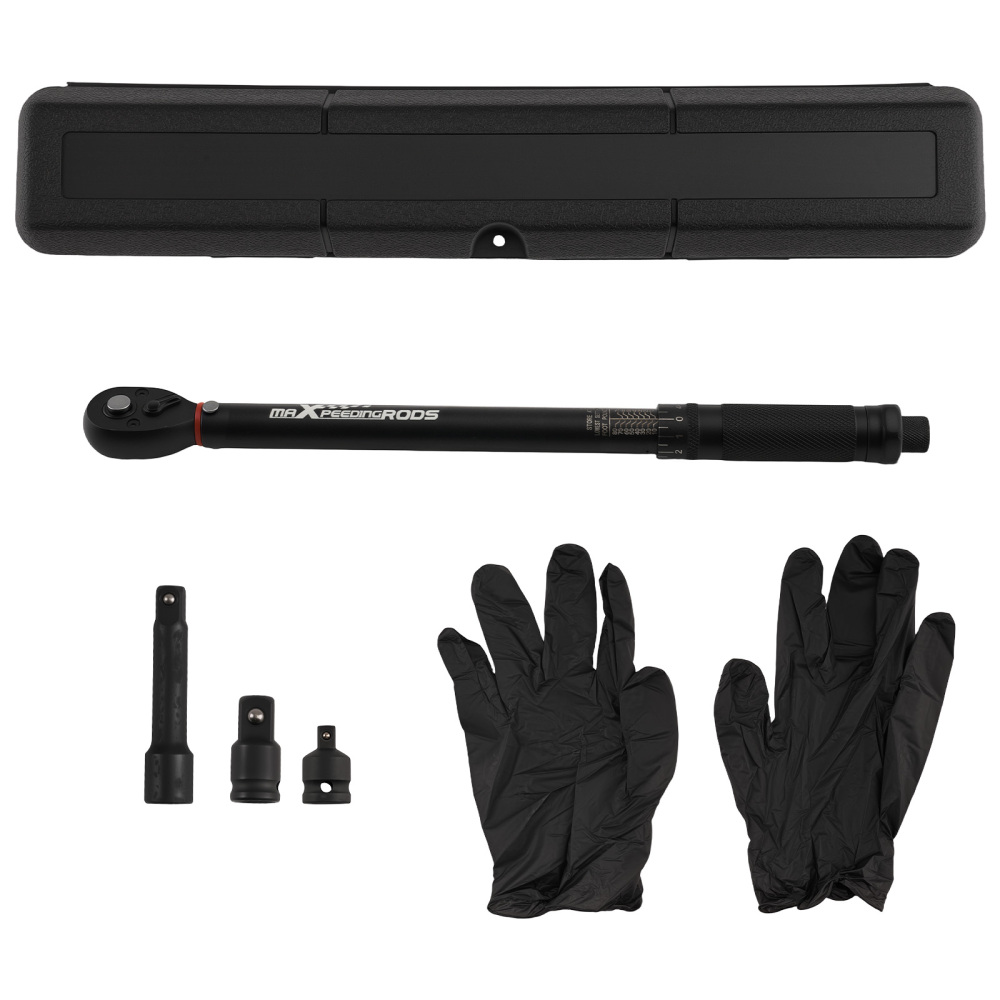

Package included

1 x 3/8" Drive Click Torque Wrench
1 x 75mm 3/8" Drive Extension Bar
1 x 3/8" to 1/2" Drive Adapter
1 x 3/8" to 1/4" Drive Adapter
1* Maunal

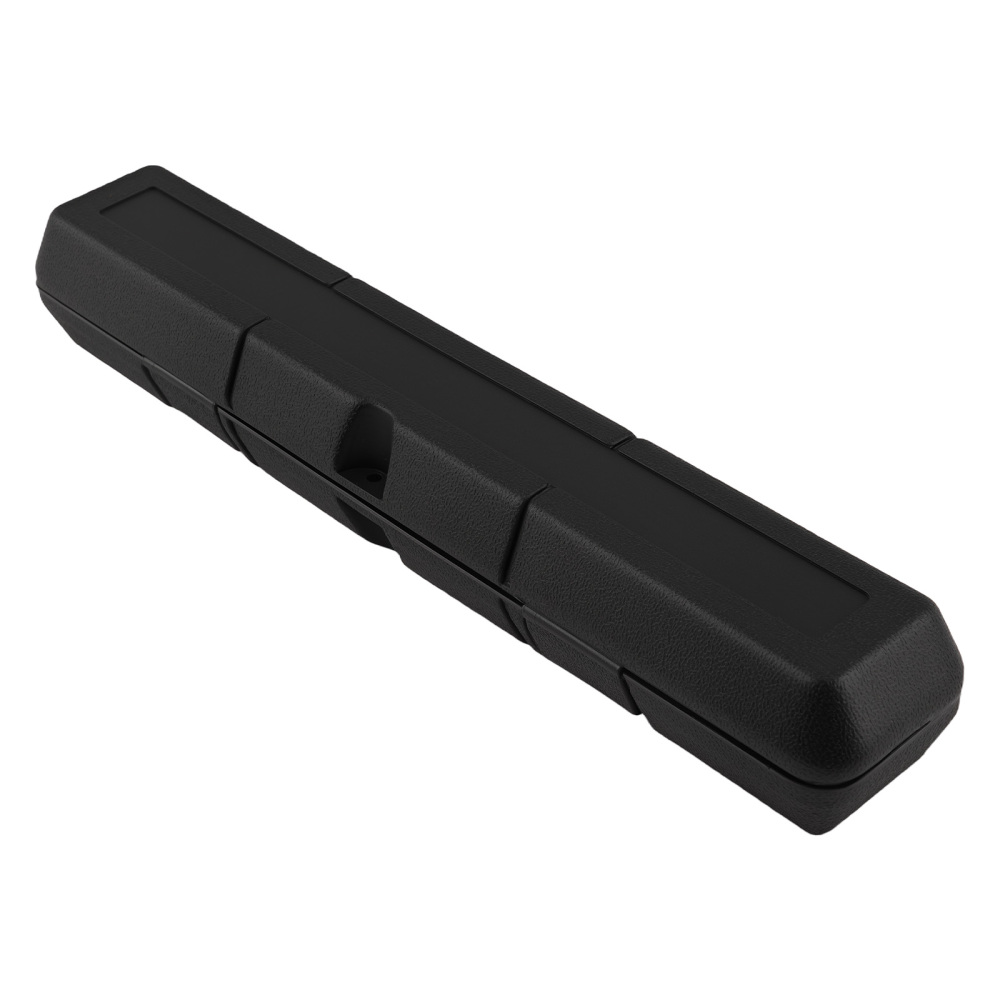

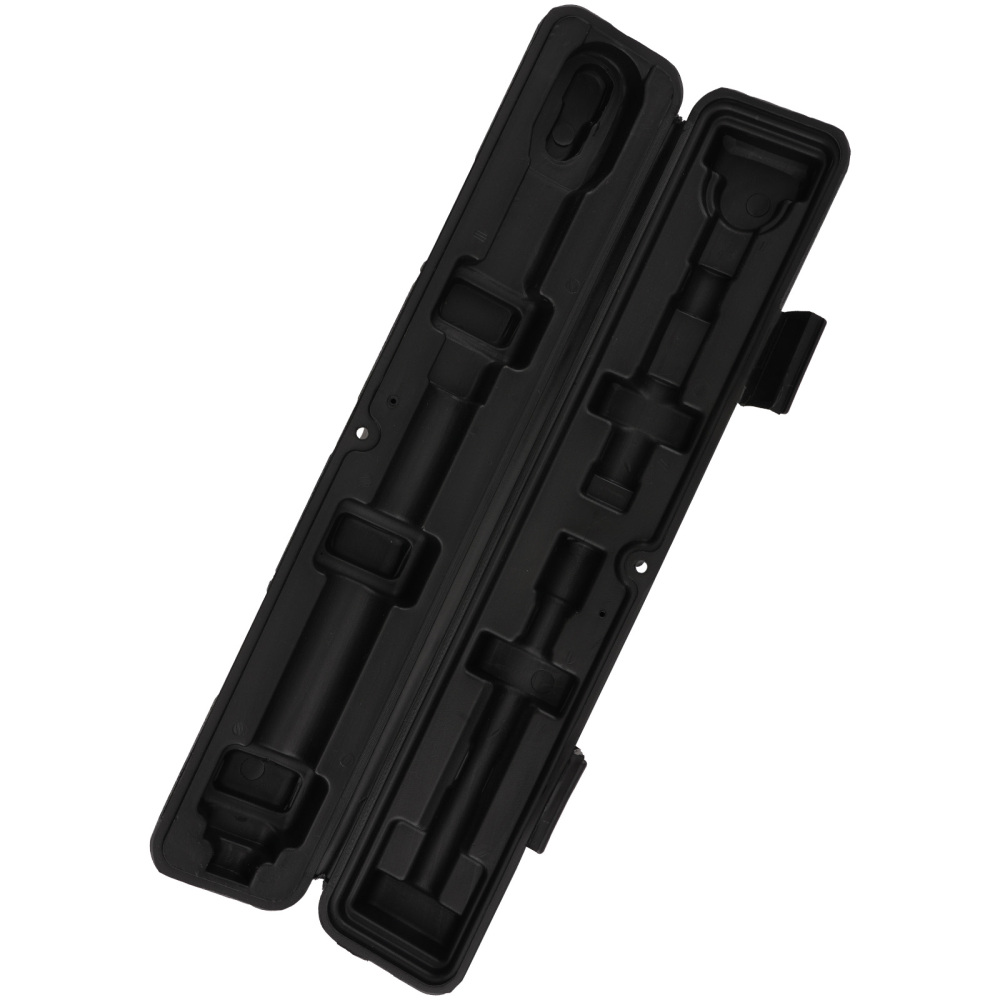

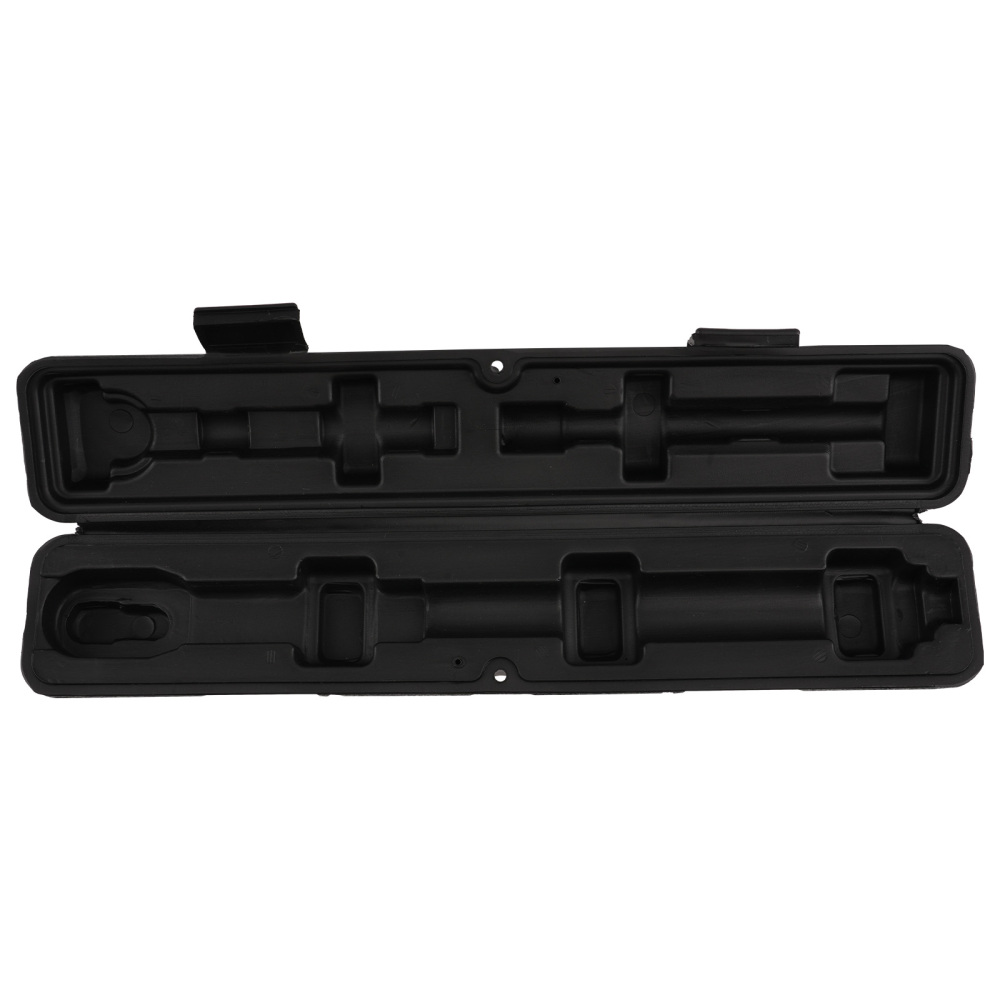

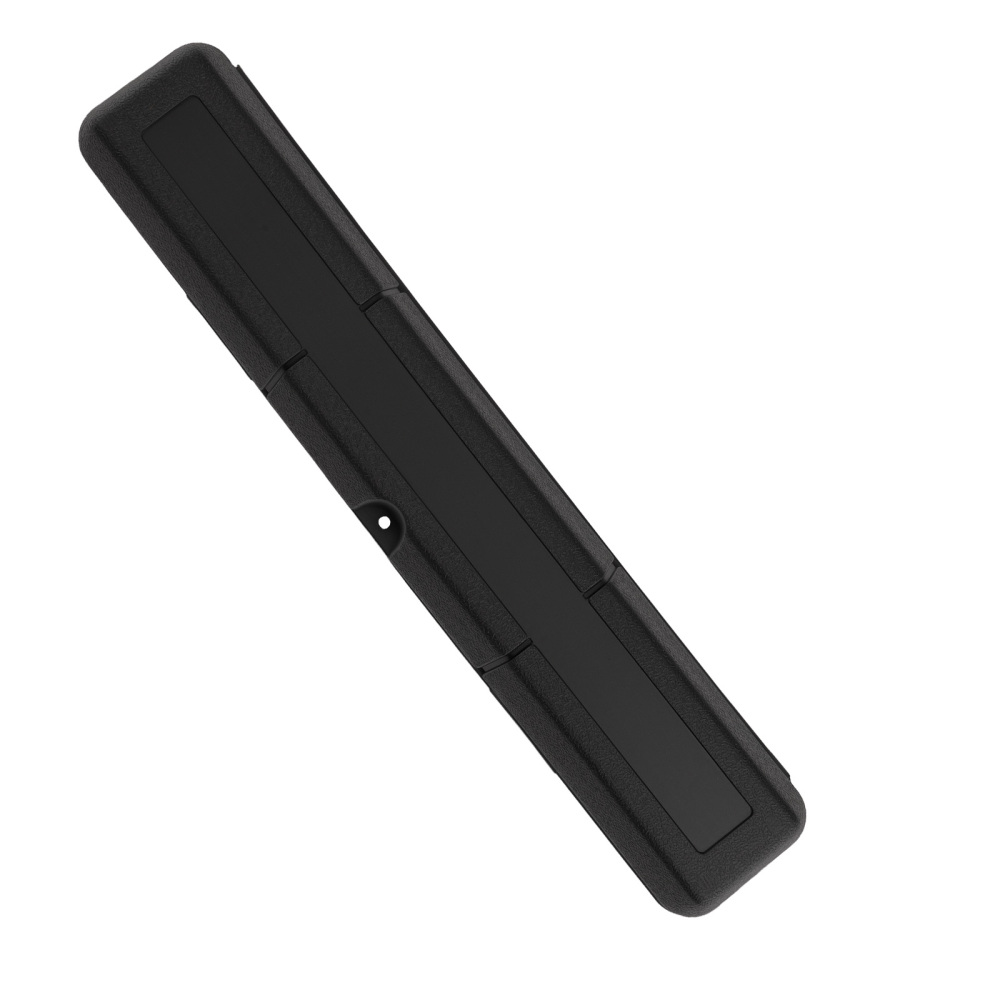

1* Storage compatible for Case
Showing as the picture

Feature

1. ACCURATE & RELIABLE - Professionally tested and pre-calibrated to ± 4%, thickened plastic storage box for protection.
2. ThLASER ENGRAVED SCALE - The dual-range scale is laser engraved, ensuring permanent visibility and easy identification of settings for precise torque adjustments.Laser engraving double range scale, permanent eye-catching, easy to identify.
3. STURDY CONSTRUCTION - Torque Wrench boasts a steel body and hardened treated Chrome Vanadium (CRV) steel 45-tooth ratchet head, ensuring durability and reliability.
4. USER FRIENDLY - The digital torque wrench offers easy operation; simply listen for the "click" to know the preset value has been reached, while the quick switch button adds convenience.
5. 72T gear：The 72T gear offers a smoother meshing process and higher transmission accuracy, which helps reduce operational noise and improve overall efficiency.

Note

1. lf wrench has not been used or has been in storade for some time, operate it several times at a low torque setting which permits special internal lubricant to re-coat internal working parts.
2. When wrench is not in use,keep doing adjustable at lowest torque setting.
3. Do not turn handle below lowest torque setting.
4.Do not continue pulling on the wrench after pre-set torque has been reached and the
5.Wrench has been released.Pressure must be taken off the handle and the wrench allowed to automatically reset itself, continuing to apply pressure after the wrench has been released,will result in damage to the part being torqued by applying more than the specified amount of torque.

how to use

Balancing wrench in hand with graduations visible with the marked arrow Elementary Scale up, then unlock knurled handle by turning lock nut counter clockwise.
Set amount of torque required by turning knurled handle to read exact amount on compatible for case graduations.
