4x Forged 4340 EN24 Connecting Rods compatible for Acura/HondaB18A B18B B20B B20Z Engine

Application

Compatible for Acura/Honda B18A B18B B20B B20Z Engine
compatible for Acura Integra RS/LS/GS 1990-1993 1.8L
compatible for Acura Integra RS/LS/GS/SE 1994-2001 1.8L
compatible for Honda CR-V 1997-2001 2.0L
Note:Small end diameter:21mm/0.827"
Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

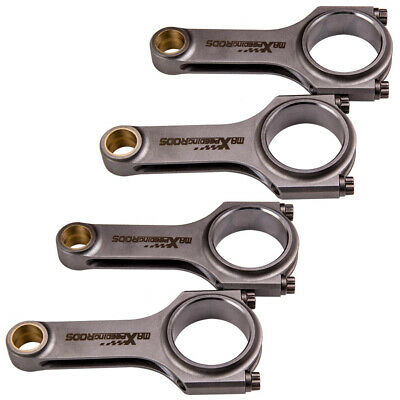

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length:137mm/5.394"
Big end diameter:48mm/1.89"
Small end diameter:21mm/0.827"
Big end width:23.75mm/0.935"
Small end width:21mm/0.827"

Feature

1. TUV PRODUCT TEST AND TUV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

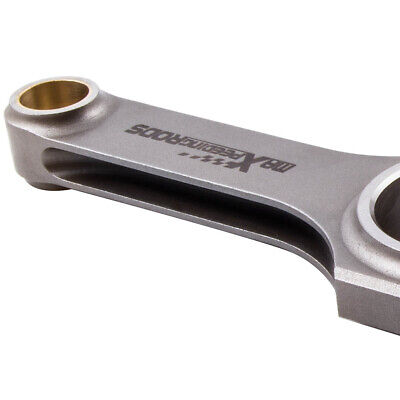

4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
