24 Ways Adjustable Damper Coilover compatible for Toyota 86Subaru BRZ ZN6 ZC6 2012-2020

Application

Compatible for Subaru BRZ First generation (ZN6/ZC6) 2012-2020
Compatible for Scion FR-S 2012-2020
Compatible for Toyota 86 2012-2020

Specifications

Top mounts: Front pillow ball top mount with camber plates
Damping: 24 levels rebound damping adjustable
Shock type: Twin tube
Adjustable height: Yes, lowering 1'' to 3''
Adjustable camber plate: Yes
Spring preload: 7-10 mm
Spring rate Front: 6 kg/mm (336 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 200mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 410mm-470mm
Coilover overall length Rear: 400mm-430mm
Color: Black body with blue spring


Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. With better damping setting,you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
13. Clean room assembled---maintain higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.

 Package included

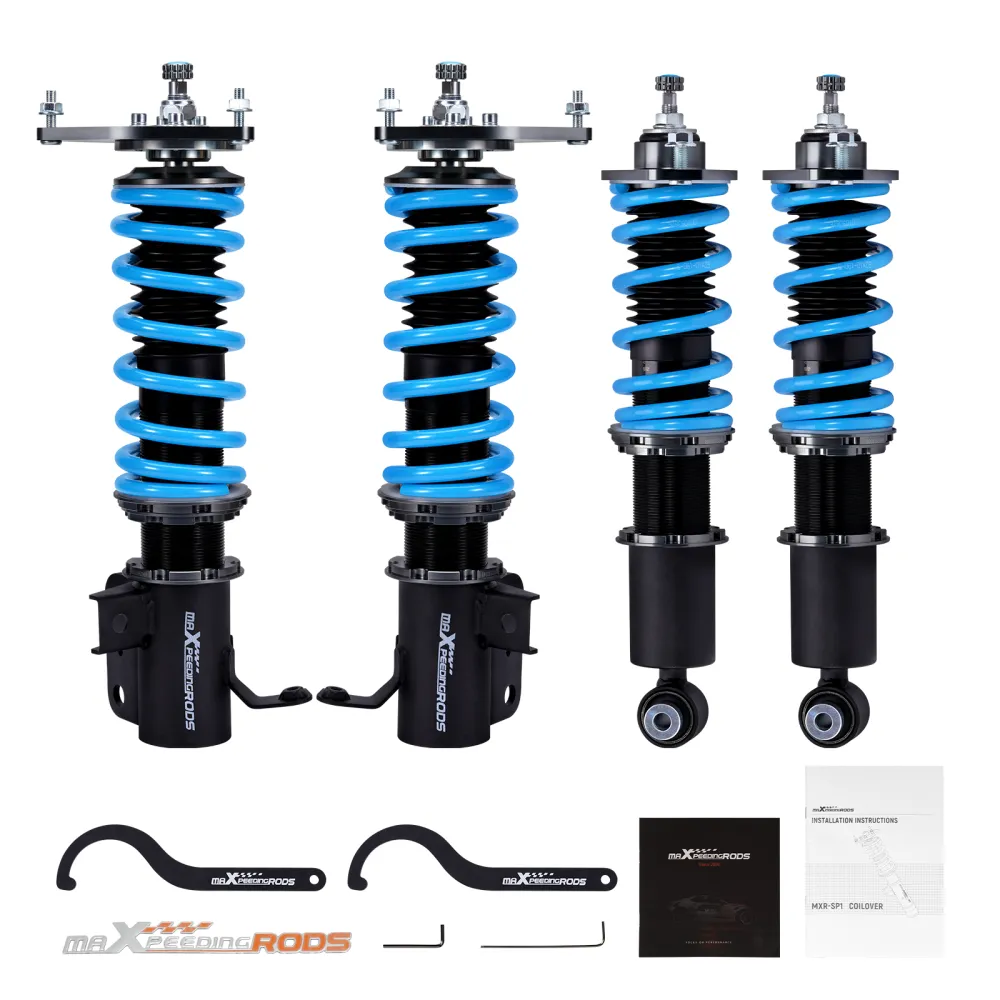

Complete coilovers 2 front and 2 rear as shown in the picture

Dimension
Size: 63*51*21 cm
Weight: 21.24 kg

Notice

* Professional installation & alignment suggested.
