24-Steps Adj. Damper Coilover Suspensions compatible for Nissan Sentra B15 Pulsar N16 00-06 Lowering Kit

Introduction

MaXpeedingRods-B3 series(also called MaXpeedingRods-SLC) based on MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible For Nissan Sentra SE-R B15 2000-2006

Compatible For Nissan Sunny N16 2000-2006

Compatible For Nissan Bluebird Sylphy (G10/N16) Japan Market

Compatible For Nissan Almera (N16) Europe Market

Compatible For Nissan Pulsar (N16) New Zealand & Australia Market

Specification

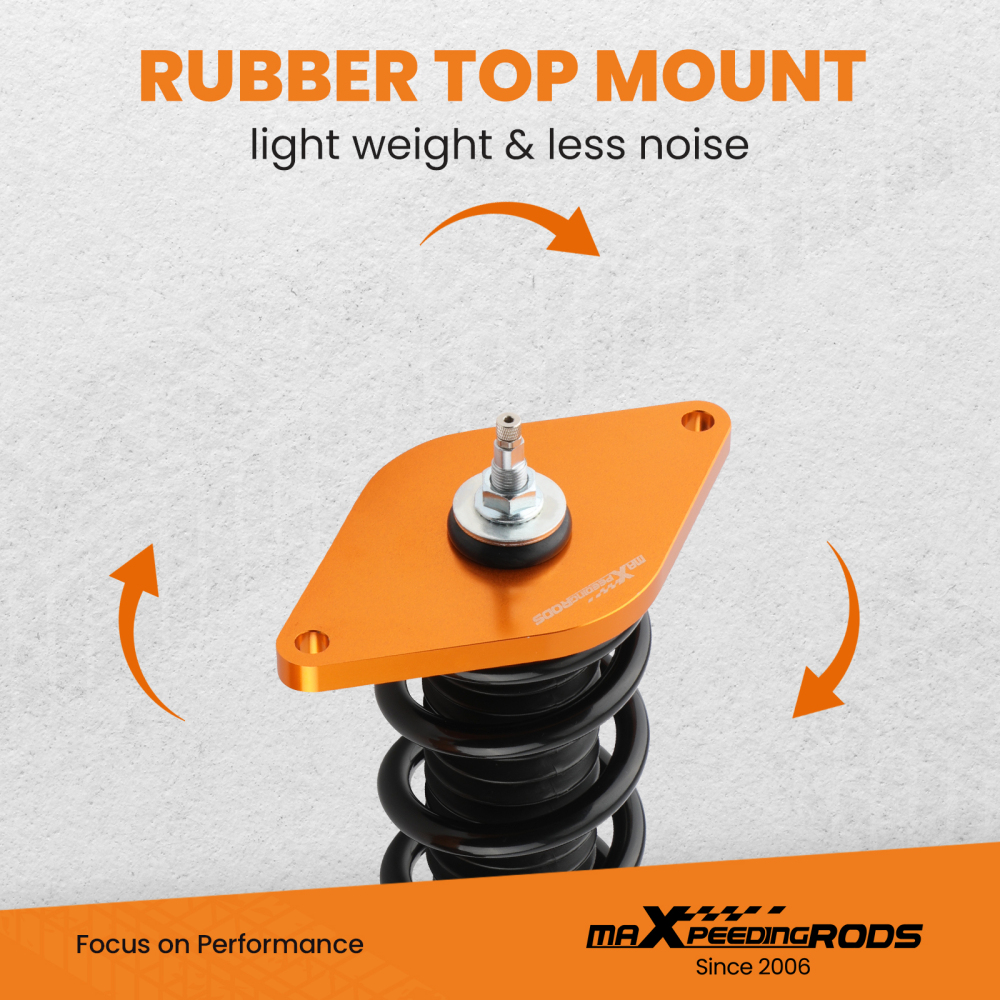

Top mount: Front pillow ball；rear rubber

damping: 24 ways damping adjustable

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 230mm

Spring length Rear: 220mm

Adjustable height: lowering 1-3 inch

Coilover overall length Front: 450mm-510mm

Coilover overall length Rear: 490mm-550mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: gold body with black spring

Package included:

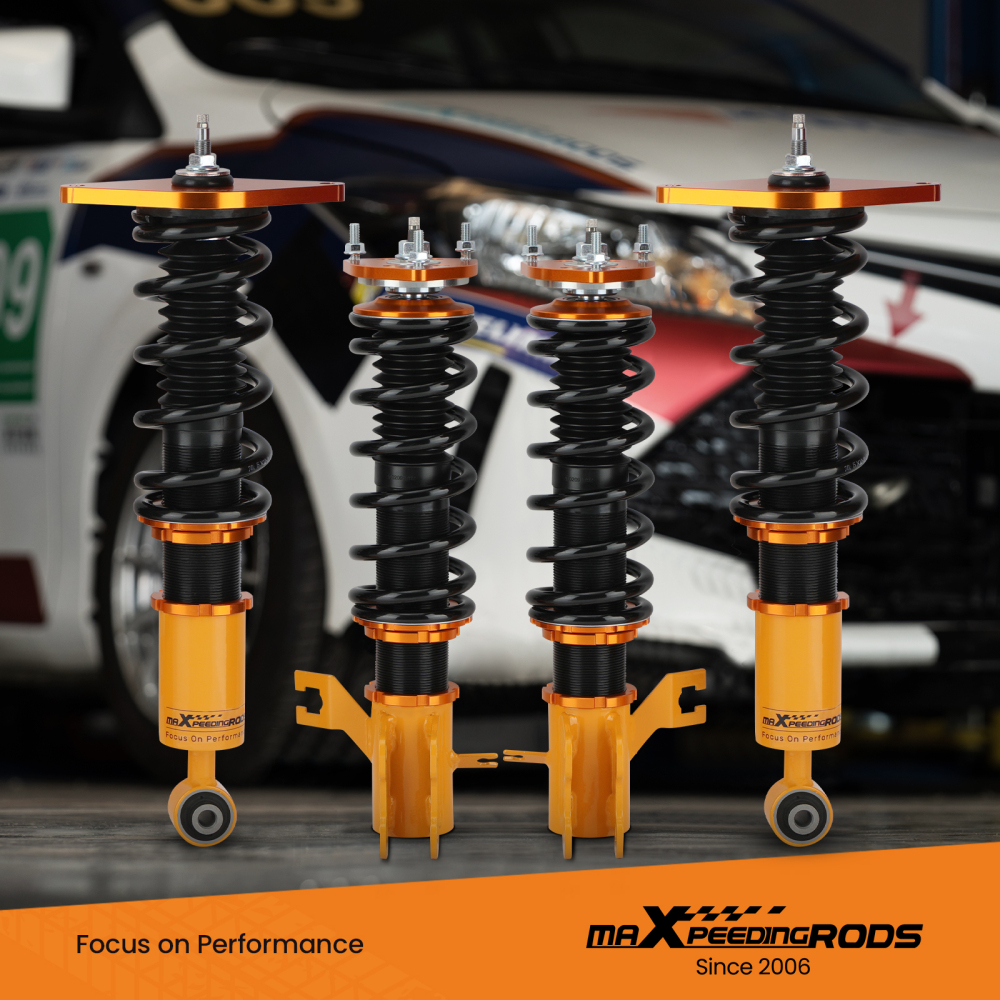

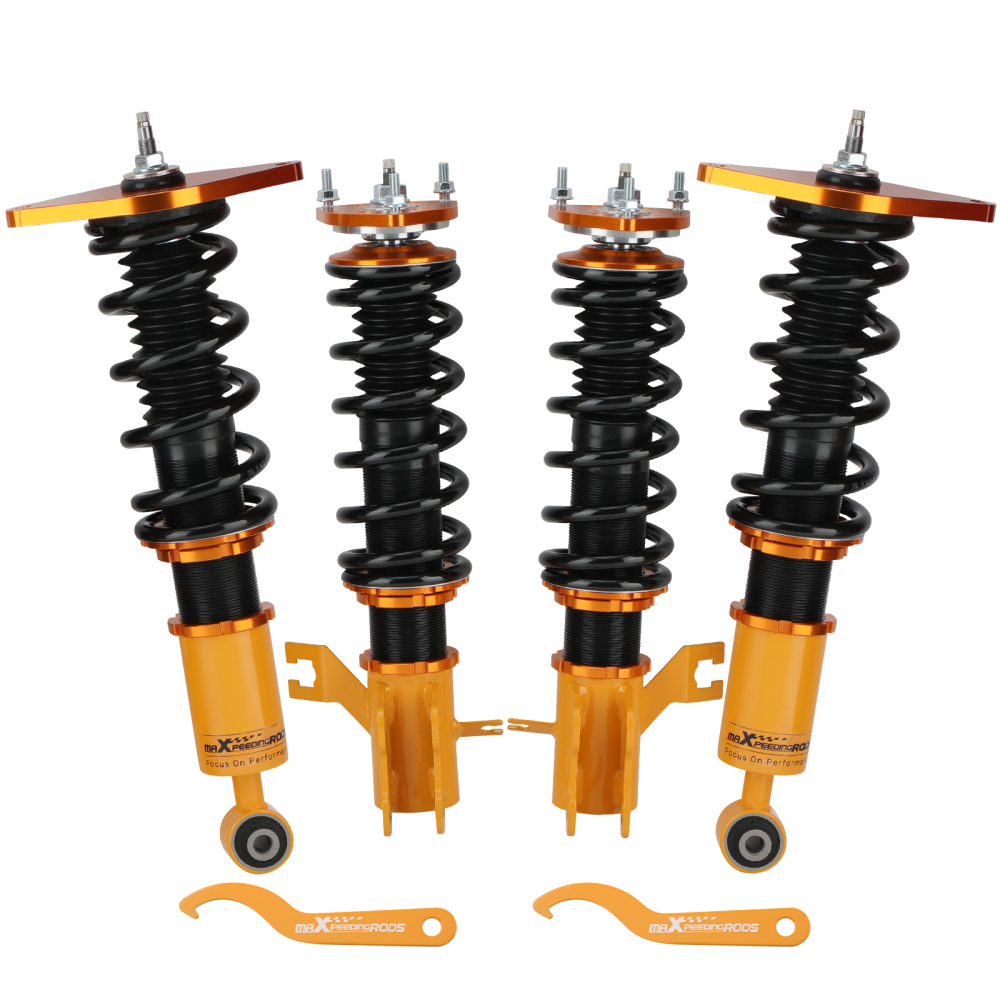

Complete coilover assembly kit for front and rear

A pair wrench for height adjustment

Dimension:

package dimension:  63.0cm x 51.0cm x 21.0cm

weight：27000.00 g

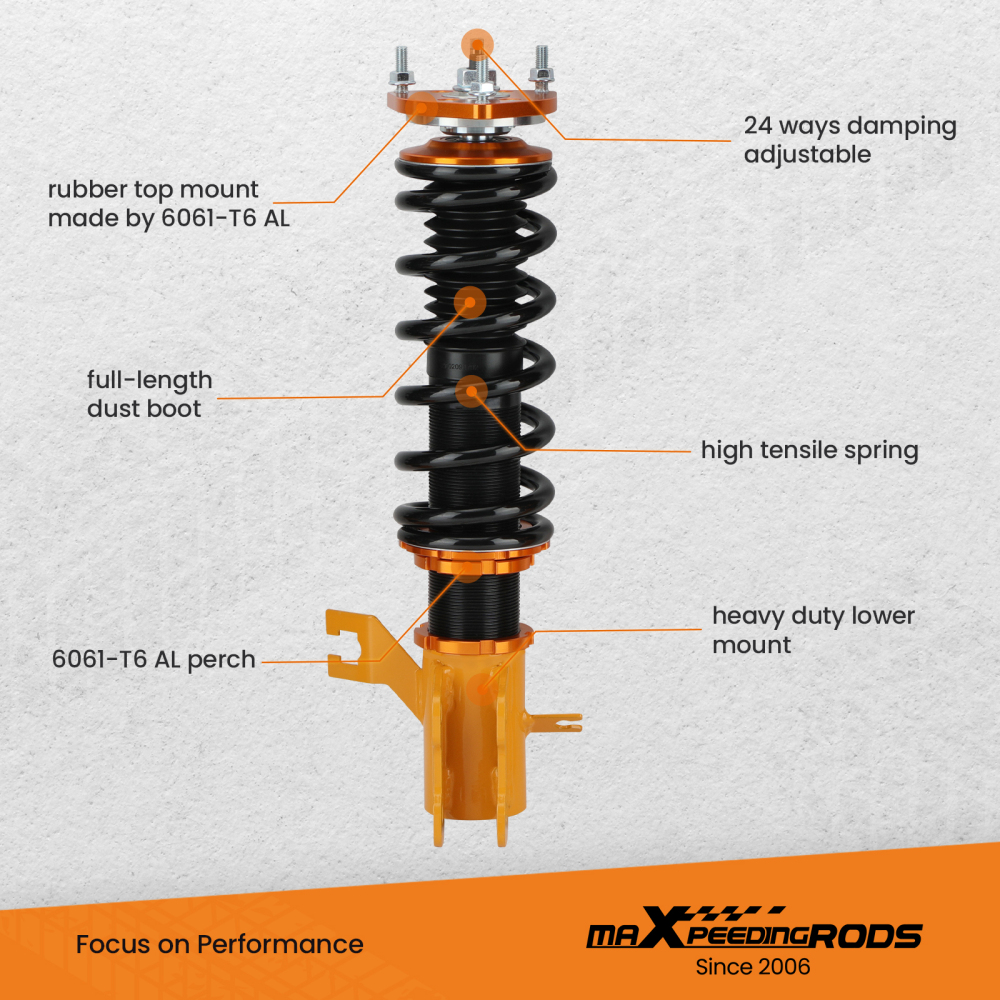

Feature

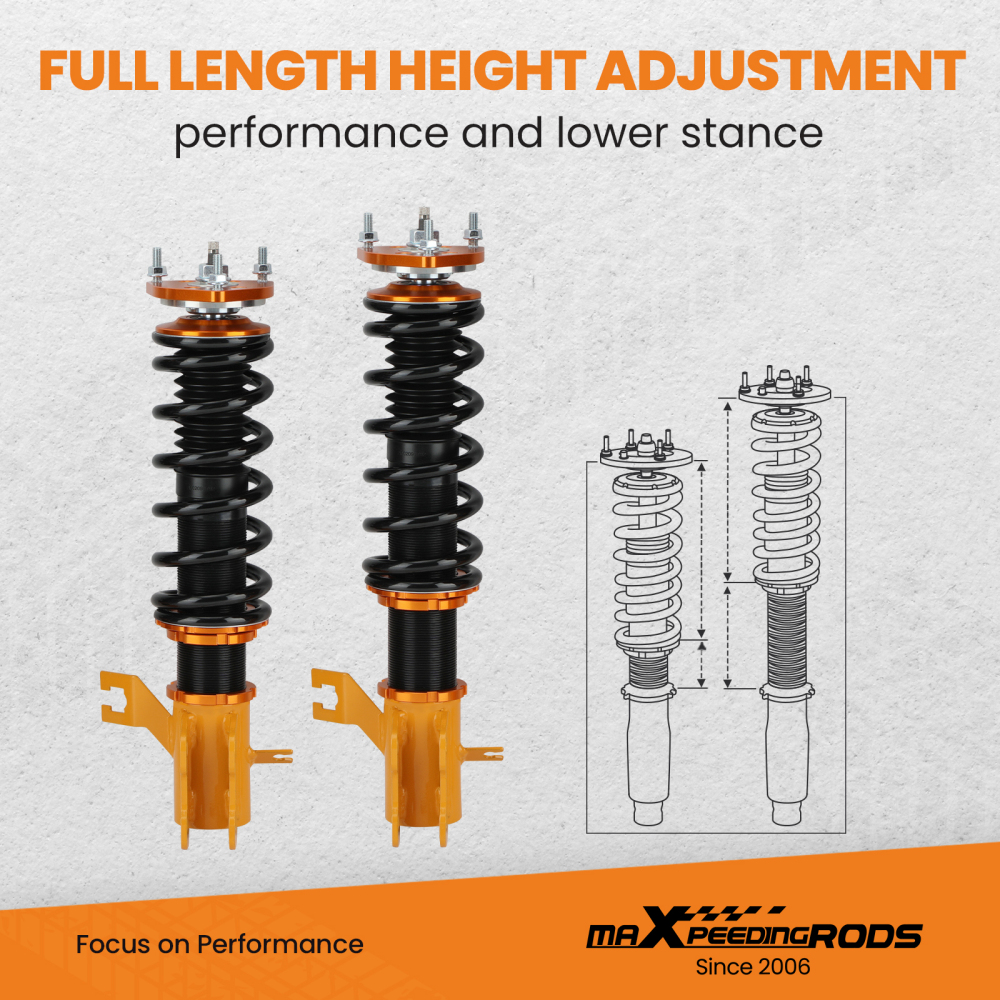

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

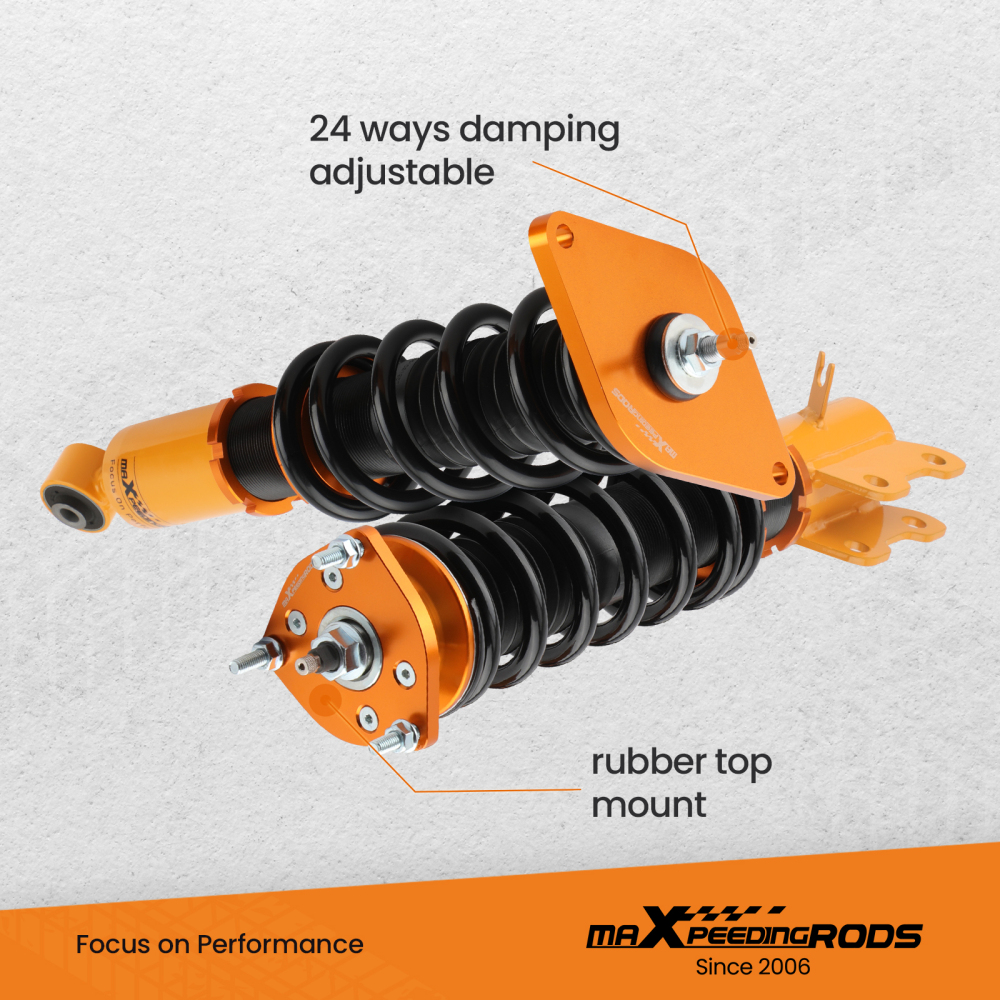

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

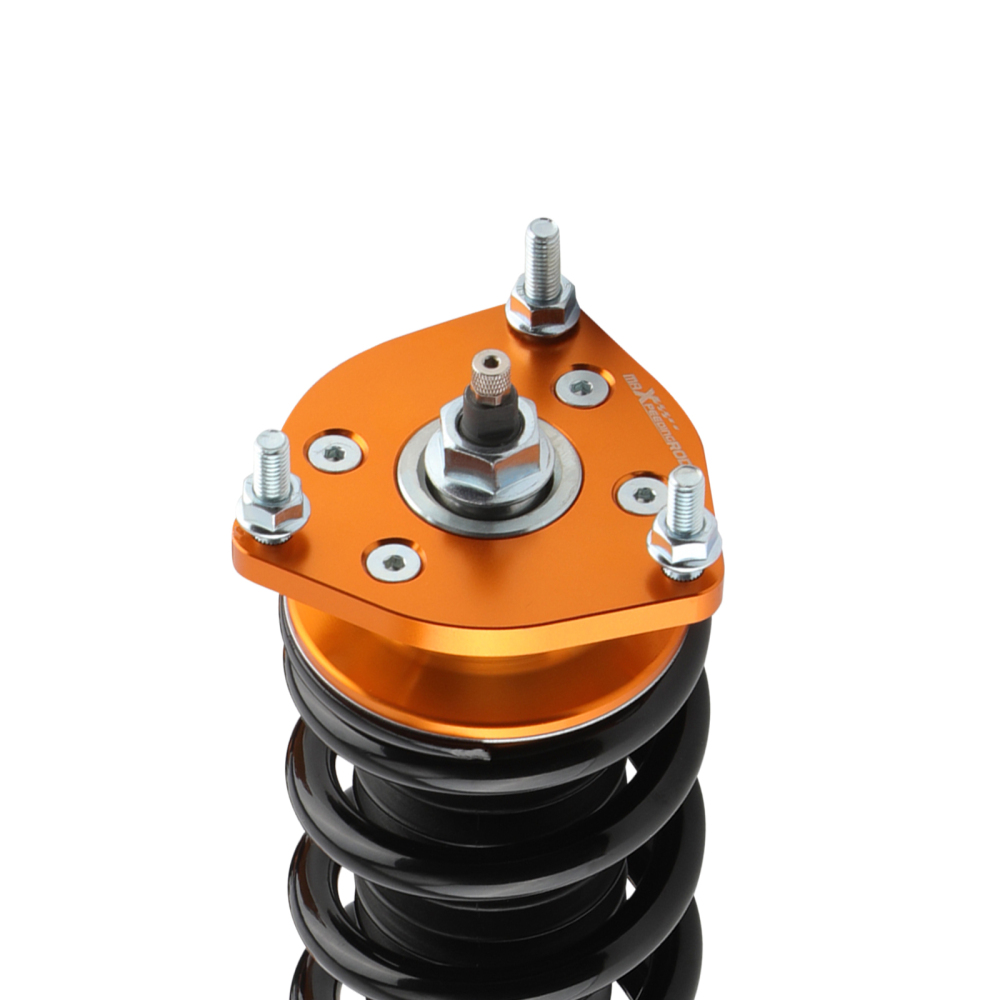

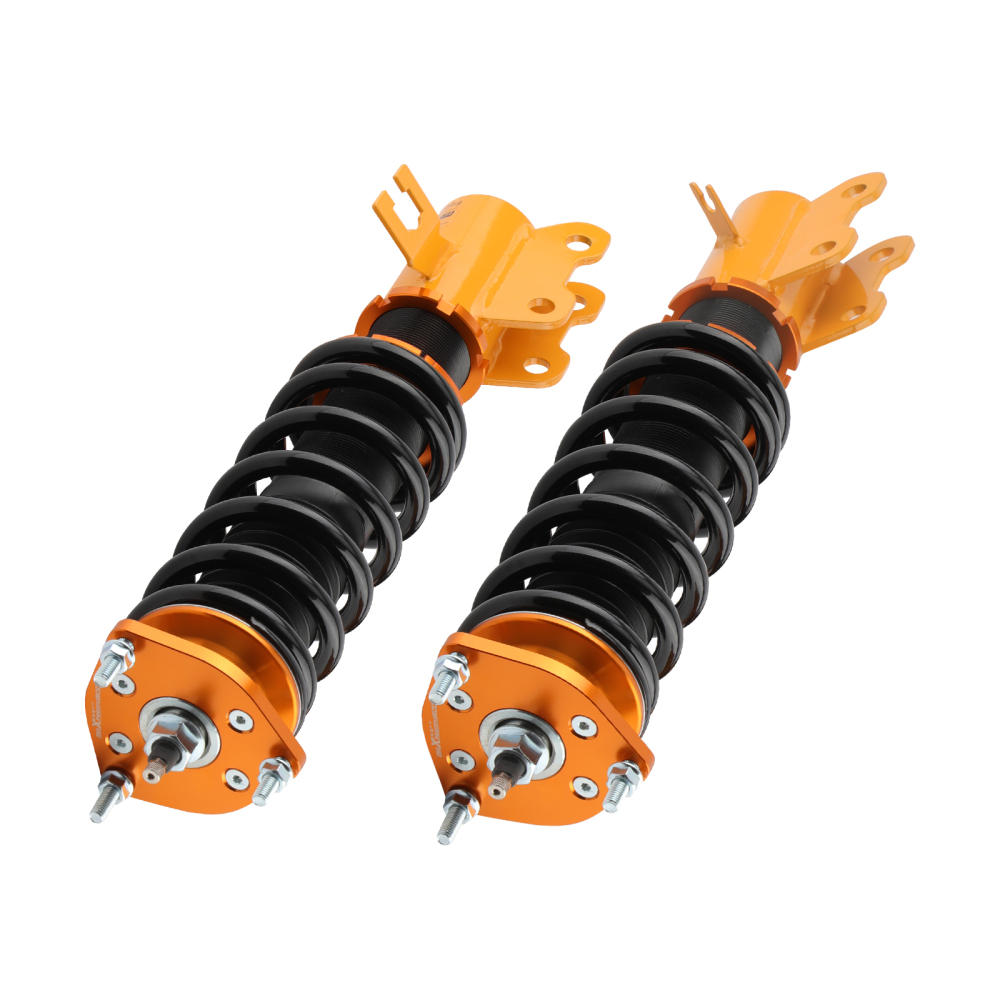

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

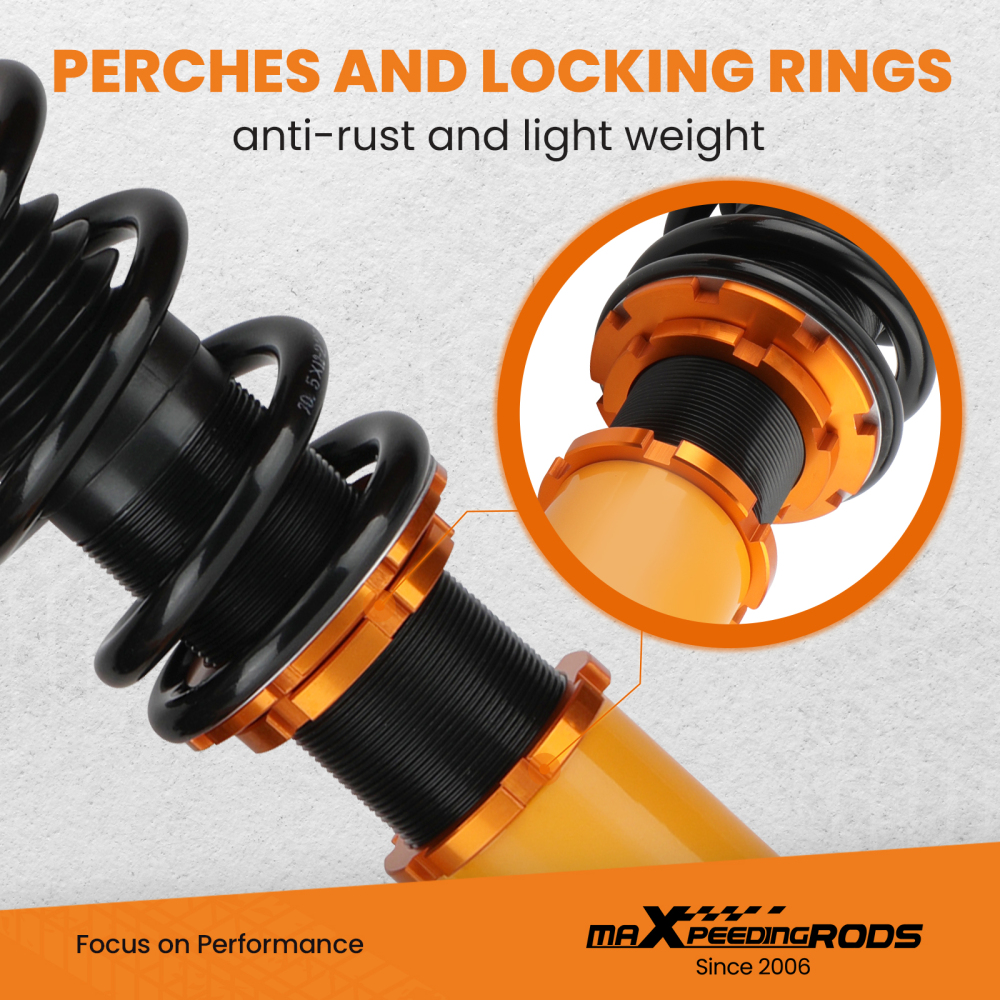

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

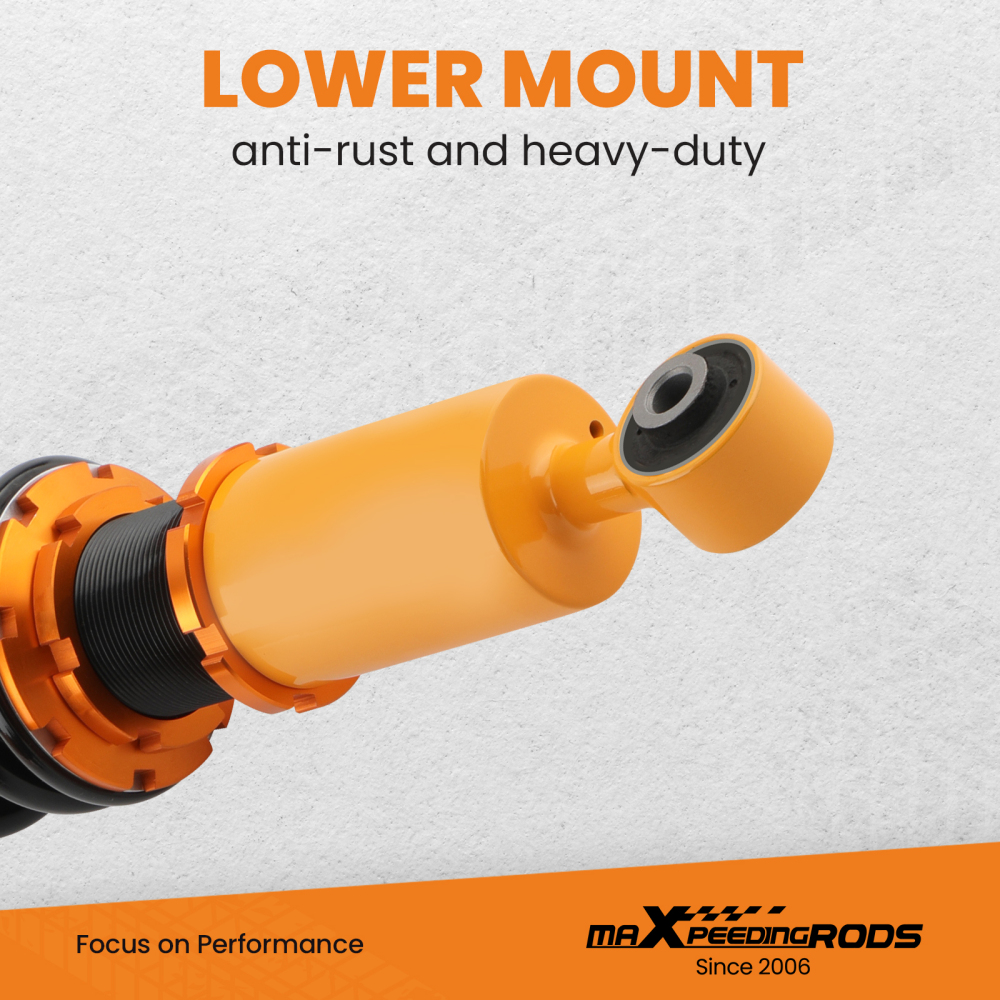

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

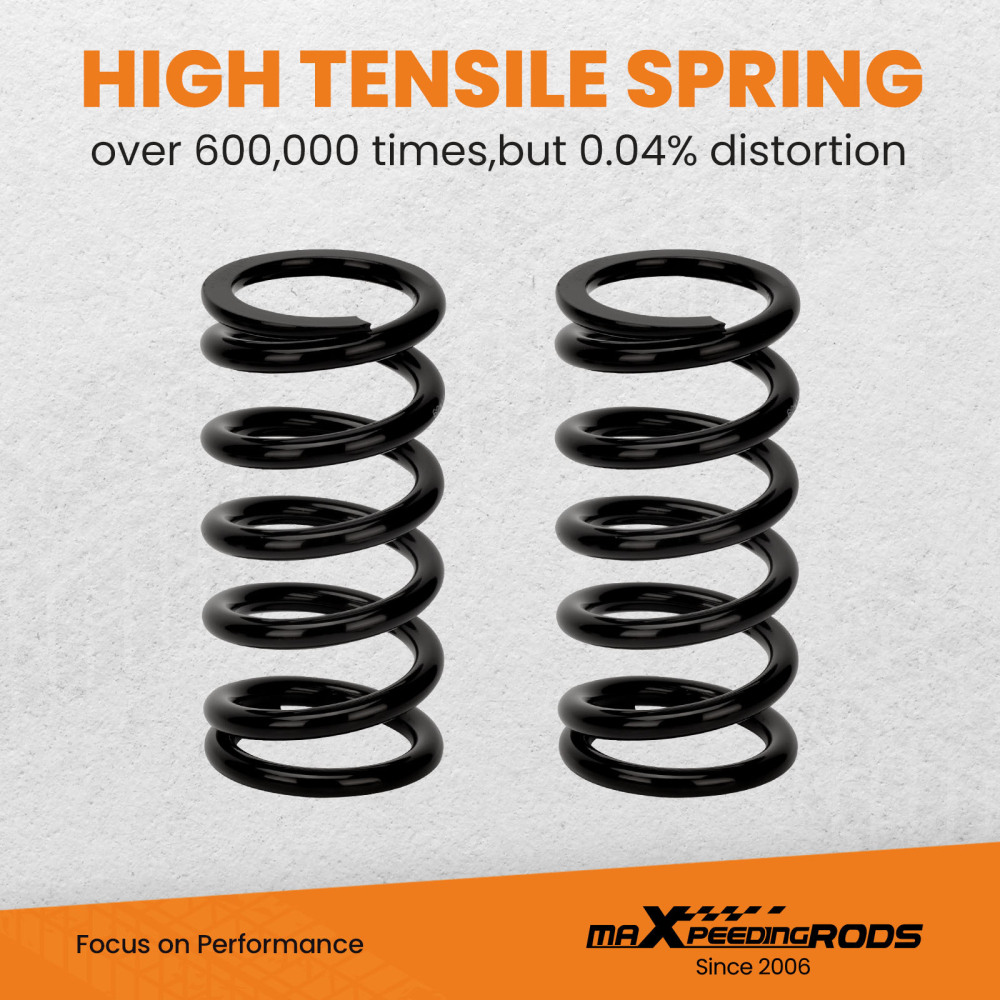

7. High tensile spring---  600,000 times continuously test to assure it's high tensile strength.

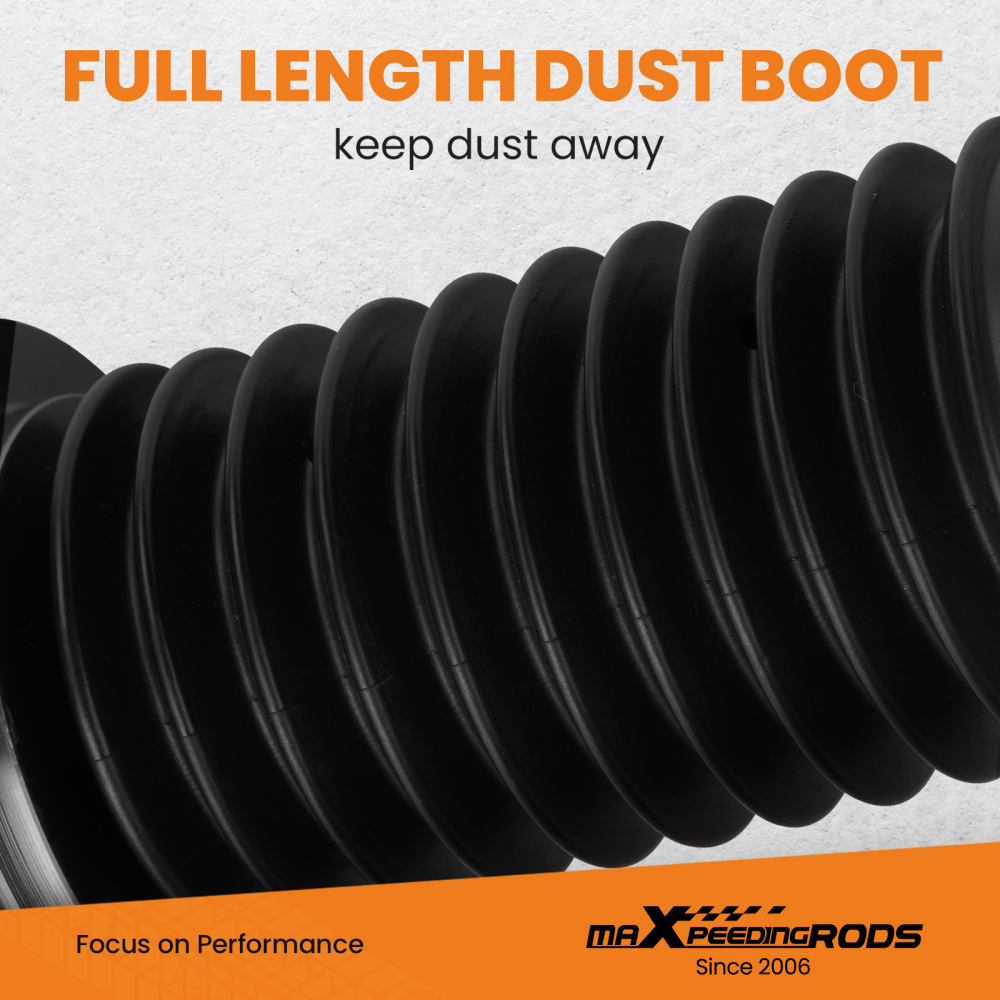

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
