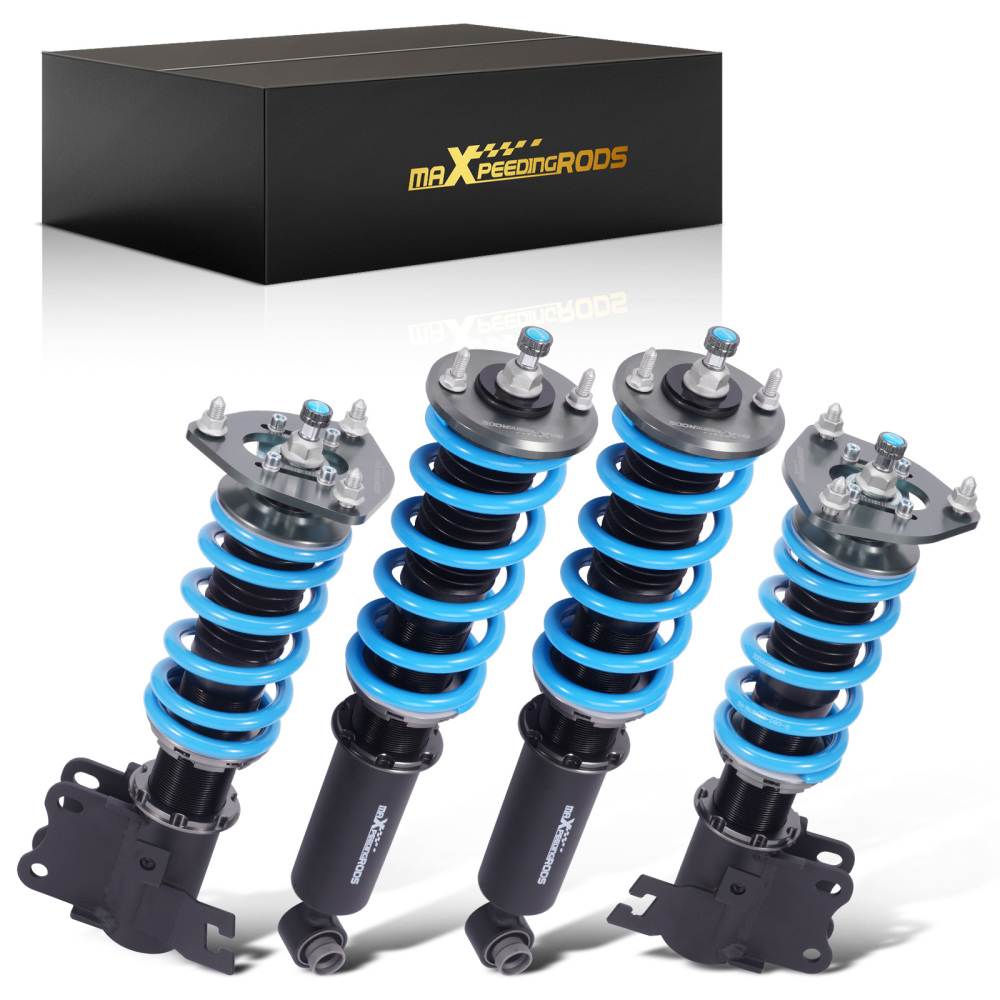

24-level Adjustable Damper Coilover compatible for NISSAN S13 Silvia 180SX 200SX 89-94

Introduction

maXpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.




Application
Compatible for Nissan S13 240SX 1989-1994 USA
Compatible for Nissan S13 200SX 1989-1993 Europe
Compatible for Nissan S13 Silvia 1988-1993 Japan
Compatible for Nissan S13 180SX 1989-1999 Japan
Compatible for Nissan S13 Sileighty 1998 Japan

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.





Specification

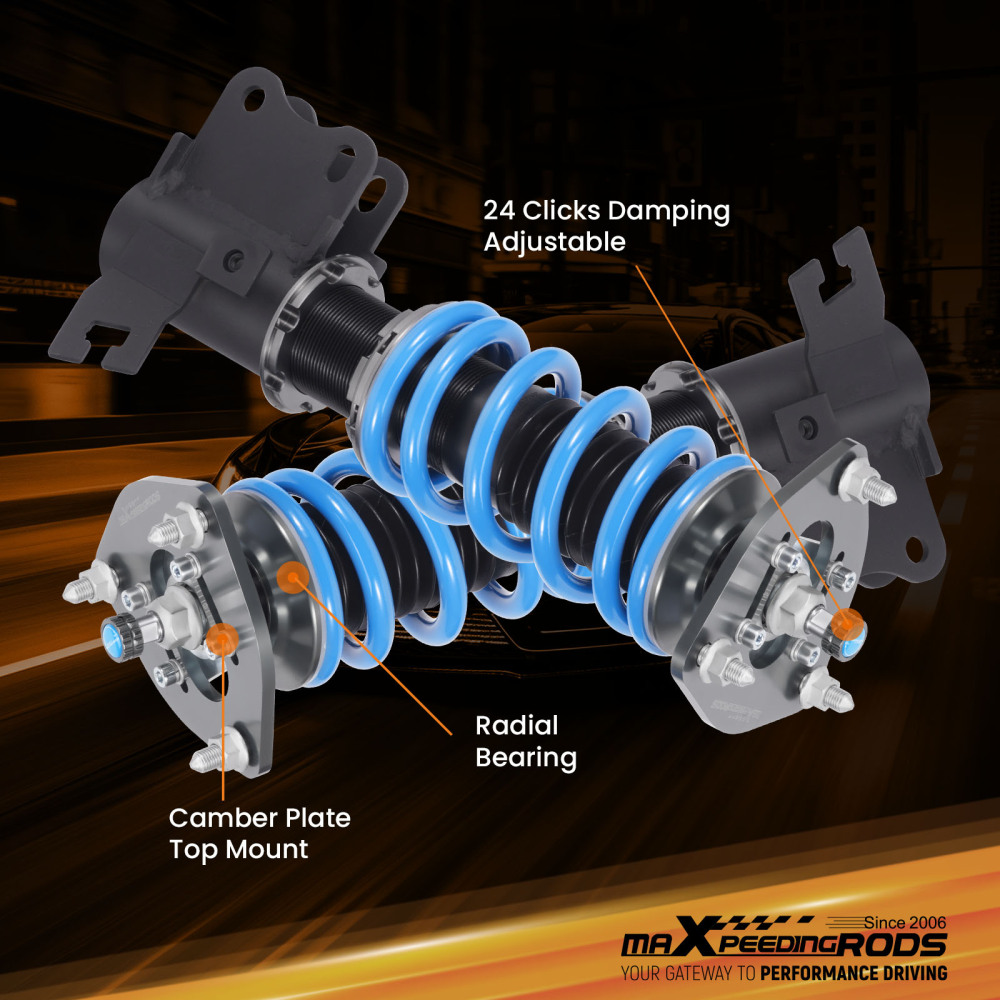

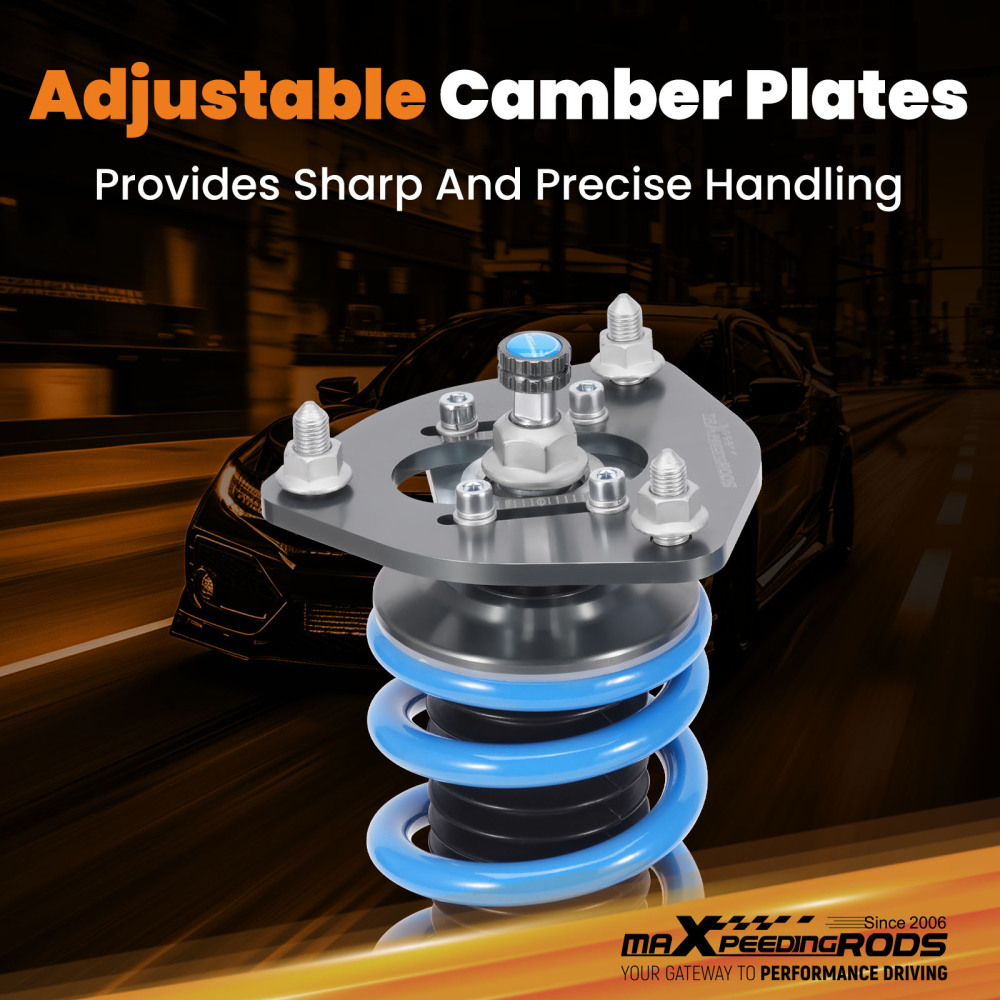

Front top mounts: pillow ball with camber plate
Rear top mounts: pillow ball
Damping adjustable: Available, 24 levels of rebound damping force
Shock structure type: twin -tube
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

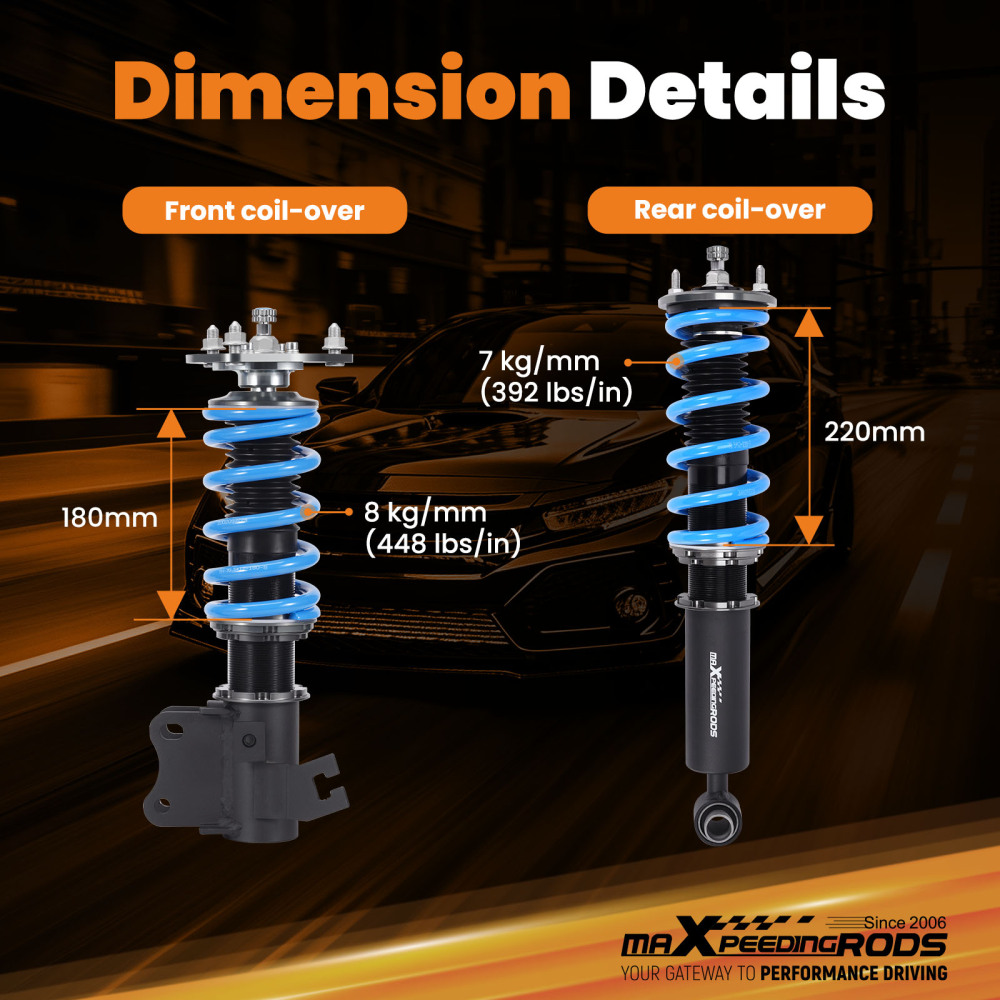

Spring Rate Front: 8 kg/mm(448lbs/in)
Spring Rate Rear: 7 kg/mm(392lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 180 mm
Spring length Rear: 220 mm

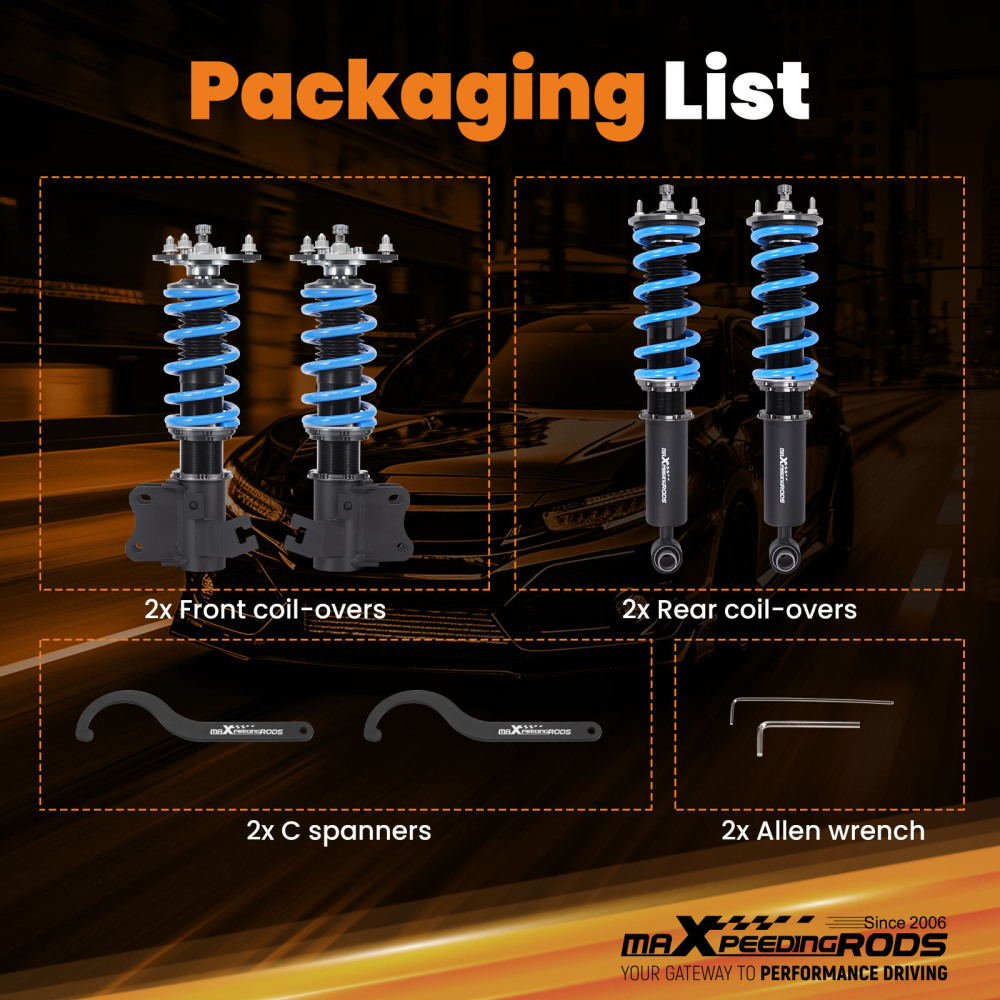

Package included

1 x Set of coilovers for 2 front and 2 rear
1 x pair of wrenches for height adjustment

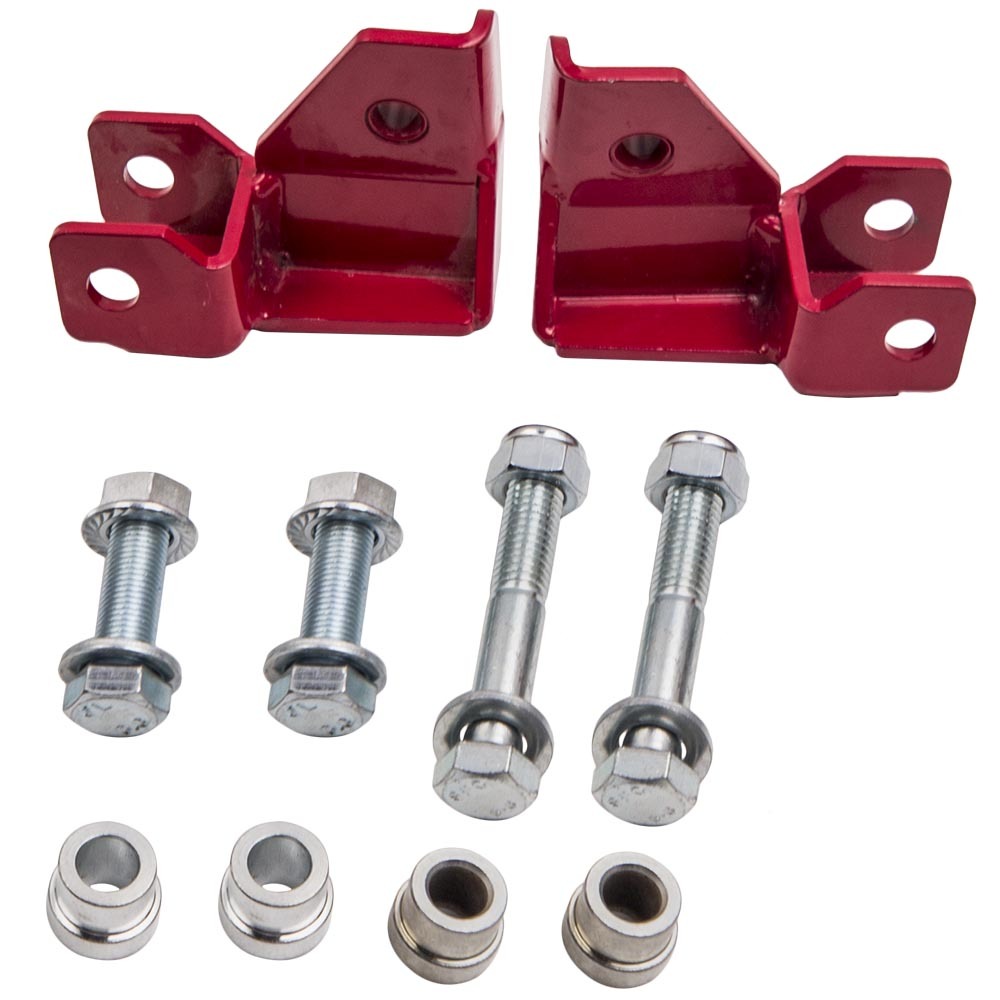

1 x Left Side Hicas Lock Arm
1 x Right Side Hicas Lock Arm
1 x Left Side Hicas Bracket
1 x Right Side Hicas Bracket
1 x Bush and Fitting Kit






Features

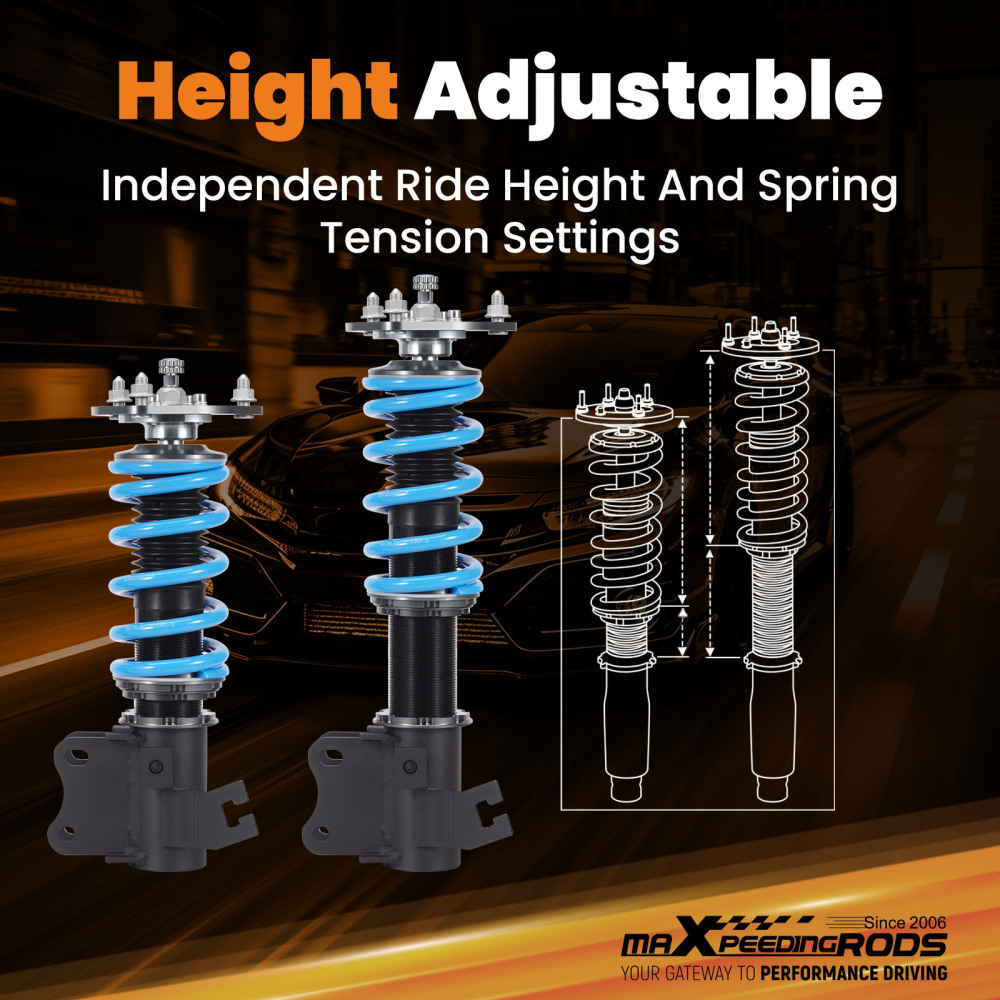

1. Lowered height adjustment from 25-75mm which allows a lower center of gravity and also adds a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

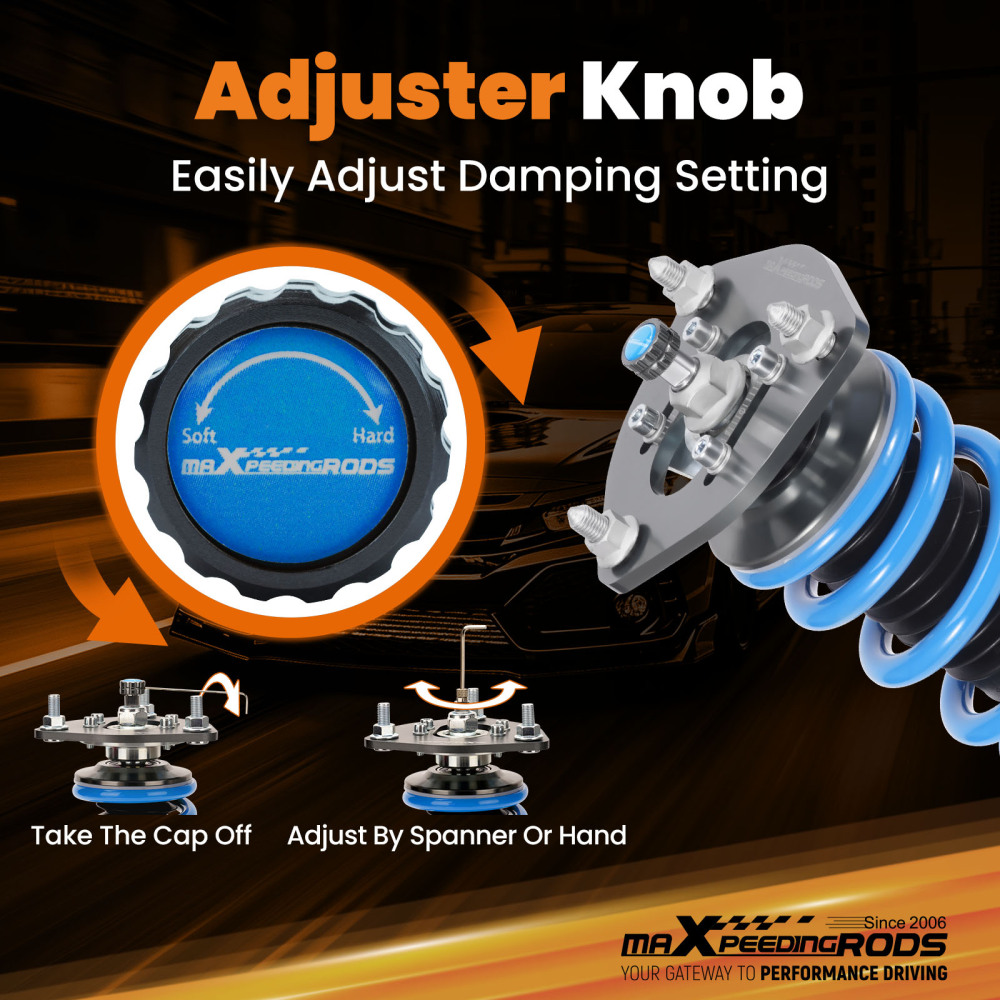

3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

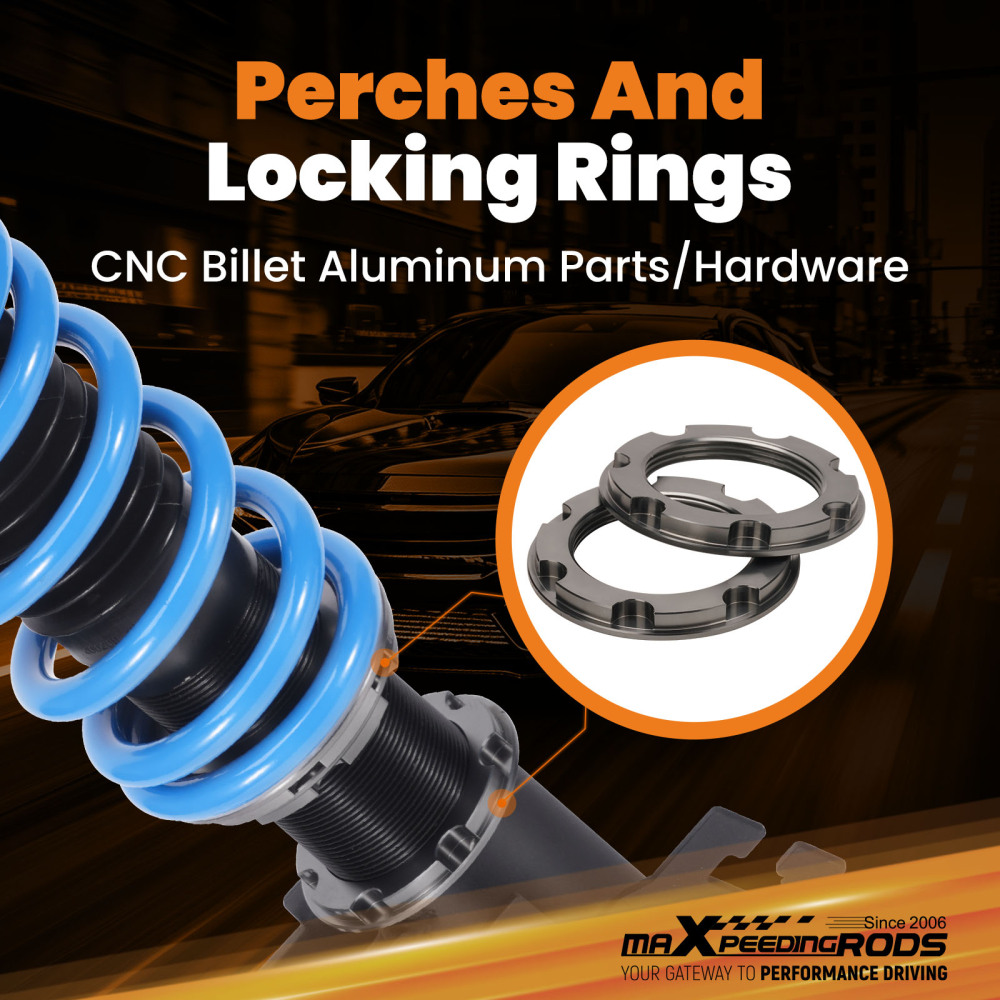

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

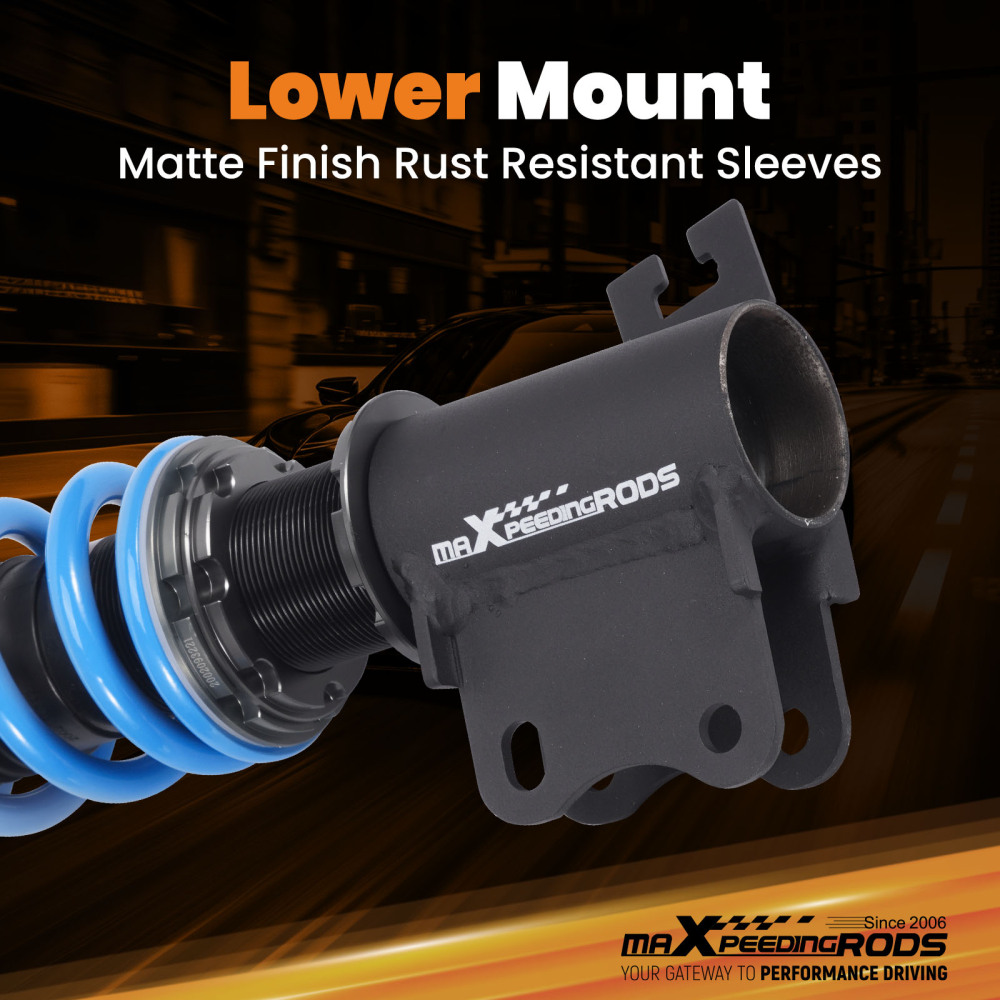

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

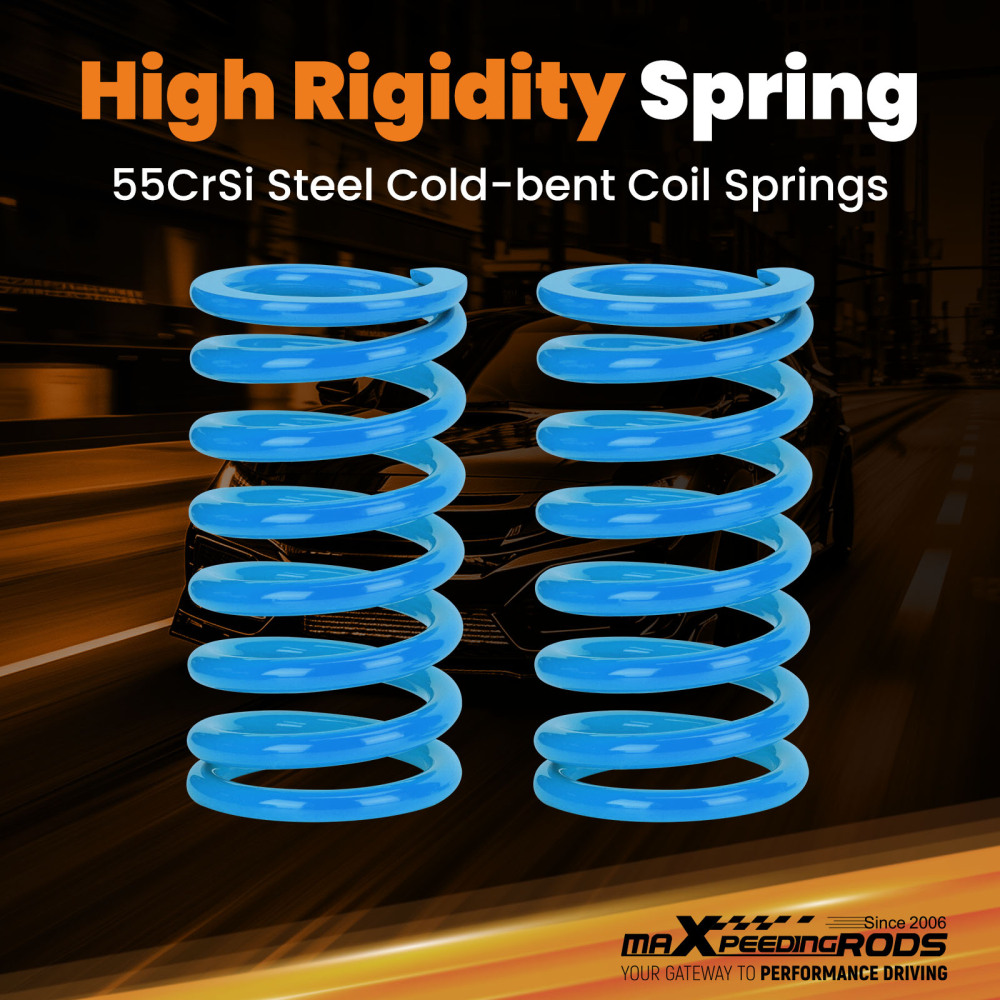

6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.

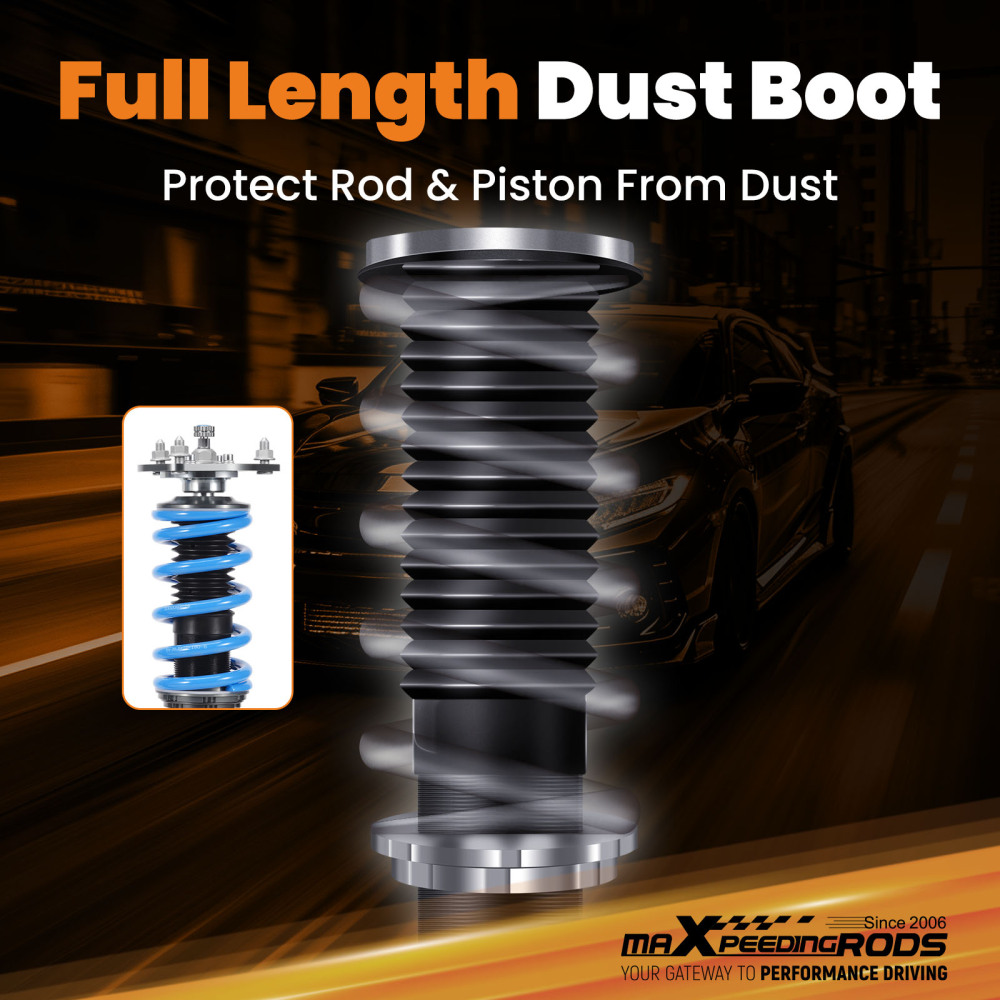

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. With a better-damping setting, you will get better performance and comfort at the same time.

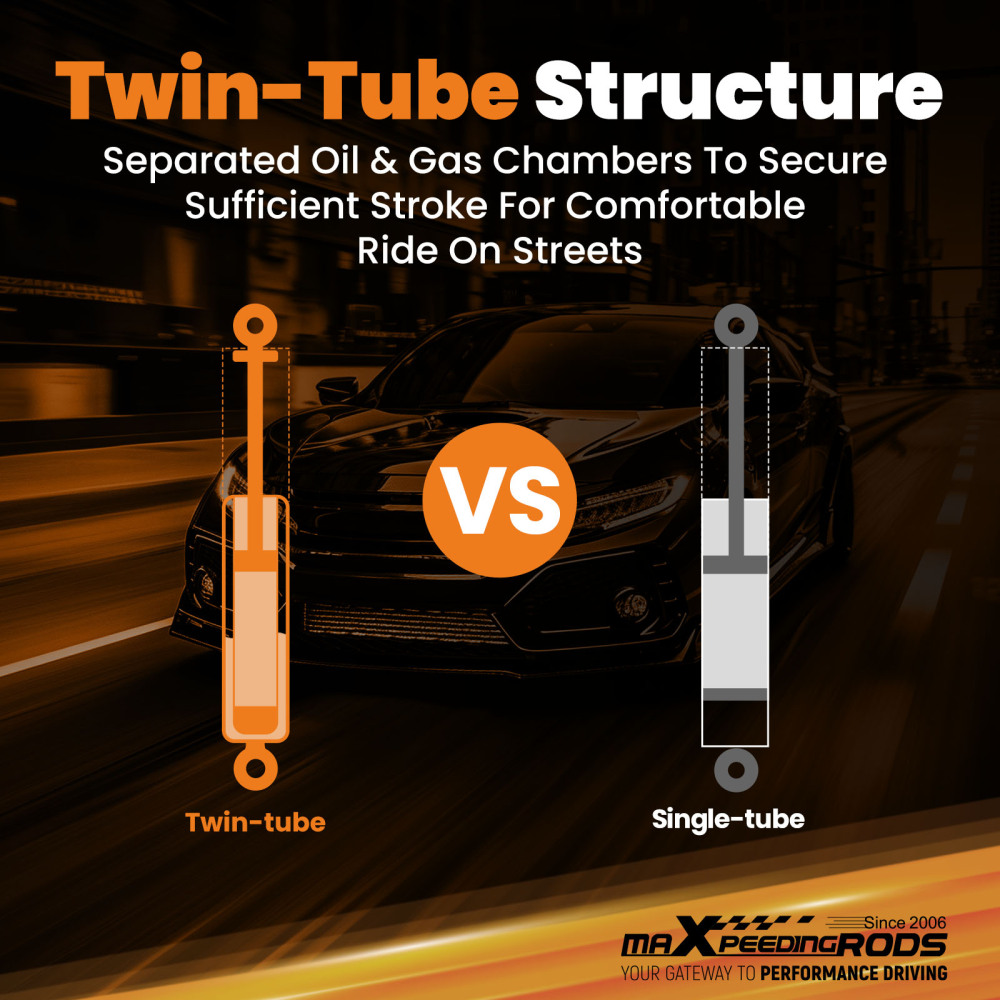

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Anti-corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
12. Clean room assembled---maintain a higher level of accuracy and reliability.
13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.





Notice
* Professional installation & alignment suggested.
