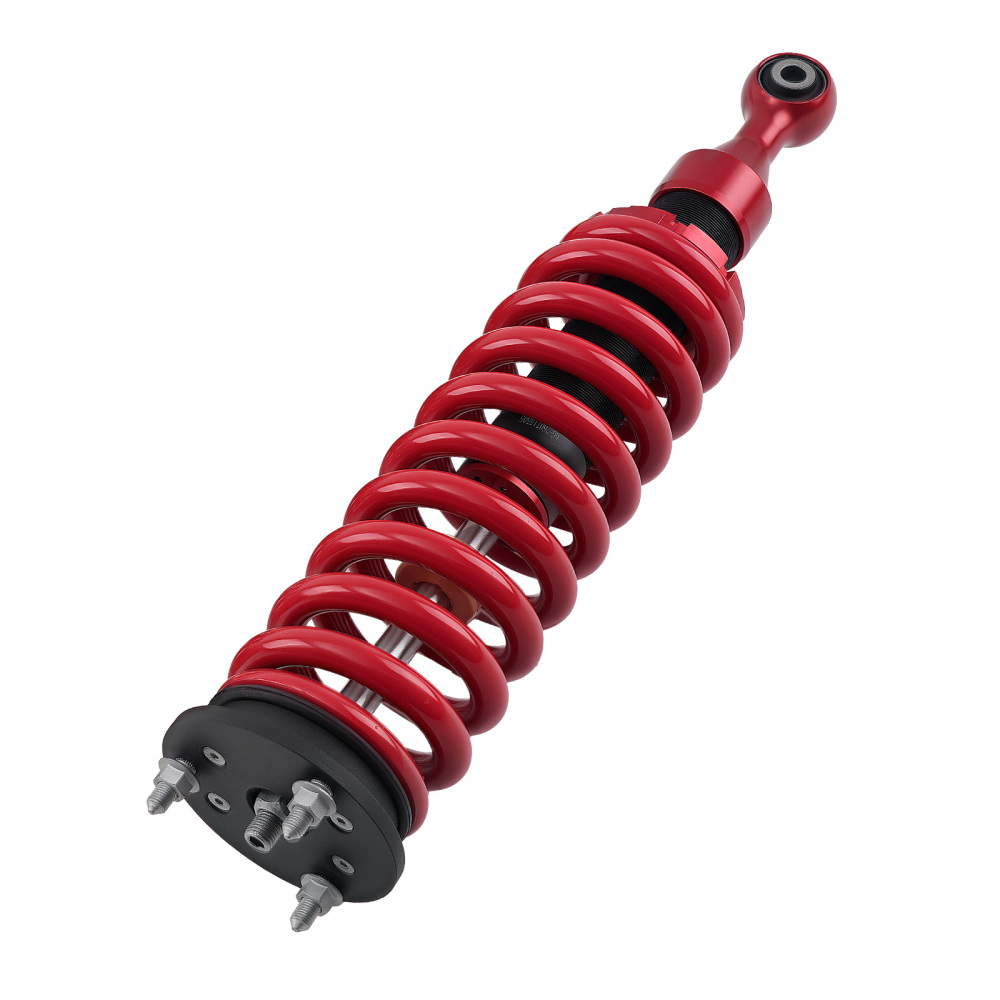

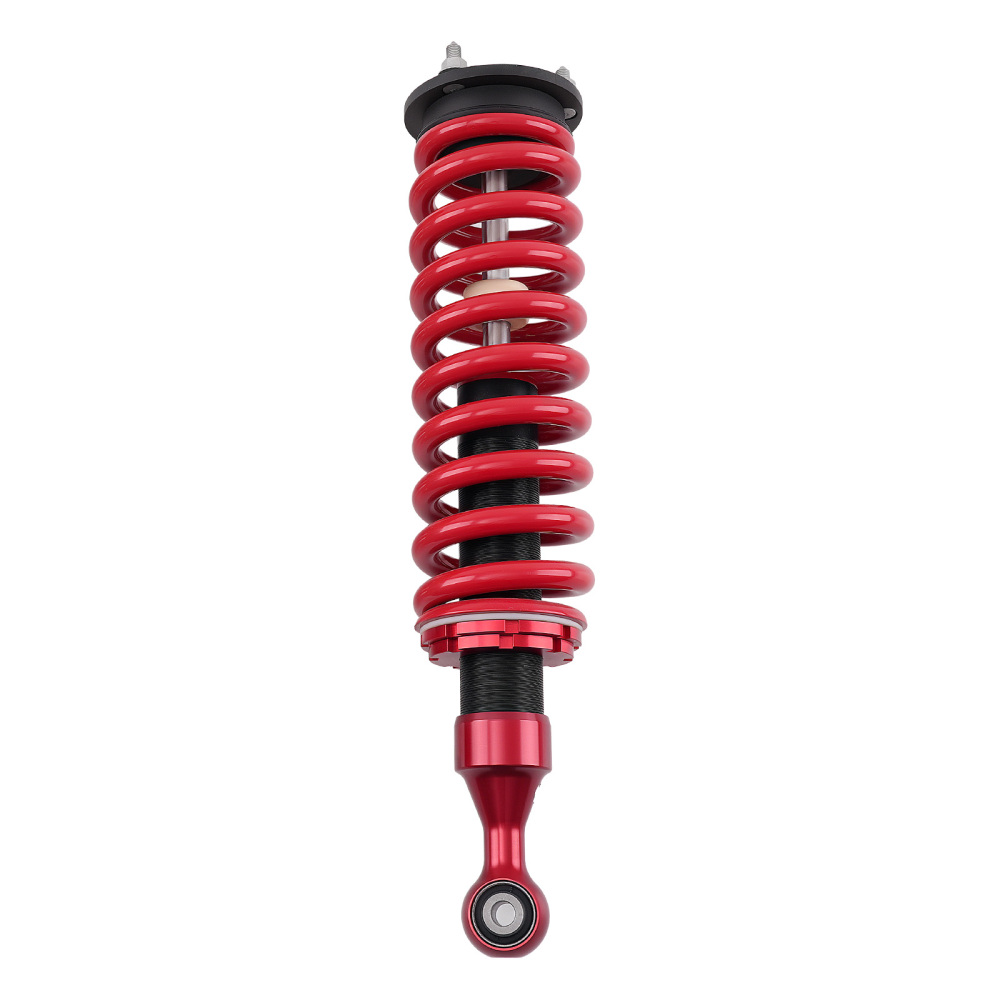

2-3 Front Adjustable Struts compatible for Isuzu D-Max 4WD 2012-2020 Ute/Dual Cab

Application

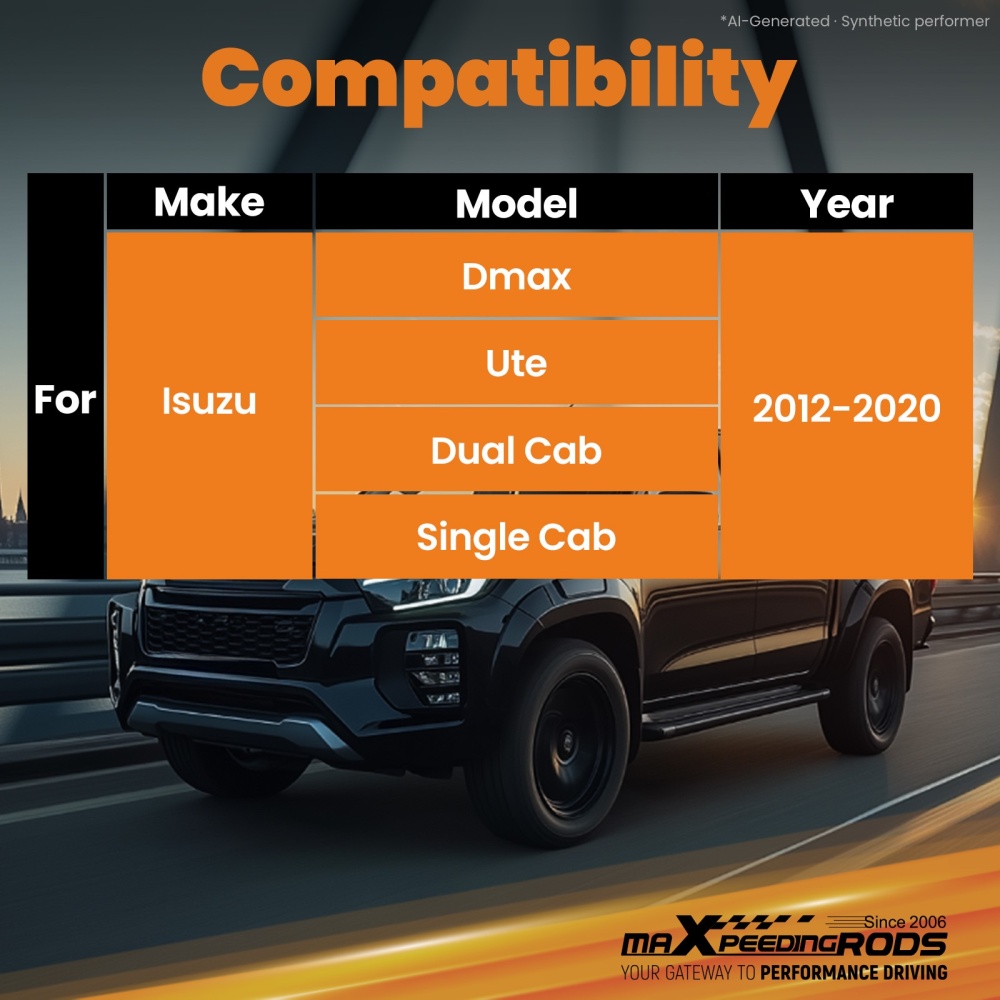

Compatible for Isuzu Dmax 4WD Ute / Dual Cab / Single Cab 2012 - 2020

Specification

type：lift shock
Compatible Height：Lift front 2/3"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Bushing material: Upgraded rubber
Diameter of piston rod: F 18mm/0.70"
Piston diameter：F 46mm/1.81"
Outer cylinder diameter: F 52mm/2.05"
Travel: F: 150mm/5.90"
extended length: F: 535mm/21.06"
collapsed length:F: 385mm/15.15"
Nitrogen charged：yes
dust cover equipped: no

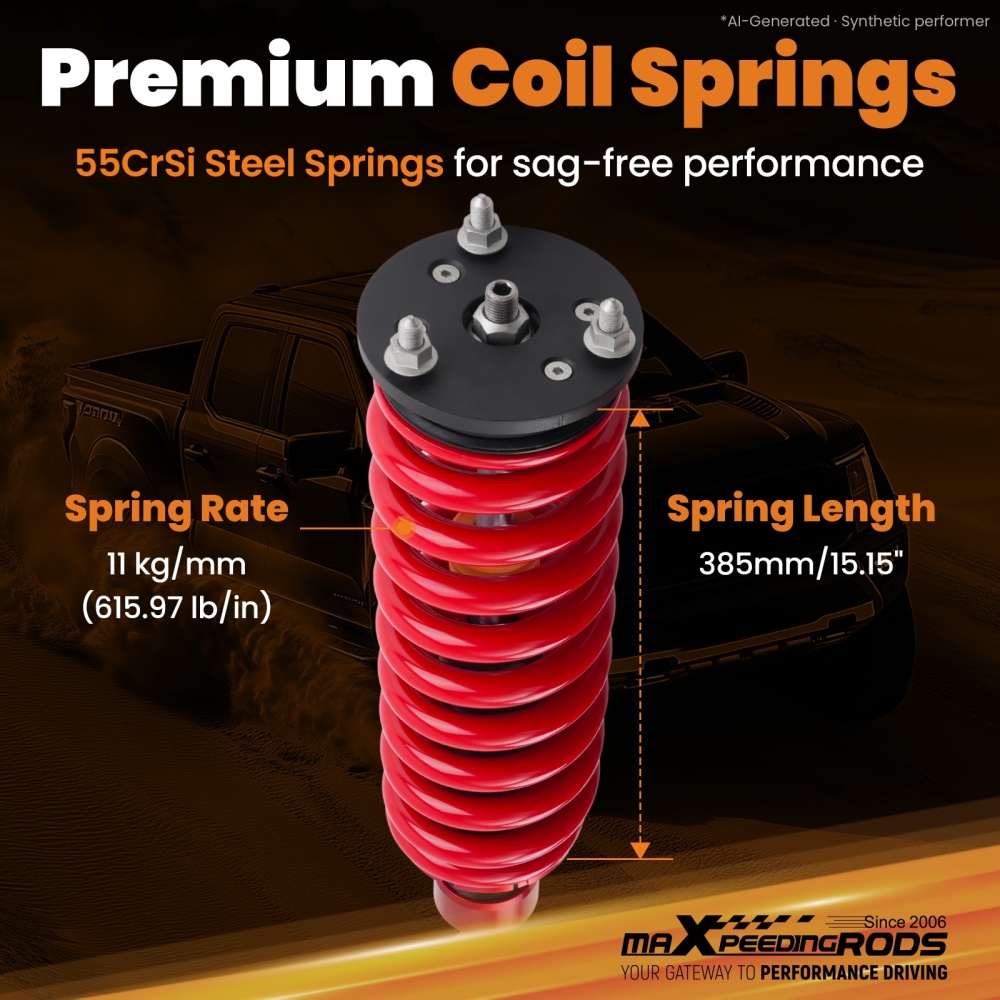

spring rate: F 615.97 lb/in = 11 kg/mm
spring material: 55CrSi
spring length: F 385mm/15.15"
Spring Tensile Strength：1500-1700MPA

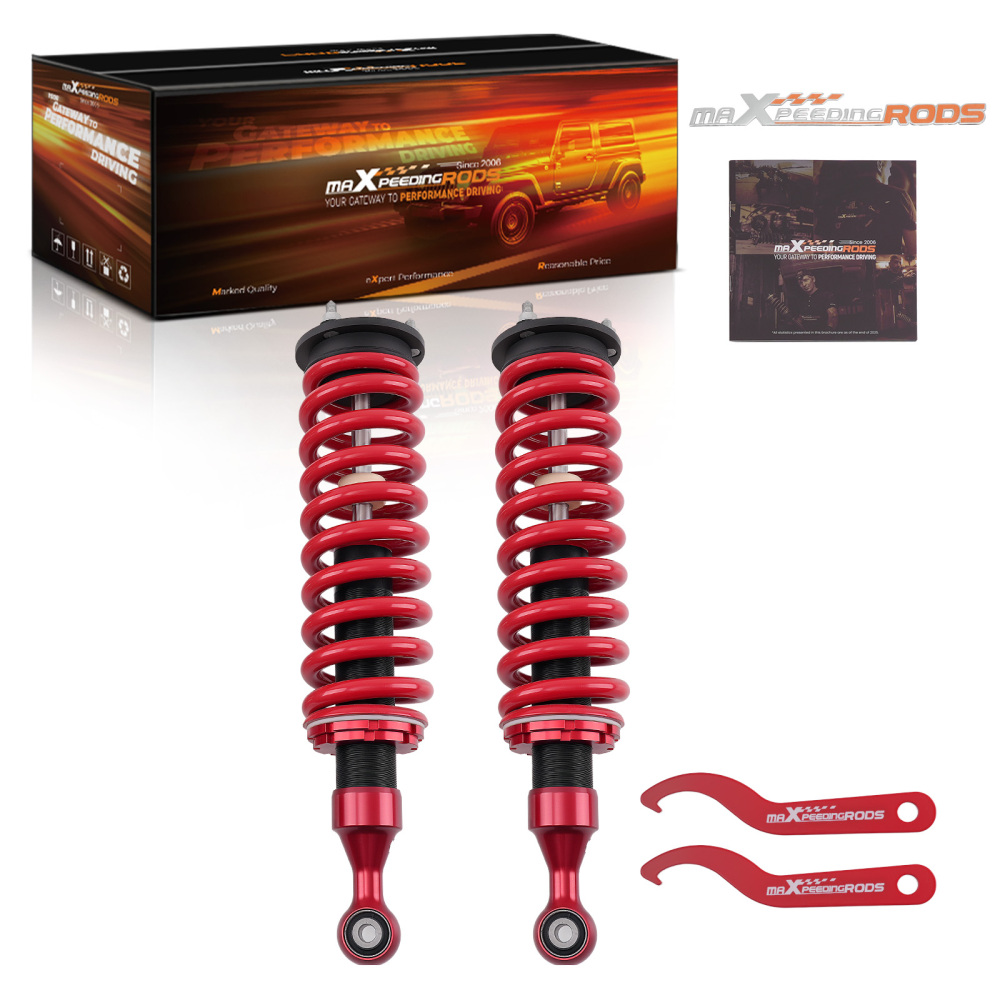

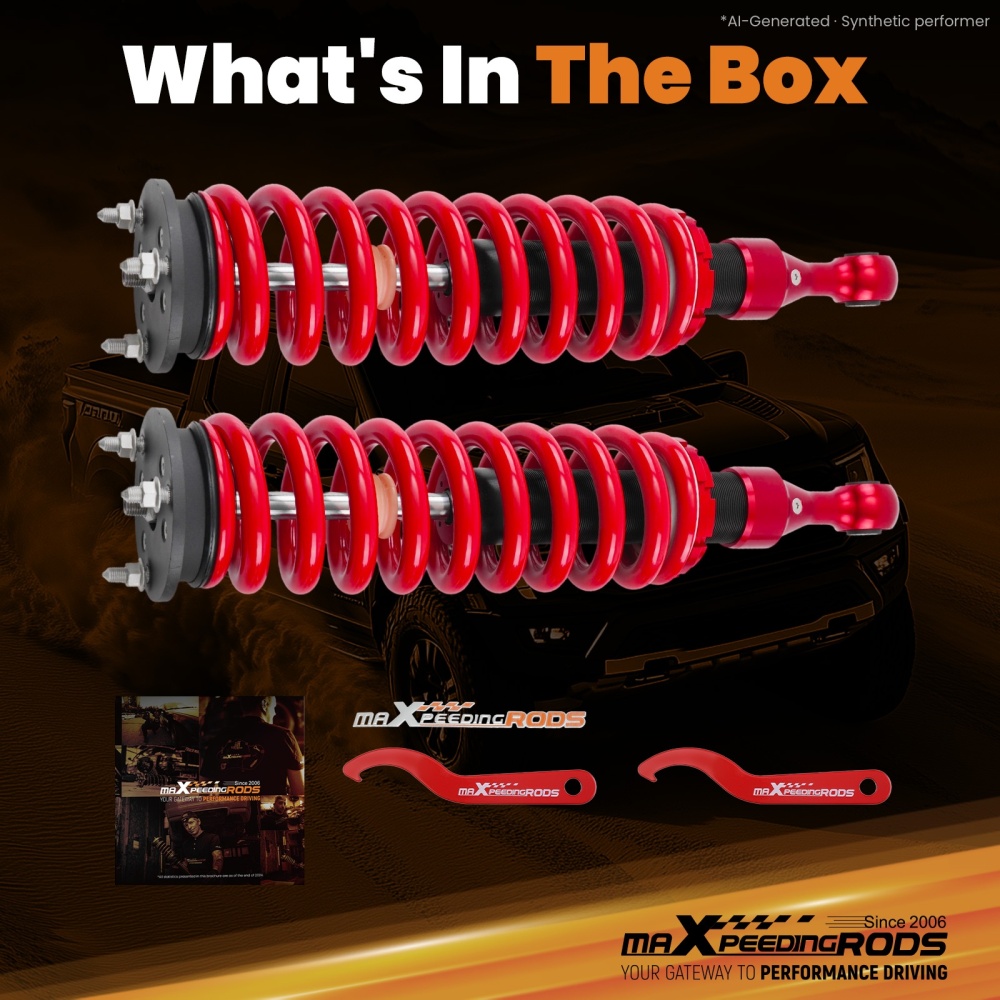

Package included

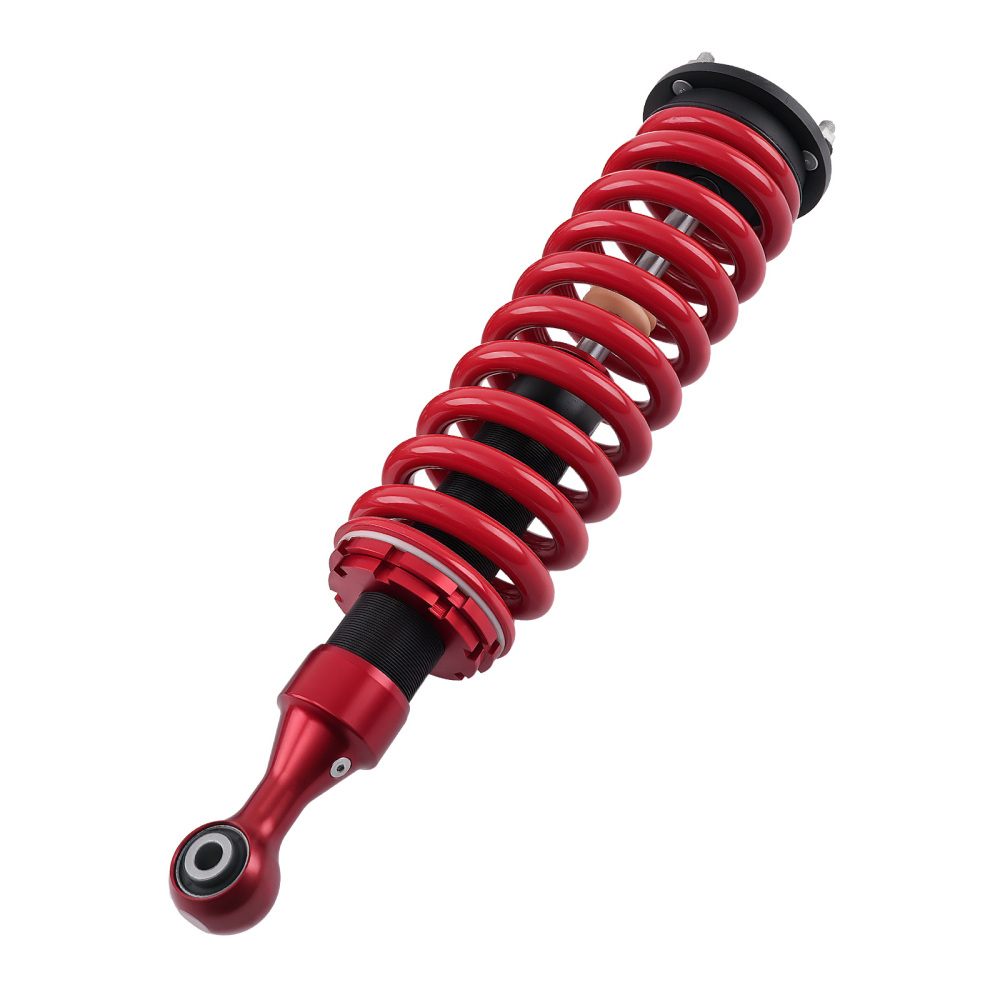

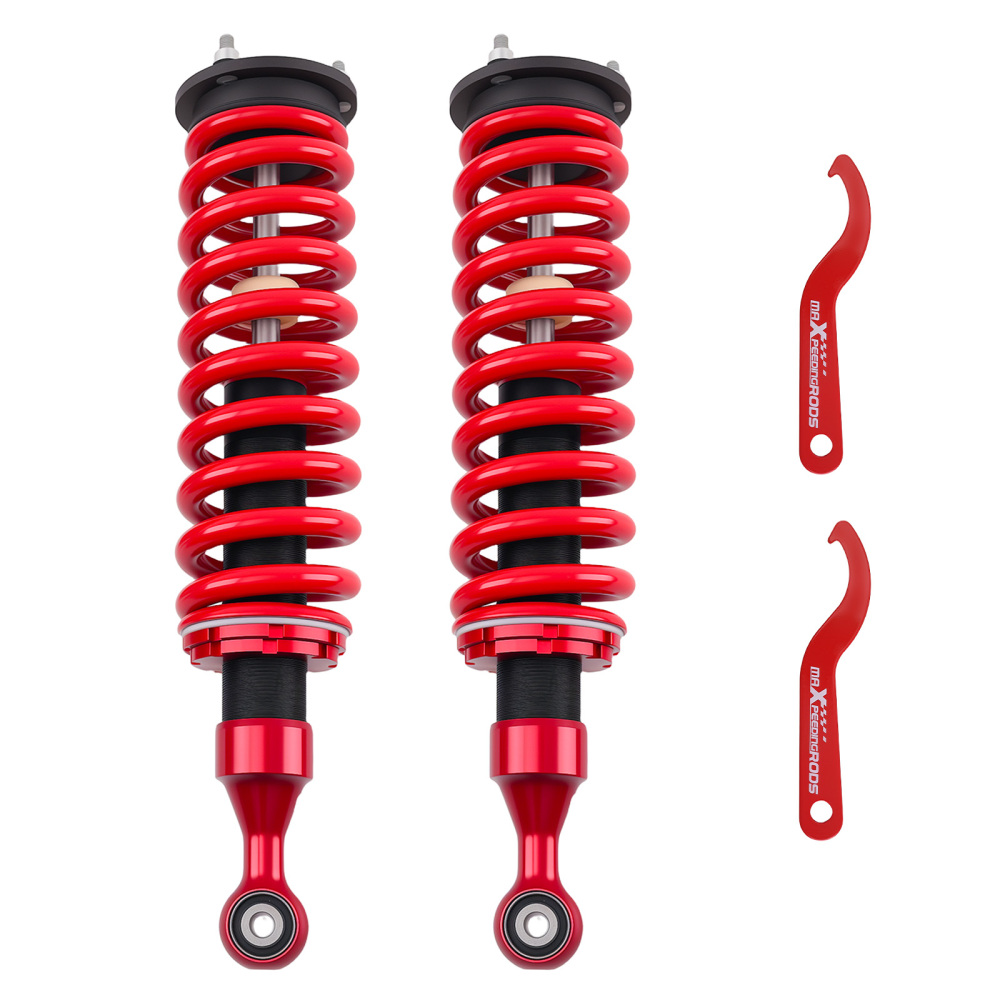

2x front height adjustable struts

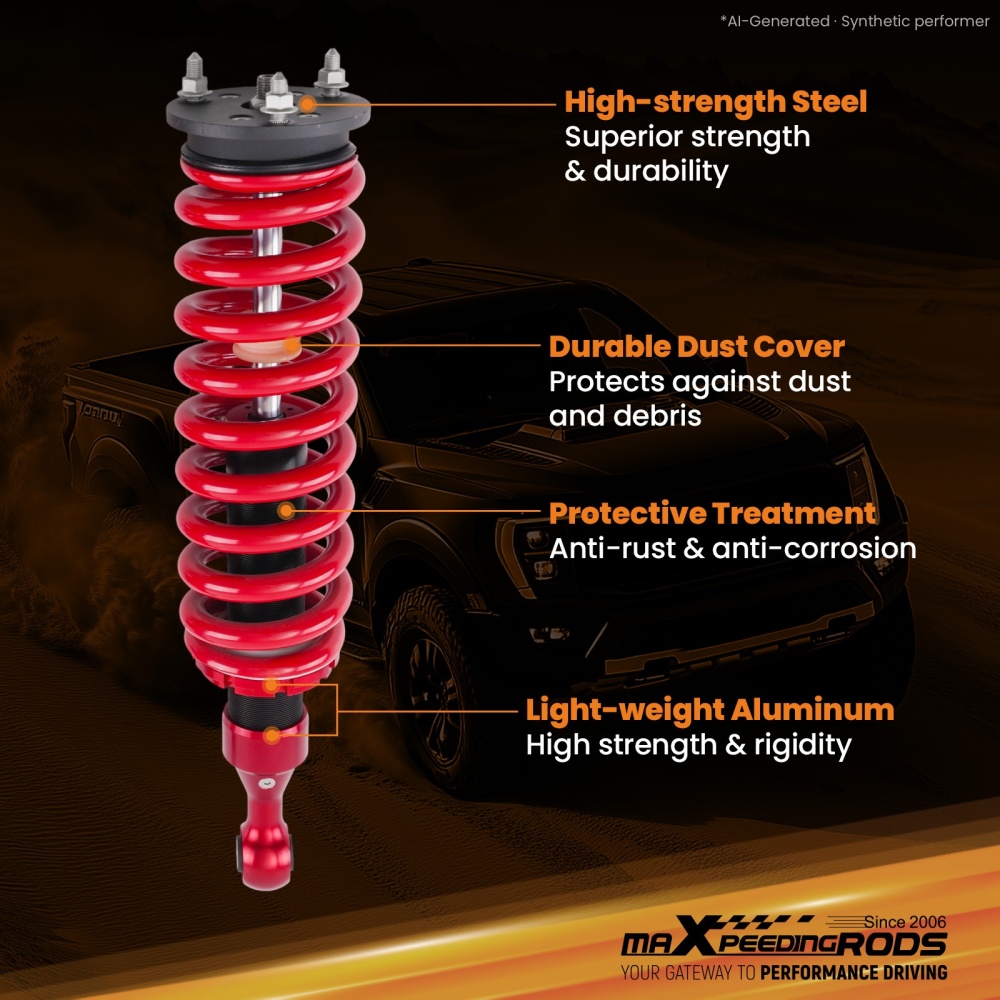

Feature

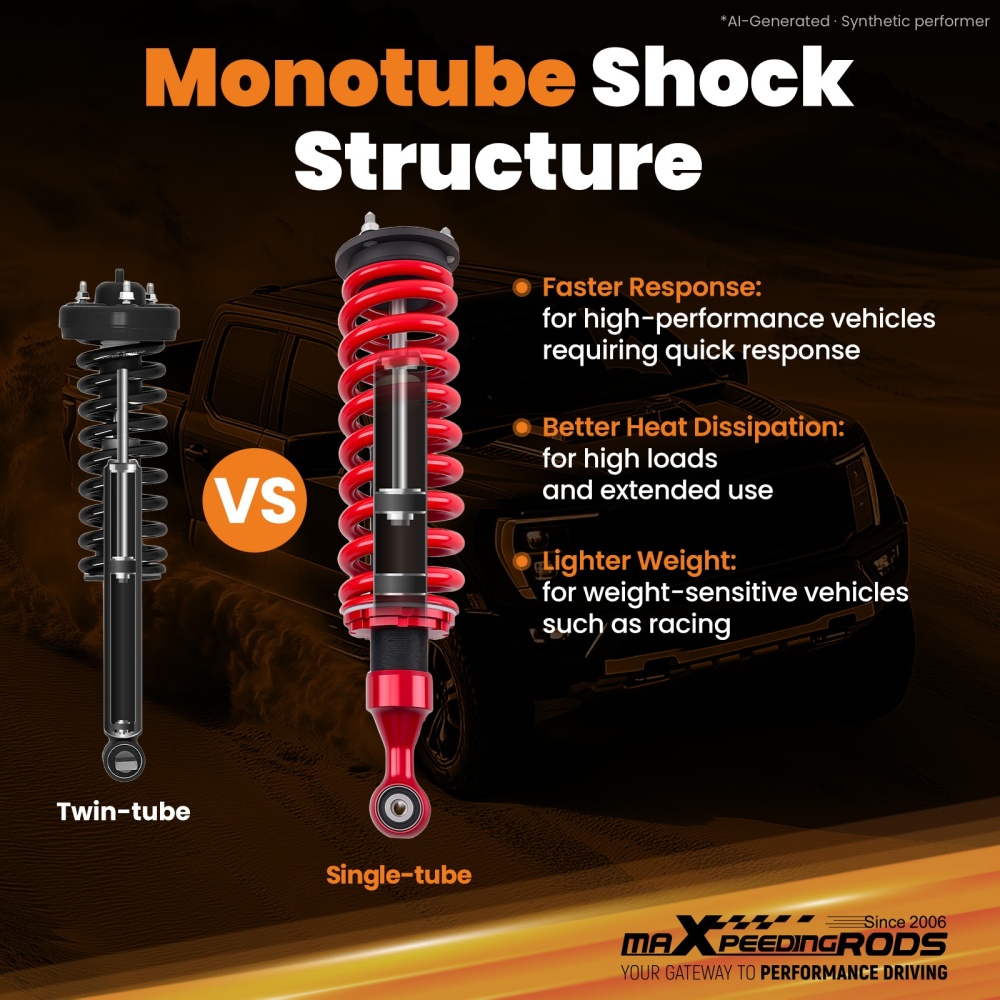

Monotube struts Improve Heat Dissipation, Enhance Responsiveness and Control, reduce Foam and Cavitation

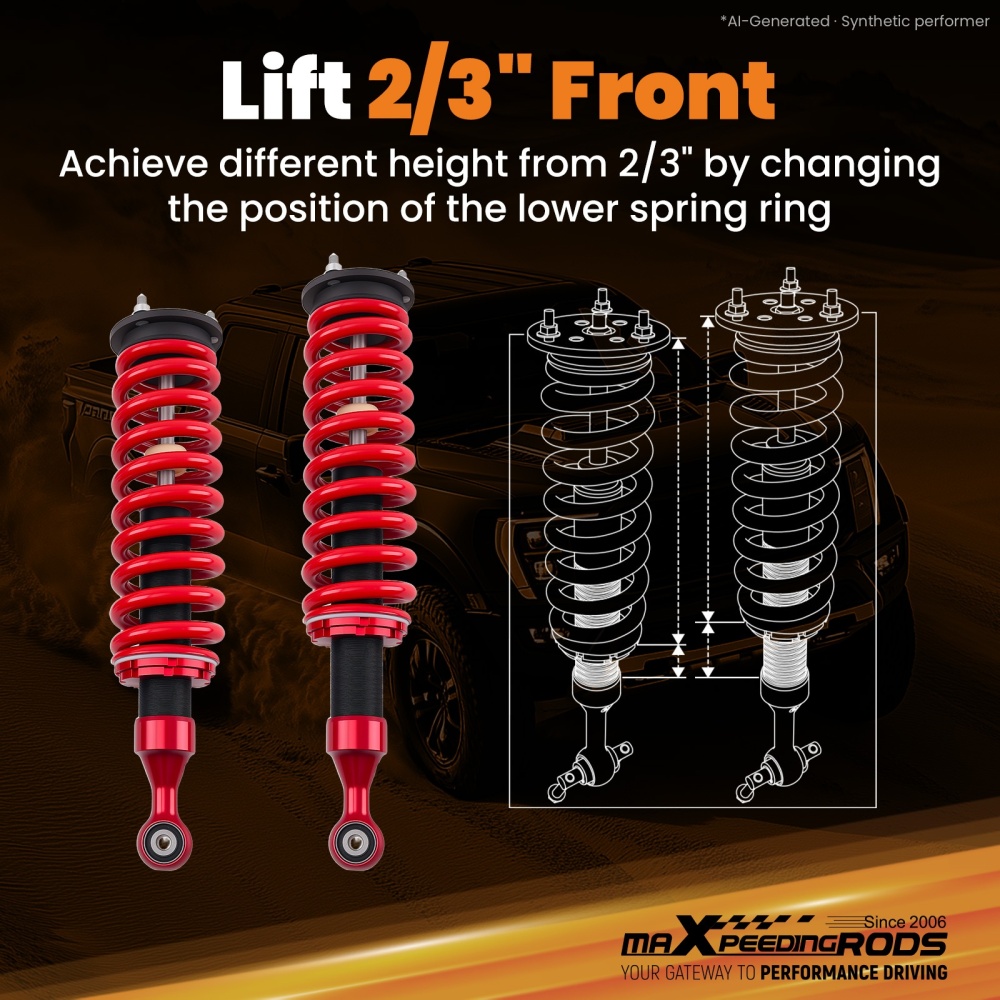

One product realizes different height options: 2/3" height adjustment by threaded bodies on strut.
Chromium-silicon cold-wound structure spring with high tensile strength and resilience
High quality shock oil and NOK seals ensure 100,000+ mile reliability even at 120°
Upgraded rubber bushings for better absorption and more durable.
Aluminum materail usage to reduce the weight.
Increased Ground Clearance – help your vehicle handle bumps and other obstacles on the road better.

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
