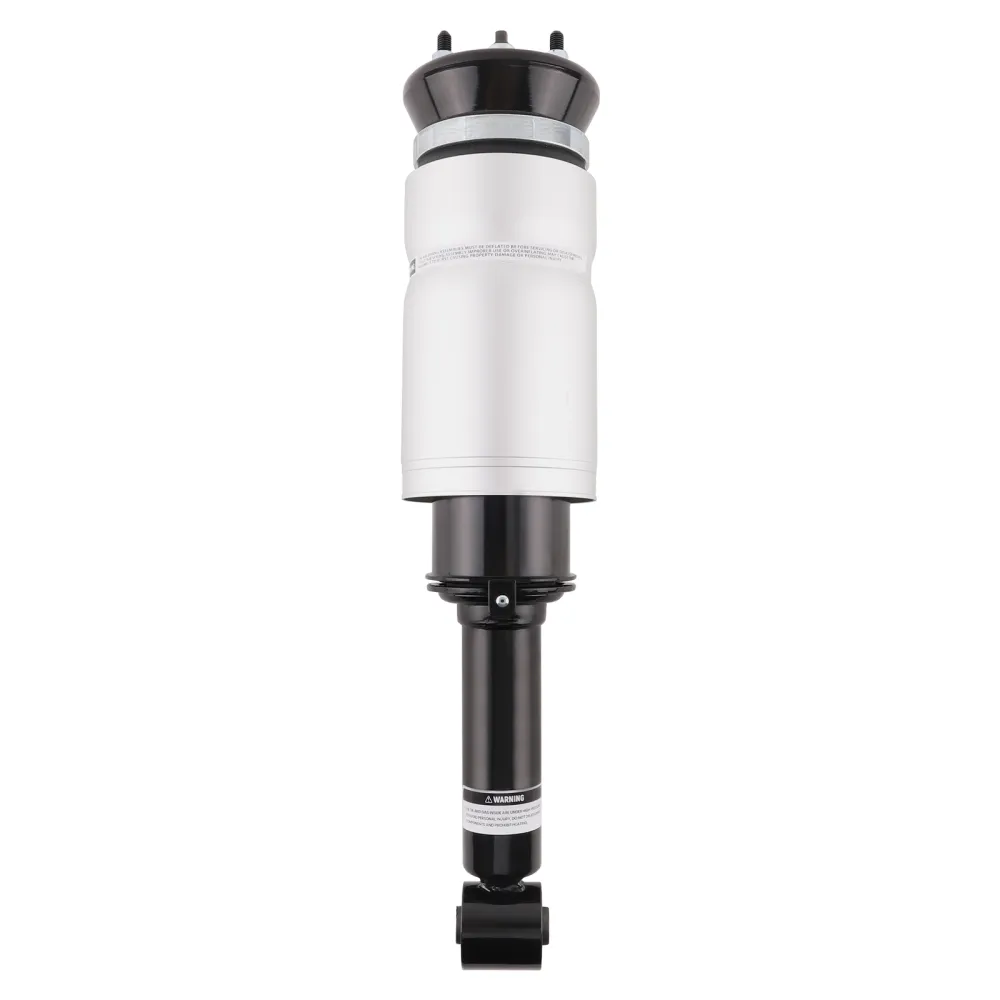

Compatible for Land Rover LR3 compatible for Discovery 3 Front Air Suspension Spring Strut Shock RNB501580

Application

2005 - 2009 compatible for Land Rover Discovery LR3 L319
2010 - 2014 compatible for Land Rover Discovery LR4 L319
2006 - 2014 compatible for Land Rover Range compatible for Rover Discovery Sport L320
(W/O ACE、W/O VDS )

Reference OE/OEM Number

LR013930, LR014194, LR016403,
LR016414, LR016415, LR016416,
LR016426,LR016427, LR018398,
LR032646 , LR034282 , LR034283,
LR034284 , LR041108, RNB501180，RNB501250,
RNB501460 , RNB501470,
RNB501480，RNB501580, RNB501590,
RNB501600 , RNB501610,
RNB501620, RNB000855 , RNB000856,
RNB000857 , RNB000858
Note: It is recommended to use the VIN to confirm the OE number.

Specification

Condition: New
Part Type: Air Suspension Strut
Fitment Type: Direct Replacement
Note:No VDS sensor
Quantity: 1 piece (for Front left or right side)
Warranty: one year warranty for any manufacture defect
Package Dimensions ：28*8.3*7.9inch
Weight [kg]:9.58kg
Maximum length: 650MM,
Compressed length: 85MM
Surface Finish: Rust Protected
Greasable or Sealed: Sealed
Adjustable: Yes
Operating Pressure (psi): ≤290 psi
Temperature range ≥-40℃ / ≤+70℃
Applicable Regions: Airmatic Suspension System

Feature

1. 100% Air Tightiness testing
2. 24 hours air tightness test ≤0.02MPa
3. Anti-corrosion and provide a more consistent wear surface
4. Built to strict quality control standards
5. CNC Machined Components
6. Designed for Comfort Suspension
7. Direct replacement for OEM strut without modification
8. Easy to install
9. Eliminating abnormal sound
10. Gives the driver more control of ride
11. Good heat dissipation
12. It has a high compressive strength and good sound insulation to ensure our driving comfort and safety
13. Restore the original ride height and improve ride quality
14. Test more than 3 million times
15. Sturdy & Durable Material

Notice

-These airsuspension are aftermarket ones. They will replace the original air shock. Please doubleconfim thecompatibilityas well as theOEM numberbefore purchasing.
-Instruction is not included. Professional installation is recommended
-Contact us please for whatever we can help
